- Hign-concerned Chemical: None
- Use: others
- Output Power(w): 10w-25w
- Battery Capacity(mAh): N/C
- Waterproof / Water-Resistant: No
- Battery Included: No
- Storage Channel: UV dual band:500CH GMRS:30CH
- Frequency Range: UV DUAL BAND or GMRS
- Dimensions: 124x101x36mm
- Model Number: Retevis RA25
- Walkie Talkie Type: Car
- Is_Display: Yes
- Maximum Range: 3km-5km
- Brand Name: RETEVIS
- Origin: Mainland China
- Certification: CE,FCC
- TX Power: Max.20W
- Frequency Range: UHF VHF Dual band or GMRS
- Channels: UV dual band:500CH or GMRS:30CH
- Color: Black
- Display: 1.44 inch TFT display
- Channel Spacing: 25K (Wide Band) 12.5K (Narrow band)
- Squelch: Carrier/CTCSS/DCS/5Tone/2Tone/DTMF
- Weight: 0.45kg (mian unit)
- Phase-locked Step: 2.5KHz,5KHz,6.25KHz,10KHz,12.5KHz,15KHz,20KHz,25KHz,30KHz,50KHz
- Compatible programming cable: C9161A
- Compatible Antenna Jack: SL16/PL259, such as MR100
|
|
|
|
|
|
|
|
|
Model |
RT73 |
RT95 |
RT99 |
RA25 |
|
Mode |
DMR Digital & Analog |
Analog |
Analog |
Analog |
|
Frequency |
VHF:136-174MHz & UHF:400-480MHz |
EU version: VHF :144-146MHz & UHF:430~440MHz orUS version VHF:144-148MHz & UHF: 430~440MHz |
VHF:136-174MHz & UHF:400-470MHz |
VHF:144-146MHz & UHF:430-440MHz Or TX: 462.5500-467.7250MHz RX:462.5500-462.7250MHz |
|
Band |
Dual Band |
Dual Band |
Dual Band |
Dual Band /GMRS |
|
Output Power |
5-20W |
25W / 15W / 5W |
VHF:L:25W /H:50W; UHF: |
UHF: ≤18W VHF: ≤20W GMRS:≤20W |
|
Channels |
4000 (250 CH / Zone) |
200 |
16*N groups( N≥1） |
UV:500 |
|
Rated Voltage |
13.8V DC ±15% |
13.8V DC ±15% |
13.8V DC ±15% |
13.8V DC±15% |
|
Antenna Connector |
SL16-J |
SL16-J |
SL16-J |
SL16-J |
|
Dimensions(WxHxD) |
121.5*65.5*42.5mm |
124*39*163mm |
160*115*40mm |
124x101x36mm |
|
Weight |
323g(main unit) |
640g |
840g(main unit) |
450g(main unit) |
|
Frequency Stability |
± 1.5ppm |
±2.5ppm |
±2.5ppm |
±2.5ppm |
|
Main features |
1:Digital & Analog mode combined, support Mixed receive andVFO; 2:1.77 inch TFT LCD display(Diagonal length); 3:Built-in GPS; 4:Mini,high power; 5:PC software and microphone programmable 6.20000 call groups.200,000+contacts(complete worldwide database from DMR-MARC). 7.Single call,group call and all call |
1:Dual Display /Dual Watch; 2:180 degree rotatable TFT LCD display; 4:DTMF/5 Tone  /CTCSS/DCS Scan/Squelch; 5:VFONumeric keyboard Programming and PC Programmin; 6:LCD brightless control 8:Can be extended to 136-174MHz and 400-490MHz |
1:Support network: 2G, 3G, 4G, 5G, WiFi,CDMA,GSM, etc. 2:Full function mobile app operation; 3:Full function mobile app operation, no need for professional frequency writing; 4:Fast automatic team building; 5:Network relay function;. 6.No need to insert card, free forever, and can also realize the function of public interphone; |
1:VFO/Channel mode switch; 2: 1.44 Inch TFT display; 3:UV dual band 500channels, GMRS 30 Channels, identified by editing name; 4:Amateur and professional mode optional(only available in UV Dual band) 5:CTCSS, DCS, DTMF, 2Tone, 5Tone setting for each single channel; 6:Tone Pulse frequency; 7:Compander function; |

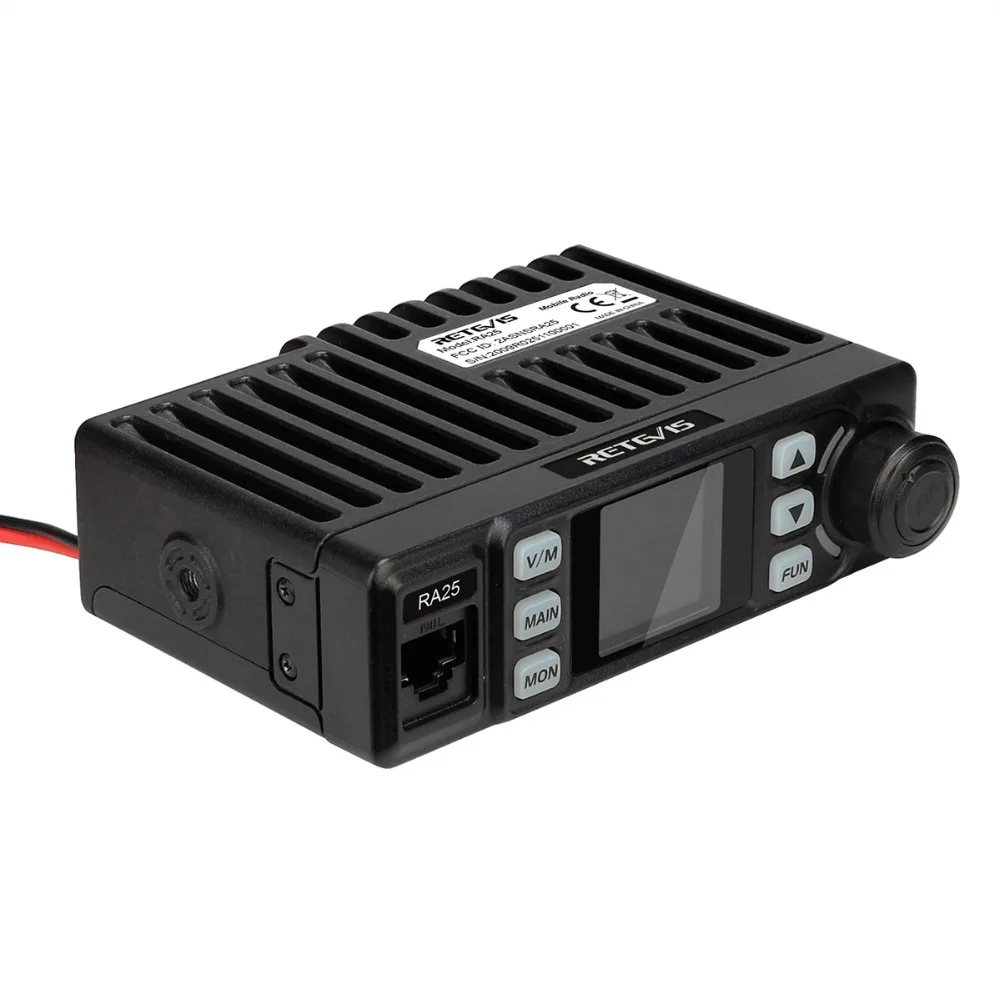

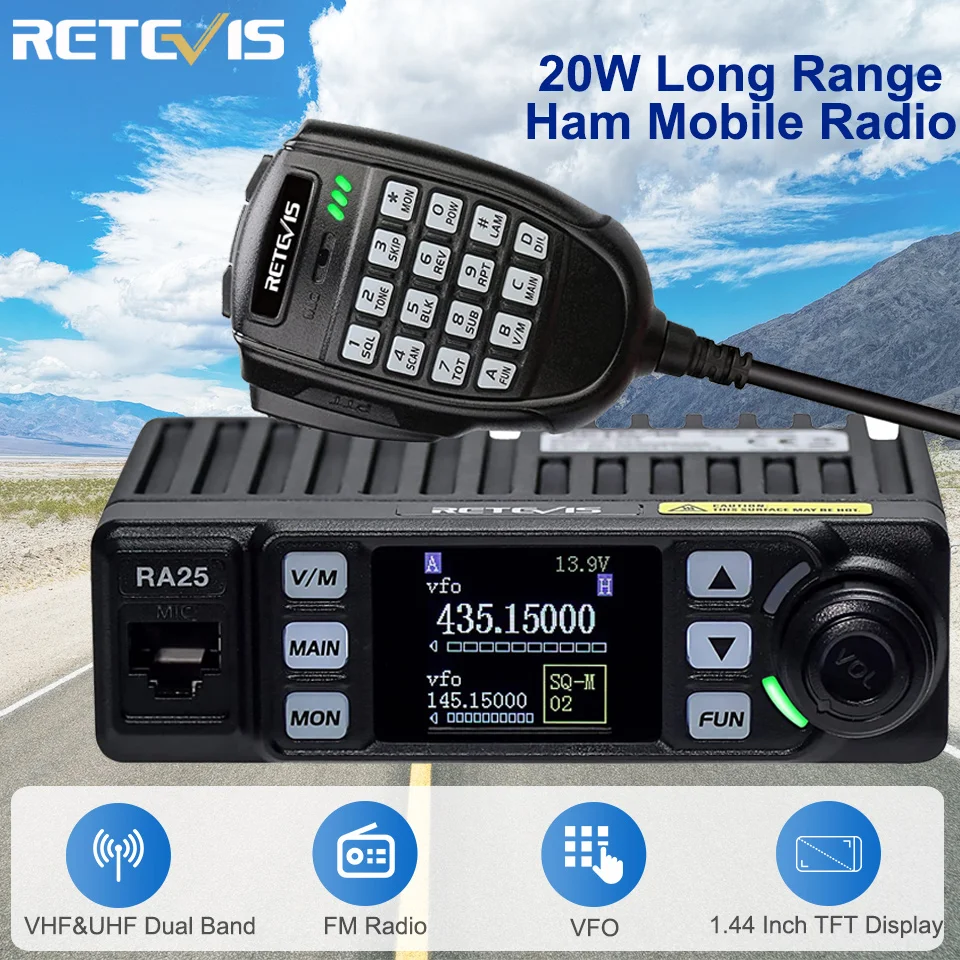

Retevis RA25 Car Mobile Radio UV Dual Band/GMRS TFT Display 20W Walkie Talkie for Car 500/30CH Car Two-way Radio Amateur Truck
Attention Please Before Order:
1.The car mobile radio has two frequency options:
Any question,please consult customer service staff.
UV dual band (VHF:144-146MHz ,UHF:430-440MHz ,FM: 86.7-108MHz,support 500 programmable memory channels) or
GMRS (TX: 462.5500-467.7250MHz ,RX:462.5500-462.7250MHz ,FM:86.7-108MHz,support 30 programmable memory channels).
Amateur and Professional optional modes only available in UV dual band version!
Tips:
Â
Click the picture below to download the driver of USB programming cable,programming software and firmware. Any questions, please be free to contact us.

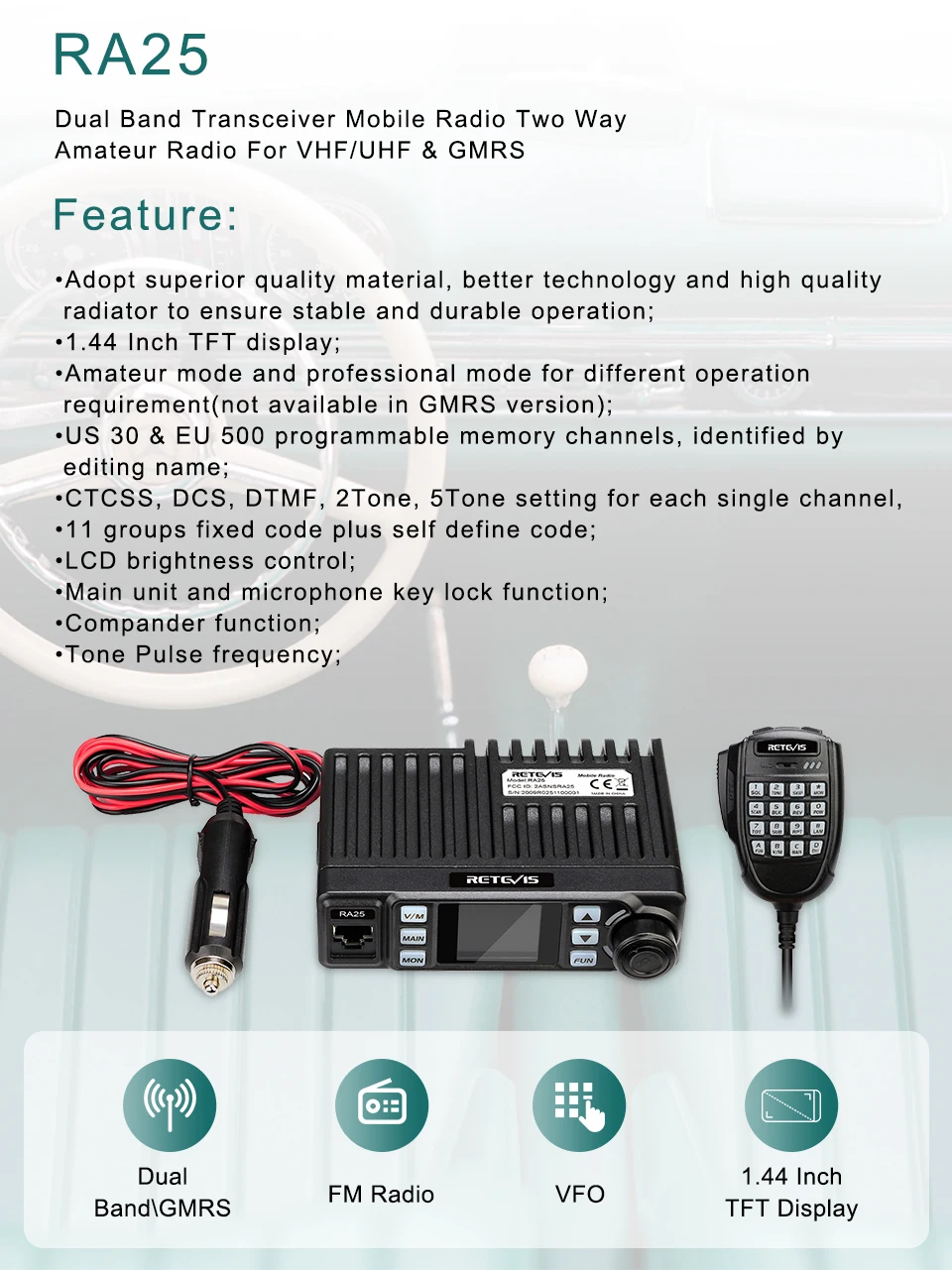

Feature：
1. Adopt superior quality material, better technology and high quality radiator to ensure stable and durable operation;
2. 1.44 Inch TFT display;
3. 500(UV dual band) / 30(GMRS) programmable memory channels, identified by editing name;
4. CTCSS, DCS, DTMF, 2Tone, 5Tone setting for each single channel,
5. 11 groups fixed scrambler code plus self define scrambler code;
6. LCD brightness control;
7. Main unit and microphone key lock function;
8. Compander function;
9. Tone Pulse frequency;
Specifications:
|
GENERAL
|
||
|
Frequency Range
|
UV Dual Band:
VHF:144-146MHz，UHF:430-440MHz，FM: 86.7-108MHz
GMRS:
TX: 462.5500-467.7250MHz  RX:462.5500-462.7250MHz，FM:86.7-108MHz
|
|
|
Number of Channels
|
UV Dual Band:
500 channels
GMRS:
30 channels
|
|
|
Channel Spacing
|
25K (Wide Band) 12.5K (Narrow band)
|
|
|
Phase-locked Step
|
2.5KHz,5KHz,6.25KHz,10KHz,12.5KHz,15KHz,20KHz,25KHz,30KHz,50KHz
|
|
|
Operating Voltage
|
DC 13.8V±15% (Standard version)
|
|
|
Squelch
|
Carrier/CTCSS/DCS/5Tone/2Tone/DTMF
|
|
|
Frequency Stability
|
±2.5ppm
|
|
|
Operating Temperature
|
-20℃~+60℃
|
|
|
Dimensions(mm)
|
124x101x36m
|
|
|
Weight
|
0.45kg (mian unit)
|
|
|
RECEIVER
|
||
|
Wide band
|
Narrow band≤0.25μV
|
|
|
Sensitivity (12dB Sinad)
|
≤0.25µV
|
≤0.35μV
|
|
Adjacent Channel Selectivity
|
≥70dB
|
≥60dB
|
|
Audio Response
|
+1~-3dB(0.3~3KHz)
|
+1~-3dB(0.3~2.55KHz)
|
|
Hum & Noise
|
≥45dB
|
≥40dB
|
|
Audio distortion
|
<3%
|
|
|
Audio power output
|
> 2W@10%
|
|
|
TRANSMITTER
|
||
|
Wide band
|
Narrow band
|
|
|
Power Output
|
UHF: ≤18W
|
VHF: ≤20W
|
|
Modulation
|
16KΦF3E
|
11KΦF3E
|
|
Adjacent Channel Power
|
≥70dB
|
≥60dB
|
|
Hum & Noise
|
≥40dB
|
≥36dB
|
|
Spurious Emission
|
≥60dB
|
≥60dB
|
|
Audio Response
|
+1~-3dB(0.3~3KHz)
|
+1~-3dB(0.3~2.55KHz)
|
|
Audio Distortion
|
≤5%
|
|

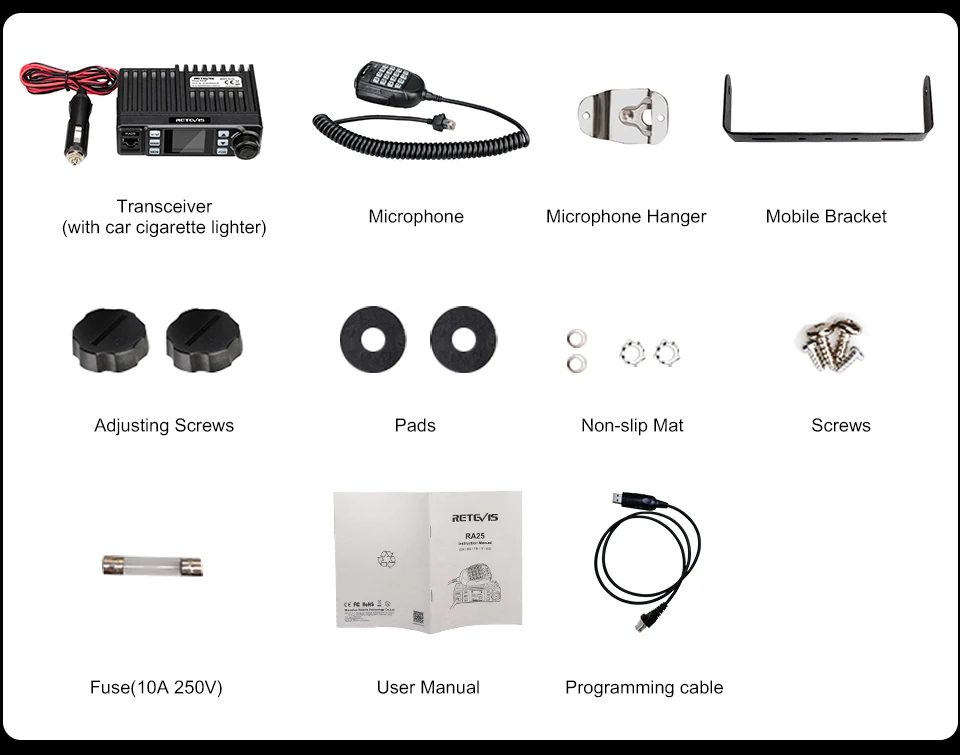

Package includes：
1 x Mobile radio

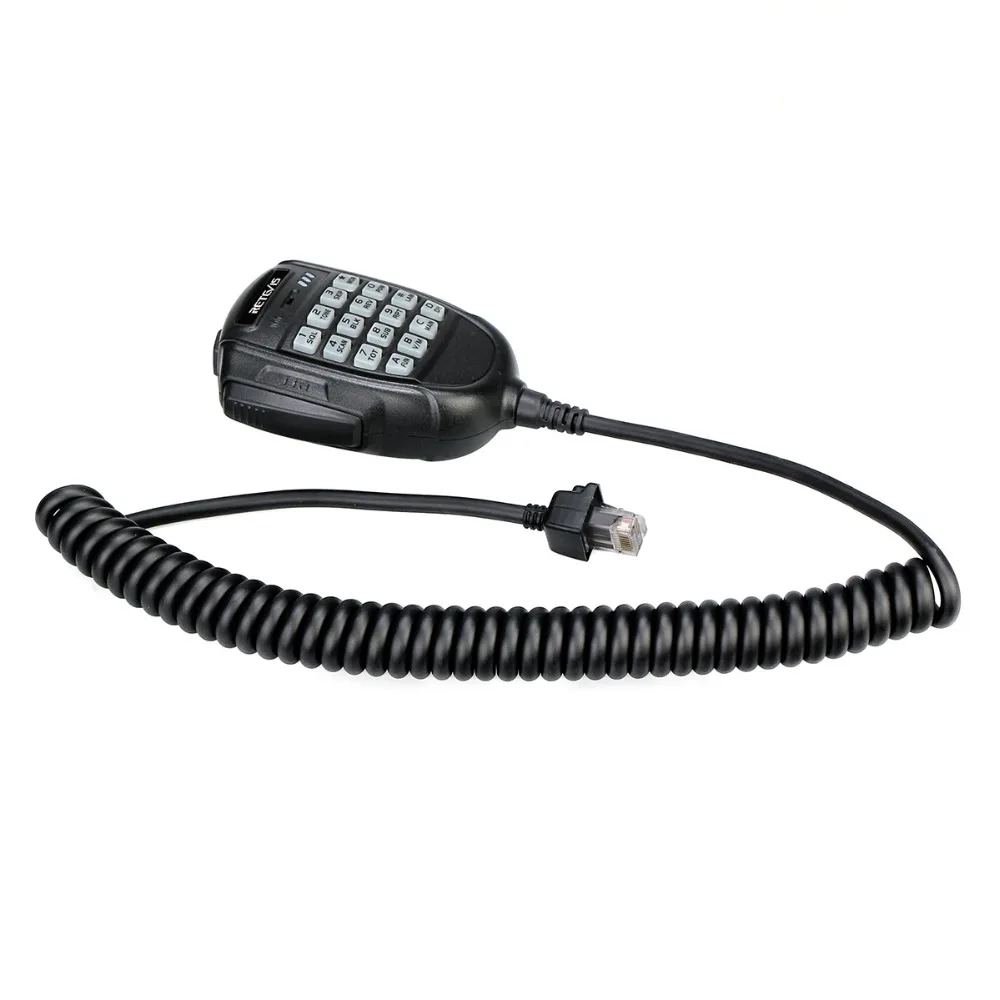

1 x Microphone
1 x microphone Hanger
2 x Adjusting screws
4 x Pads
4 x Screws
1 x Fuse
1 x Mobile Bracket
2 x non-slip mat
1 x User manual
1 x Programming cable

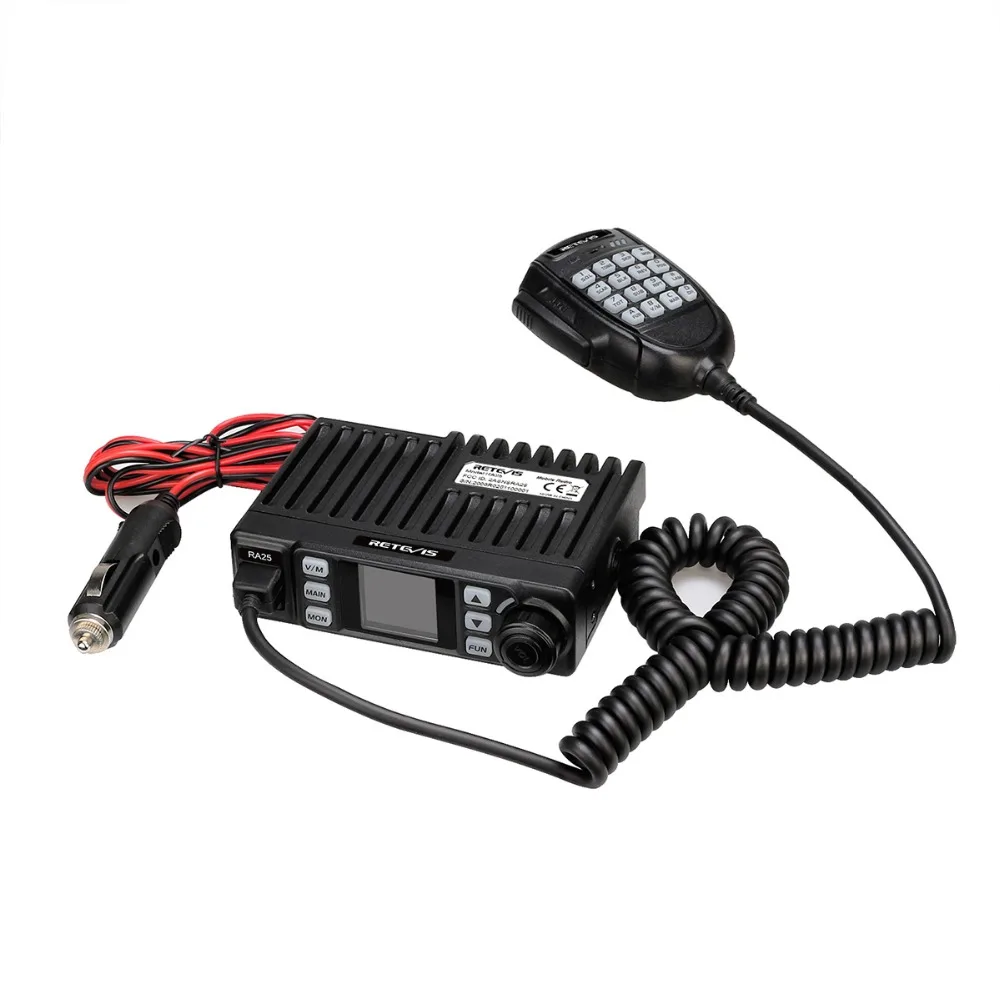

Brand New RA25 Mobile Radio,  Debut Appearance
Retevis RA25 Mobile Radio has nice housing, stoutness & stability, advanced and reliable functions, perfect & valuable. This amateur mobile radio especially designs for drivers and it pursues philosophy of innovation and practicality.
UHF VHF Dual Band or GMRS for Option

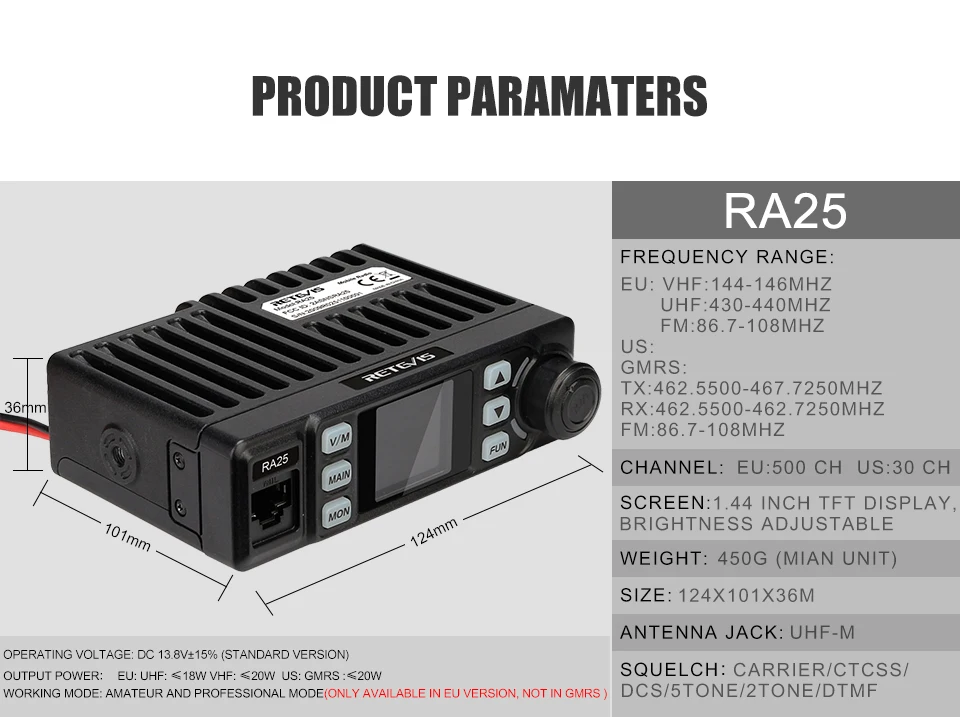

Major Parameters

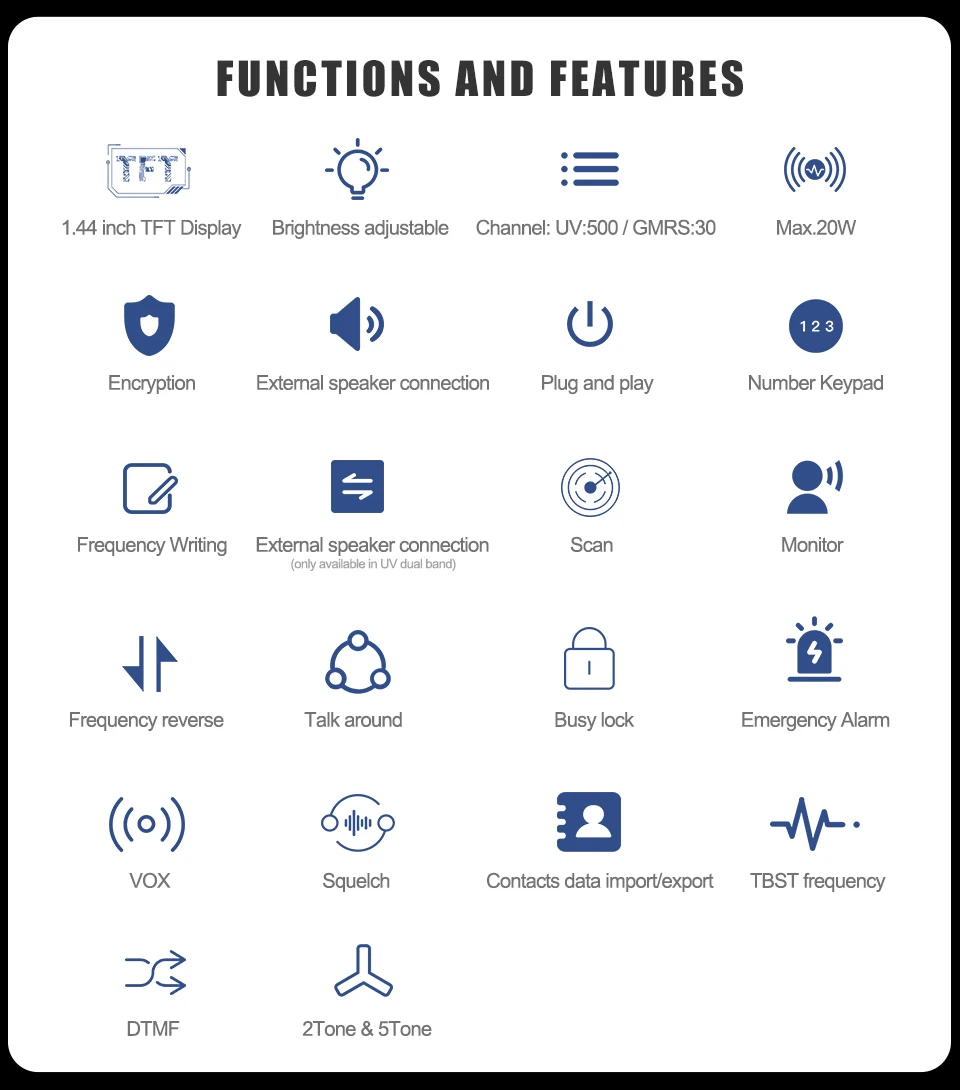

Necessary Functions and Features to Know

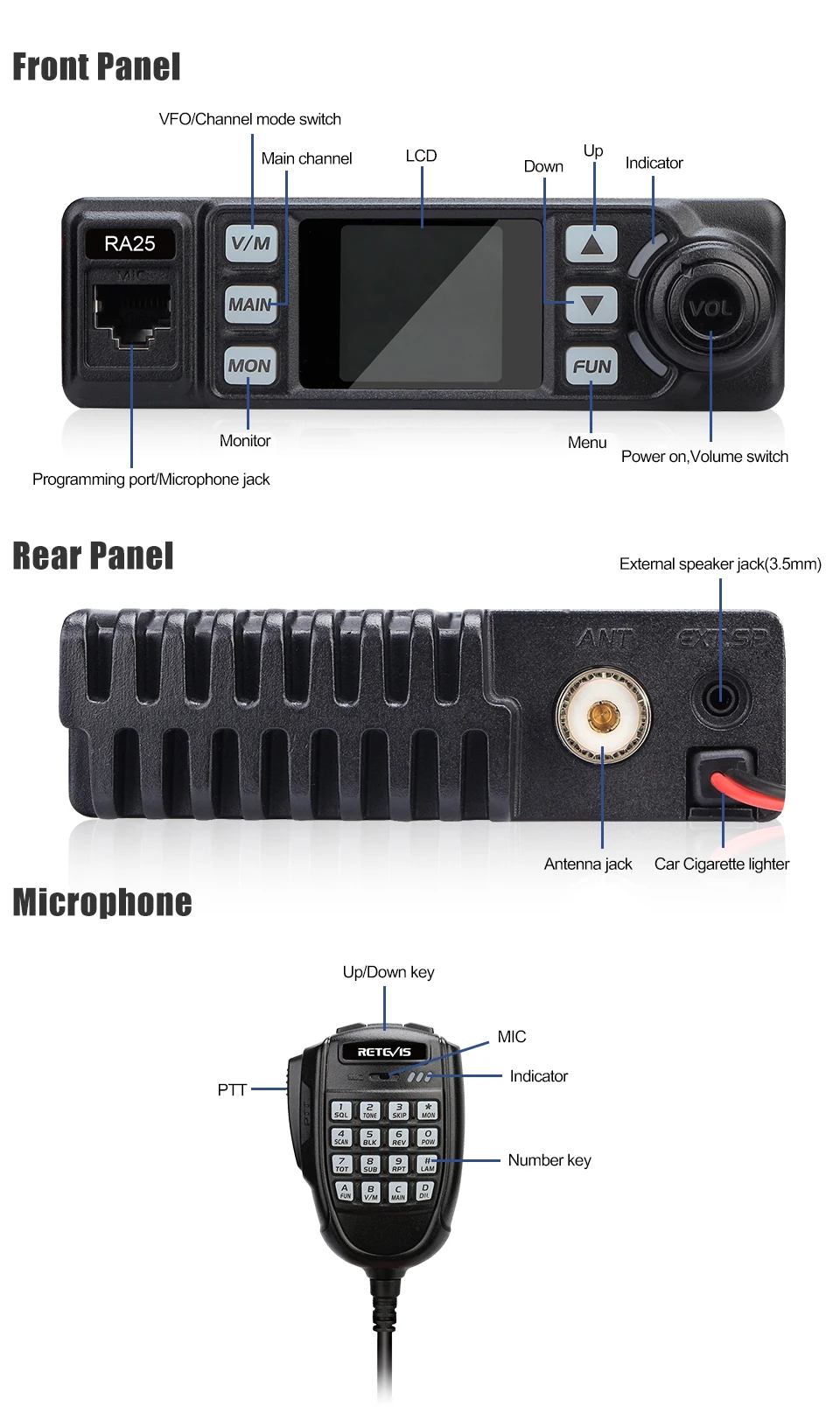

Structure introduction
Why to Choose RA25?
–Eight Reasons.

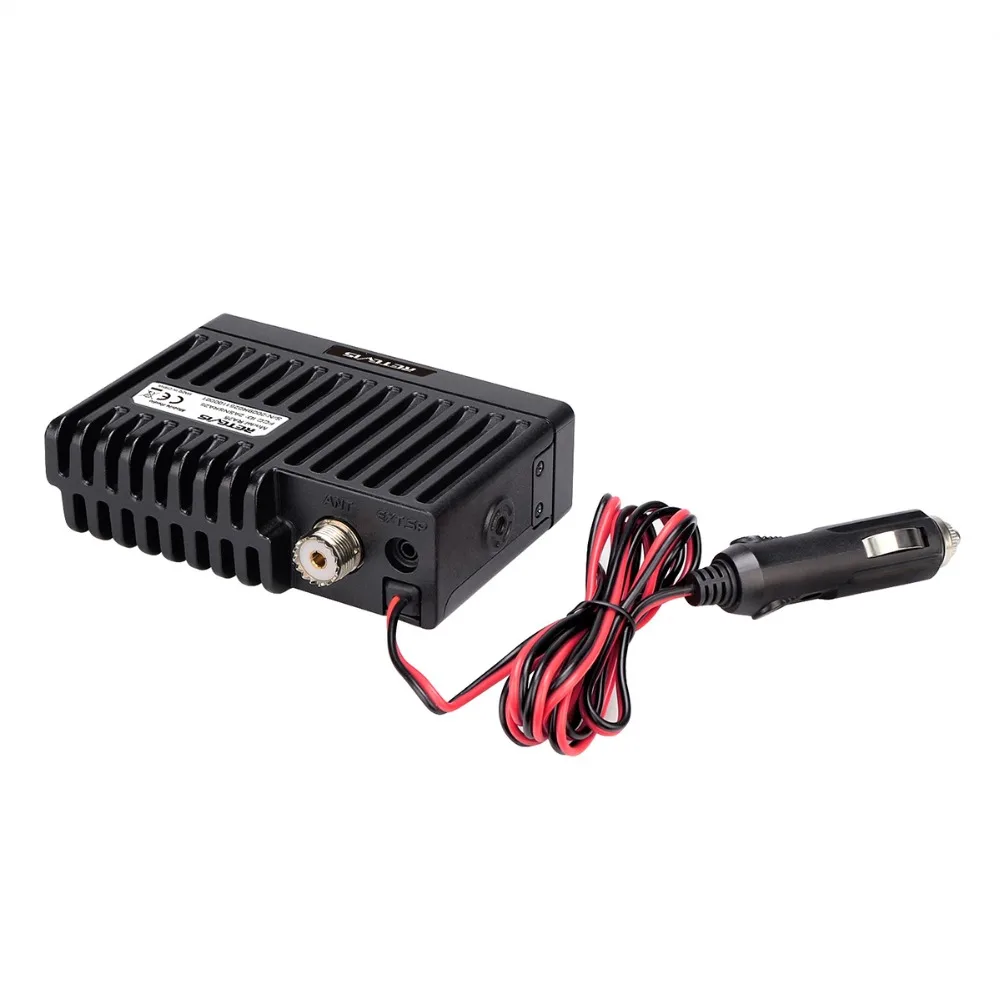

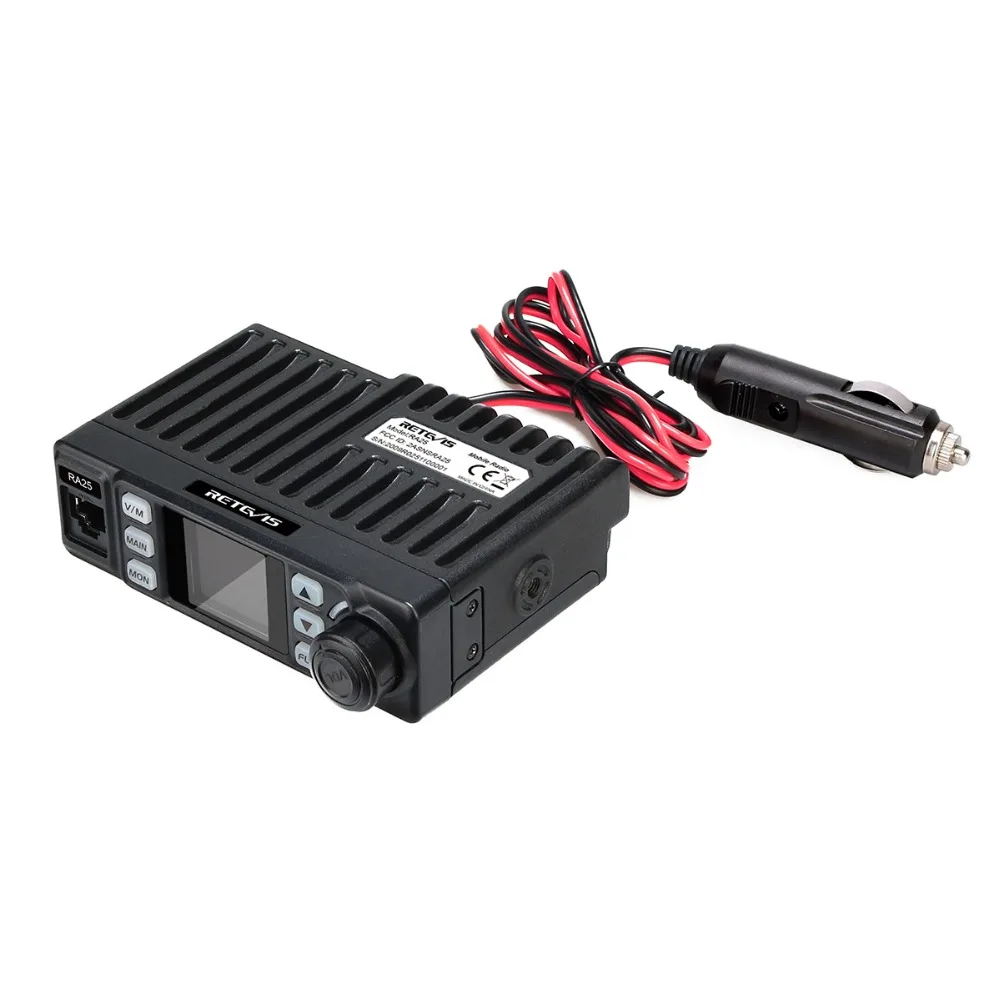

Plug and Play,No Worry for Matching Power Supply

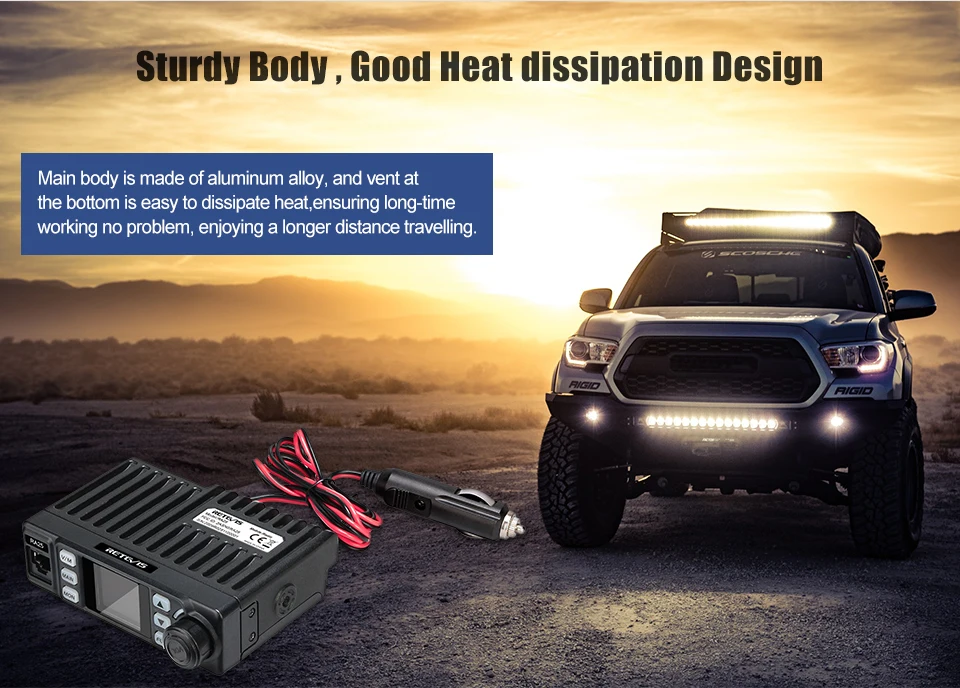

Strong and Sturdy, Accompany All the way
Lightweight and Micro-sized Body,Be in Single Hand

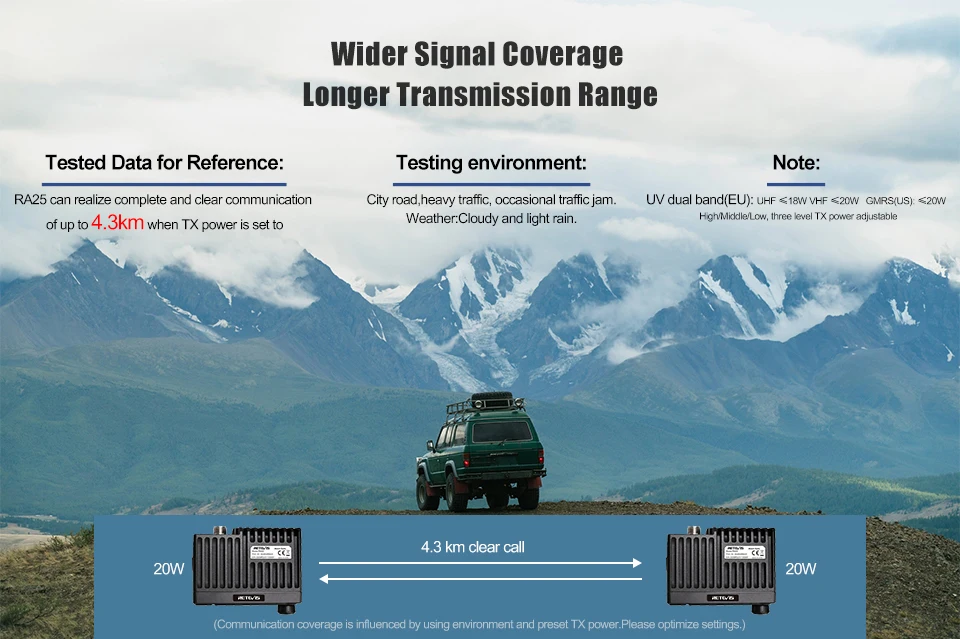

High Power, Reach Wider Signal Coverage
Advanced Squelch Technology, More Clear Vocal Transmission

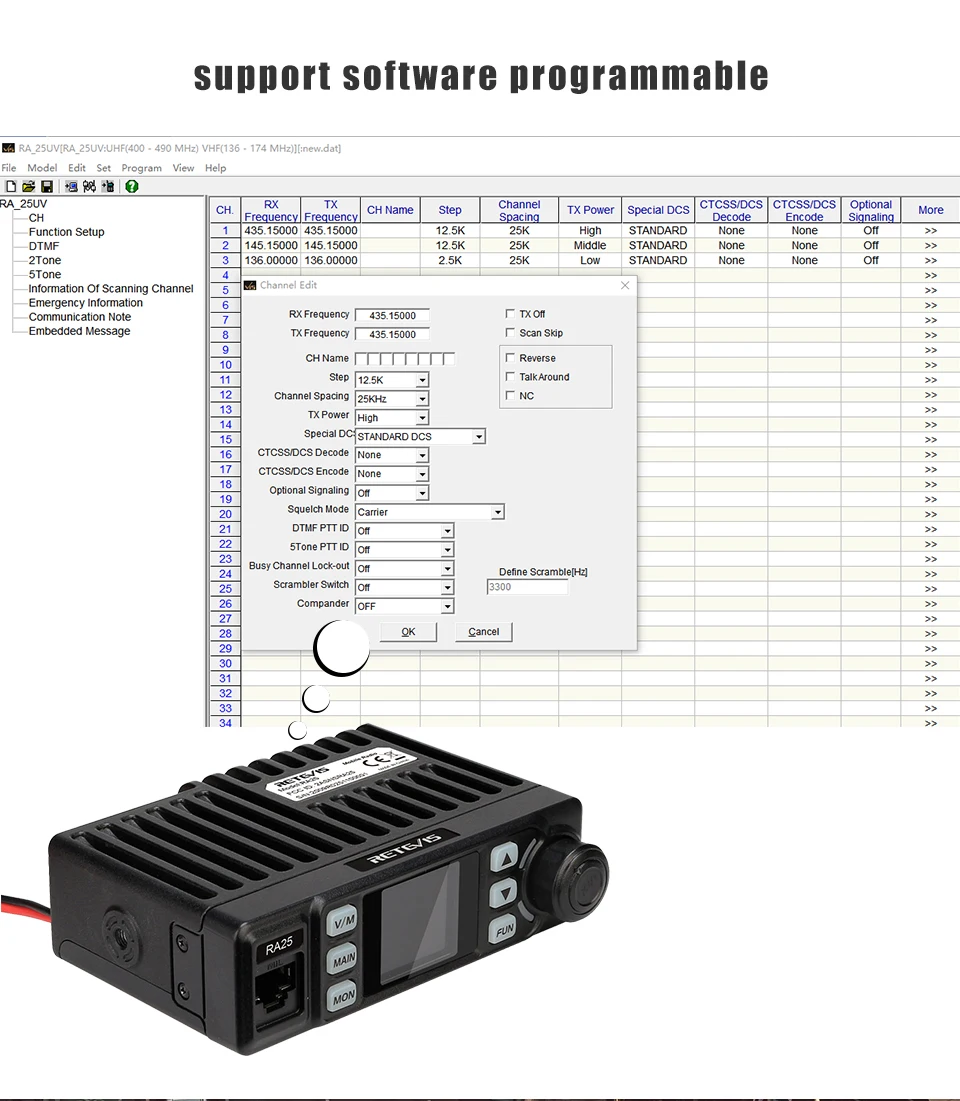

PC Programming Plus Hand Mic Editing,More Convenient and Fast
Give Yourself A Better Car Walkie Talkie
FAQ:Â
1. Q: Can the RA25 of GMRS frequency version be extended to the
UHF & VHF frequency by software?
Â
A: Yes. GMRS frequency version can be extended to UHF & VHF.
If you need this software and guide, please contact us after you receive package.
Â
2.About RA25(A9198A), European version,UHF & VHF dual band
In menu options, option 1- 16 can’t be used, but option 17-30 can be used, then you need to extend its frequency to solve this problem, and there are no restrictions in amateur mode and full-band mode.
Â
A: 1. hold V/M when ppower radio to enter band selection, you will see the working band and firmware version.
2. use up/down key to choose band Europe（MODE:136-174 400-470/144-148 420-450/136-174 400-438/144-148 430-440/144-146 430-440/136-174 430-440/144-146 400-490/136-174 400-490)
3. repower the radio.
Â
You can manually expand the frequency, or through software; if you cannot manually expand the frequency, use the frequency expansion software to check the frequency band setting, the factory default is checked
If you need this software and guide, please contact us after you receive package.
Â
3.About RA25(A9198B),US version, GMRS frequency
The factory settings are as follows: the frequency cannot be changed, click for more – sub-audio can be changed
A:If you want to change the frequency, you need to use the spread spectrum software to extend its frequency into the UHF and VHF full band, and then read the frequency to change the frequency and power.
If you need this software and guide, please contact us after you receive package.
Â
|
