- Hign-concerned Chemical: None
- Waterproof / Water-Resistant: IP67
- Battery Included: No
- Frequency Range: 65-108mhz

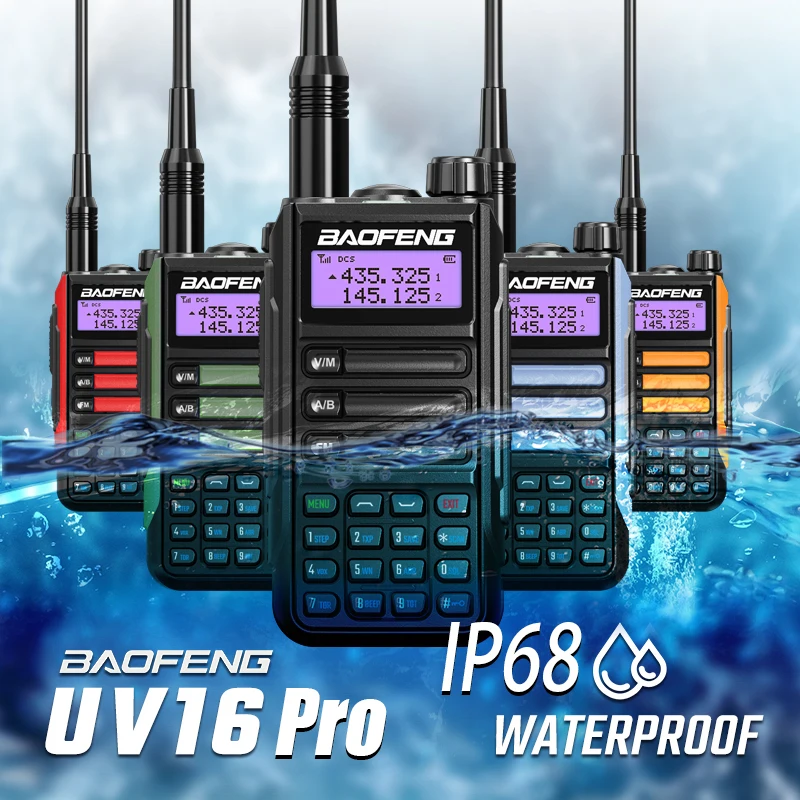

- Model Number: UV16
- Walkie Talkie Type: Repeater
- Is_Display: Yes
- Maximum Range: 3km-5km
- Brand Name: TTAKA7
- Origin: Mainland China
• Maximum Range of 3km-5km :Stay connected with a maximum range of 3km-5km, allowing you to communicate effectively in remote areas.

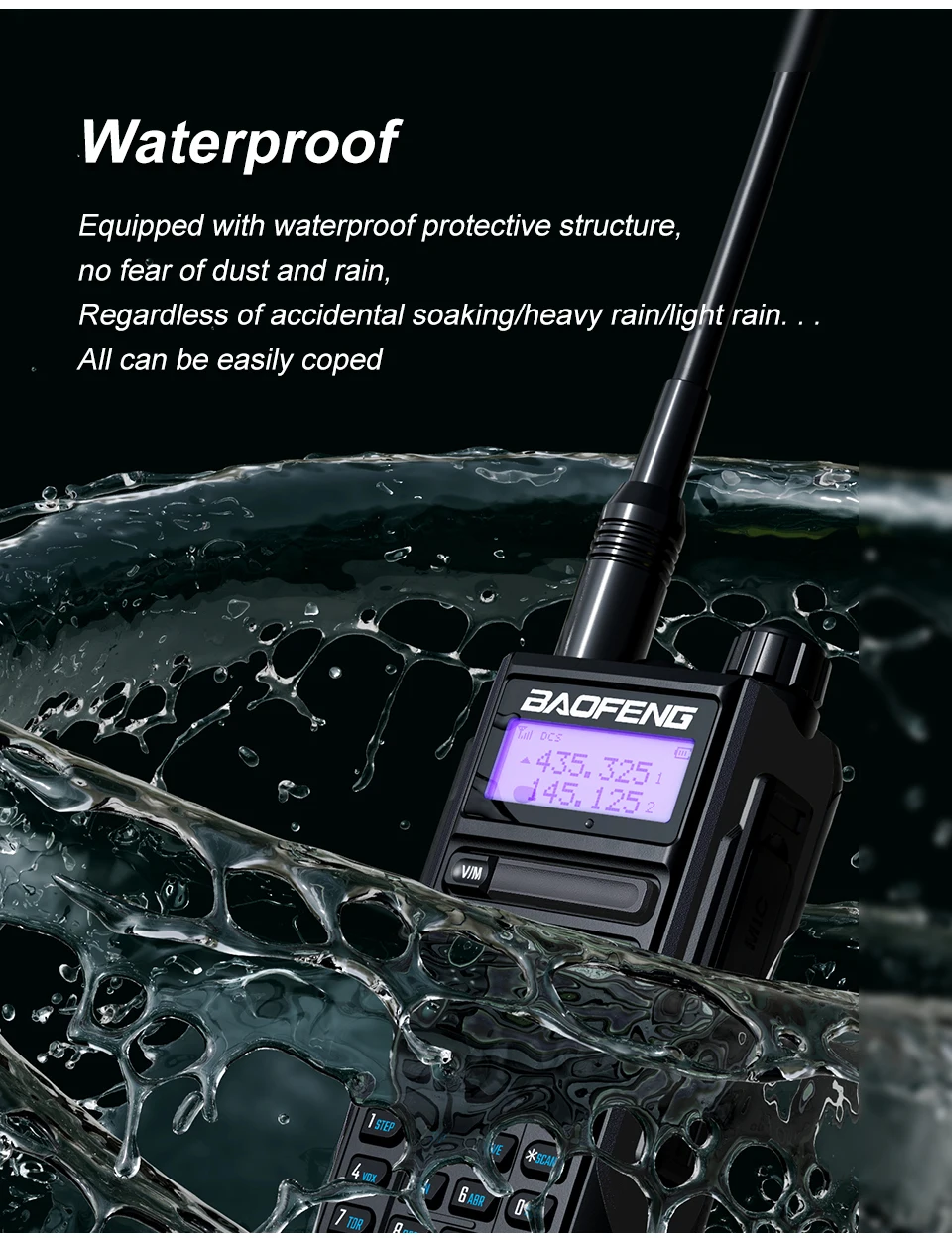

• IP67 Waterproof/Water-Resistant :The walkie talkie is waterproof/water-resistant with an IP67 rating, making it suitable for use in all weather conditions.
• Repeater Walkie Talkie Type :The repeater walkie talkie type ensures that your signal is amplified, providing clear and stable communication.
• 5w-10w Output Power :With an output power of 5w-10w, you can communicate effectively over long distances and through obstacles.
|
Function |
|

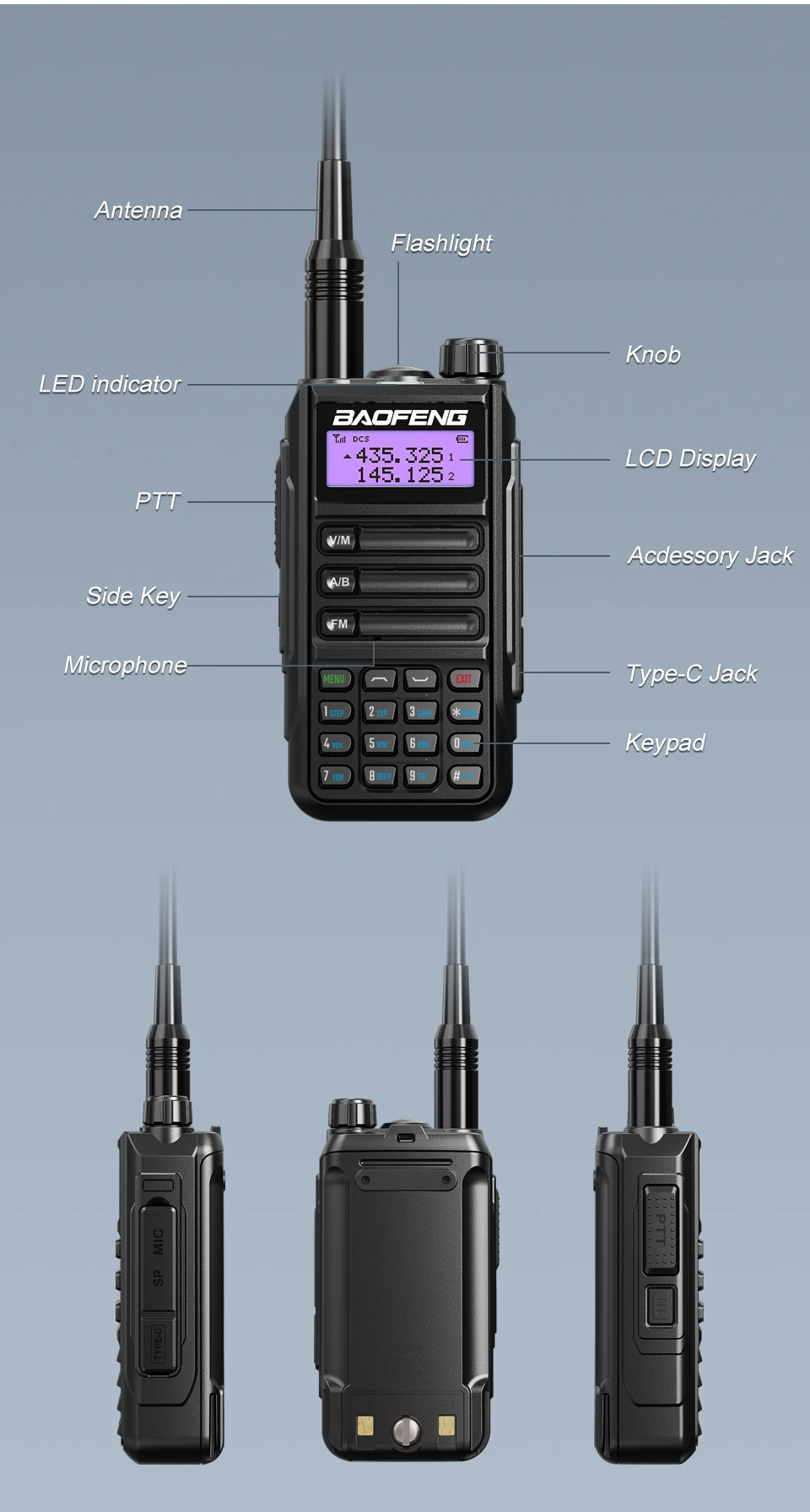

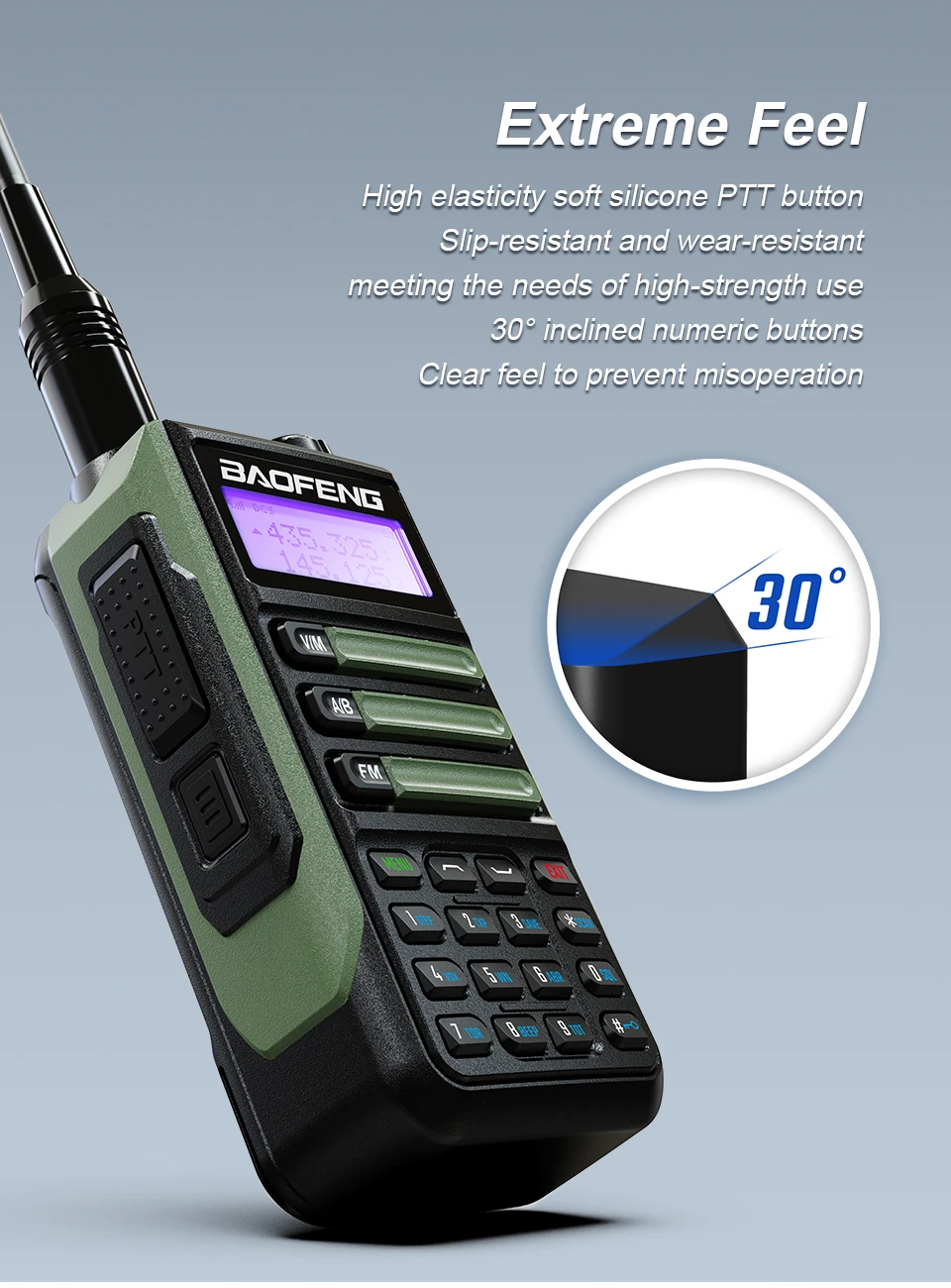

●Large screen, full keyboard, fully open menu operation |
|
●Combining voice prompts with screen display to break free from the constraints of frequency writing software |
|

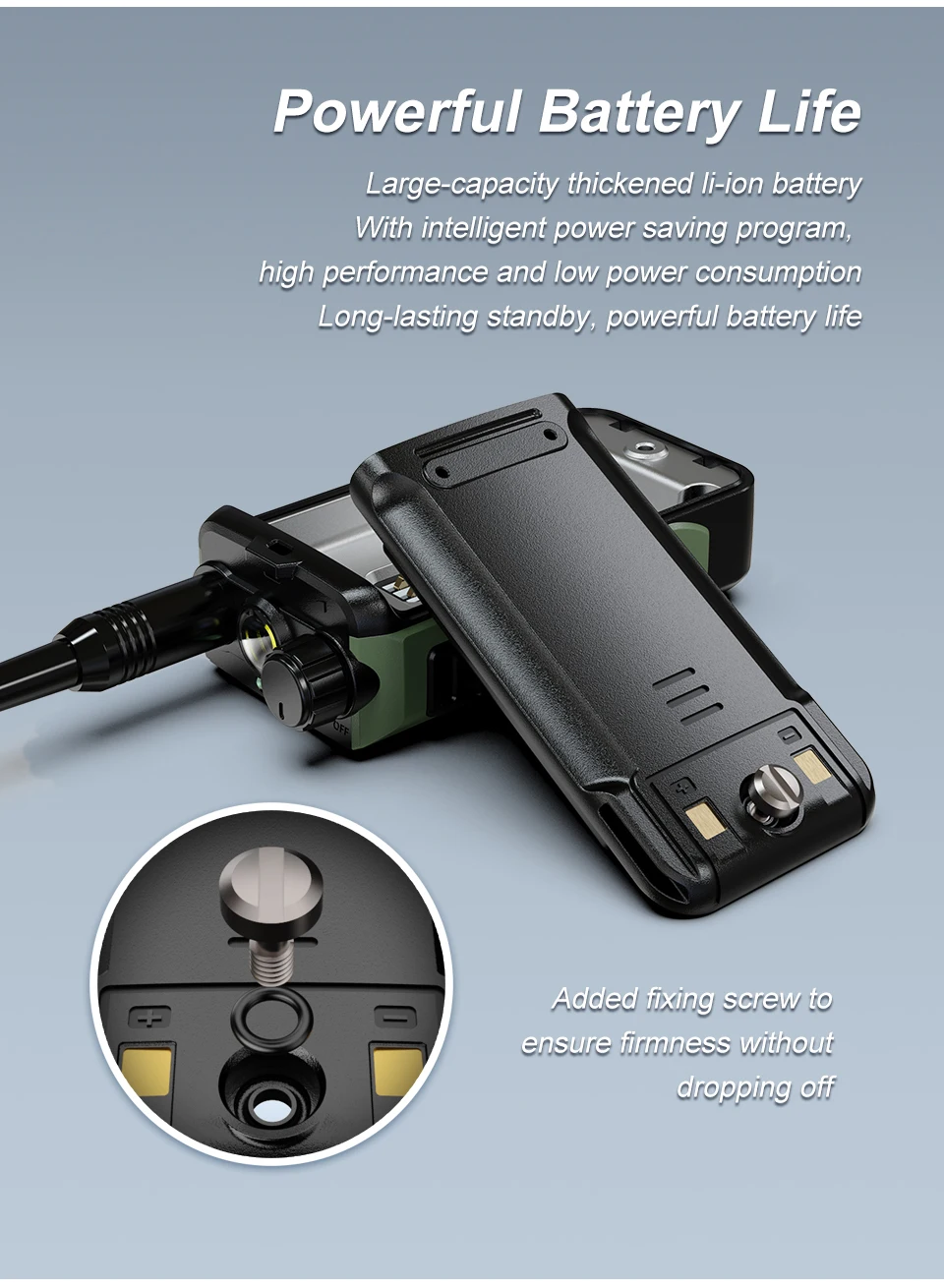

● High capacity, high-energy battery with continuous battery life |
|

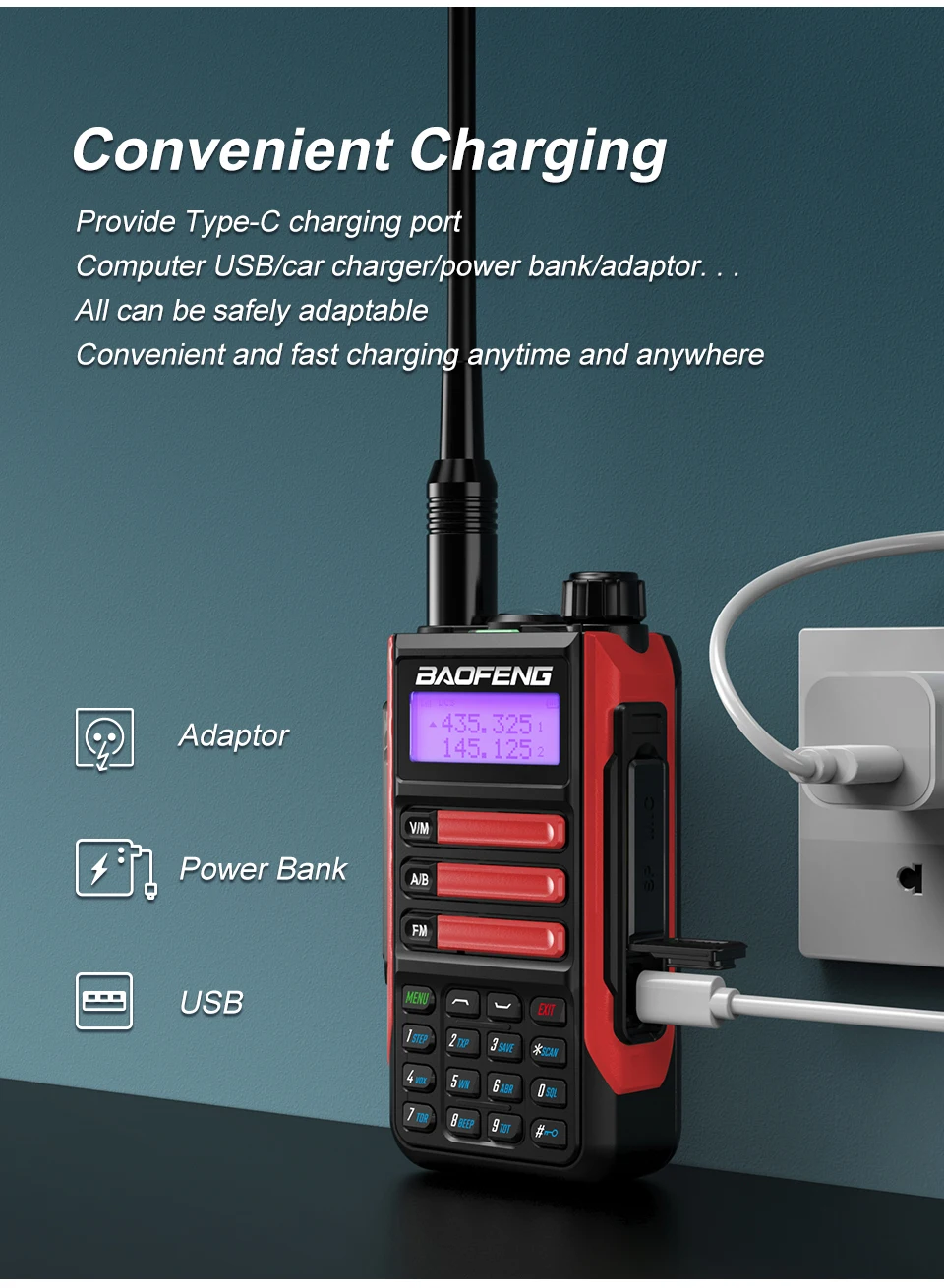

●Type-C direct charging for convenient and fast battery life |
|

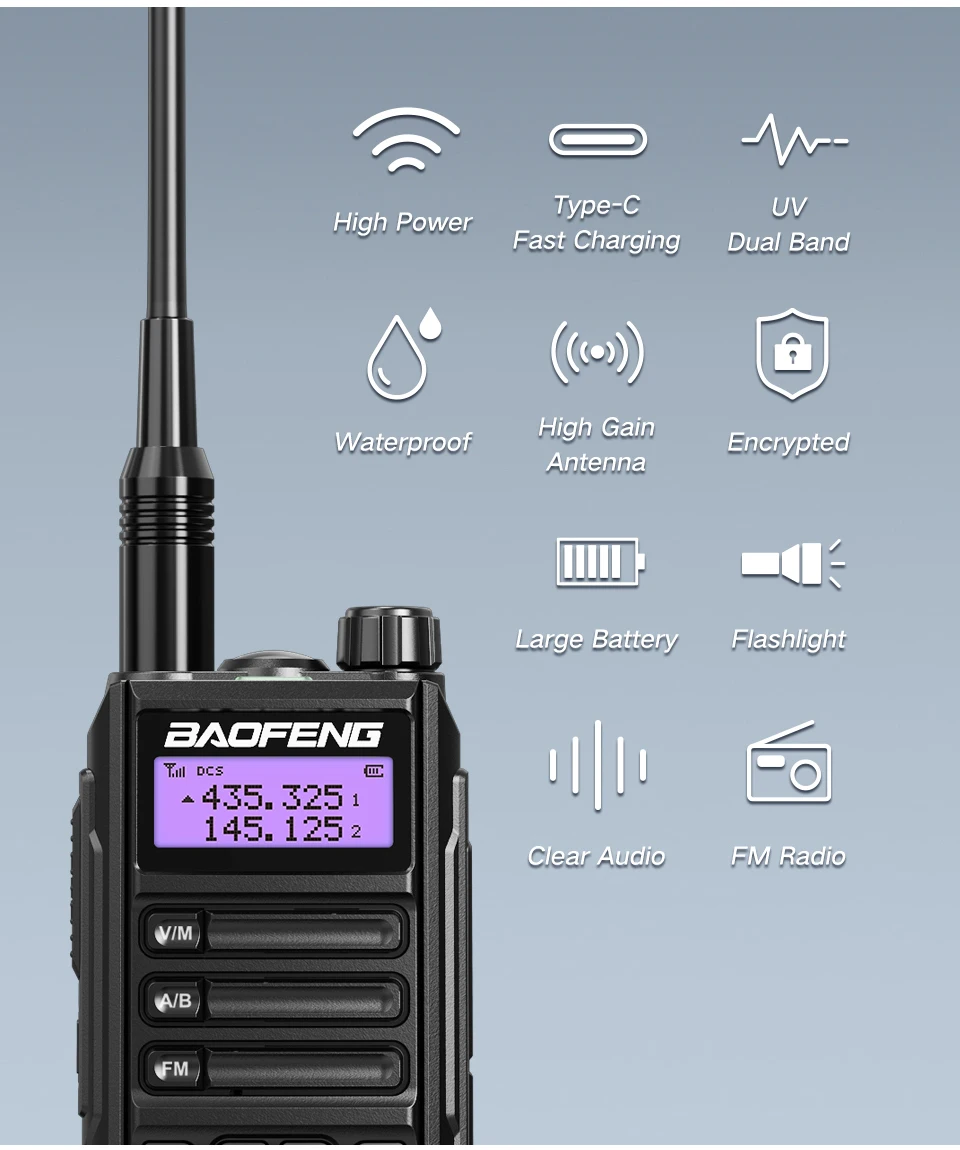

●UHF and VHF dual stage, dual standby, dual guard, dual display |
|
●U-U/V-V/U-V working mode, 128 intercom channel storage |
|
●50 analog sub audio (CTCSS) and 104 sets of digital sub audio (CDCSS) |
|

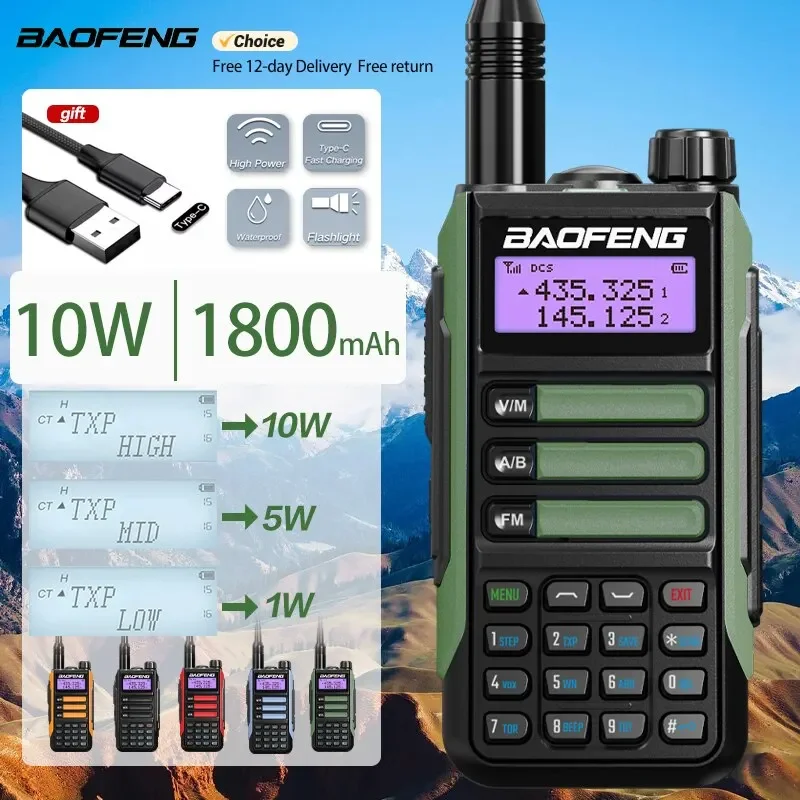

●High/medium/low power regulation |
|
● Frequency scanning, channel scanning, sub tone CTC/DCS scanning |
|
●Three scanning and recovery methods: time, carrier, and search |
|
● Channel monitoring, dual channel waiting |
|
●Voice activated (VOX) hands-free call, with 10 levels of VOX level optional |
|

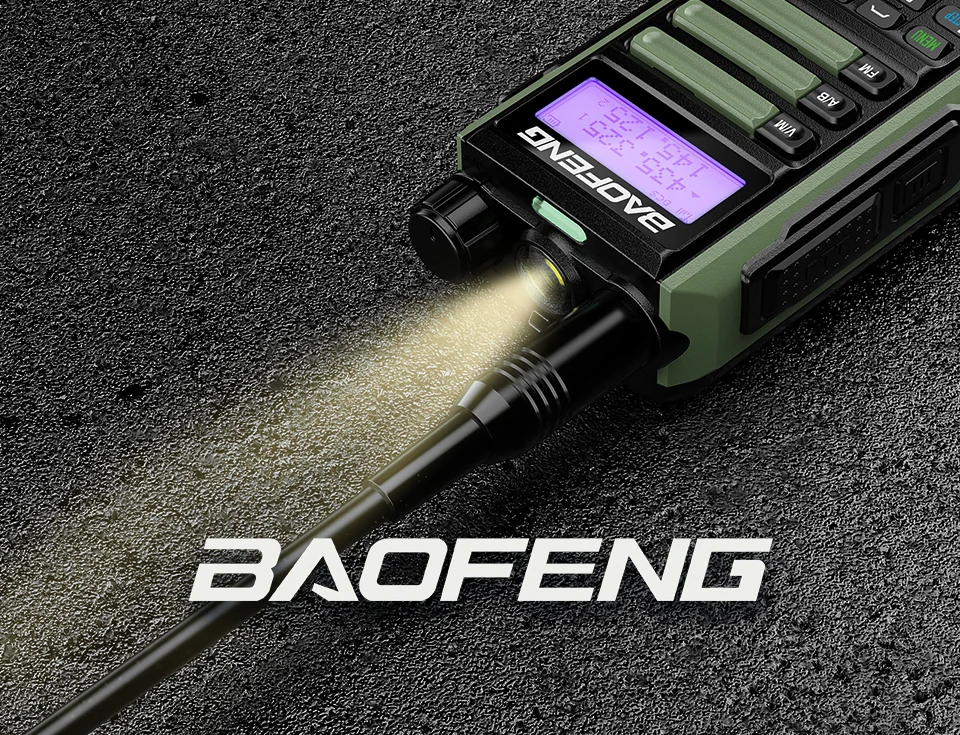

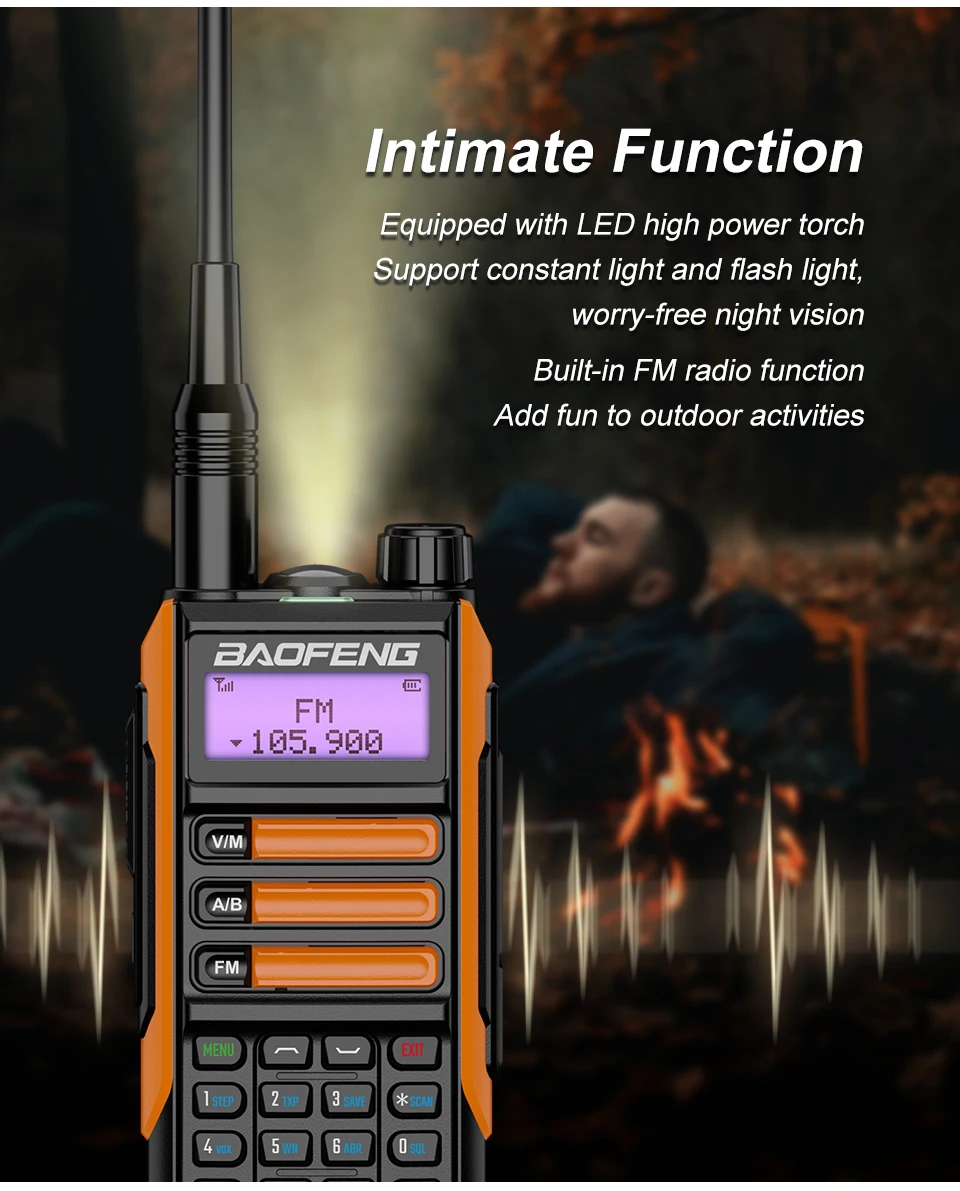

●LED flashlight and sound and light alarm functions ensure your safety |
|
● Relay activation audio 1750HZ, 1450HZ, 2100HZ optional |
|
●Launch time limit of 30-180 seconds (TOT step value of 30) optional |
|
● FM radio function (reception frequency 87~108MHz) |
|
● Supports wide and narrow band selection (broadband 25KHz/narrowband 12.5KHz) |
|
●Automatic or manual keyboard lock options |
|
●LCD backlight and button backlight function |
|
● Low voltage indication and alarm function |
|
●7.4V rechargeable lithium battery range |
|
●2-pin Jianwu interface (headphone audio and programming interface) |
|

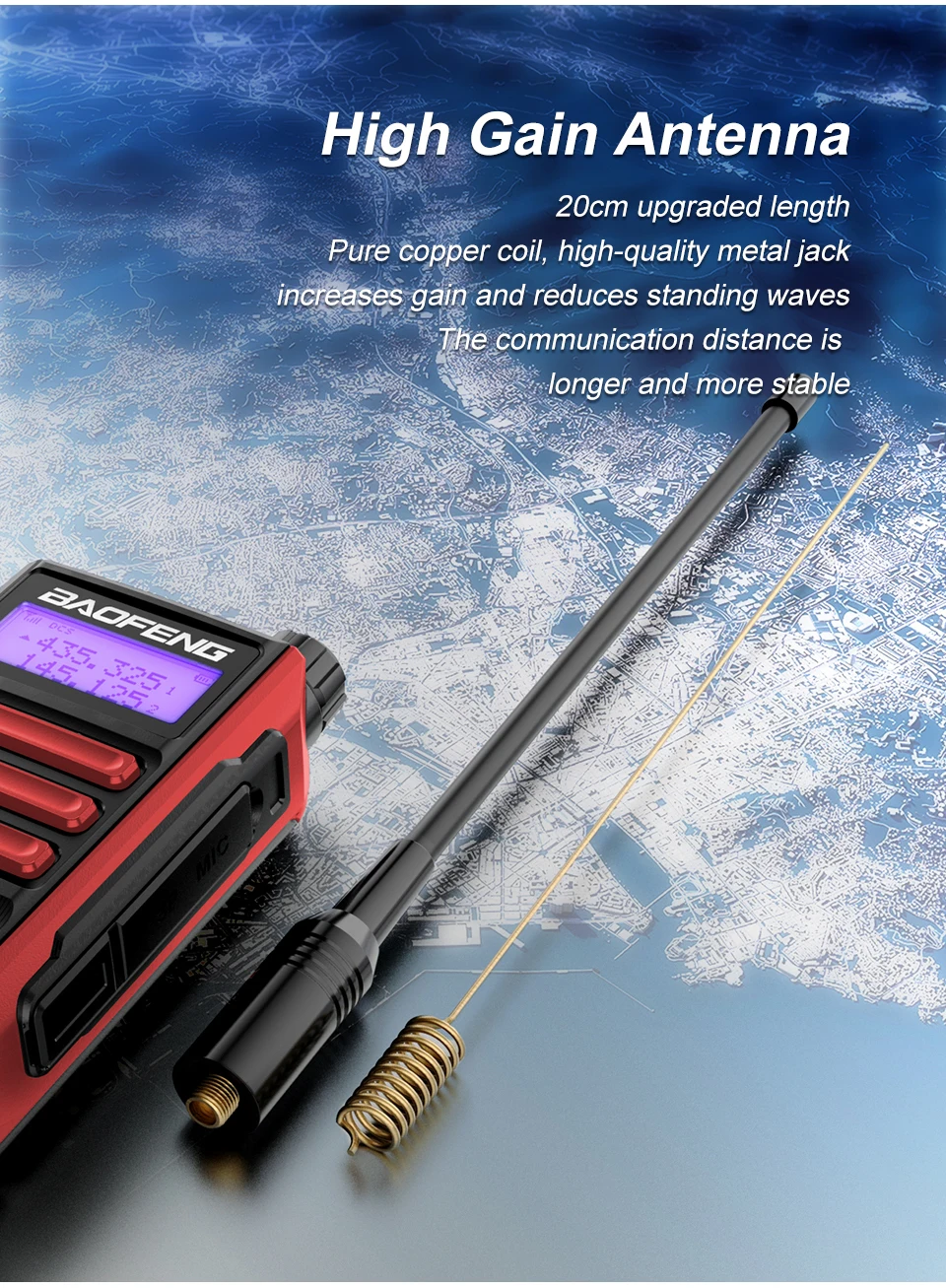

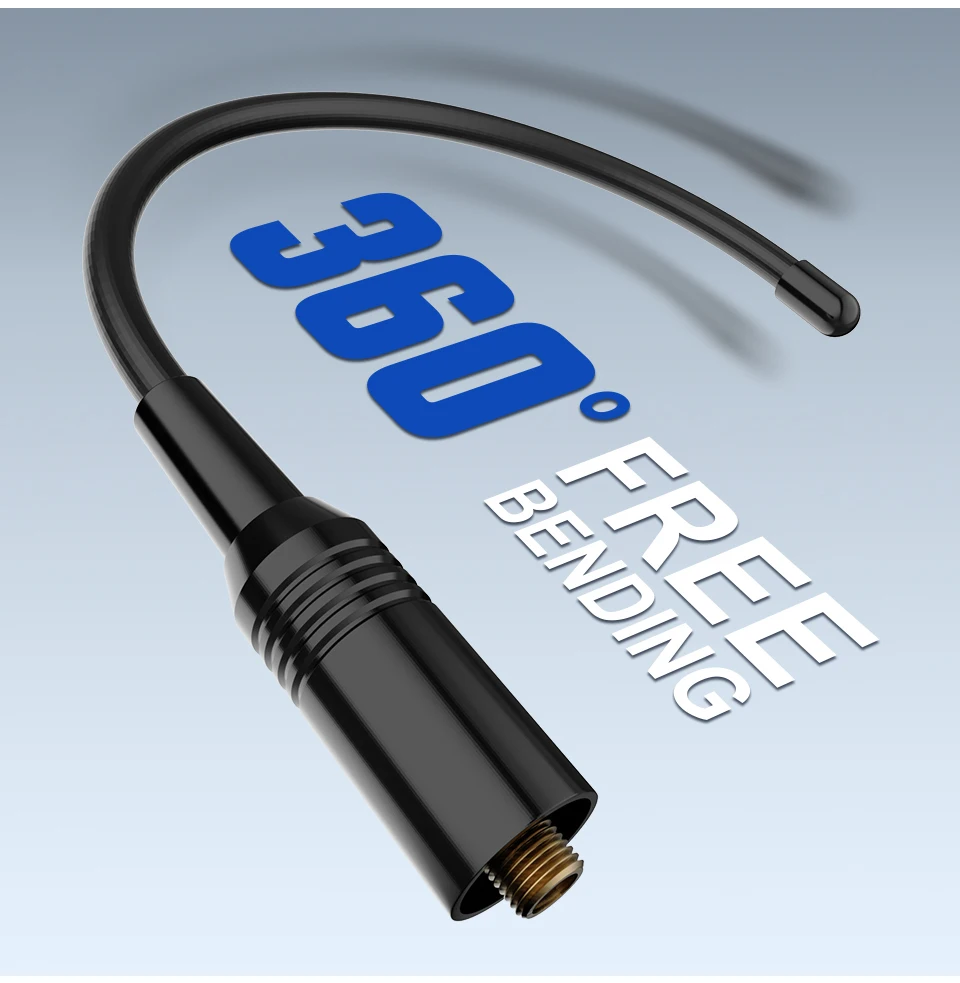

●Extended high sensitivity antenna for better distance and sound quality |
|
Product parameters |
|
|
Number of channels |
128 groups |
|
Channel spacing |
25KHz (broadband), 12.5K (narrowband) |
|
working voltage |
DC7.4V (rechargeable lithium battery) |
|
working temperature |
-20~+60 ℃ |
|
Antenna impedance |
50Ω |
|
Emission current |
≤ 1.5A |
|
Modulation Method (broadband/narrowband) |
16K ΦF3E/11K ΦF3E |
|
Maximum frequency offset |
≤ 5KHz / ≤ 2.5KHz |
|
Stray power |
≤ 7.5uW |
|
Adjacent channel power |
≤-65 dB/≤-60 dB |
|
Signal to noise ratio (broadband/narrowband) |
≥45db/≥40db |
|
Modulation sensitivity |
8-12mV |
|
Overall dimensions |
62 (W) * 120 (H) * 37 (D) mm * without antenna* |
|
weight |
About 252g (including antenna and battery) |
|
Receiving sensitivity |
≤ 0.25uV(12dB BID) |
|
Maximum audio power |
1W@10 % |
|
Audio distortion |
<10% |
|
Signal-to-noise ratio |
≥ 45dB |
|
Adjacent channel selectivity (broadband/narrowband) |
≥65 DB/≥60 DB |
|
Intermodulation (broadband/narrowband) |
≥65 DB/≥60 DB |
|
Clutter rejection |
≥ 65dB |
|
Receiving current |
≤ 380mA |
