- Hign-concerned Chemical: None
- Commodity Quality Certification: 3C
- Brand Name: AZDENT
- Origin: Mainland China
- Certification: none
- Lithium battery capacity:: 2000mAh
- Output optical wavelength: 420-480nm
- Output light intensity: 1200-1500 mw/ cm2
- Charger input: 110V-240V

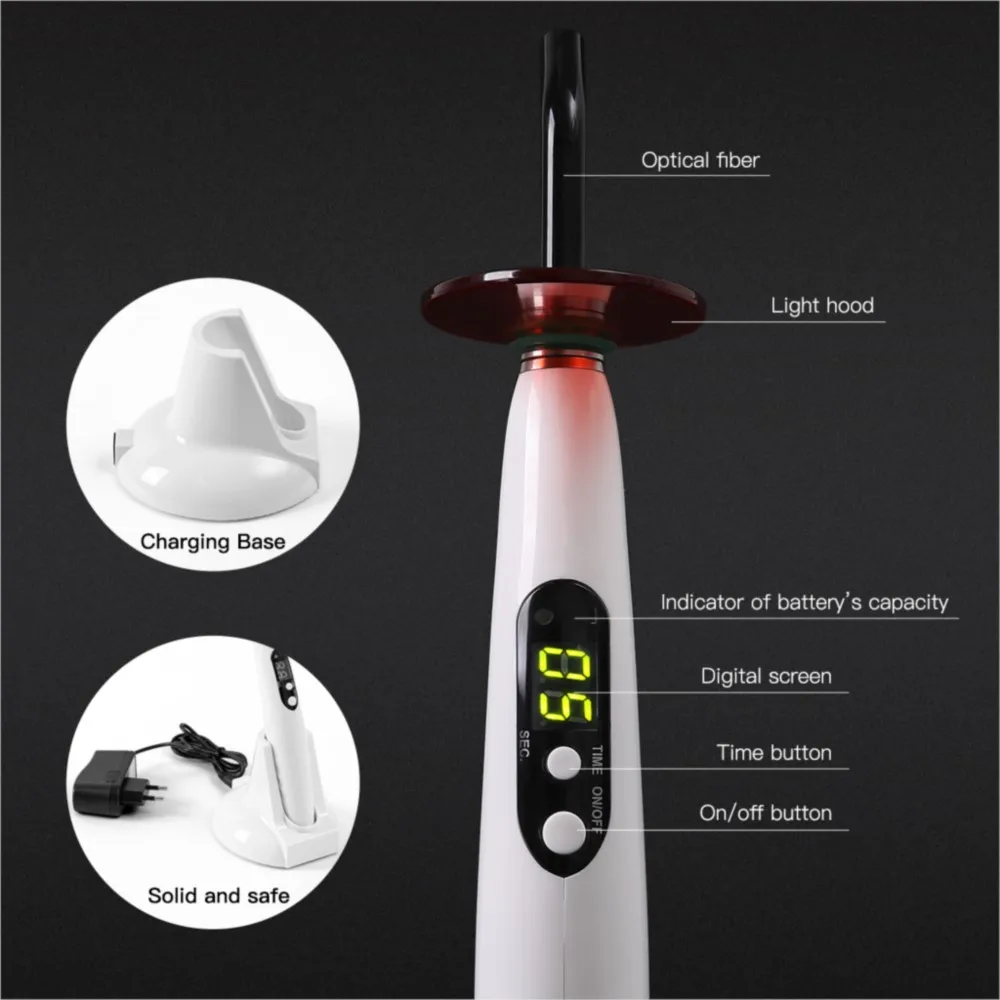

1.ON/OFF button：Turn on or turn off the LED blue-ray output
2.Can make the machine run Time setting: 5s, 10s, 15s, 20s,25s,30s,35s,40s
Charger input:110V-240VAC 50-60Hz
The charger output:DC4.2V 1A
Lithium battery voltage:DC3.7V
Lithium battery capacity:2000mAh
Output optical wavelength:420-480nm
Output light intensity:1200-1500mw/cm2

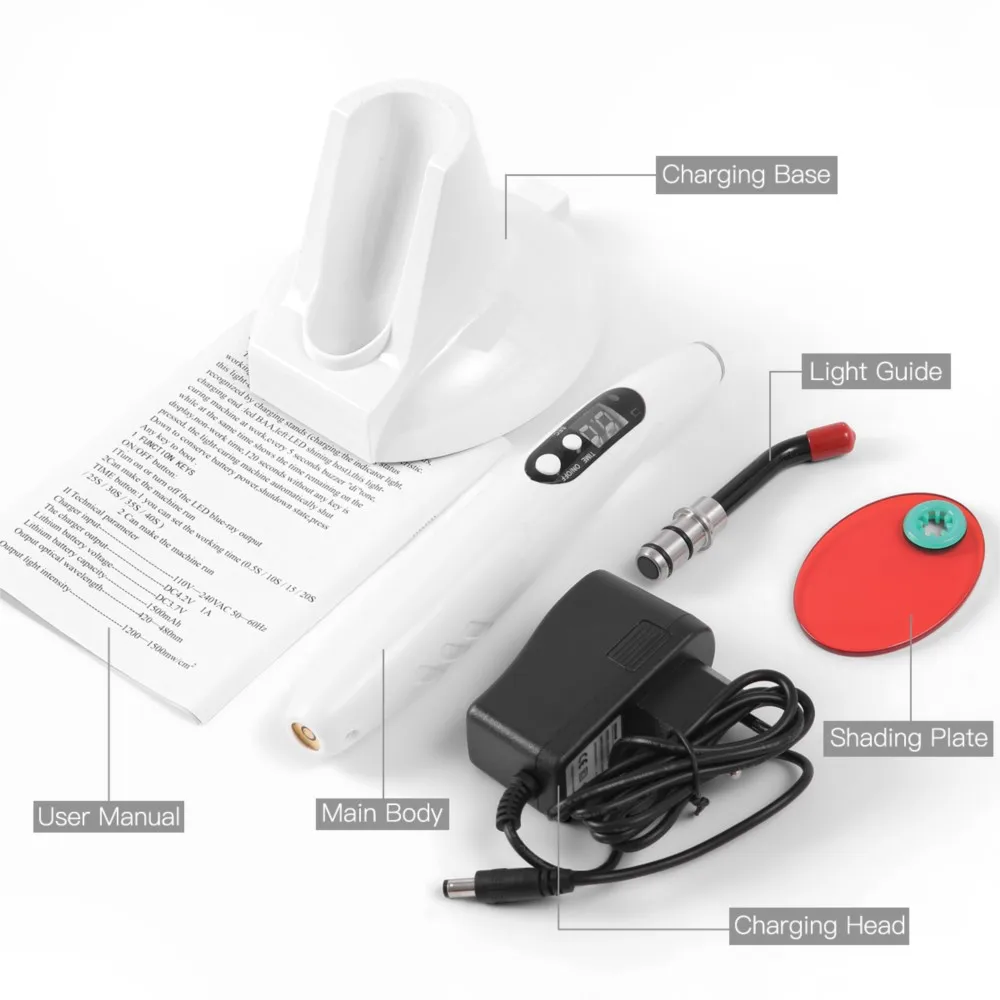

1 X Curing light
1 X High capacitance rechargeable battery
1 X Charger
1 X Charger socket
General Introduction:
This curing light has the advantages of adjustable working time, visible working time and high curing efficiency. When the curing light is charging, the charger socket can display the charging status. (Charging: the indicator light is on, Charging over: the indicator light is off. The curing light is removed from the charging socket: Indicator Light begins to flash). When this machine is working, every 5 seconds the buzzer will make a sound of “di”to remind you, at the same time, the screen displays the remaining work time. Nonworking time, this machine can automatic shutdown without any operation in 120 seconds to save electric power. With this machine off, press any key to turn on the curing light.
Type B
Light source:
1.10W high power blue light LED.
2.Checking method：the LED light is fine when the light is on during operating correctly.
3.The wave length of this product can match with the clinical dental resin solidification, such as 3M, Dentsply etc.
4.Wave length：385nm-515nm.
5.Light intensity：800mW/cm²-2200mW/cm².
Operation:
1.Press the mode button.Following three modes are available.
2.Strong Model：screen shows P3,press the button to select of time which could be ls,3s.its output light intensity is about 1800mW/cm²-2200mW/cm².
3.Standard Mode: screen shows P2,press the time button to select of time which could be 5s,10s,15s,20s.Its output light intensity is about 800mW/cm²-1200mW/cm².
4.Pulse Mode: screen shows Pl, press the time button to select of time which could be 5s,10s,15s,20s.Its output light intensity is about 800mW/cm²-1200mW/cm²
Technical specifications：
1.Dimension：25mm×240mm
2.Net weight：278g
3.Power supply：rechargeable Lithium battery
4.Battery mode：ICR 18650
5.Battery voltage and capacity：3.7V/2200mAh
6.Battery has protection against Over-voltage, over-current and short circuit.
