- Hign-concerned Chemical: None
- Use: others
- Output Power(w): 3w-5w
- Battery Capacity(mAh): 1500
- Waterproof / Water-Resistant: IP45
- Battery Included: Yes
- Material: Plastic
- Storage Channel: 16
- Frequency Range: 400-520MHz,446MHz

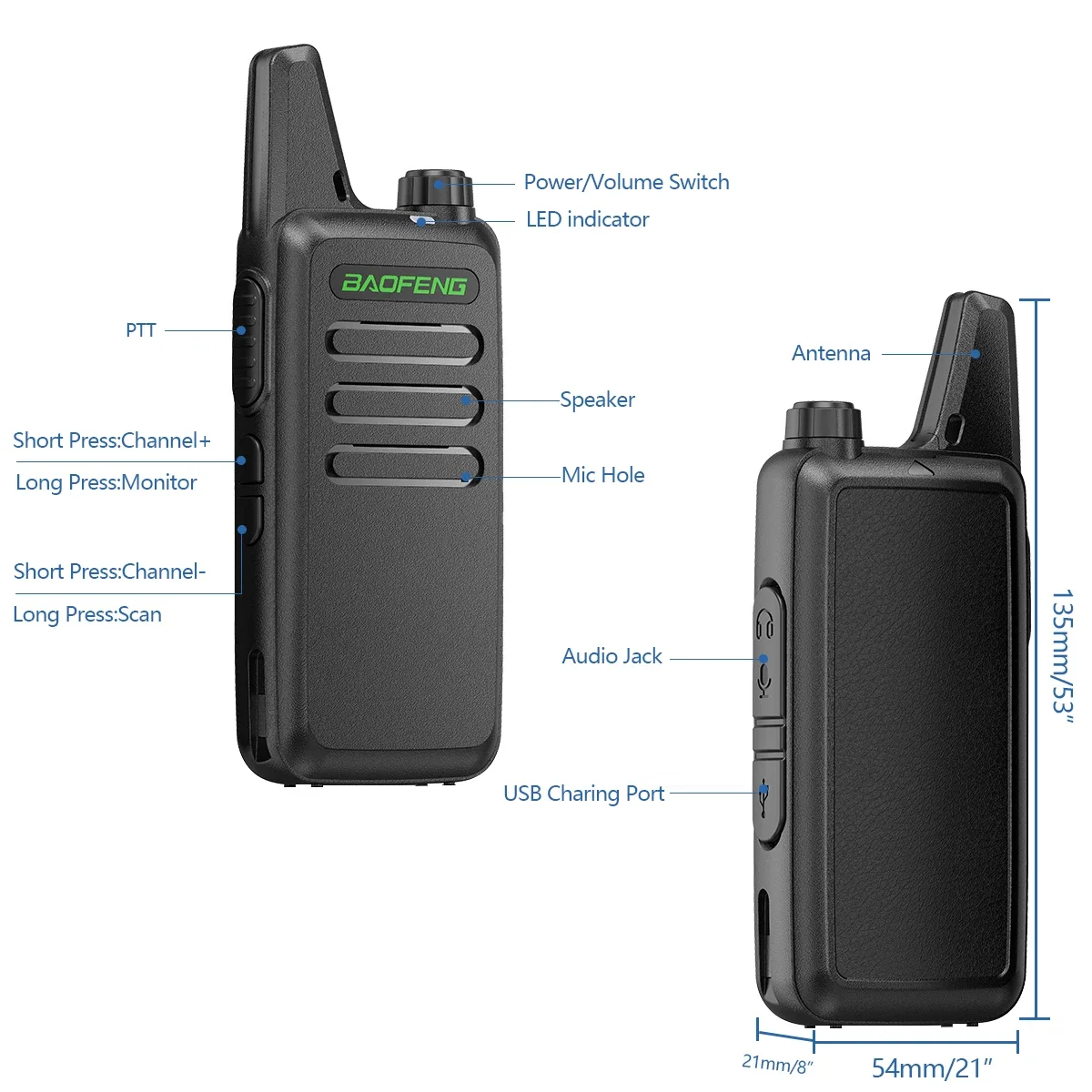

- Dimensions: 21*54*135mm
- Model Number: BF-T20
- Walkie Talkie Type: Portable
- Is_Display: No
- Maximum Range: 3km-5km
- Brand Name: BAOFENG
- Origin: Mainland China
- Certification: None

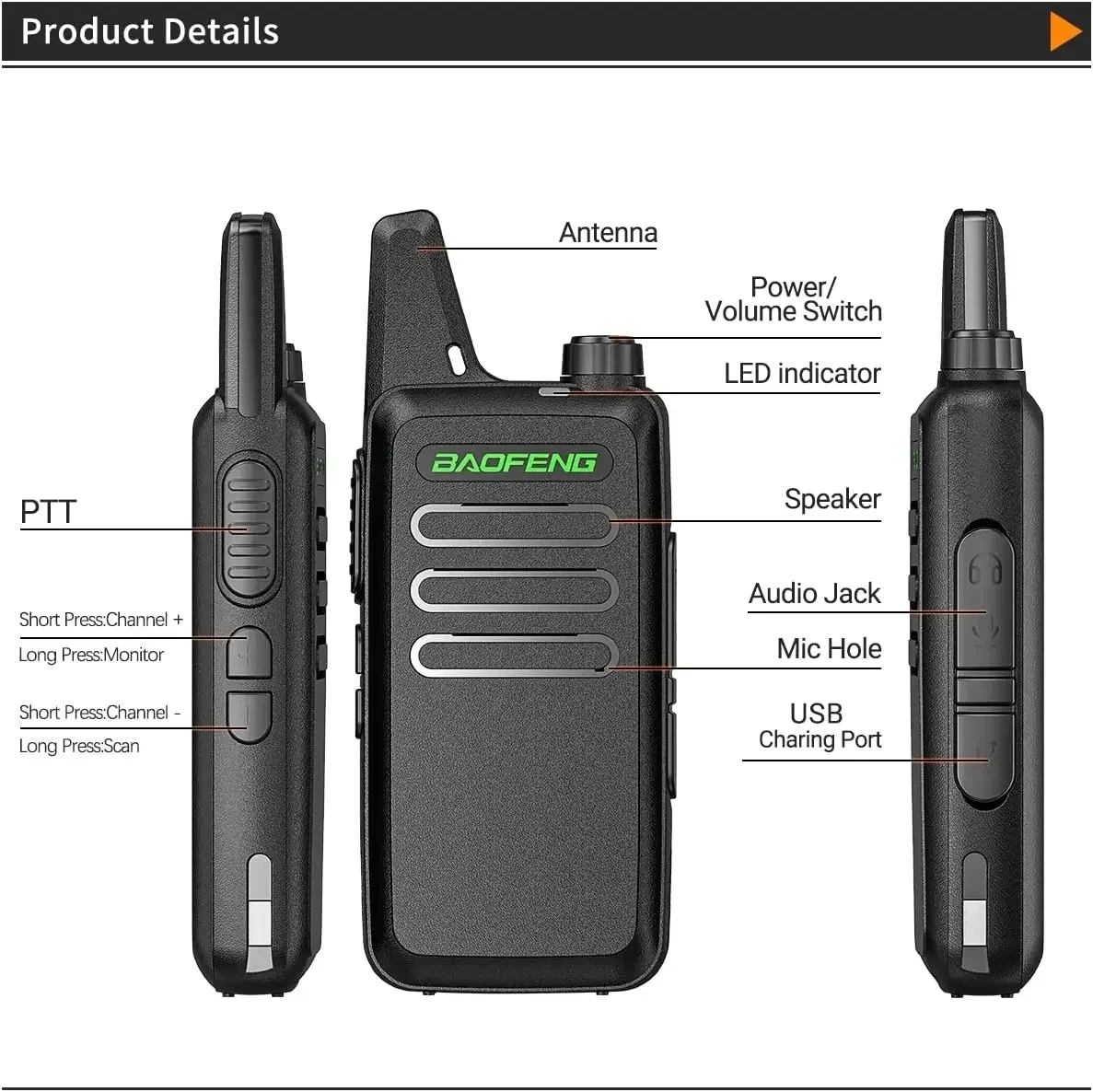

Function:

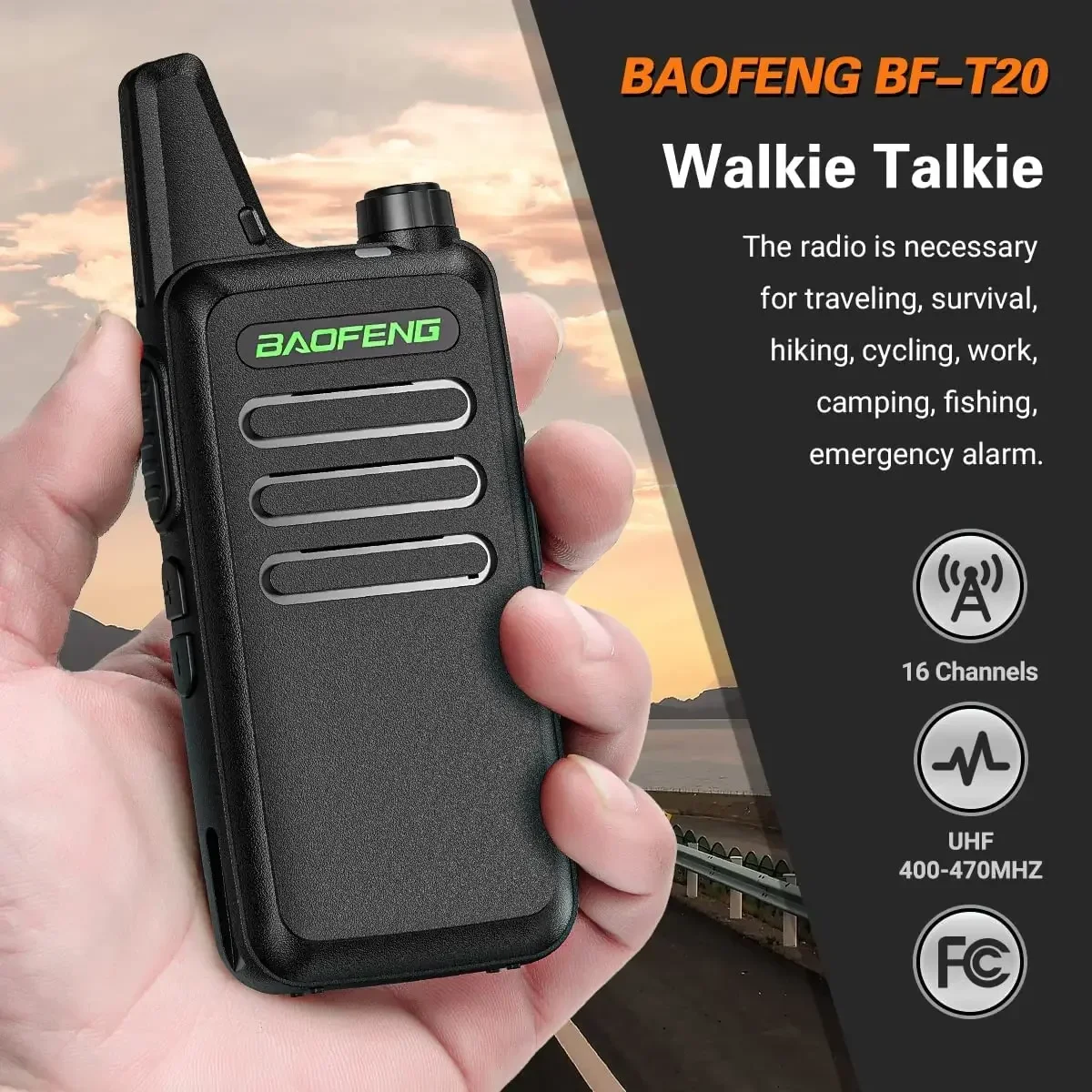

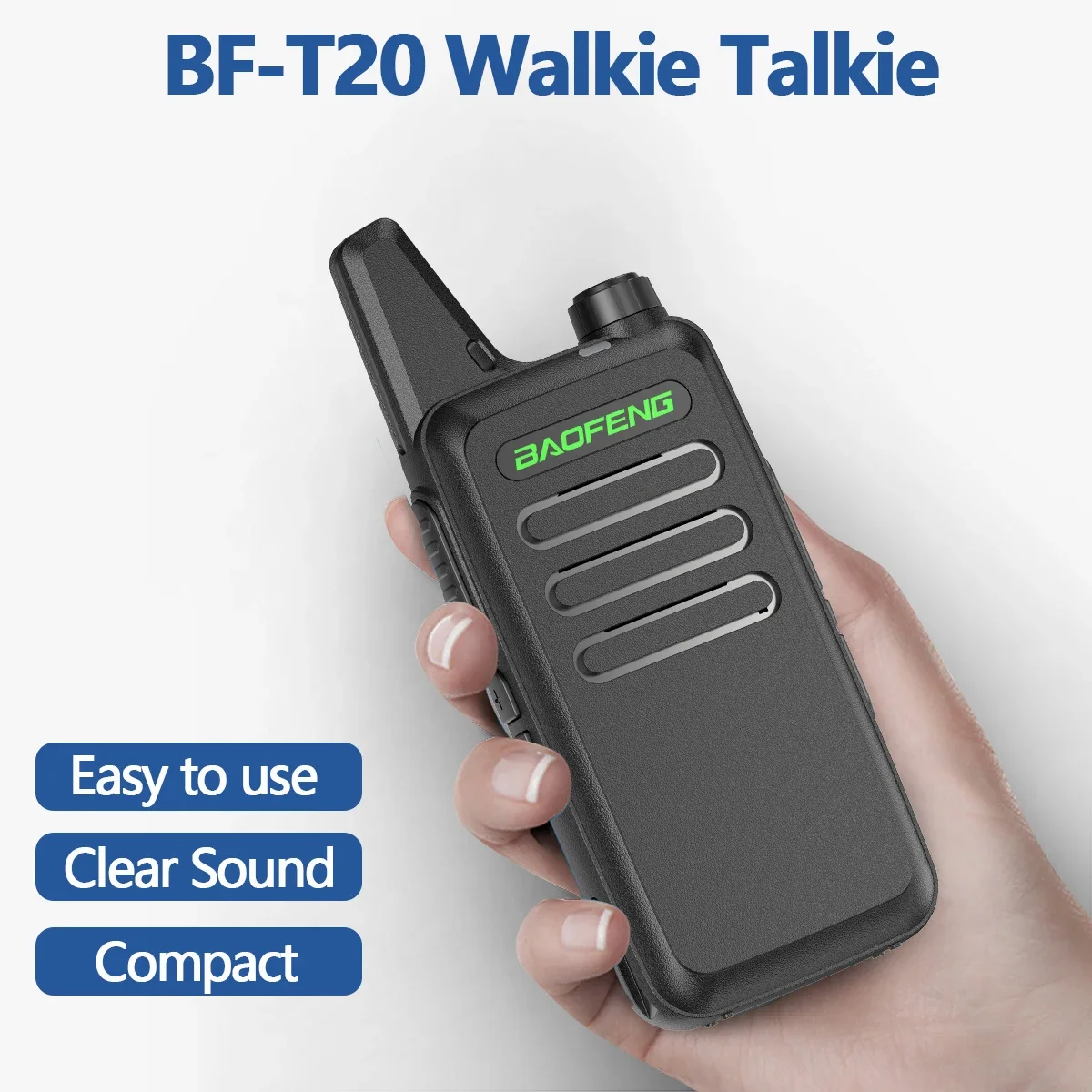

1. Baofeng BF-T20 radio is small and lightweight, when you are working, it can bring more convenience for you.
2. General Integrated antenna is not easy to broken,also can provide long range transmission.

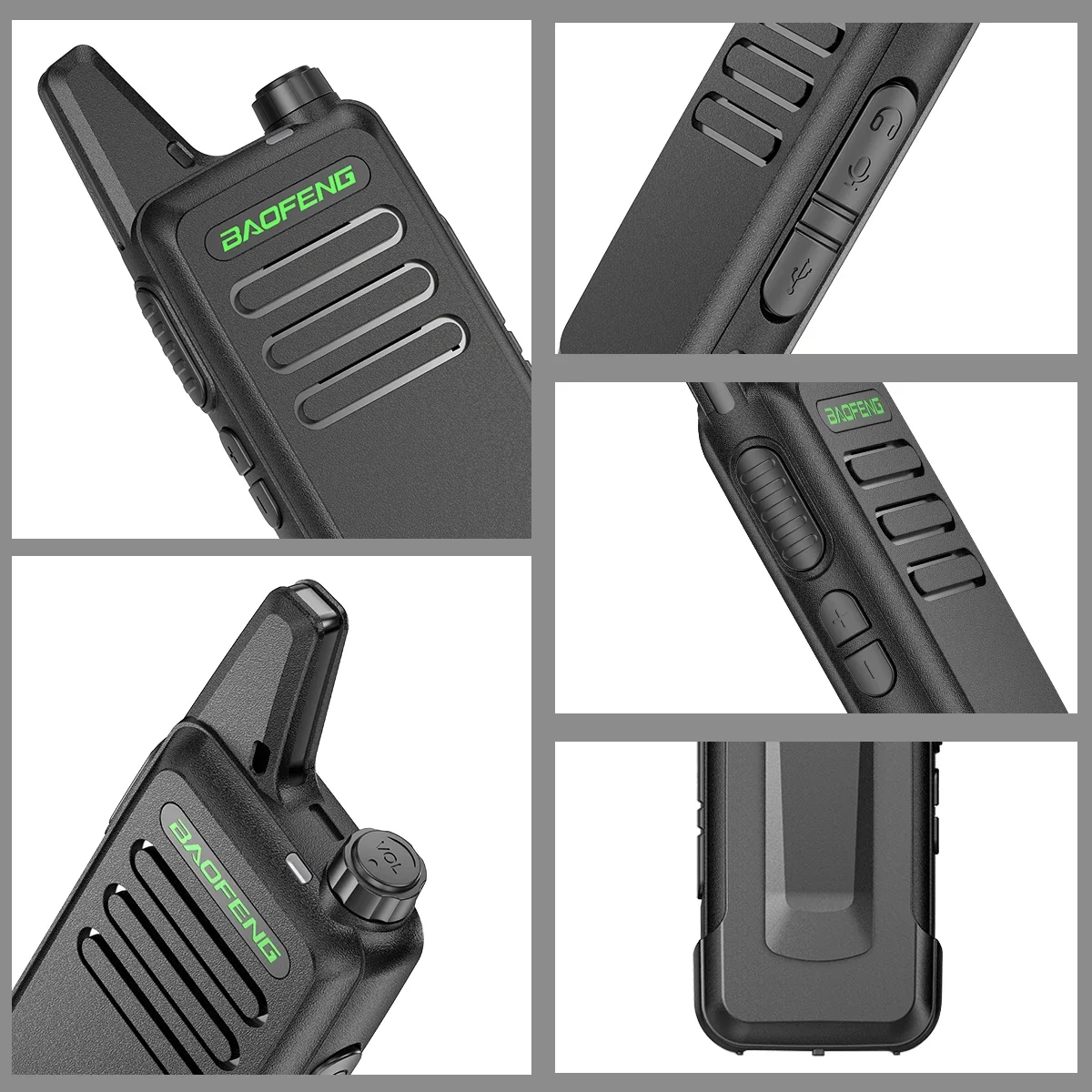

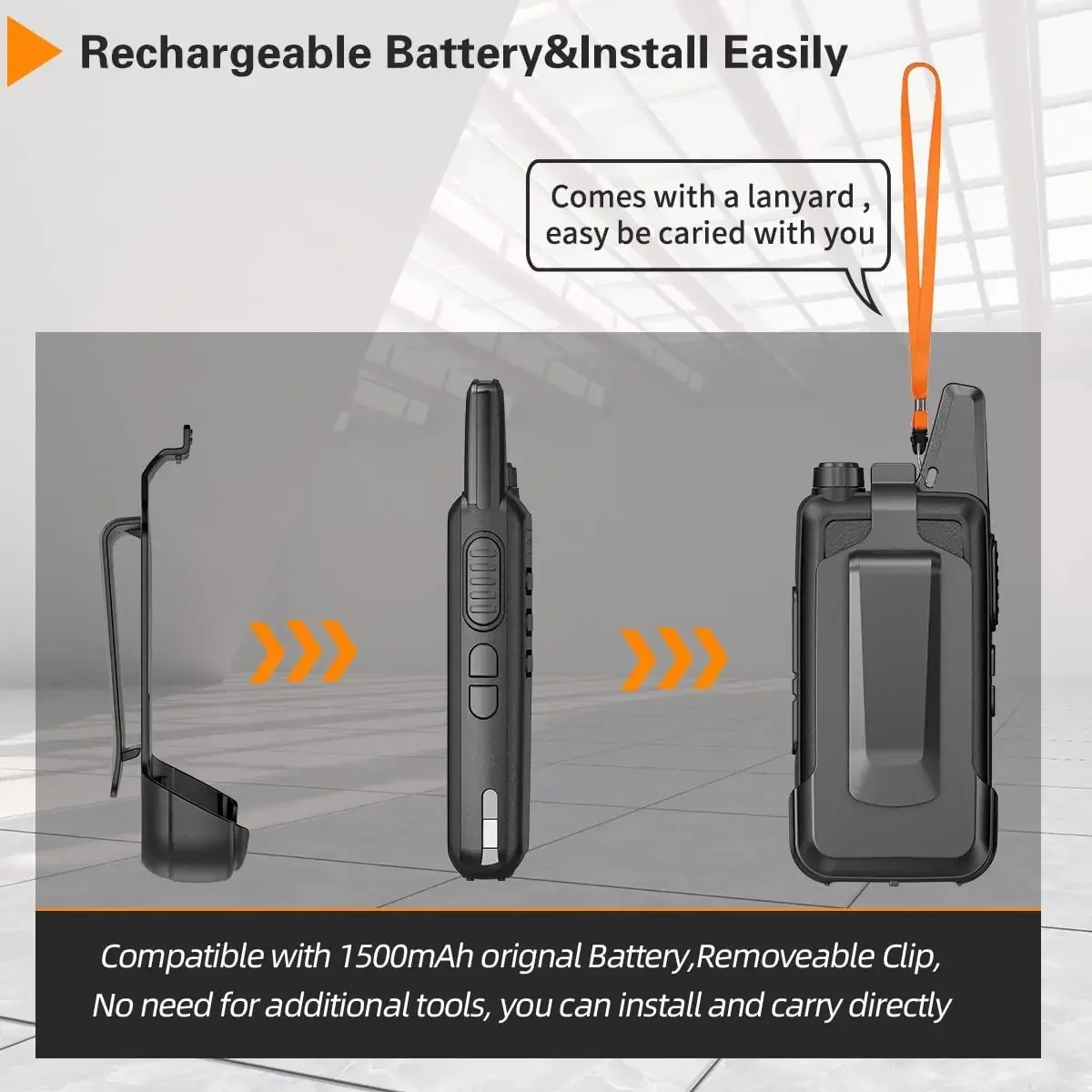

3. Durable belt clips, easy to disassemble and installation.You can easily attach it to your belt, pocket or backpack.
4. Baofeng BF-T20 has VOX function which makes you have hands free operation.Particularly apply to some hands-free occasions,such as cycling,holding objects, or working.

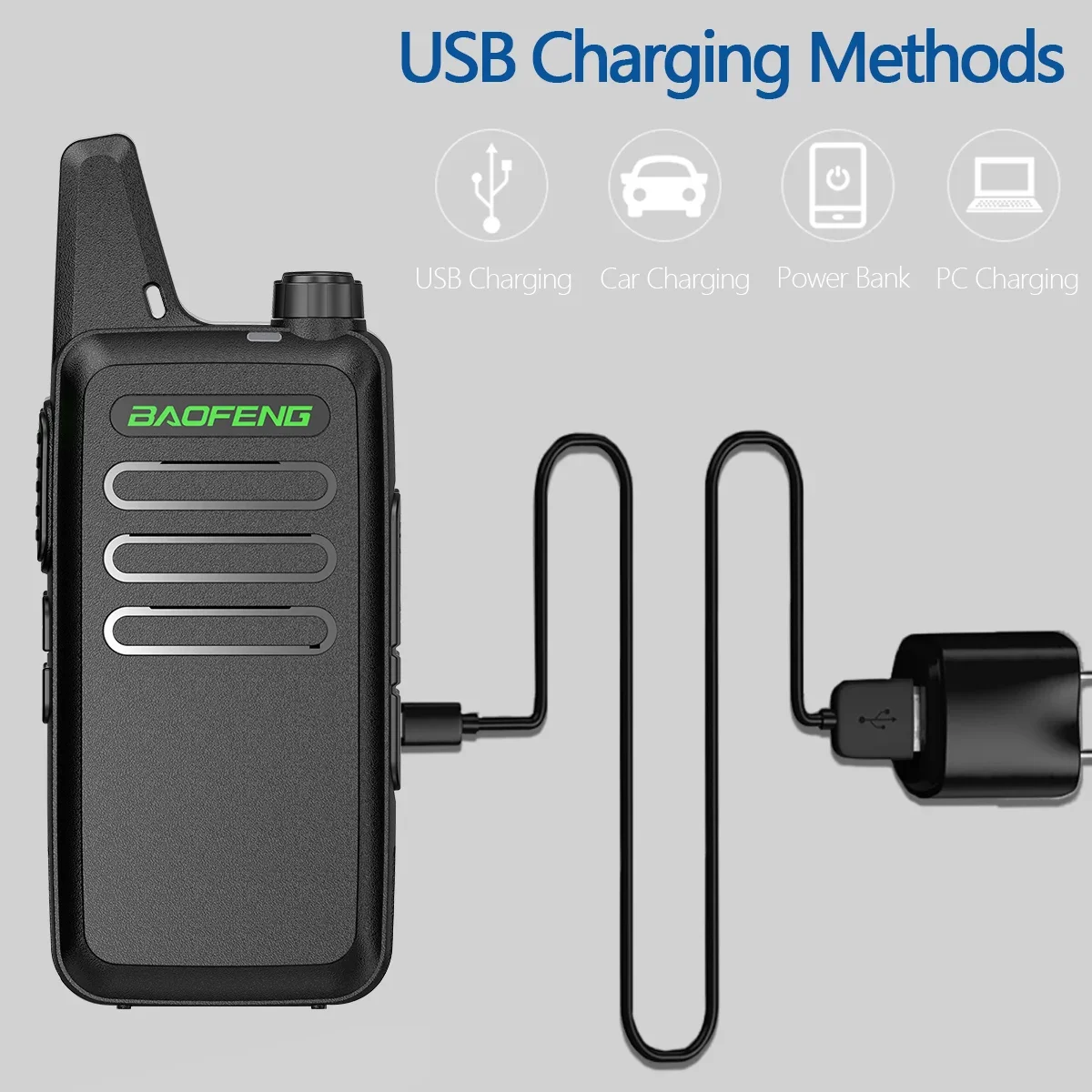

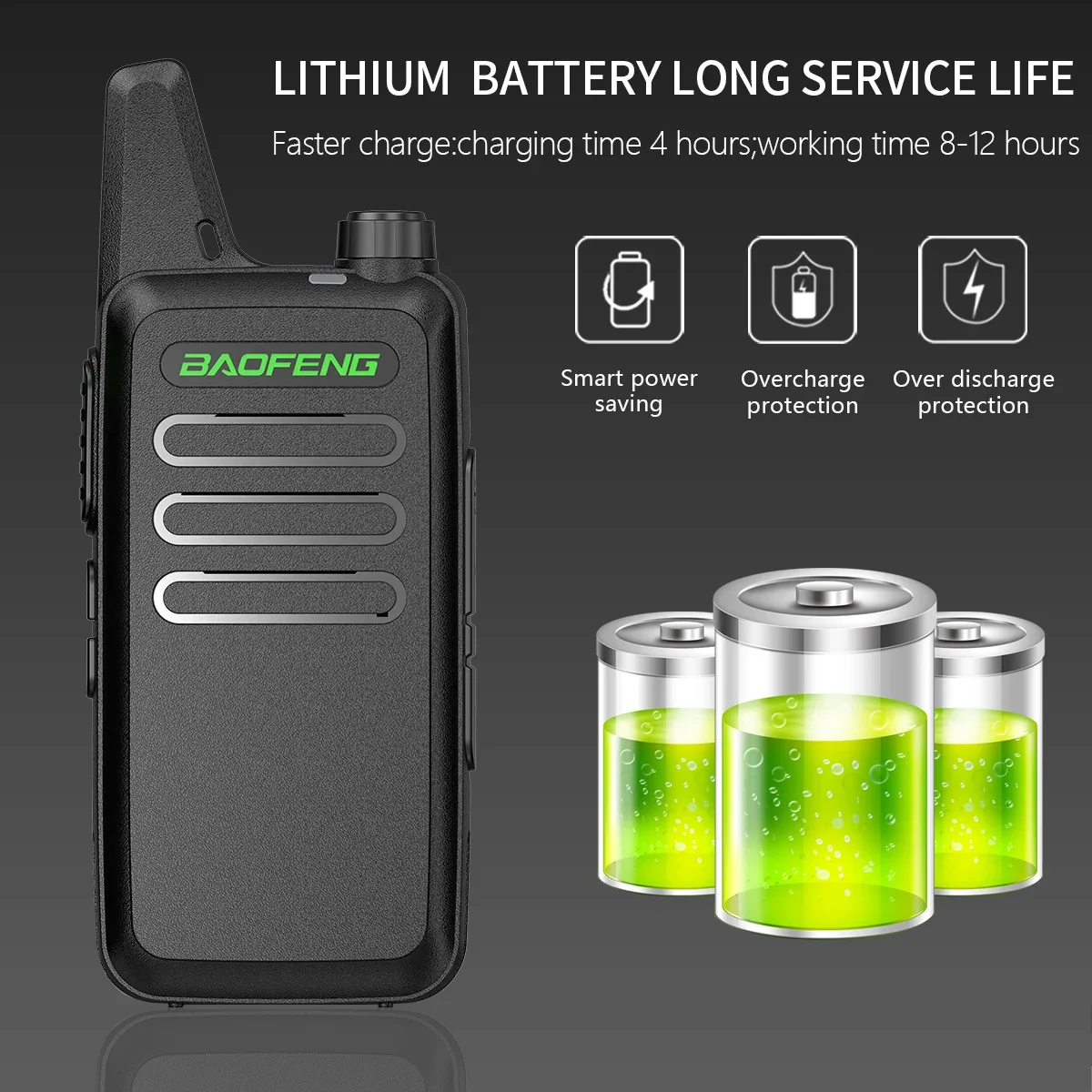

5. USB Charging.They have a mini usb (not micro) port they will recharge from a car charger, power bank,PC,USB desktop charger or wall charger
Red and green light remind you are charging and have finished charging.
Easy to carry when you need work outside,and can easy to found where can charge.

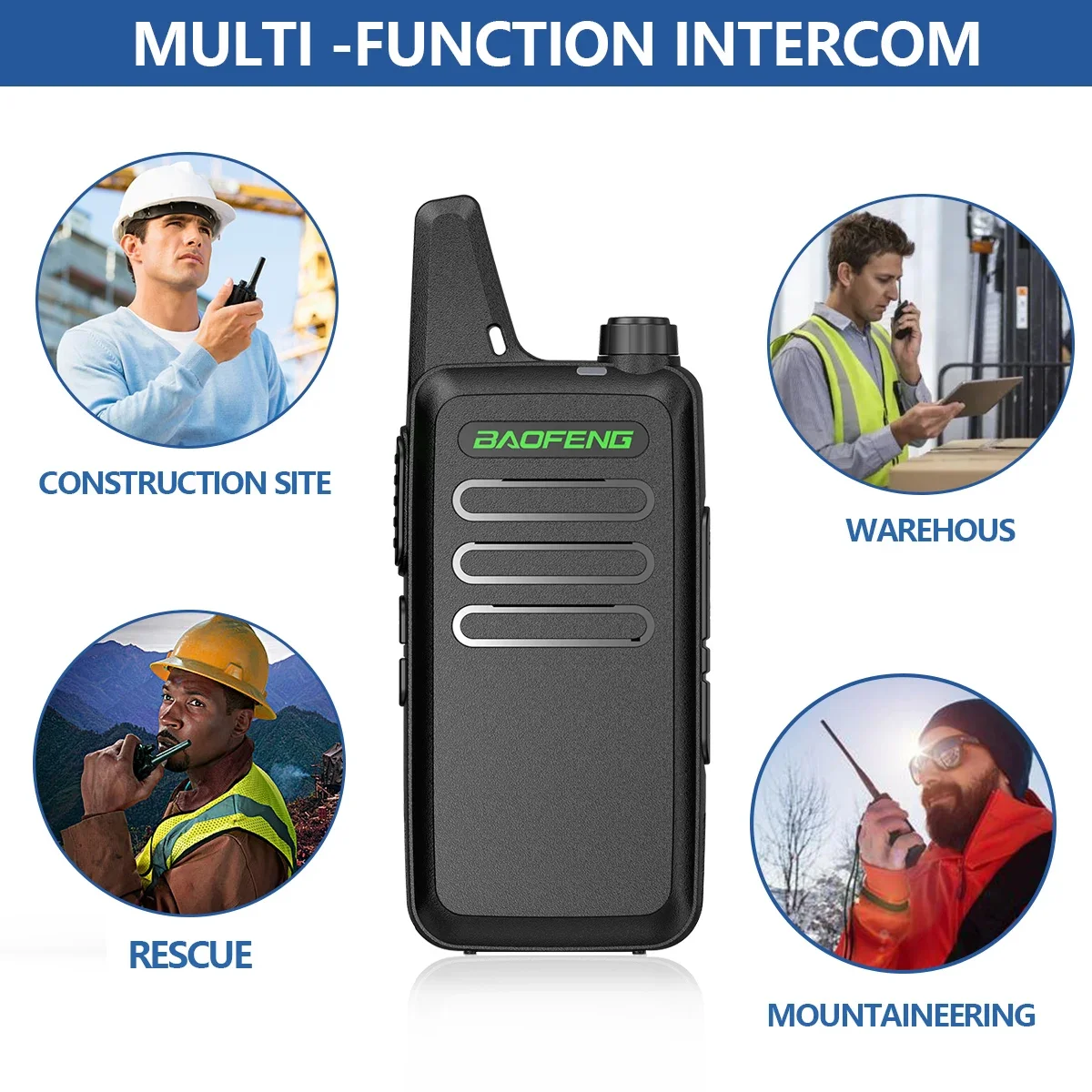

6. Baofeng BF-T20 walkie talkie is suitable for a variety of occasions and a variety of people,can be widly used in big mall,restaurant,hotel,coffee shop,KTV,Bar,warehouse,property management,travel,hunting and so on.
7. PC Software Programmable,When you have a programming cable and the Baofeng BF-T20 software,you can program the radio by PC.If you need them ,you can download it from our official website.Or leave us your email address,we can send it by email.
Wide Applications
walkie talkie is suitable for a variety of occasions and a variety of people,can be widly used in big mall,restaurant,hotel,coffee shop,KTV,Bar,warehouse,property management,travel,hunting and so on.
Specification
|
Model Number |
BF-T20
|
|
Frequency Range |
UHF 400-470MHz |
|

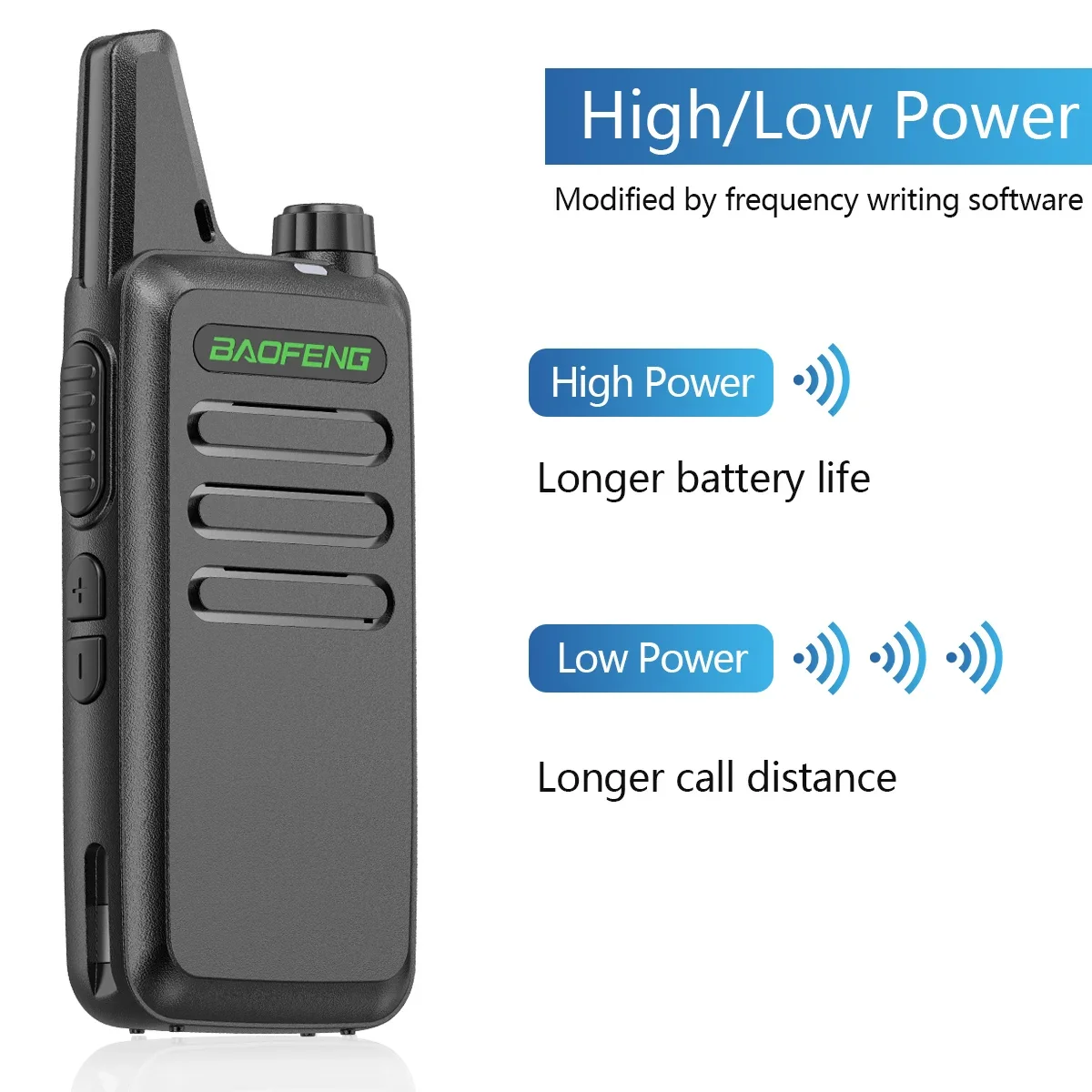

Power |
≤5W |
|
Colour |
Black |
|
Channel Capacity |
16 |
|
Battery Capacity |
Li-ion 1500mAh |
|
Working Voltage |
DC 3.7V |
|
Mic/Speaker/Programming Port |
2 pin plug type for Kenwood |
|
Antenna |
Integrated antenna |
|
Antenna Impendence |
50Ohm |
|

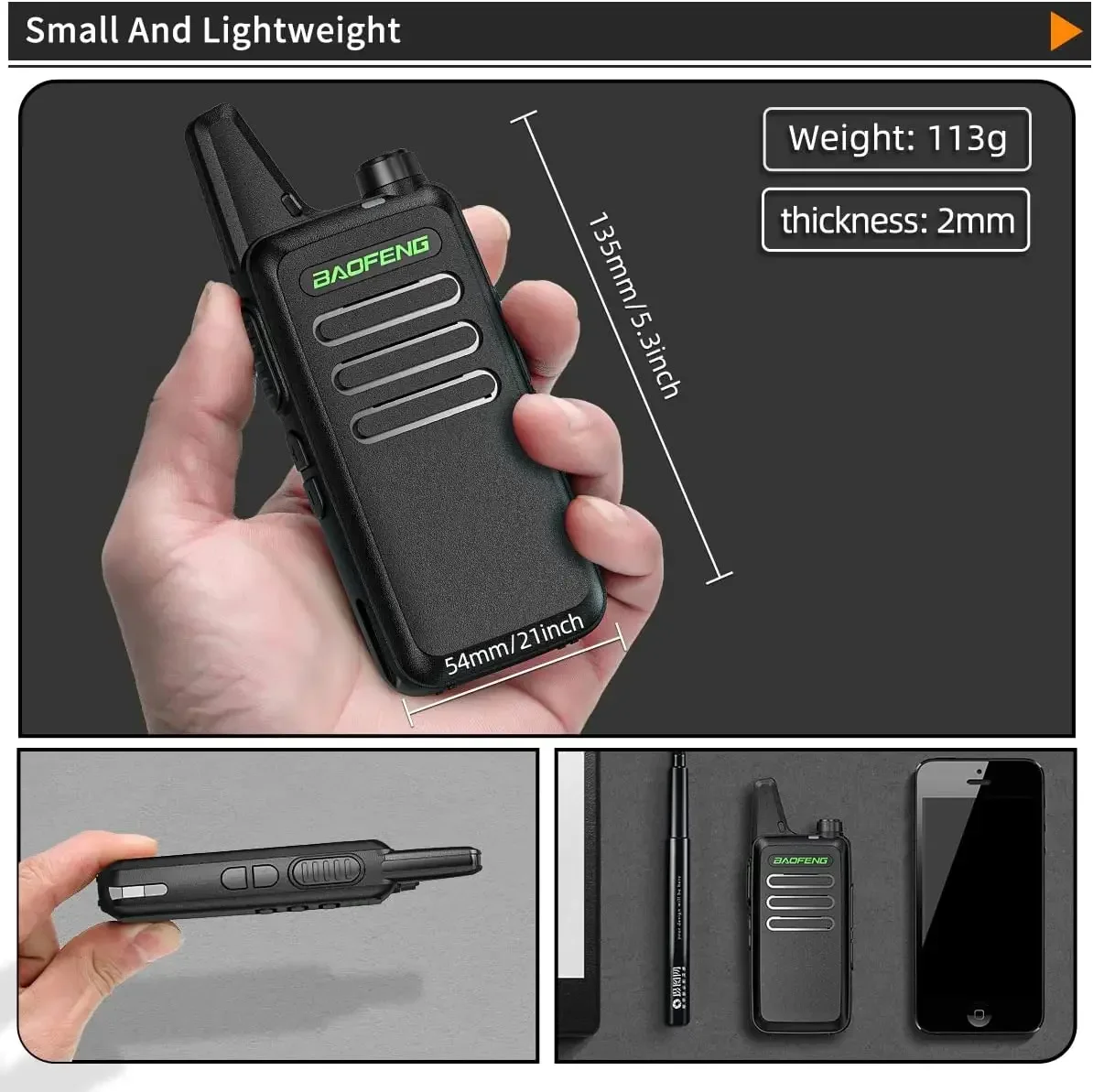

Weight Of Two Way Radio (Include battery and antenna) |
3.99oz(113g) |
|
Size Of Two Way Radio |
(10.5*2.5*2)CM Not include antenna |
|
Transmitter |
|
|
Output Power |
5W |
|
The Maximum Deviation |
<=plusmn5KHz |
|
Residual Radiation |
<60dB |
|
Current |
<=1500mA |
|
Audio Response |
+7~-12.5dB |
|
Receiver |
|
|
Sensitivity |
<=0.16microV(12dB SINAD) |
|
Squelch Sensitivity |
<0.2microV |
|
Intermodulation |
50dB |
|
Audio Power |
>=300mW |
|
Current |
<=100mA |
|
Squelch Current |
20mA |
