- Hign-concerned Chemical: None
- OSD Language: English
- Talk Range: Rear: 0.3-2.3M Front: 0.3-1.2M
- Material Type: ABS
- Model Name: NY8089
- Type: Invisible
- Brand Name: QXNY
- Origin: Mainland China
- Certification: FCC
- Display screen:: LCD
- voltage:: 10V~14V
- Sensor diameter:: 22mm
- Front Sensor Detection Range: 0.98~3.28 ft
- Rear Sensor Detection Range: 0.98~7.54 ft
Our products are very popular! Therefore, there are low -quality counterfeit products in the market. Although the appearance is the same, when they cannot achieve reversing, the front and rear sensors can work at the same time! Please pay attention when buying!
Working principle of 8 sensors: When reversing, 6 sensors (ABCD, GH) are activated, among which the ABCD sensor is located at the rear of the car, and the G and H are located at the front of the vehicle. When the car is driving and braking, 4 sensors on the front of the car (GEFH) are activated.
Product Features:
1: With 6 numbers, it can display the distance of obstacles. It is more helpful
than ordinary display with only one number.
2: There is a light bar on the display, which can distinguish different
orientations of obstacles.
3: Buzzer reminder, when the obstacle is closer, the alarm will be faster.
Specification:
1: Rated voltage: 12V DC
2: Rated current: 100mA-300mA
3: Ultrasonic frequency: 40KHz
4: Control module operating temperature: -30-80 degrees Celsius
5: Display working temperature: -20-70 degrees Celsius
6: Sensor diameter: 22mm
7: Installation method: drilling
For each order product, we will be responsible for testing and packaging to ensure
that high-quality products can be delivered to you quickly.

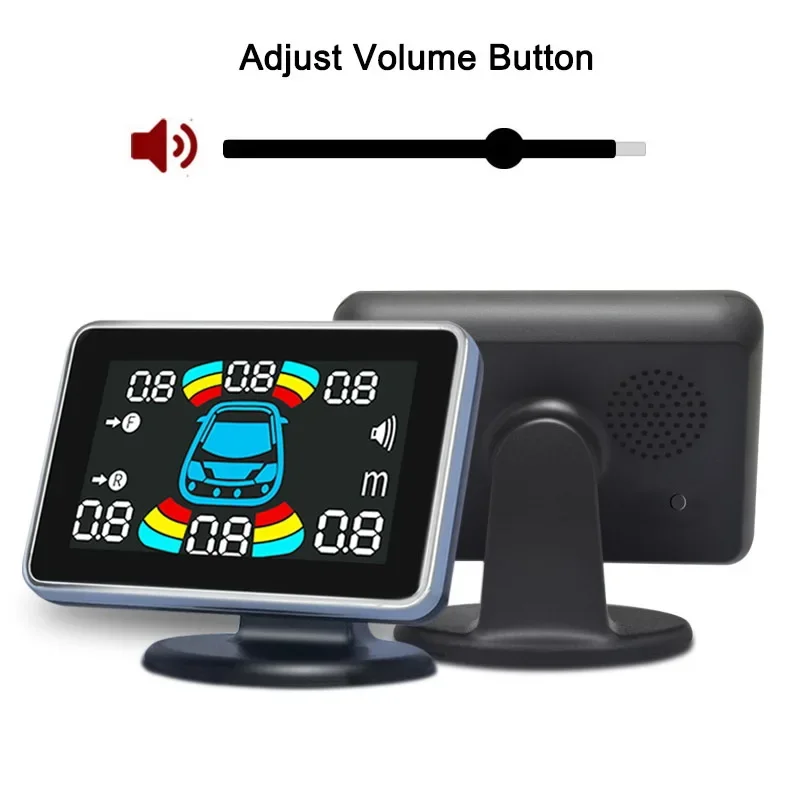

The information displayed on the display is quite rich.
Through different numbers and light bars, the position and distance of different obstacles are displayed. The numbers, light bars, and sound help the driver to park better.
There is a good protective film on the monitor, please tear it off before use!

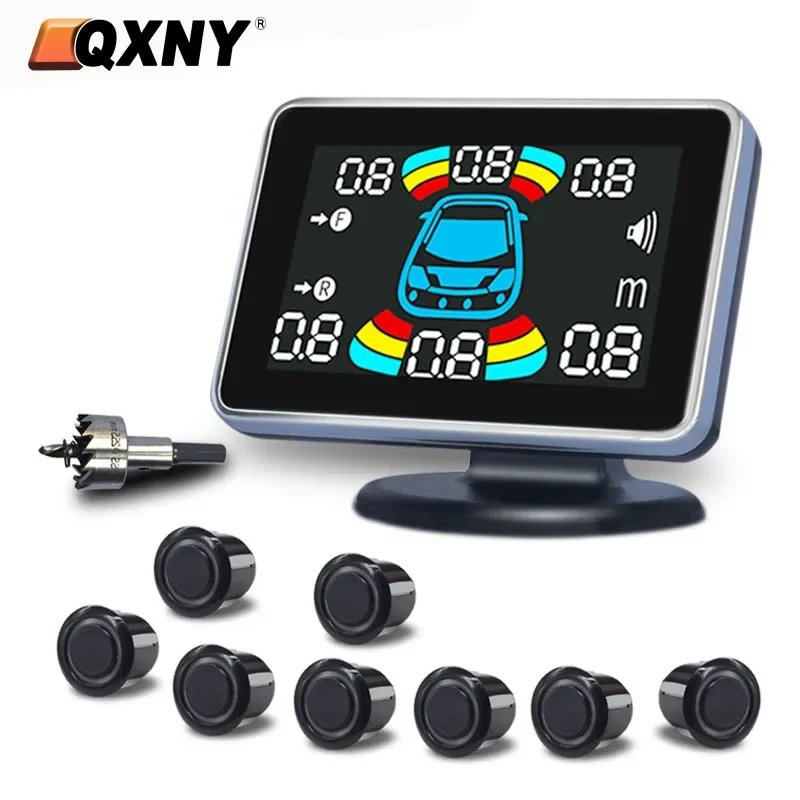

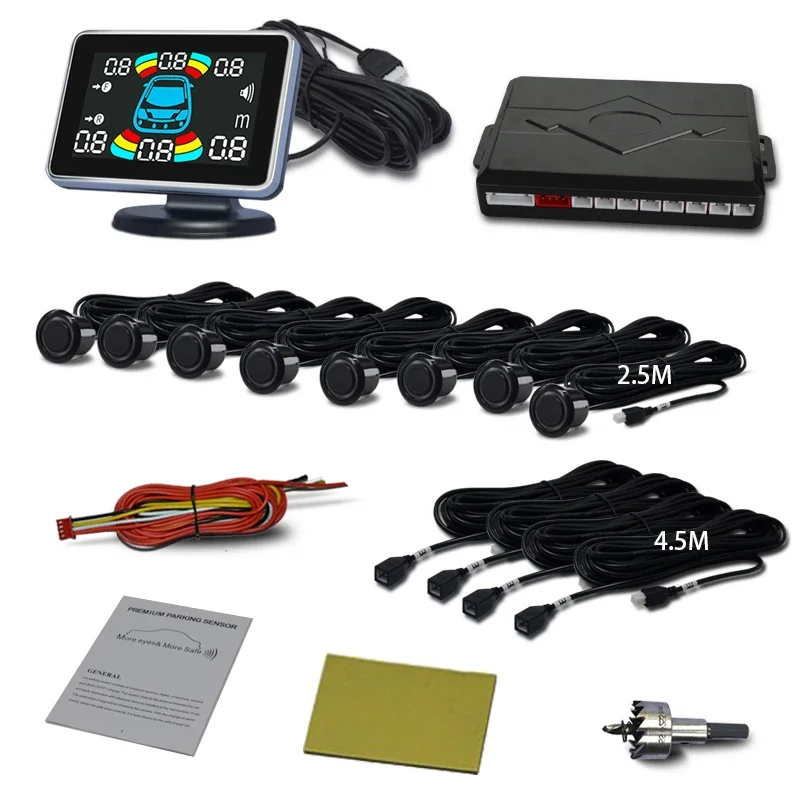

Package includesMonitor*1
Control Box*1
Parking Sensors(2.3M)*8
Extension cord(4.5M)*4
User manual*1
Power Cable*1
Sticker*1
Hole Saw*1

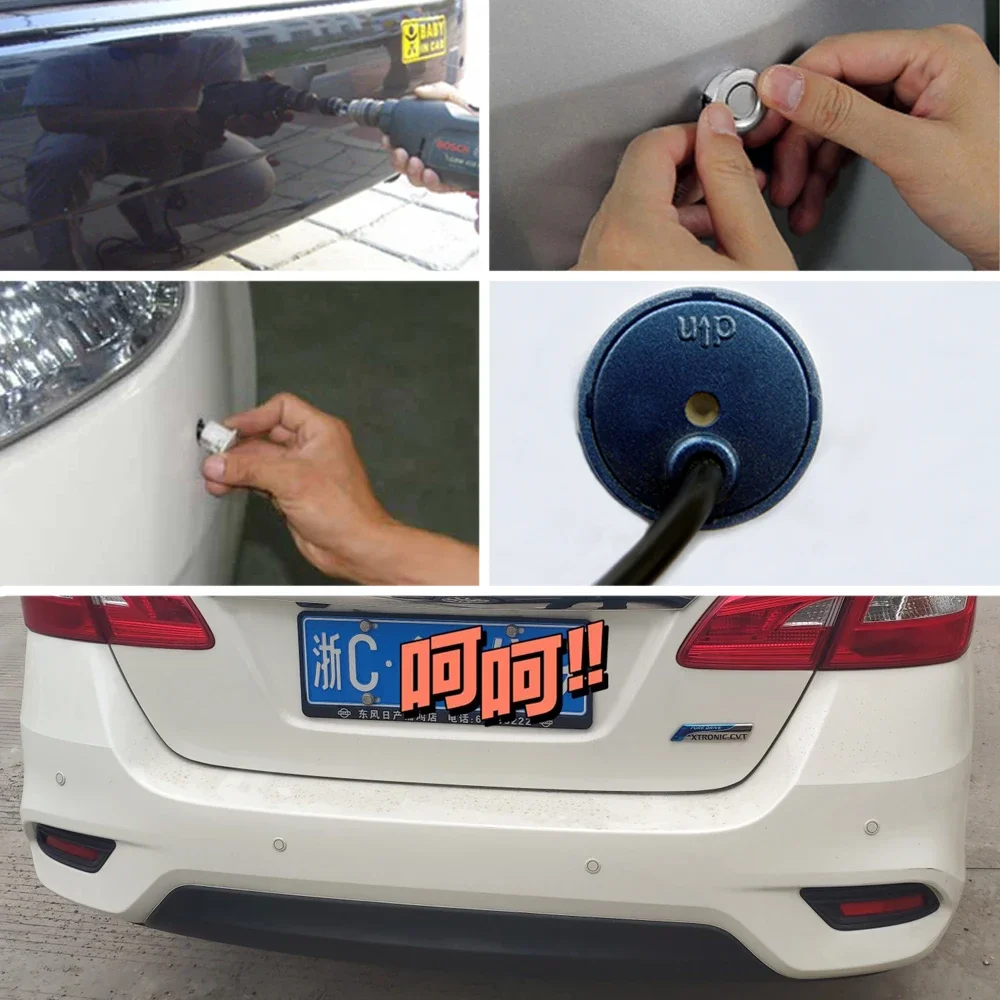

Sensor installation requirements
Sensor installation requirements1: Installation height is greater than 45 C M above the ground.
2: Ensure that the surface is perpendicular to the ground
Key: No sensors cannot detect the ground.
Error 1: Height is less than 45CM
Error 2: The surface is not vertical ground
Error 3: The surface is not vertical ground
