Autel MaxiTPMS TBE200E Tire Tread Depth & Brake Disc Wear Examiner Laser-enabled Real-time Measurement Scan Tool Tire Scan DOT

AUTEL MAXITPMS TBE200 (E), YOUR EXQUISITE TIRE DOCTOR

Autel tire tread depth & disc wear 2-in-1 tester MaxiTPMS TBE200 (E) is a laser-enabled tire & brake disc-wear examination tool that provides users with quick and accurate tire-wear measurements along with the ability to measure brake disc wear without having to remove tires. Autelscanner TBE200 (E)'s dual cameras enable users to document tire wear and damage as well as scan Tire Identification Numbers (TINs). You can use the tool on its own or with a compatible Autel diagnostics tablet, such as Autel MaxiTPMS ITS600 (E)/ITS600 Pro to view and print detailed TPMS reports.

Laser Measurement with 0.1mm accuracy: Accurate, efficient and instant detection of tire conditions, no need to remove the tires
Tire Tread Check: “All Treads” and “Single Check” Modes available for different tire checking scenarios
Brake Disk Wear Check: not only provides brake disc wear measurements, but also offers analysis to ensure driving safety
DOT Scan: scan or manually enter the tire DOT serial number located on the sidewall to acquire basic tire characteristics such as tire recall (American region only) and tire age.
Tire Expiration Notice: Remind you to replace tire regularly
Tire Recall Lookup: Defective Tire Recall Notice
Measurement Data Curve: Display specific curve for technician reference
Take Photos of Tire Wear & Damage: Dual cameras enable users to document tire wear and damage
Uneven Wear Analysis: Analyze the cause of tire uneven wear and give maintenance guidance
Brake Disc Wear Limit: enables you to adjust the brake disc wear limit for brake disc checks.
Replacement & Maintenance Suggestions: Offering professional tire related advice

TIRE TREAD WEAR & BRAKE DISC CHECK

TIRE TREAD WEAR
Using laser technology, Autel intelligent automotive brake-disc tester TBE200 (E) analyzes the wear of the tires on vehicles with no need to remove the tires. Place the tool on the tire, and the tool projects a laser beam. The wear measurement is then sent to the display screen with an accuracy within 0.1mm. Testing Measurements are also displayed graphically.

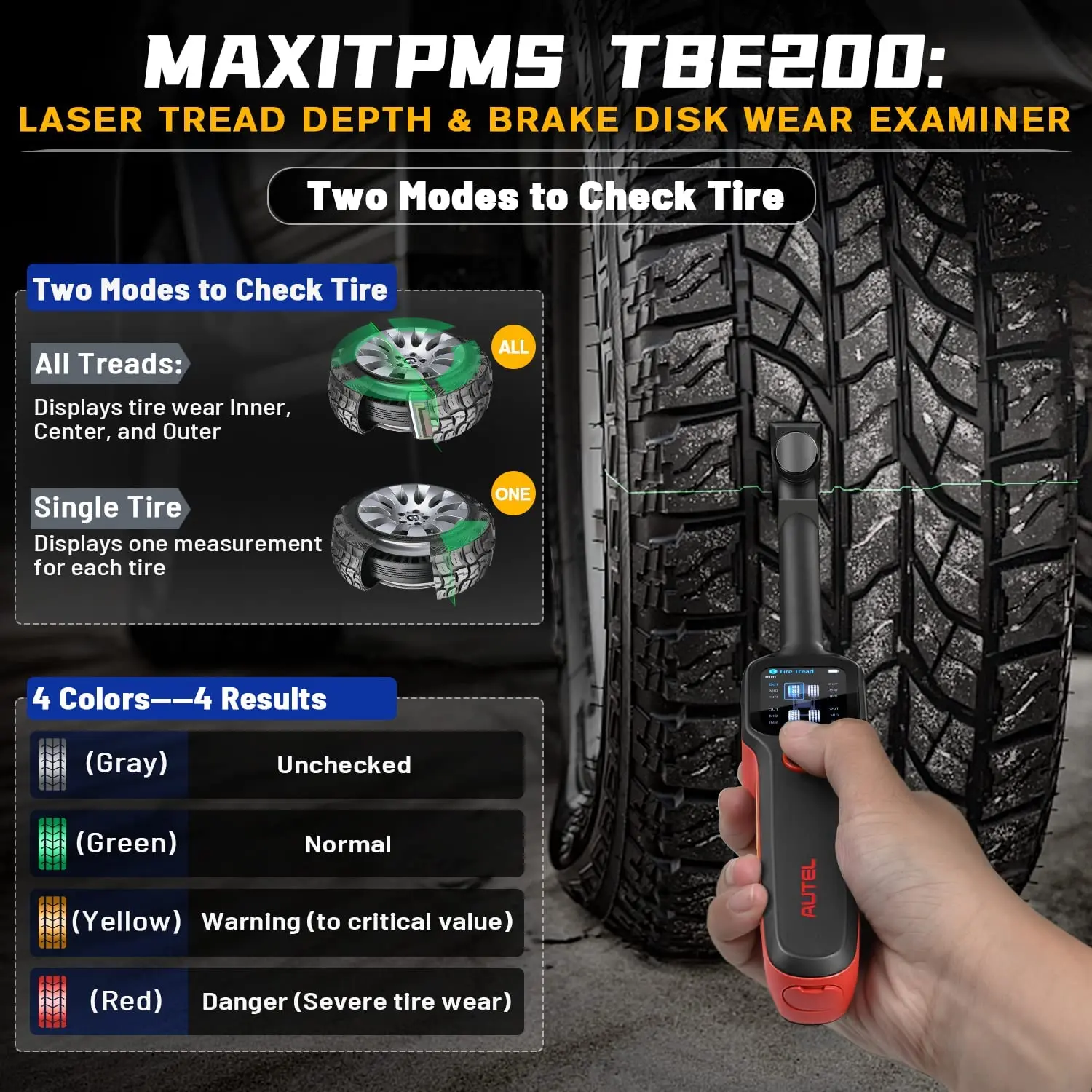

1.Single Check
Measures the wear of each tire on the vehicle by examining the tread depth in the center area of the tire only, provides one measurement for each tire.

2.All Tread Check
Examines your tire wear in three separate areas (outer, center, and inner) for a more comprehensive analysis.
The following three tire-related sections are provided in all check modes:
Tire condition- displays tire status, including normal, worn, bulge,etc.
Tire DOT- scan or manually enter the tire DOT serial number located on the sidewall to acquire basic tire characteristics such as tire recall (American region only) and tire age.
Tire specification- view a series of options and manually enter tire information, including brand, tire model, size, structure type code, etc.

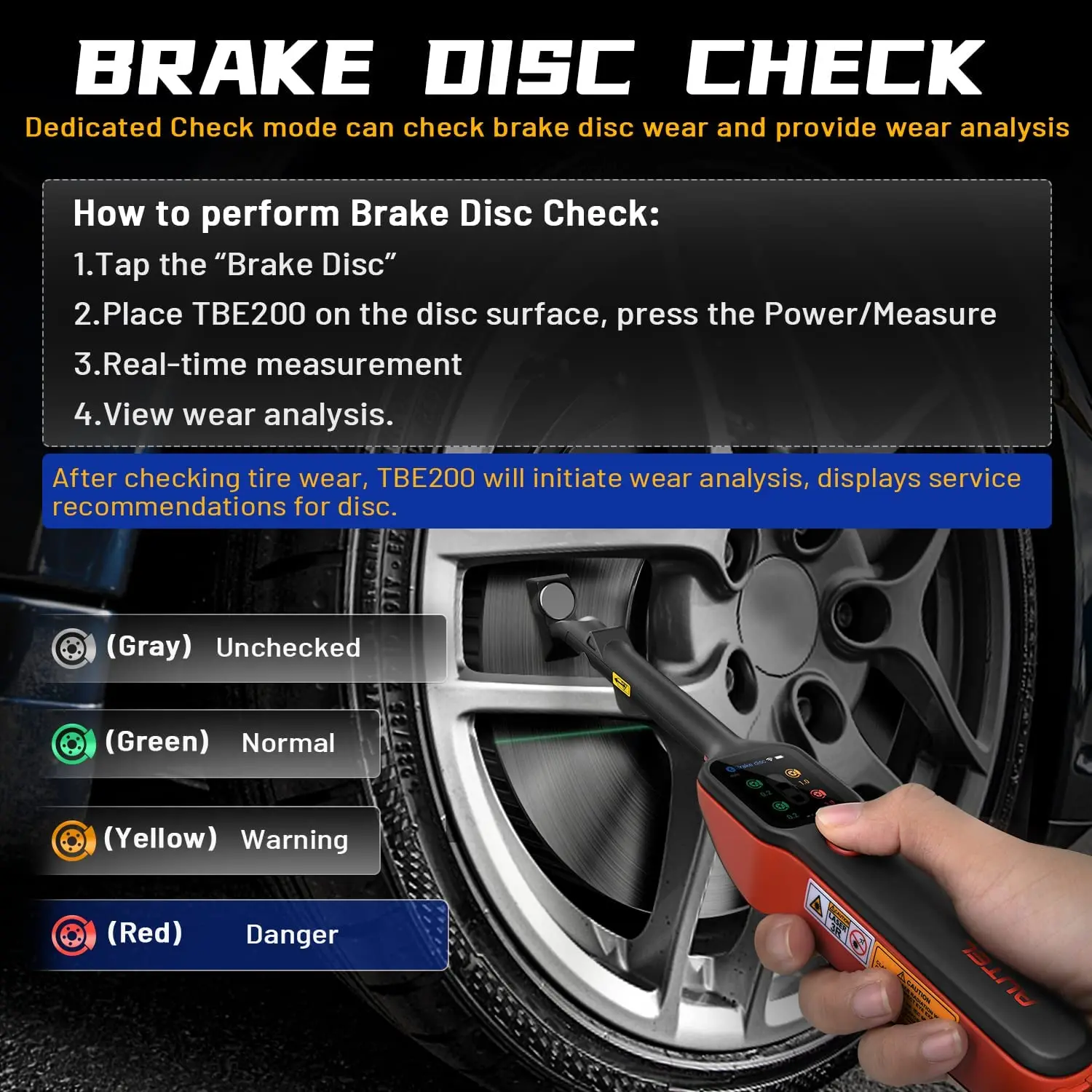

BRAKE DISC CHECK
Autel laser-enabled tool MaxiTPMS TBE200 (E) examines brake disc wear quickly and accurately. You can examine the wear status of a brake disc without removing tires. Measurements are also displayed graphically. The Brake Disc function not only provides brake disc wear measurements, but also offers analysis to ensure driving safety.

OR, if the specific tire is confirmed defective, you can click “Quick Check”, this will allow you to measure the tires and brake discs in one session for a comprehensive analysis of both tire and brake disc wear.

Real-time Tire Health Analysis

Unlike other simple and basic tire test tool with only rough and inaccurate tester results, Autel MaxiTPMS TPMS and Tire Service Tool TBE200 (E) is proved to be an advanced tire tread examiner with detailed measurements and maintenance tips.

Real-time measurement data on touchscreen
Measurement data curve display
Uneven wear analysis
Test detail for single tire tread / brake disc
Detailed replacement & maintenance suggestions (tire/ brake disc replacement, tire rotation /alignment servicing)
Scan DOT, tire expiration notice, tire recall lookup
Take photos of tire wear & damage
Working with Autel TPMS Relearn Tool ITS600 (E), Autel MaxiTPMS TBE200 (E) tire tread scan tool can get the most comprehensive Test Reports and professional tire maintenance tips for almost all the tires on the market.

Wear Analysis

After diagnose Tire Tread and Brake Disk, the tire wear tester TBE200 (E) can quickly and accurately analyse tire wear data and intuitive reflect on the screen. 4 different colors represent corresponding grade:

Unchecked
Normal
Replacement recommended
Replace immediately.
Technician can take different measures based on different tire health condition and to ensure vehicle driving safety.

Auto Scan & Manually DOT Scan

Autel tire tread depth examiner TBE200 (E) provides 2 ways to acquire Tire DOT (Department of transportation):

Auto Tire Scan: scan Tire Identification Numbers (TINs) with the cameras.
Input tire DOT series number manually. Enter the DOT to obtain detailed tire characteristics such as tire recall (American region only) and tire age, etc.

Tire Type Setting

Autel brake disc examiner TEB200 (E) offers 3 tire types: Summer, Winter, and All Season. Select a tire type. A check mark will display to the left of the active selection. Right beneath each tire option is the tire wear limit with the default value of 1.6–3.2 mm. Tap the arrow icon at the lower-right corner of the tire option bar to change the tread wear limit.

Autel TEB200E Universal Tire Tread Tester: Covering 99% of tires in the market.

Autel maxitpms tire tread and brake disc wear examiner TBE200 (E) is compatible with 99% vehicle tires on the market including:

all types of passenger cars
commercial vehicles (trucks, heavy trucks, buses)
off-road vehicles
motorcycle
more.

Data Query

What if I want to check the previous tester records? Connect the brake disc wear examiner TBE200 (E) with Autel ITS600 (E)/ITS600 Pro TPMS reset tool, check the “Data Query”, you will be available to check previous stored measurements, they will be displayed on the tablet screen automatically.

Lifetime Free Updates, 19 Language Menus

Autel tire tread depth scan tool MaxiTPMS TBE200 (E) comes Lifetime Free Software Updates, and 7/24 after-sales online Support. It also supports 19 kinds of languages, universal for every native speaker. I you need Spanish or ANY other language, please send us the S/N, we’ll authorize your target language for free.

System Calibration

Autel tire tread tester TBE200 (E) come with a System Calibration Base, which is used to calibrate your examination tool for optimal measuring results. Calibration is recommended every two month. Immediate calibration should be performed when deviations are detected or when the tool is dropped or mishandled in any manner.

Easy to Use-Autel MaxiTPMS TBE200, A good helper for Your Vehicle Tire

Autel MaxiTPMS TBE200 one-button operation, easy to use.

STEP 1: Long press the power button to turn on the tool.

STEP 2: Perform Tire Tread Check: On the Main Job screen, tap the Tread Check icon, and place the tool on the tire surface. Short press the power button. Ensure the laser line is perpendicular to the channels of the tire. The screen will display real-time measurement data, slide left to view details.

STEP 3: Possible Results for Measurements: Wear status is represented by icon color: A gray icon indicates the tire is untested; green indicates the tire is in good condition; yellow indicates a replacement is recommended; red indicates immediate replacement is recommended.

STEP4: Calibration: On the Main Job screen, tap the Calibration

icon, and place the magnetic head on the calibration table. Press the power button to start. Wait for 1-2 minutes until calibration is complete.

Calibration frequency: Calibration is recommended every two months. Immediate calibration should be performed if deviations are detected or if the tool is dropped or in some manner mishandled.

Specification:

Recommended Use:Indoor
Processor:4x ARM Cortex-A35 (1.5 GHz)
Memory:1GB RAM LPDDR3 & 4GB ROM
Display:1.65-inch AMOLED capacitive touchscreen with 348×442 resolution
Connectivity:• Wi-Fi• USB 2.0, Type C
Camera:CMOS WXGA, 1 megapixel & 8 megapixel, 30fps
Audio output: Output: Beep
Power and Battery: • 3.7 V/3000 mAh 18650 lithium-ion battery • Charges via 5 V AC/DC power supply
Tested Battery Life: Around 8 hours of continuous use
Battery Charging Input: 5 V/1.5 A
Power Consumption:300 mA (AMOLED on with default brightness) @3.7 V
Operating Temp.:-10 to 45°C(14 to 113°F)
Storage Temp.:-20 to 60°C (-4 to 140°F)
Dimensions (W x H x D):283.0 mm (11.14”) x 39.0 mm (1.54”) x 33.5 mm (1.32”)
Net Weight: 188 g (0.41 lb.)

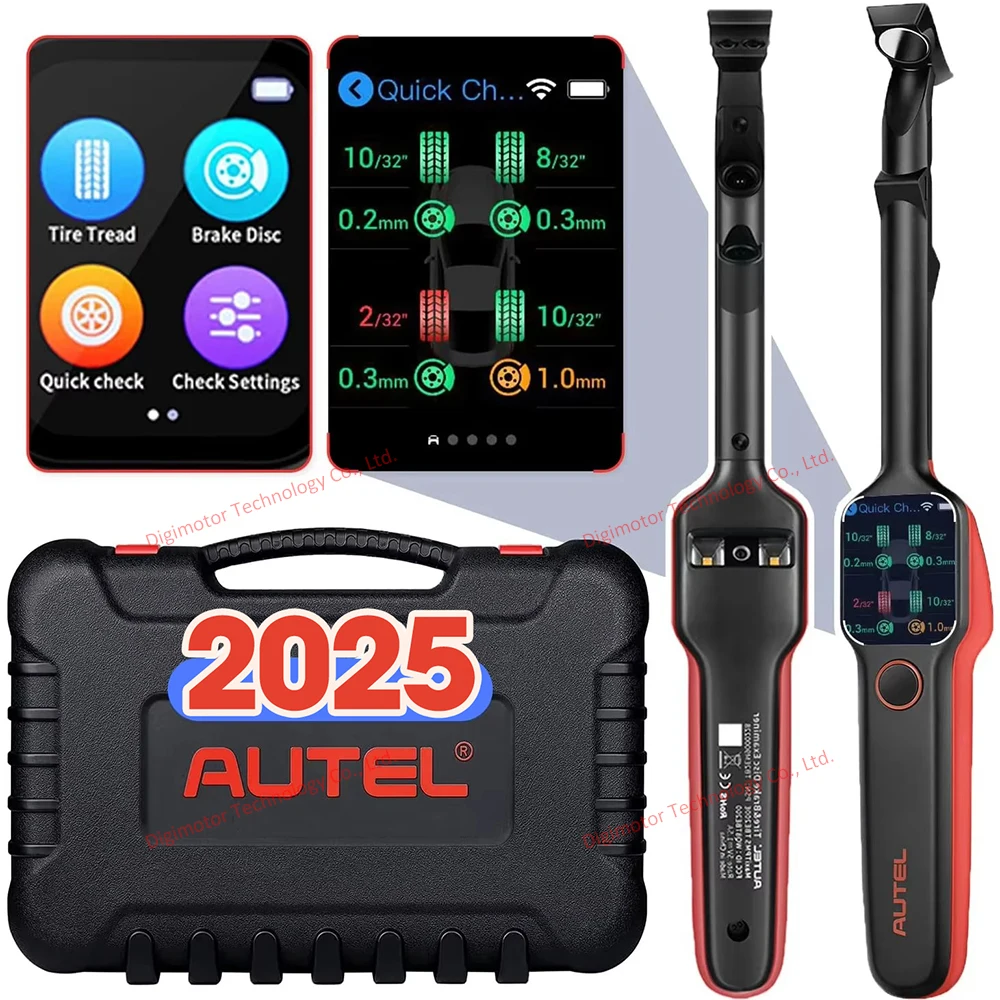

PACKAGE INCLUDES

Autel MaxiTPMS TBE200 * 1
Calibration Table * 1
Power Adapter * 1
Type C USB Cable * 1
Quick Reference Guide * 1
Packing List * 1
Carrying Case * 1
