AZDENT Dental Cordless Led Curing Light 1 Second Cure Lamp Device Blue Light 2400mW/cm2 3 Mode 440nm-480nm Dentistry Equipment

AZDENT Dental Cordless Led Curing Light 1 Second Cure Lamp Device Blue Light 2400mW/cm2 3 Modes 440nm-480nm Dentistry Equipment

Introduction:

1.Technical specifications：

1.1 Dimensions: 250mm×250mm×240mm

1.2 Net weight: 278g

1.3 Power source

1.3.1 Power supply: rechargeable Lithium battery

1.3.2 Battery mode: ICR 18490

1.3.3 Battery voltage and capacity: 3.7V/ 1400mAh,Battery has protection against Over-voltage, over-current and short circuit.

1.3.4 Adapter Power Input: 100V to 240V, 50Hz/60 Hz

Input Power: 10VA Power Output: DC5V/1A

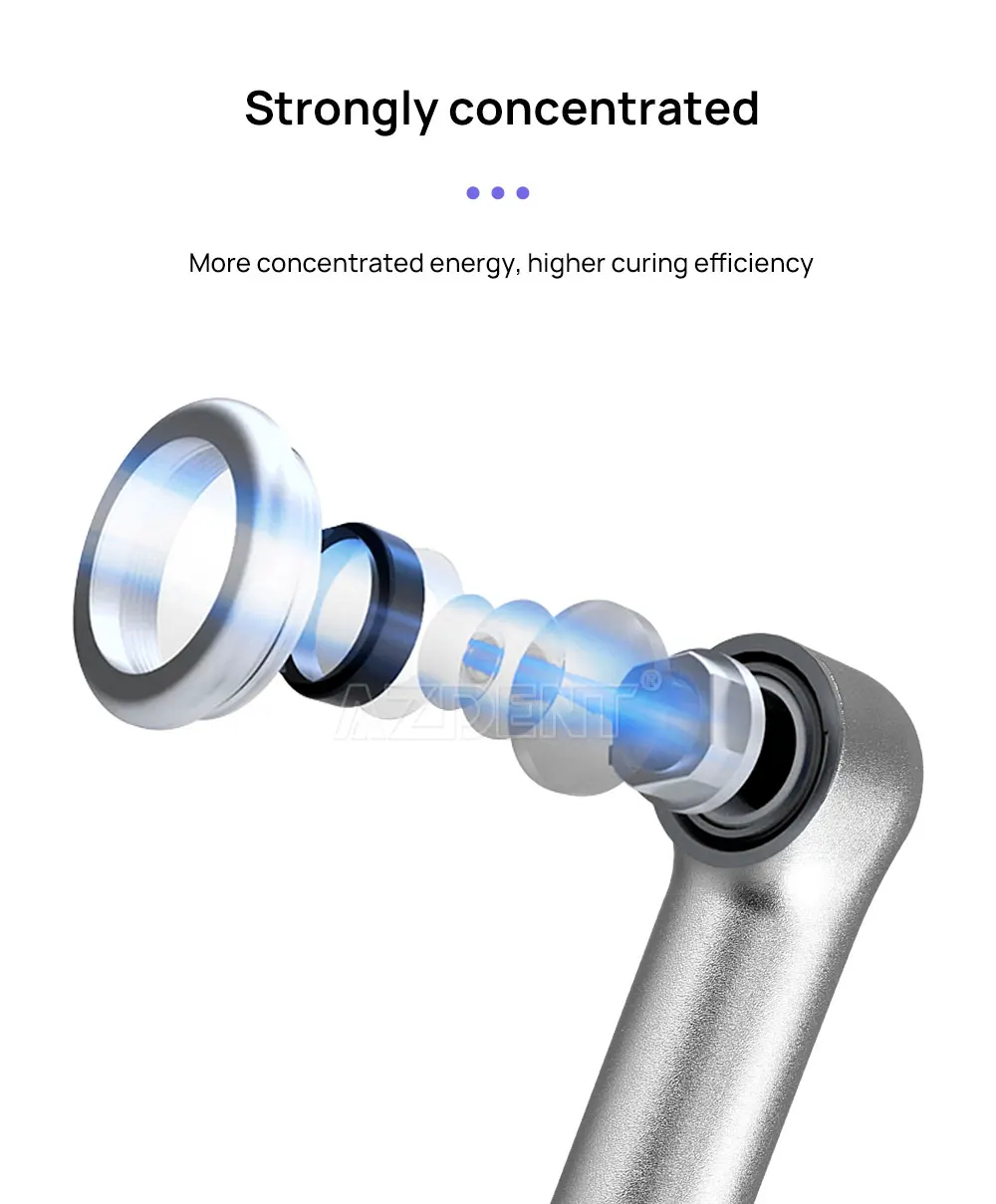

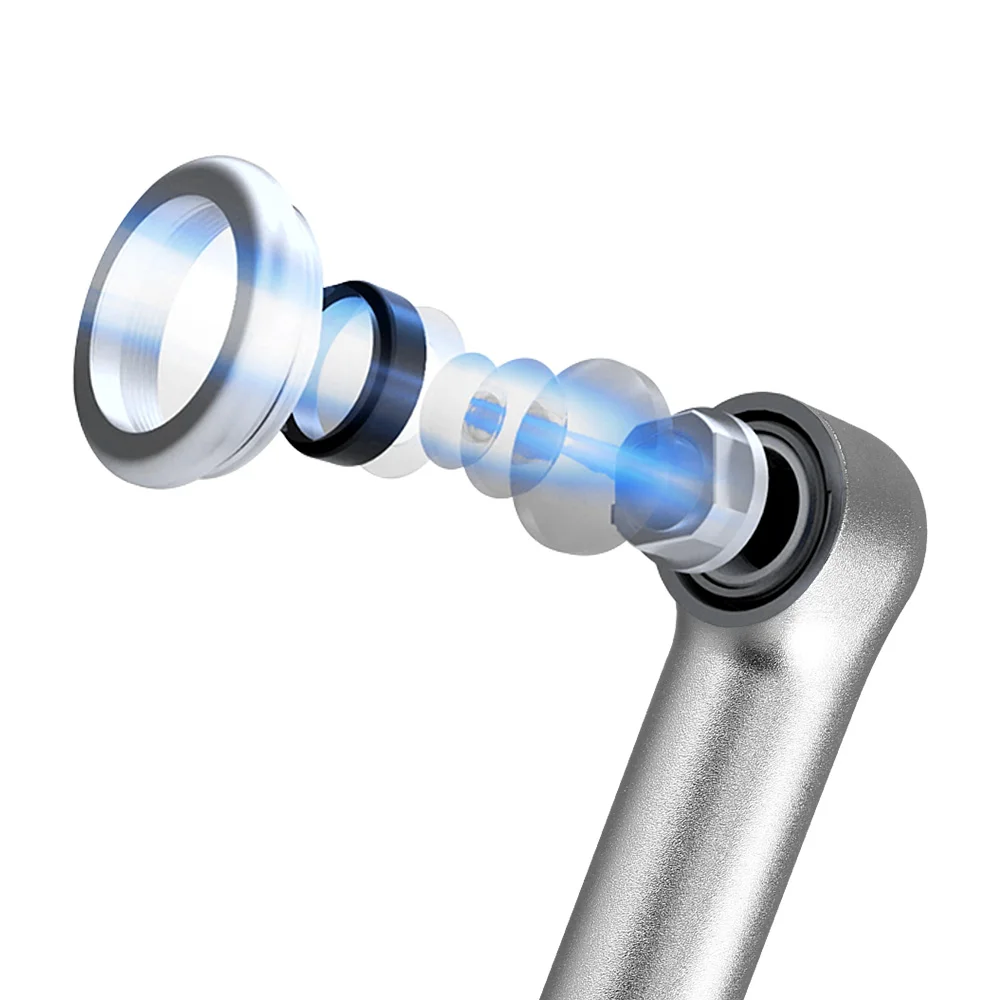

1.4 Light source:

1.4.1 5W high power blue light LED

1.4.2 Checking method: the LED light is fine when the light is on during operating correctly.

1.4.3 The wave length of this product can match with the clinical dental resin solidification, such as 3M, Dentsply etc.

1.4.4 Wave length: 440nm-480nm

1.5 Light intensity:1000-2400mW/cm2

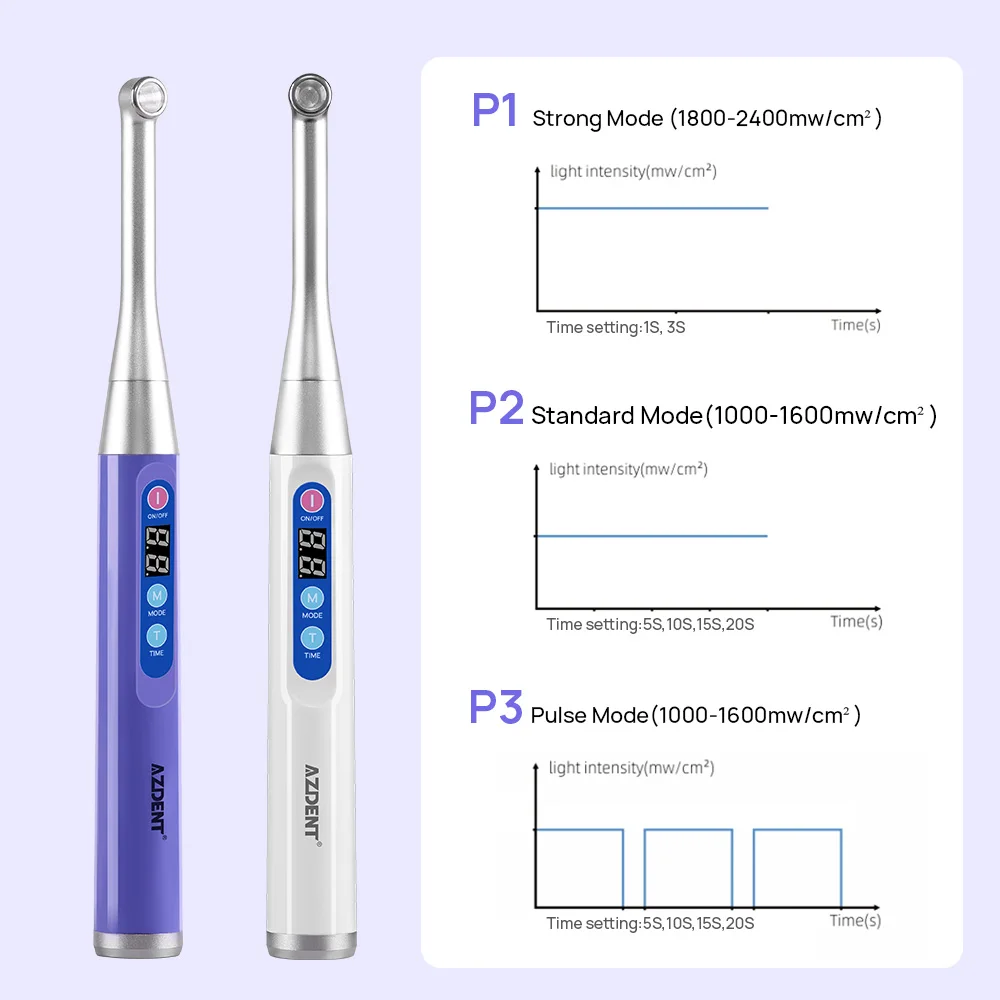

P1 Strong mode:1800-2400mW/cm2

P2 Standard mode:1000mW/cm2~1600mW/cm2

P3 Pulse mode:1200mW/cm2~1600mW/cm2

2. Operation：

2.1 Press the mode button. Following two modes are available.

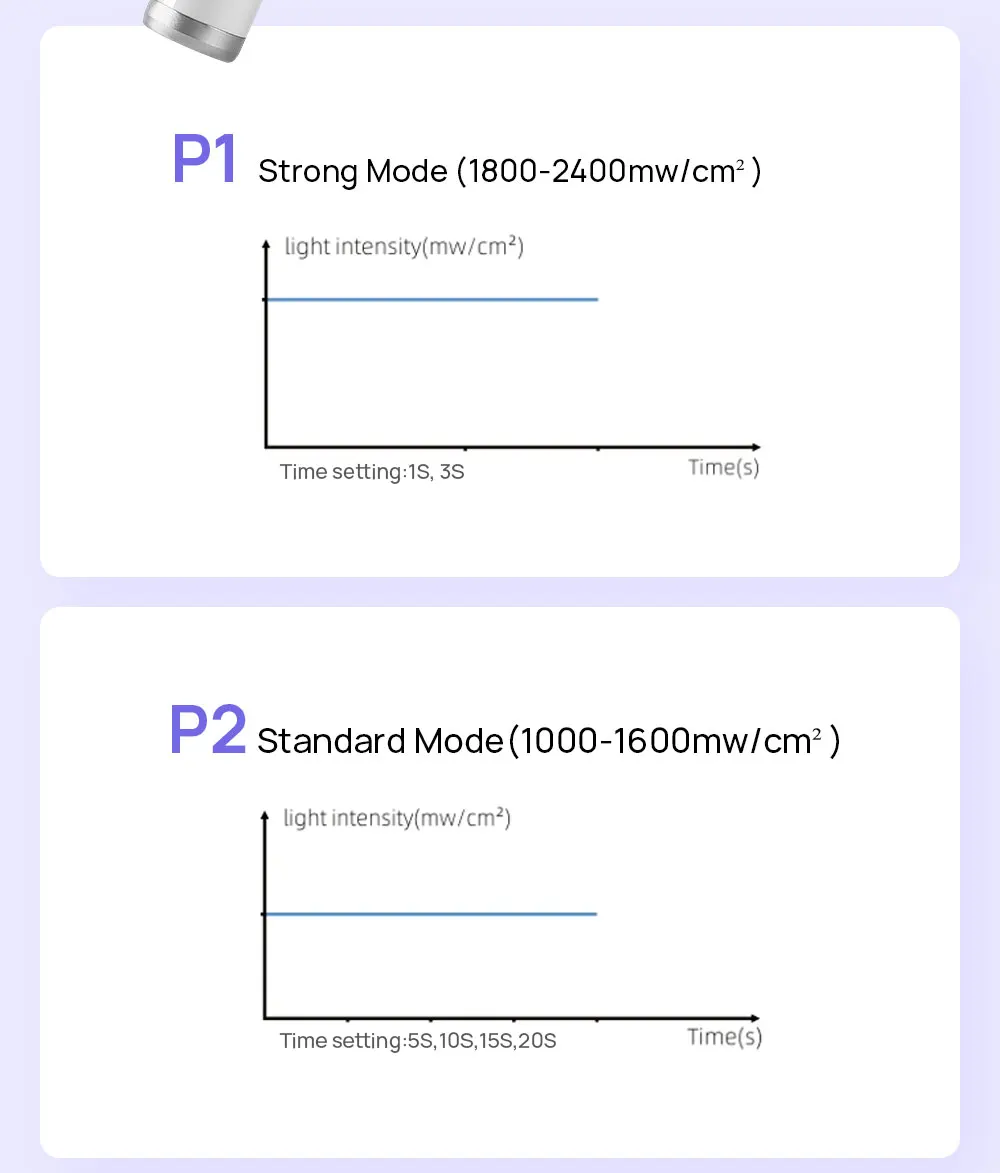

2.1.1 Strong Mode: screen shows P1, Press the time button to select of time which could be 1 and 3 seconds.Its output light intensity is about 1800-2400mW/cm2

2.1.2 Standard Mode: screen shows P2, Press the time button to select of time which could be 5,10 ,15and 20 seconds.Its output light intensity is about 1000-1600 mW/cm2

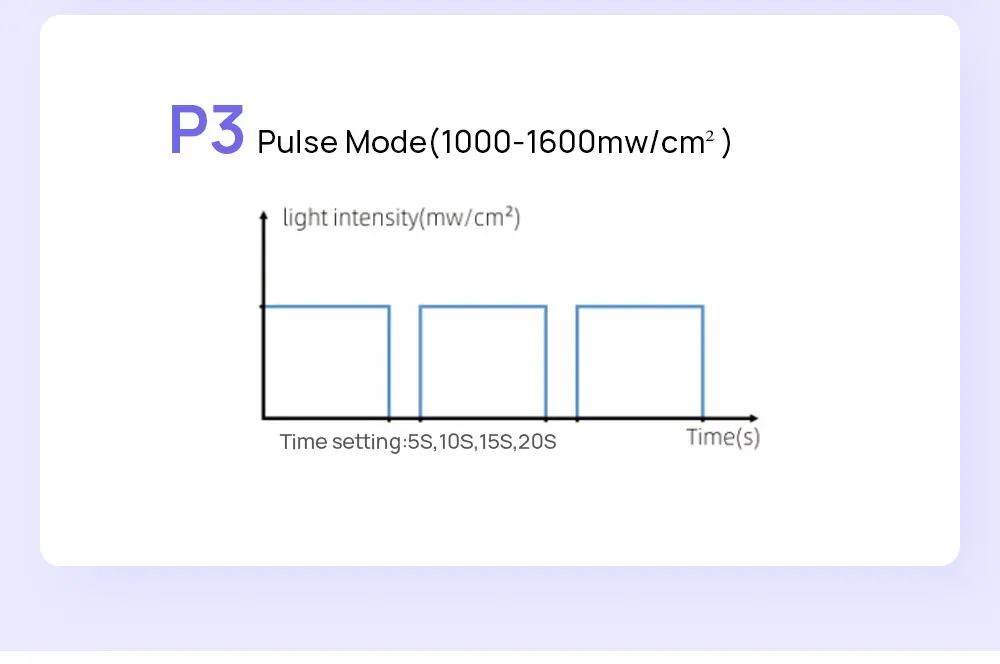

2.1.3 Pulse Mode: screen shows P3, press the time button to select of time cold be 5s, 10s, 15s, 20s. It’s output light intensity is about 1000-1600 mW/cm2

2.2 During the operation, put the disposable sleeve on the top of the main unit, aim the top at the correct position, press the ON/OFF button and the main unit will produce "Bi" sound, the curing light radiates blue light and starts working according to the set modes. Meanwhile, it starts counting down and will produce tone at every 5 seconds, it stops working when counting down to "0".

2.3 During operation, the blue light can be stopped by press the power button at any time.

2.4 After a working cycle, operator can press the ON/OFF switch to start another working cycle. Stop operating if the equipment began to heat obviously, do not restart until the equipment cool down. Suggest continues working cycle less than 10 times.

2.5 Low power detective circuit is fixed inside of the main unit, when low power is detected, the display screen of main unit will wink, please charge in time.

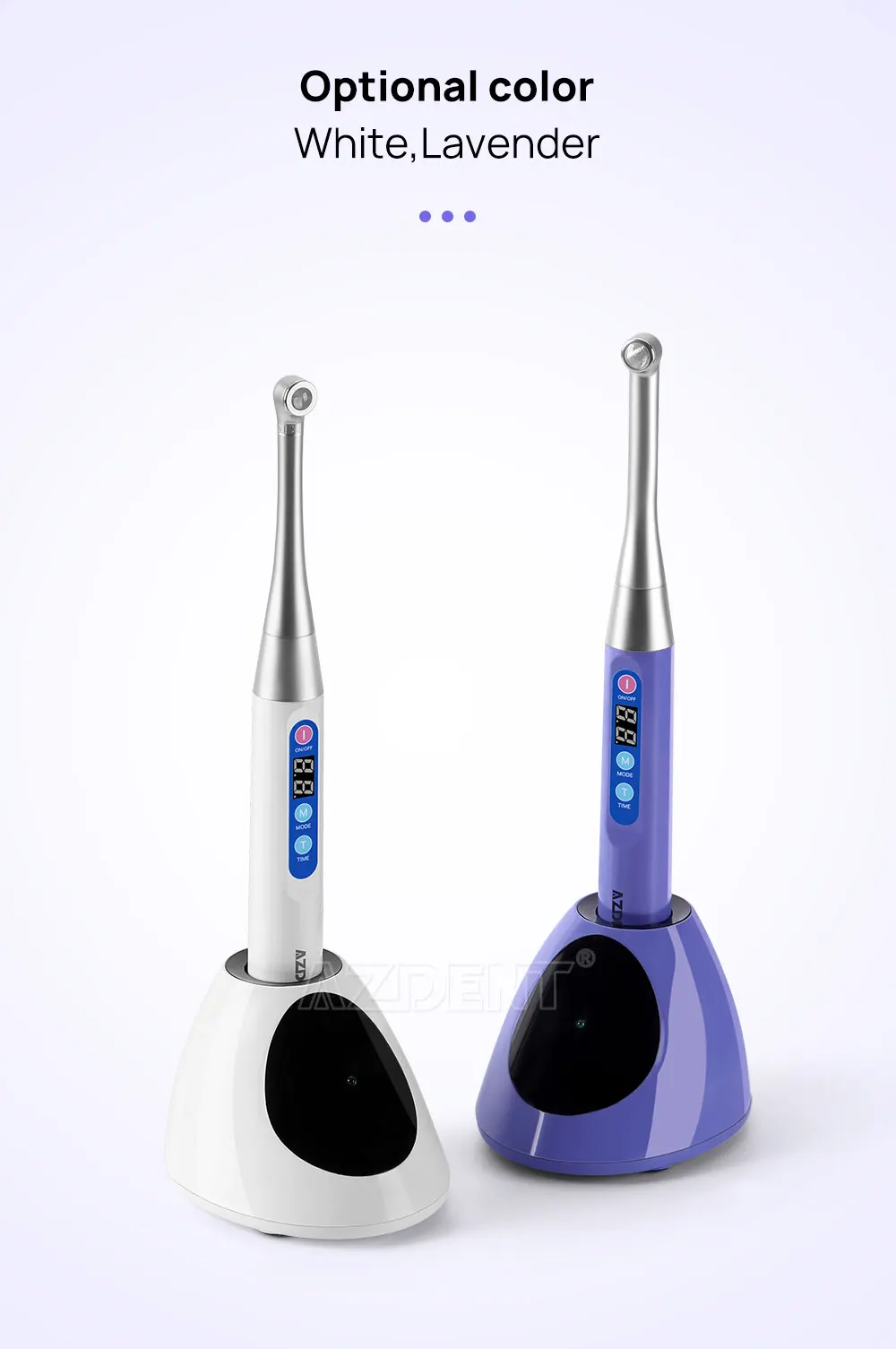

2.6 When the battery needs to be charged, connect the plug of the adapter into the AC100V~240V power supply. Then connect the output plug of the adapter to the DC 5.0V input plug of the pedestal, and then the logo turn to blue. Put the main unit to the charging point of the pedestal, the display screen turn to scrolling display, and the curing lights starts charging.

2.7 After operating, take off the disposable sleeve and throw away, forbidden to reuse.

2.8 This equipment will turn off automatically if don't any action within 2 minutes, turn it on by press any button.

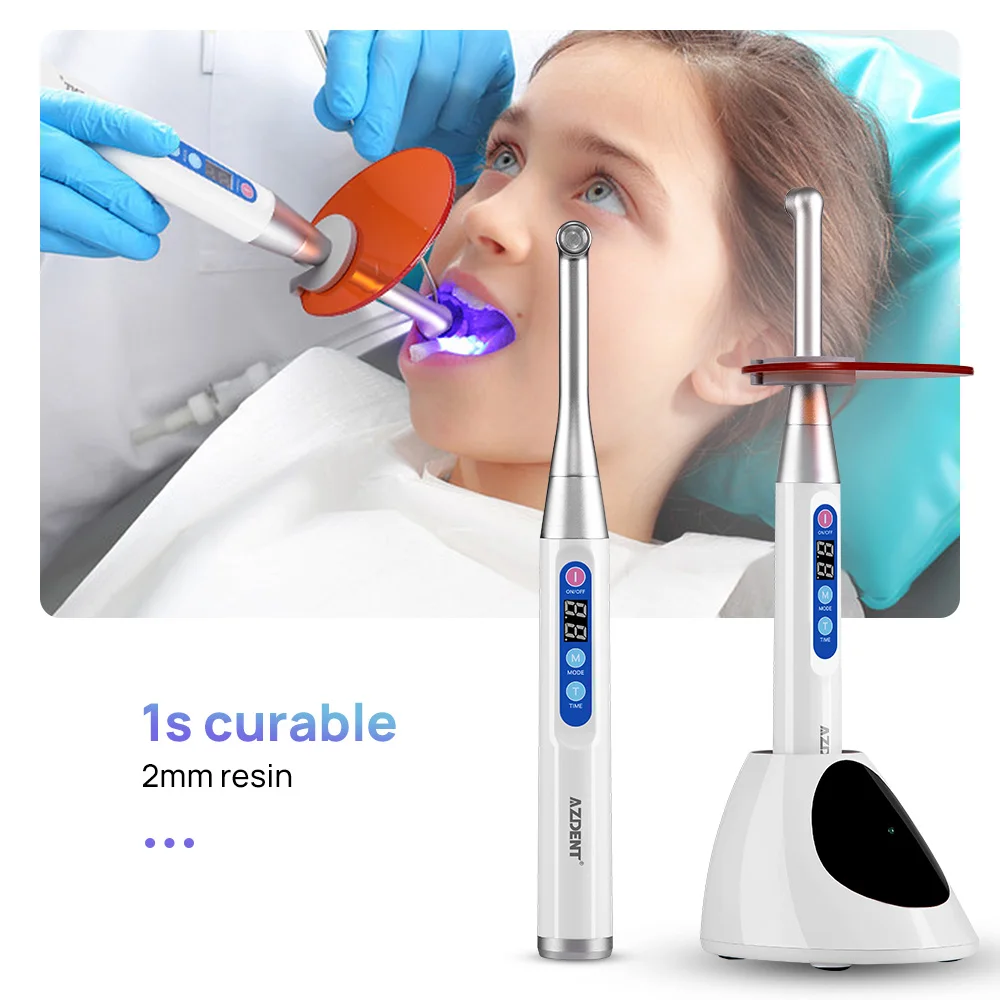

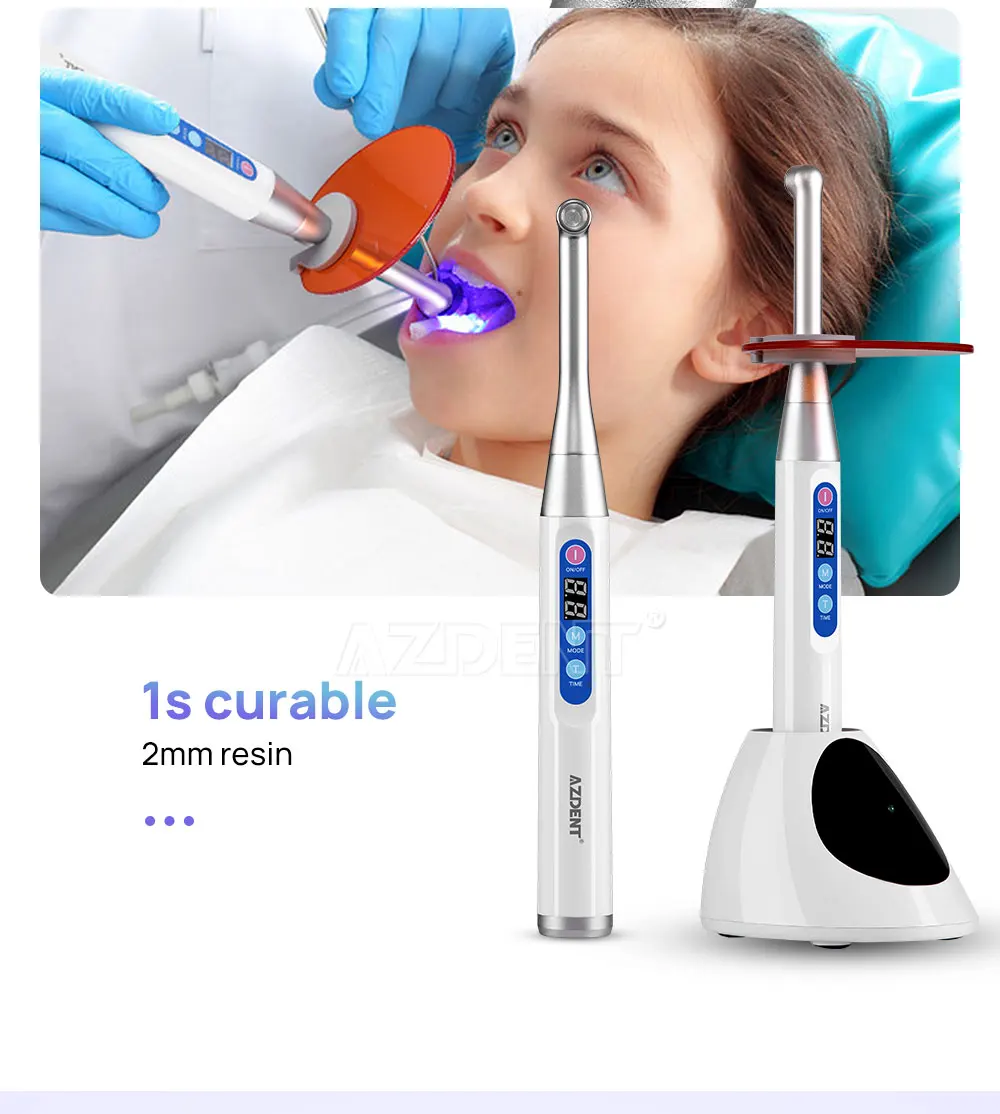

2.9 The depth of solidification of composite is no less than 2mm per 1 second.

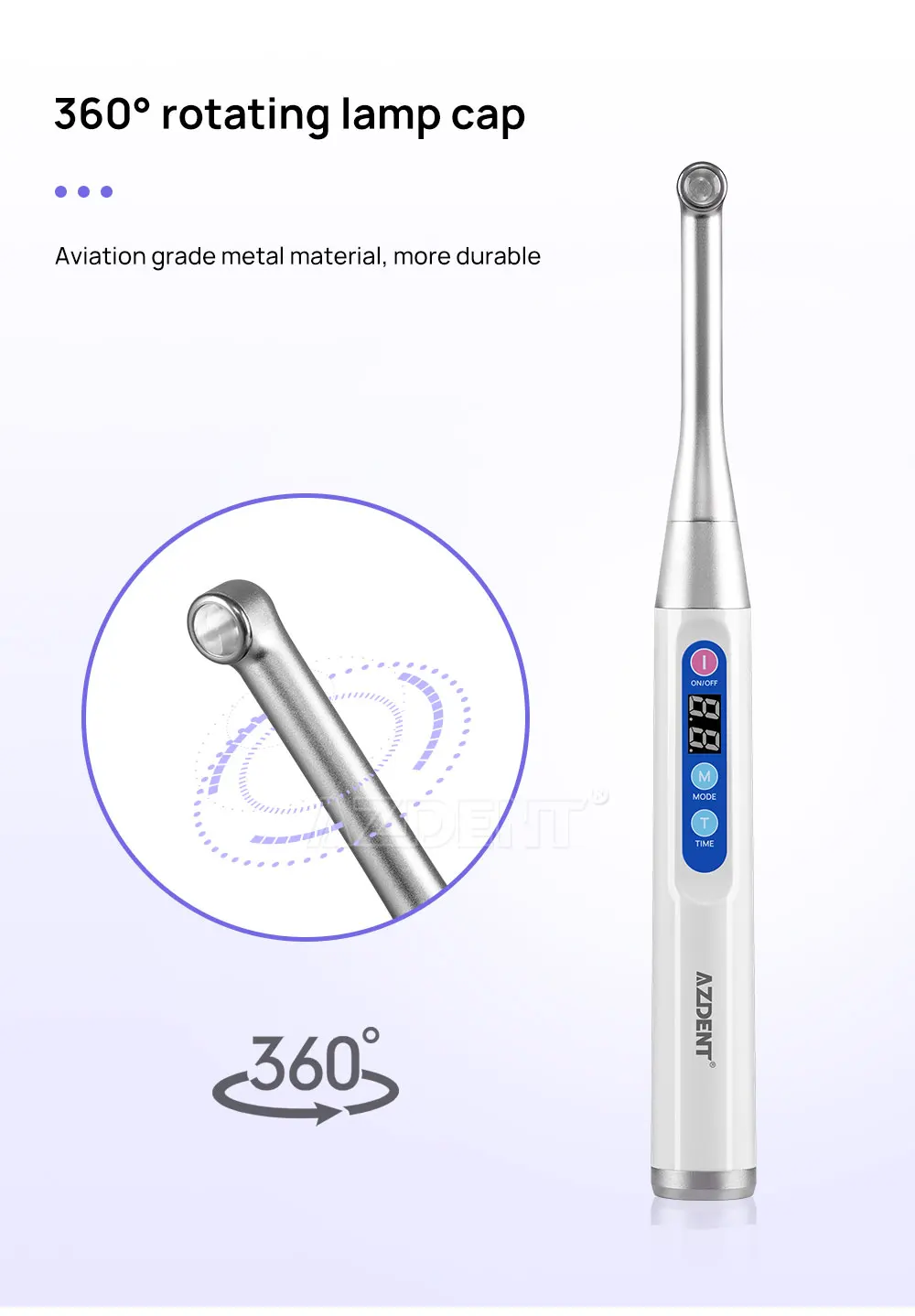

3.Material: The handle is made of plastic，The lamp holder is made of metal
