- Hign-concerned Chemical: None
- Use: others
- Output Power(w): 5w-10w
- Battery Capacity(mAh): 1800mAh
- Waterproof / Water-Resistant: IP57
- Battery Included: Yes
- Material: Plastic
- Storage Channel: 128
- Frequency Range: 144-148MHz,430 – 440 MHz,446MHz
- Dimensions: 132 x 60 x 35 mm
- Model Number: H6
- Walkie Talkie Type: Portable
- Is_Display: Yes
- Maximum Range: 3km-5km
- Brand Name: BAOFENG
- Origin: Mainland China
- Certification: CE,FCC,RoHS
General
-
Frequency Range VHF:136-174MHz UHF:400-520MHz(Dual band)
-
Memory Channel 128 Group
-
Channel Spacing 25KHz(Wide),12.5K(Narrow)
-
Operating Voltage DC7.4V
-
Frequency Stability ±2.5ppm
-
Operating Temperature -20~+60℃
-
Antenna Impedance 50Ω
-
Transmit Current H≤2.5A;M≤1.8A;L≤1.1A
-
Modulation(Wide/Narrow) 16KΦF3E/11KΦF3E
-
Maximum deviation ≤±5 kHz/≤±2.5 kHz (W/N)
-
Stray Power ≤7.5uW
-
Adjacent Channel power ≤-65dB/≤-60dB
-
Signal-to-noise(wide/narrow) ≥-45dB/≥-40dB
-
QT/DQT Deviatio(wide/narrow) 0.7±0.1KHz/0.4±0.1KHz
-
Modulation Sensitivity 8-12mV
-
Demission 134*62*32mm(no including the antenna)
-
Weight About 300g(include in battery and antenna)
Receiver
-
Receiver Sensitivity ≤0.25uV(12dB SINAD)
-
Audio Power 1W@10%
-
Audio Distortion <10%
-
Signal-to-Noise ≥45dB
-
Adjacent Channel Selecitivity(wide/narrow) ≥-65dB/≥-60dB
-
Intermodulation(wide/narrow ) ≥-65dB/≥-60dB
-
Stray Suppression ≥-65dB
-
Receive Current ≤380mA

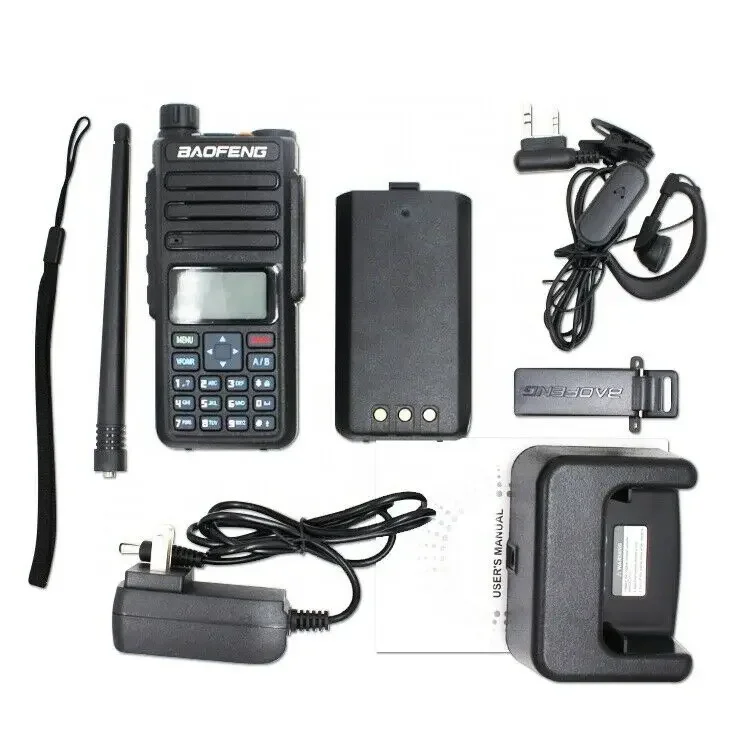

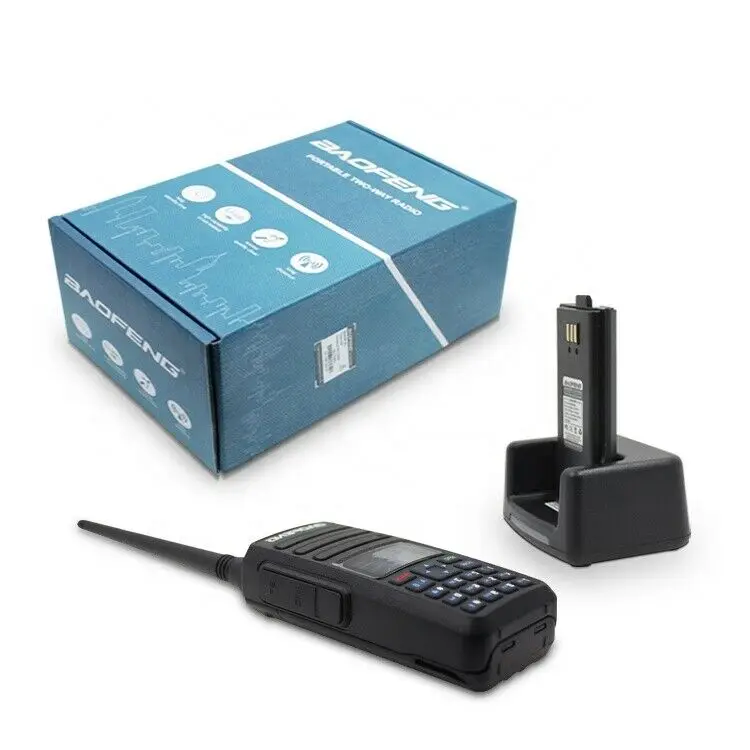

Standard Package Content
-

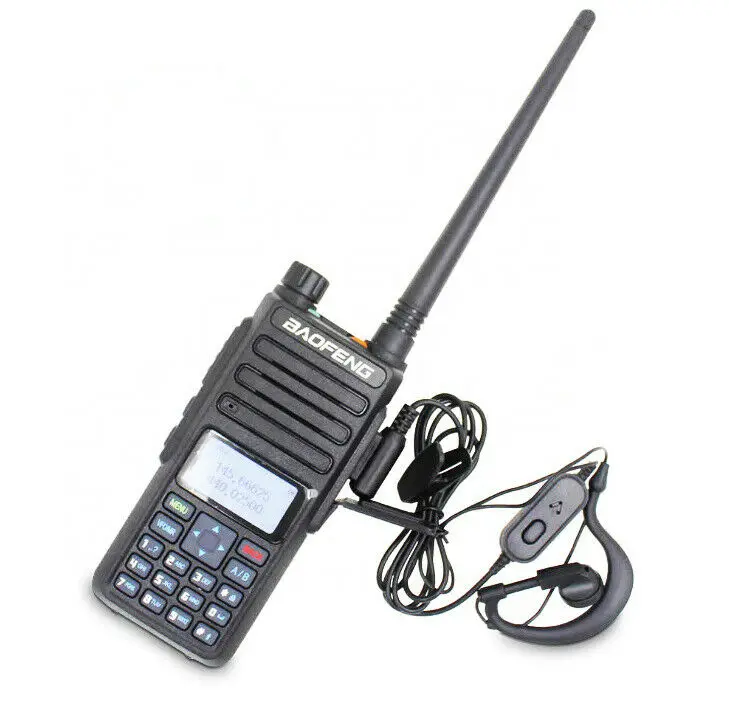

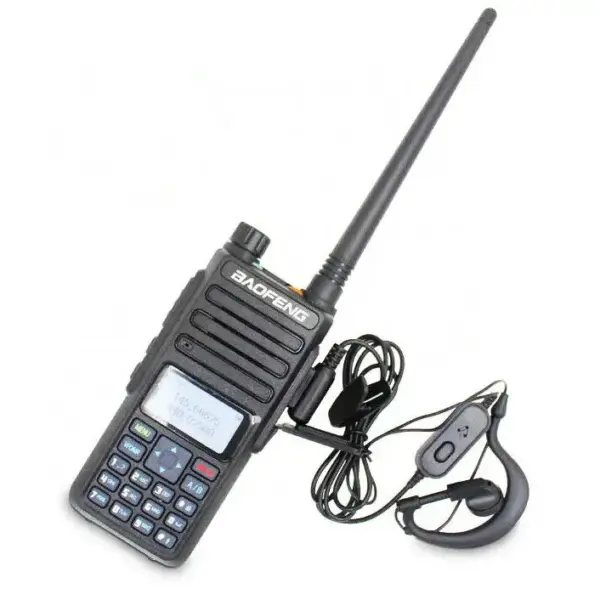

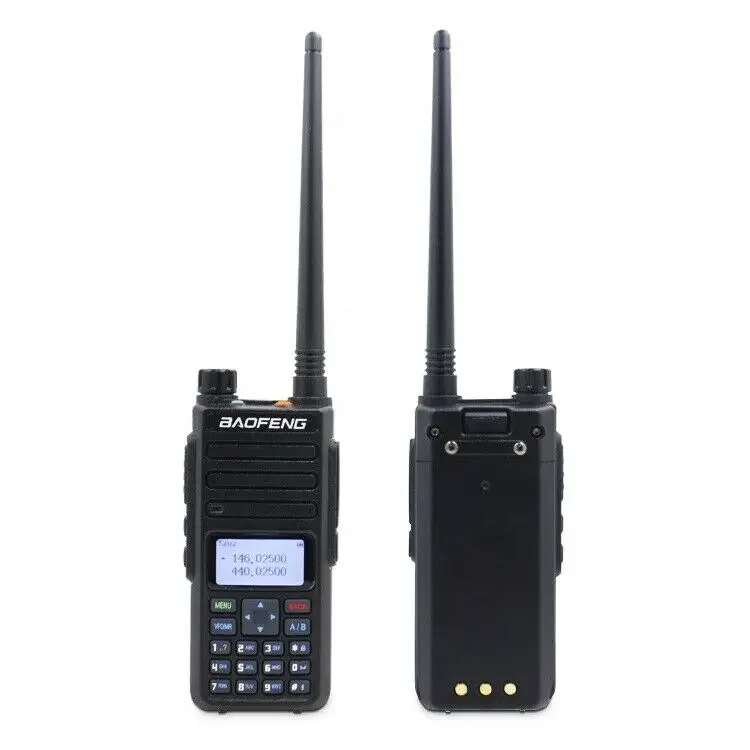

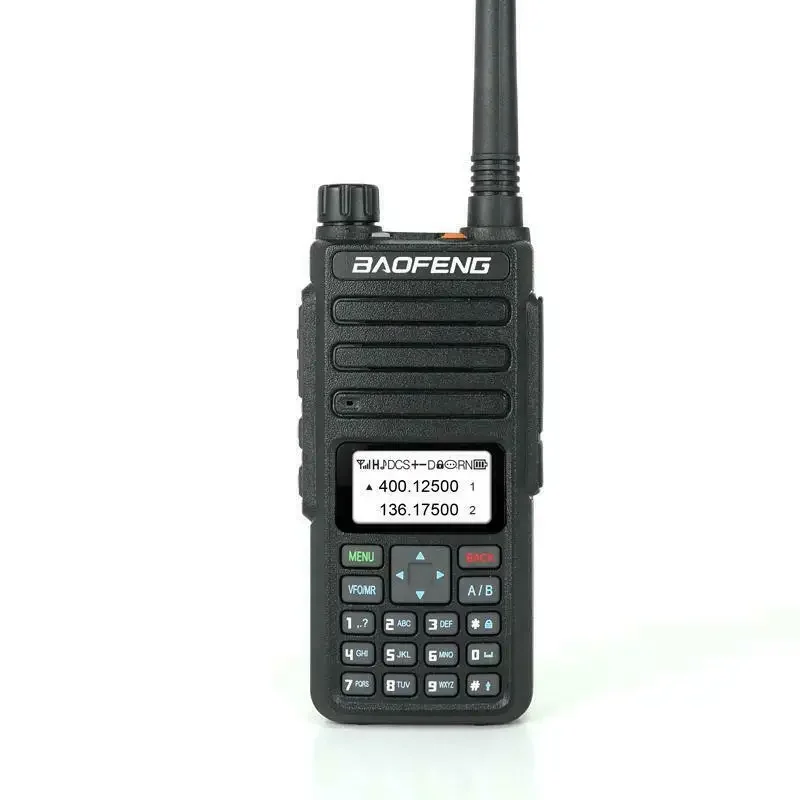

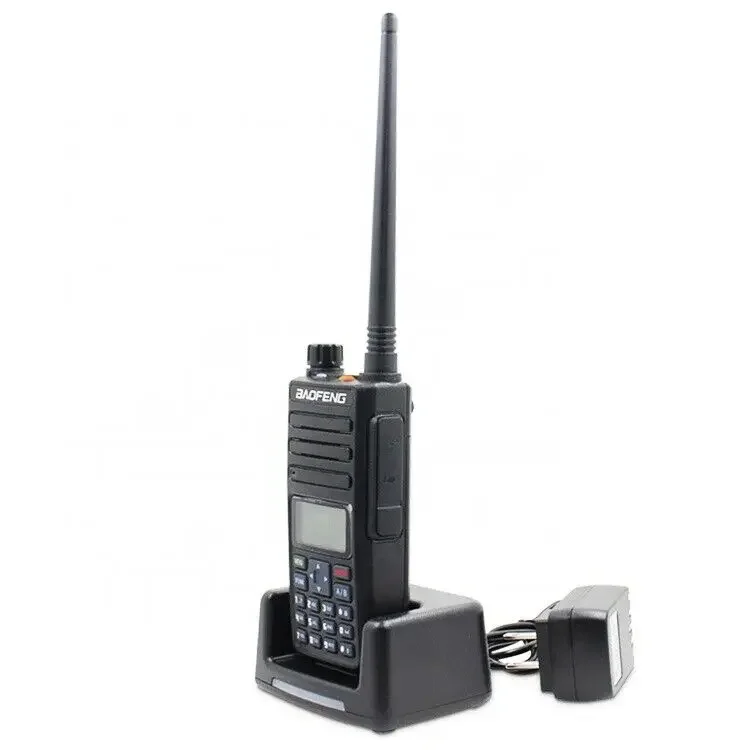

BAOFENG BF-H6 Radio Body
-
2200mAh Li-ion Battery Pack
-

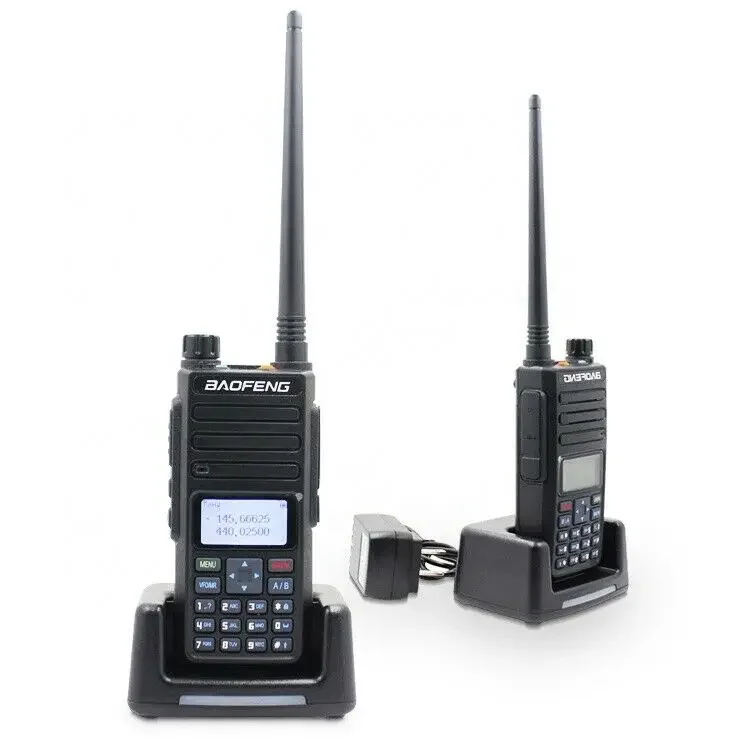

Charger Unit with AC Adapter
-
Antenna
-
Hand Strap
-
Belt Clip
-
Earpiece
-
User Manual
