Baofeng DMR DM 1701 Digital Walkie Talkie Dual Mode Analog Two Way Radio Open GD77 Dual Time Slot Tier 1+2 Ham Radio DR 1801

68 Items sold in last 4 hours

Price range: $66.19 through $70.92

Black
Black
Black Cable
Black Cable
EU
EU
us
us
Please select a variation to see estimated shipping cost.
Share on facebook
Tweet this product
  • Hign-concerned Chemical: None
  • Output Power(w): 3w-5w
  • Battery Capacity(mAh): High Capacity
  • Waterproof / Water-Resistant: IP45
  • Battery Included: Yes
  • Material: Plastic
  • Storage Channel: 3000CH
  • Frequency Range: 136-174MHz & 400-520MHz

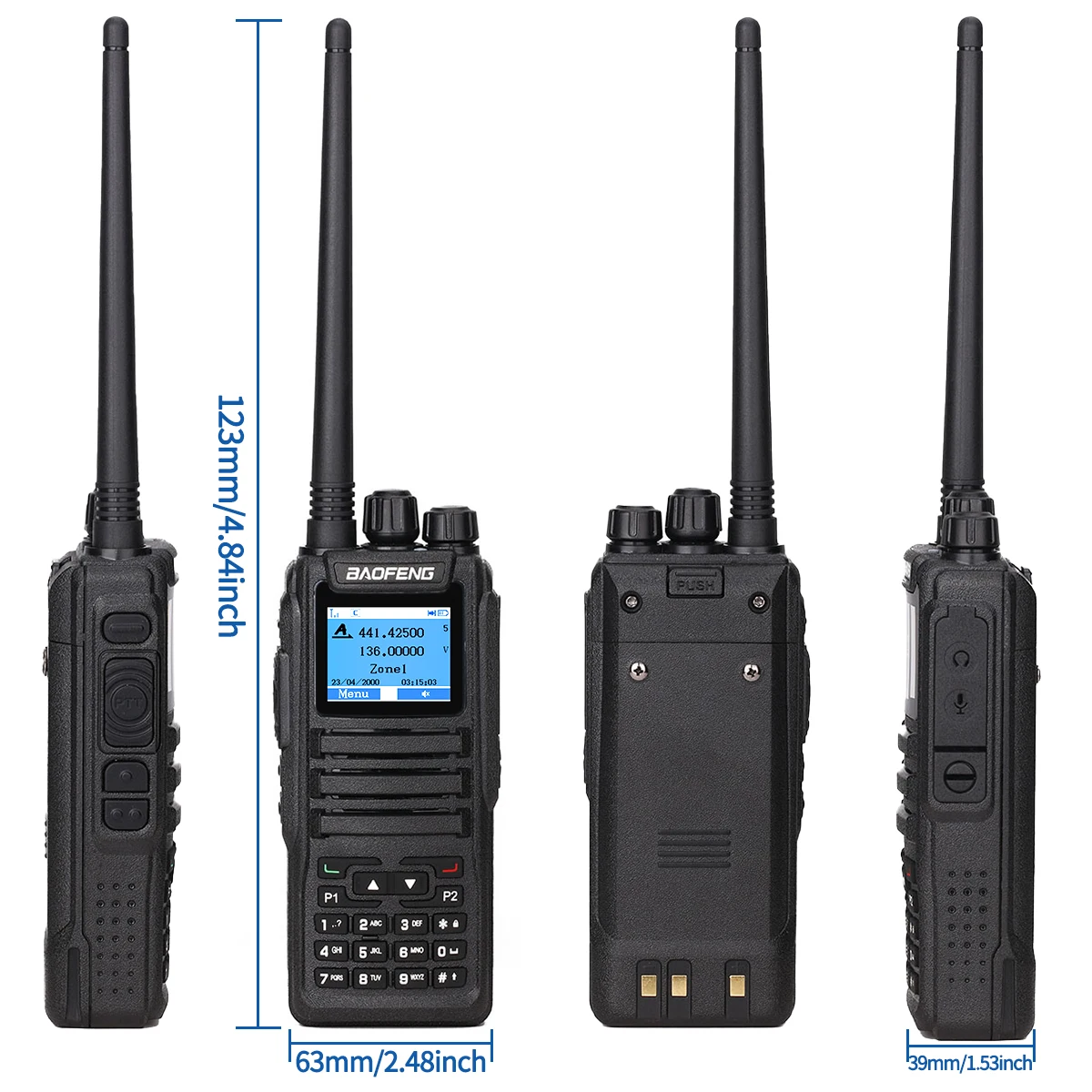

  • Dimensions: 123*63 * 39mm
  • Model Number: DM-1701
  • Walkie Talkie Type: Portable
  • Is_Display: Yes
  • Maximum Range: 3km-5km
  • Brand Name: BAOFENG
  • Origin: Mainland China

[Digital & Analog Compatible]The DM-1701 is compatible with digital and analog modes, including dual band VHF/UHF coverage of 136-174 MHz and 400-520 MHz. It has up to 3,000 Channels, 10,000 Digital Talk Groups and 120,000 Contacts.

[Multi-Function & 1.77 “color TFT Display]– The DM-1701 offers to scan analog and digital channels, manual programming, DTMF, VFO, SMS, emergency alarm, digital monitor mode, CTCSS and CDCSS, color codes and DMR encryption. There are 5 customized keys for faster access to those features.

[Updated Software & Firmware Support]– The DM-1701 CPS supports mass editing, users can make complex application requirements, which makes it easier to write codeplugs. Firmware and software upgrading for new functions are life-time-free.

[DMO True 2 time slot]– Direct mode dual slot communication achieves two groups of calls at a frequency point at the same time so that the communication efficiency is doubled and frequency resources are saved. Compatible with MOTOTRBO Tier I & II and other DMR radios.

Specifications:

General

Frequency Range

Dual Band VHF 136-174MHz & UHF 400-470MHz

Storage channel

128groups

Maximum deviation

≤ Wont be 5 kHz/≤ wont be 2.5 kHz (W/n)

Operating Voltage

DC 7.4V

Frequency Stability

±2.5ppm

Operating Temperature

-20~+60℃

Channel Spacing

25KHz(Wide),12.5K(Narrow)

Antenna Impedance

50Ω

Battery Capacity

2200mAh

Dimensions

133 ×62 ×32mm(Antenna Not included)

Transmitting

Output Power

1W/5W

Modulation (wide band/ Narrow band)

Analog:16K Φ F3E/11K Φ F3E

Maximum frequency Deviation (wide band/ Narrow band)

≤ Wont be 5 kHz/≤ wont be 2.5 kHz (W/n)

Stray Power

≤7.5W

Adjacent channel power

≤-65dB/≤-60dB

QT/DQT Deviatio(wide/narrow)

0.7±0.1KHz/0.4±0.1KHz

Signal to noise radio

≥-45dB/≥-40dB

Modulation sensitivity

8-12mV

Transmitting Current

≤1.5A

Receiving

Receiver Sensitivity

≤ 0.25uV(12dB SINAD)

Stray Suppression

≥-65dB

Audio Power

1W

Audio Distortion

<10%

Intermoulation

≥-65dB/≥-60dB

Adjacent channel selectivity (Wideband/narrow band)

≥-65dB/≥-60dB

Receiving current

≤380mA

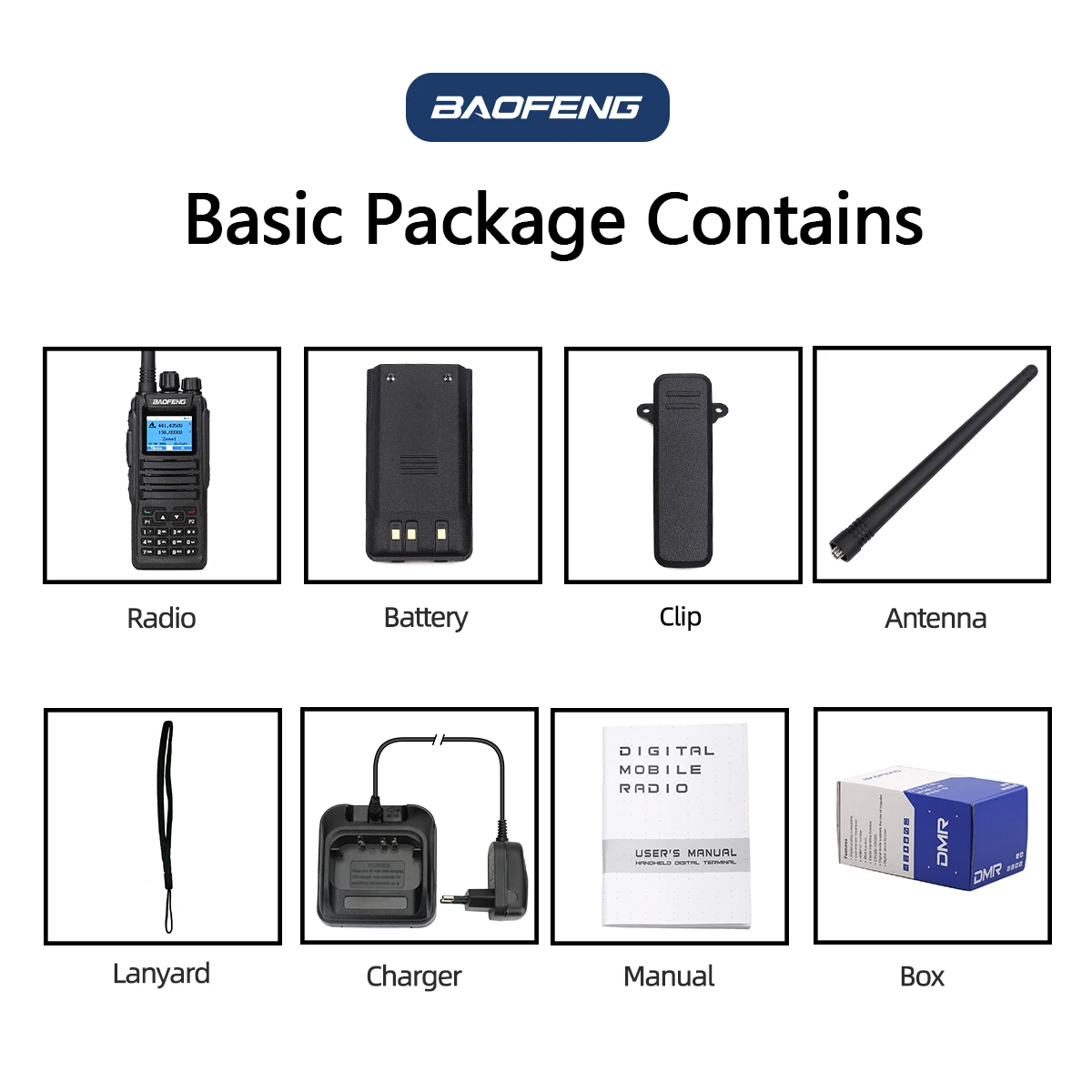

Package Include:

1 X Portable radio

1 X Antenna

1 X Li-ion battery pack

1 x Li-Ion Charger

1 X Belt clip

1 X The sling

1 X User’s manual
