- Hign-concerned Chemical: None
- Use: Motor vehicle
- Output Power(w): 5w-10w
- Battery Capacity(mAh): 1800
- Waterproof / Water-Resistant: IP45
- Battery Included: Yes
- Material: Plastic
- Storage Channel: 128

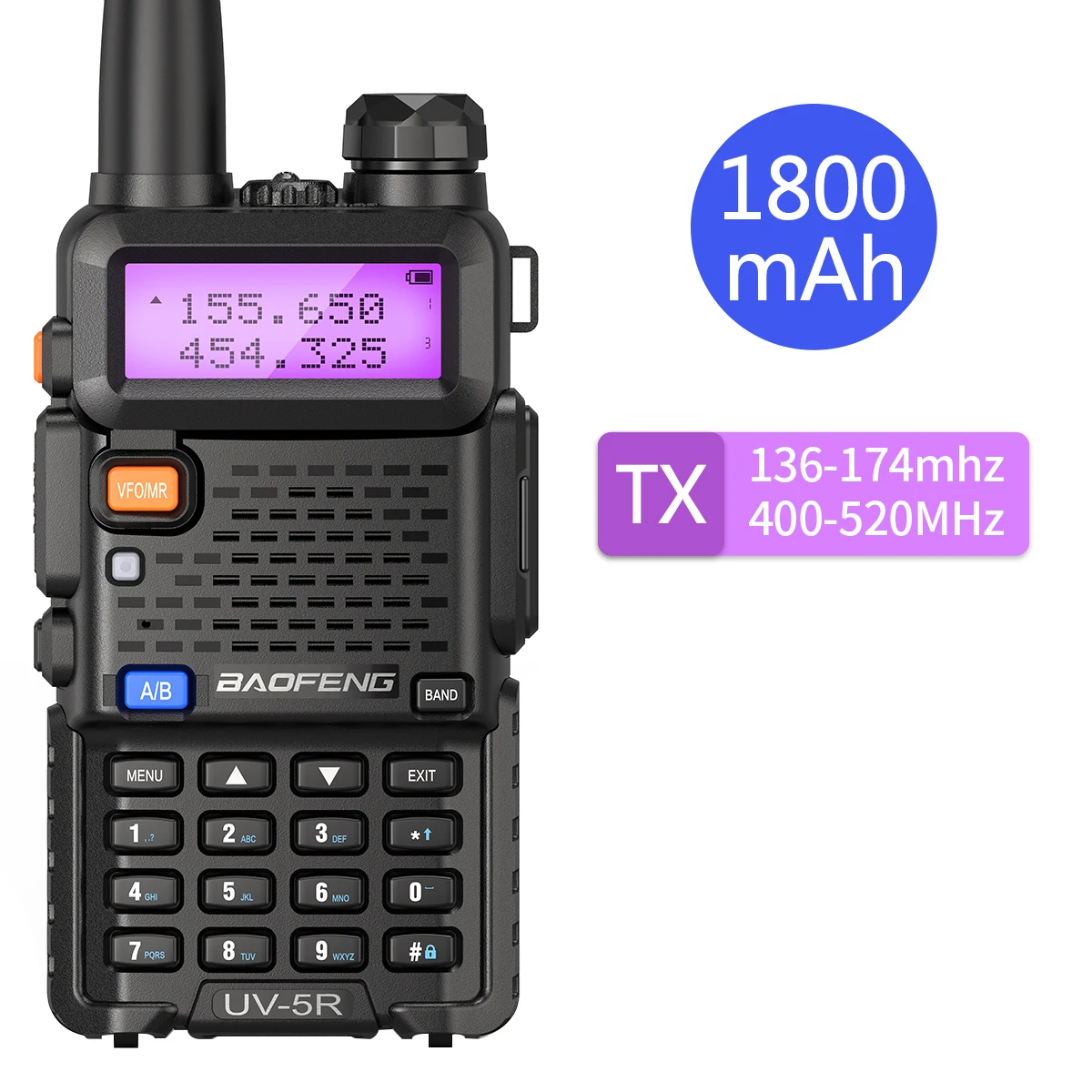

- Frequency Range: 136-174mhz 400-520mhz
- Dimensions: 60*33*115mm
- Model Number: baofeng uv-5r
- Walkie Talkie Type: Portable
- Is_Display: Yes
- Maximum Range: 5km-10km
- Brand Name: BAOFENG
- Origin: Mainland China
- Certification: CE,FCC
This is the Guide Video on how to program a Radio
Software download address：https://www.abbree.cn/download
Software download address：https://www.abbree.cn/download
chirp address：https://chirp.danplanet.com/projects/chirp/wiki/Home
If there is anything still puzzle you, please contact us at service@abbree.com

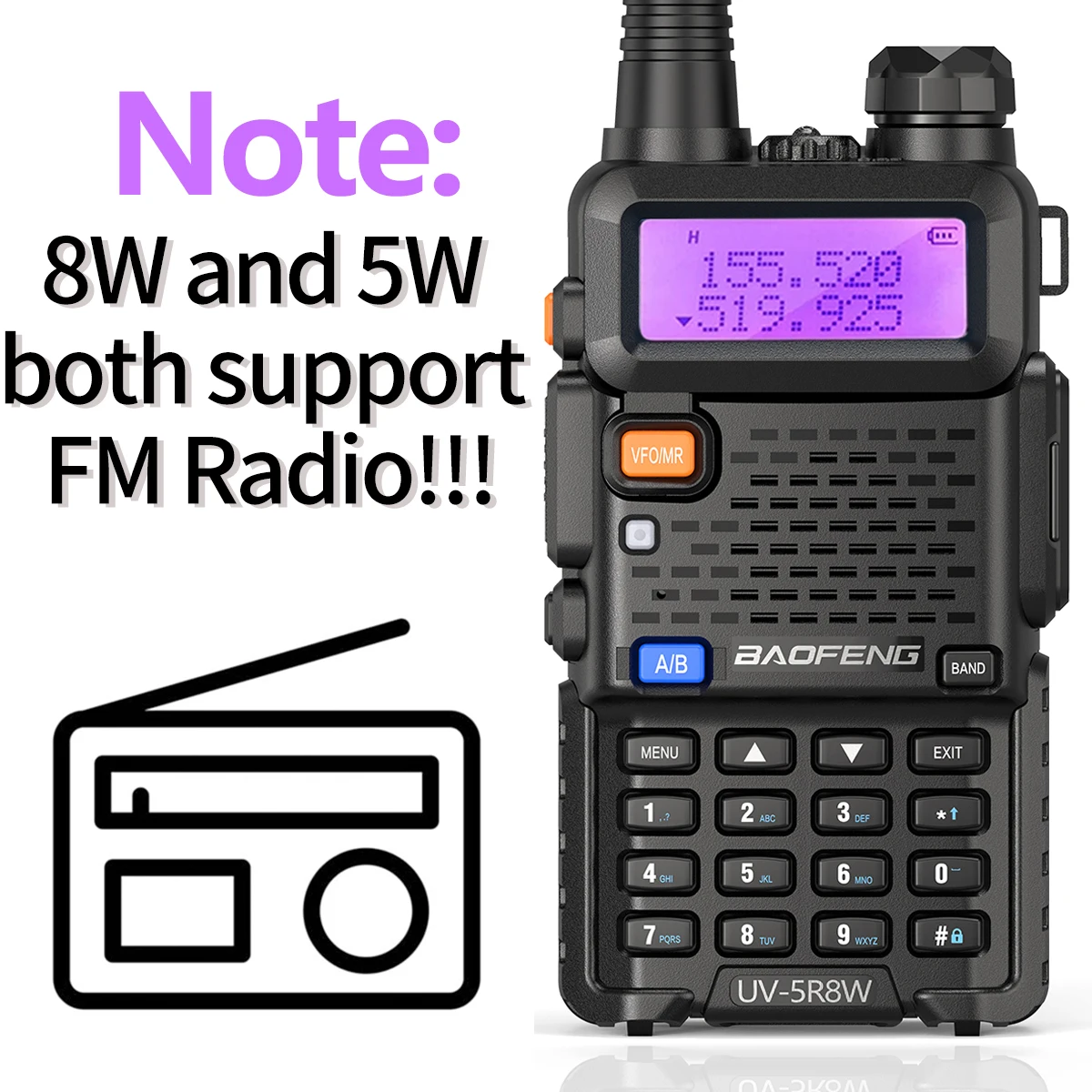

Note:8W and 5W Both support FM Radio!!!

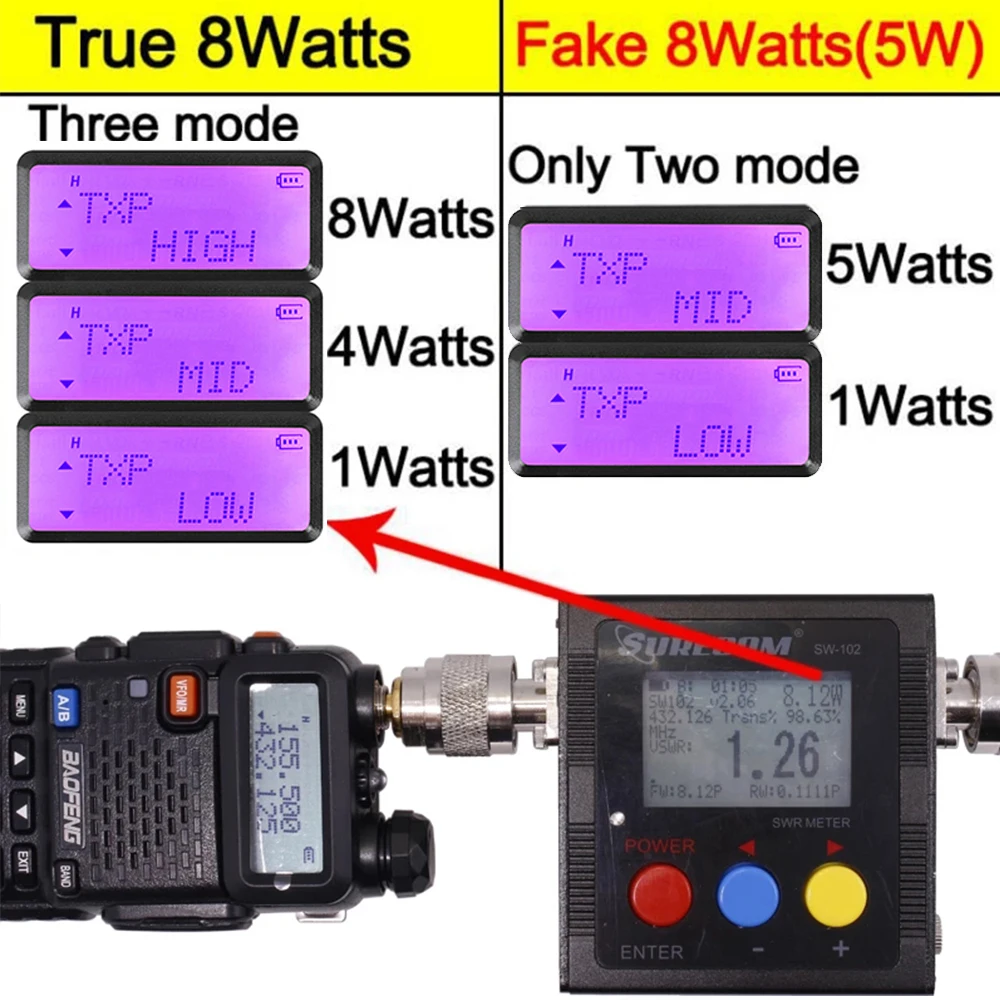

UV-5R 8W

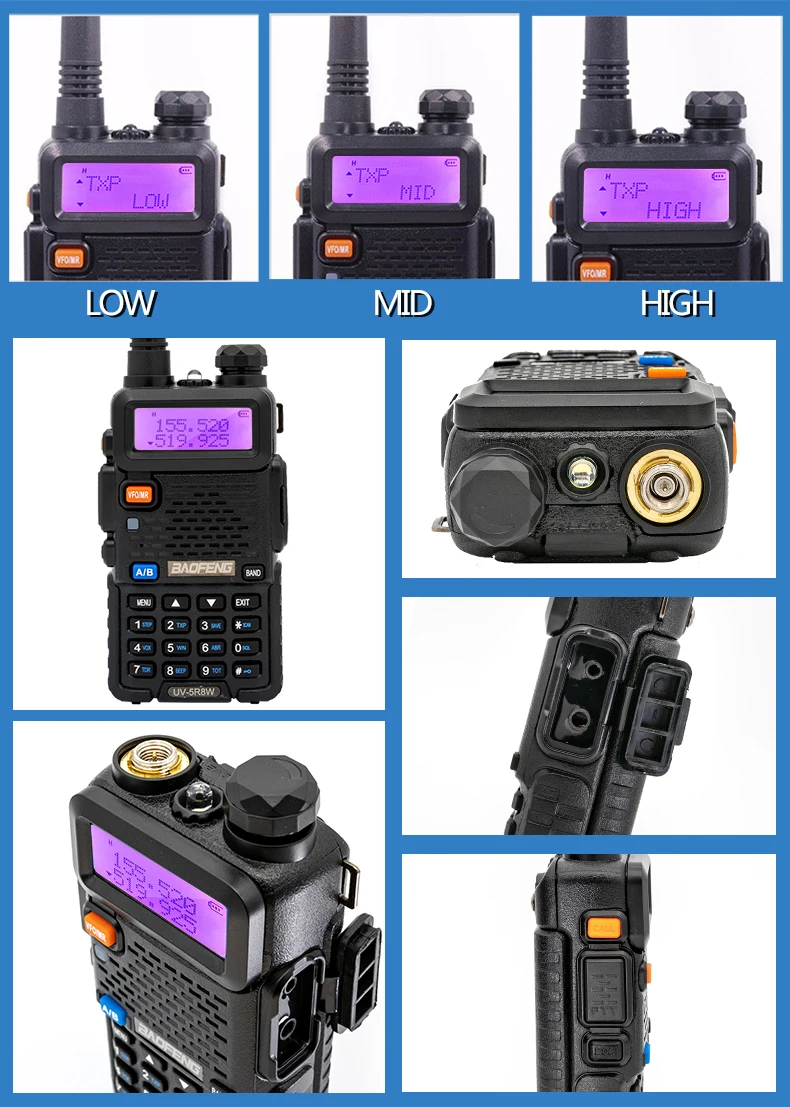

The UV-5R8W is the most powerful BaoFeng capable of transmitting 8 watts! Low/Medium/High three section TX power1W/4W/8W adjustable.
UV-5R 5W
CE FCC RoHs dual band ham radio transceiver with VOX function UV5R
|
All of our items are Brand New |
||
|
Model |
Baofeng UV5R |
|
|
Dual band / dual display / dual standby |
A/B band independent operation(UV UU VV) |
|
|
128 groups channels storage |
Shortcut menu operation mode |
|
|
VFO & Memory channels scan |
Emergency Alarm |
|
|
Time-out Timer (TOT) |
0~9 grades VOX selectable |
|
|
PTT & ANI ID |
FM radio and 25 stations storage |
|
|
Voice companding |
50 CTCSS/104 DCS |
|
|
High/Low TX power selectable |
Busy channel lock-out(BCLO) |
|
|
DTMF function |
OFF SET function |
|
|
Wide/Narrow Band(25kHz/12.5kHz) |
Yes |
|
|
VOX function |
Yes |
|
|
Busy lockout function |
Yes |
|
|
Scanning function |
Yes |
|
|
Monitor function |
Yes |
|
|
Time-out Timer (TOT) function |
Yes |
|
|
LCD display |
Yes |
|
|
Dual display |
Yes |
|
|
Battery voltage display function |
Yes |
|
|
Channel name display and editing functions |
Yes |
|
|
Signal strength indicator |
Yes |
|
|
Keypad lock function |
Yes |
|
|
Built-in Led torch |
Yes |
|
|
FM radio |
Yes |
|
|
Wire clone function |
Yes |
|
|
Emergency alarm function |
Yes |
|
|
Low battery alarm |
Yes |
|
|
Power saving function |
Yes |
|
|
High/Low TX power selectable |
Yes |
5W/1W |
|
ROGER SET |
Yes |
|
|
Chinese and English voice prompt |
Yes |
|
|
PC software programmable |
Yes |
|
|
Rated Voltage |
7.4V DC±10% |
|
|
Output power |
<= 5W |
|
|

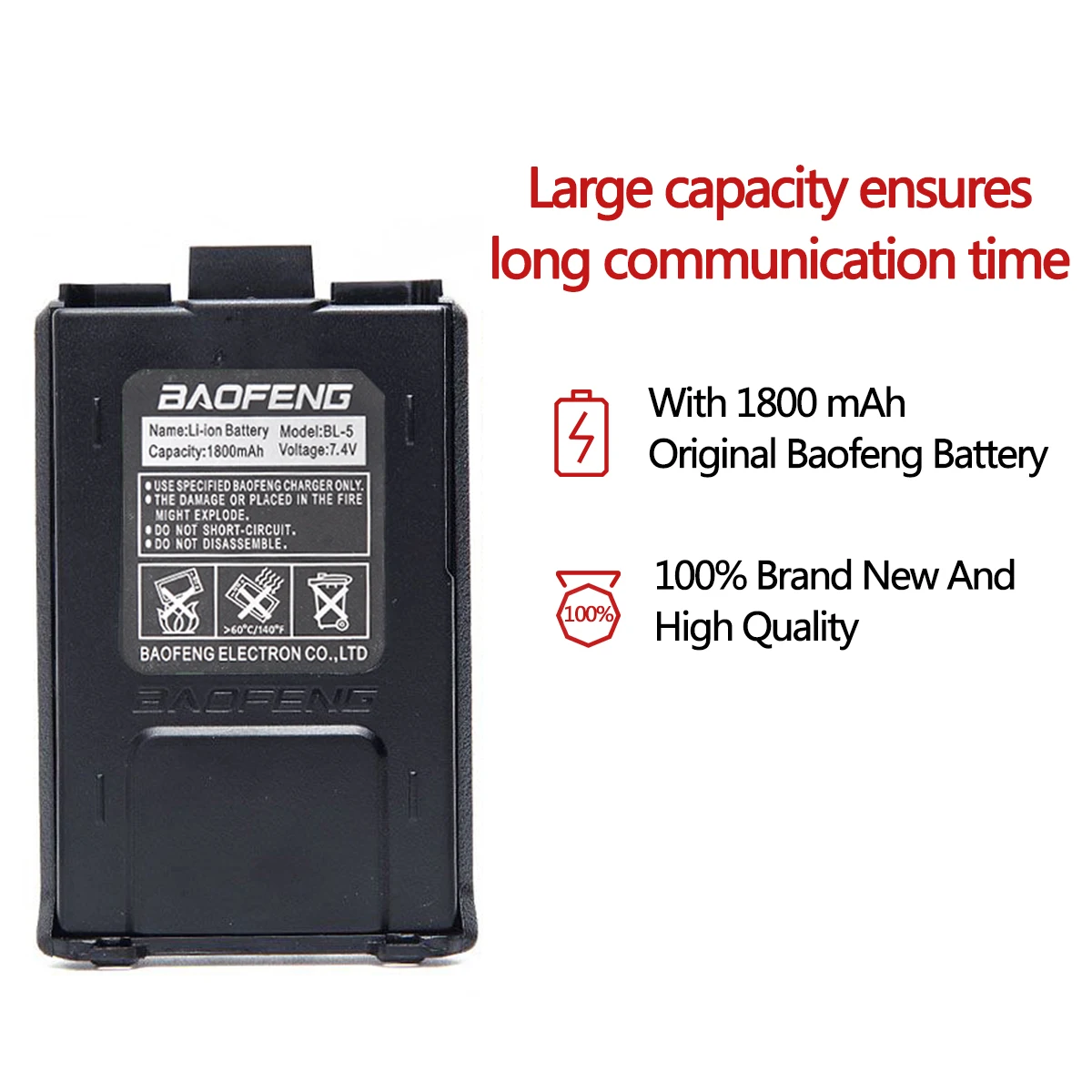

Battery type |
Li-ion battery |
|
|
Battery capacity |
1800mAh |
|
|
Working temperature |
-20~+50°C |
|
|
Antenna Impedance |
50ohm |
|
|
Weight |
255g |
|
|

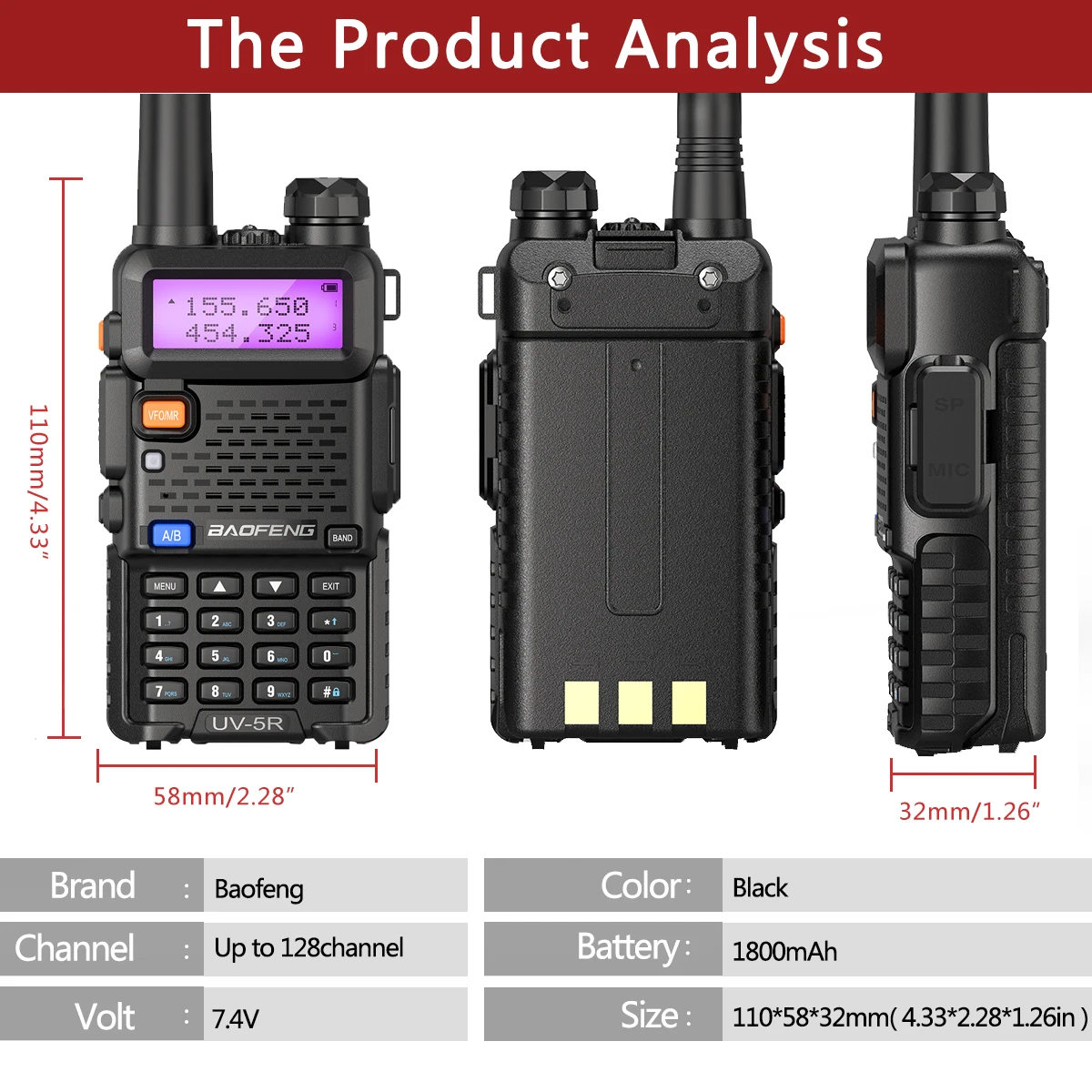

Dimension(LXWXH) |
58X32X110mm(Not Antenna) |
|
|
Frequency stability |
±2.5ppm |
|
|
Carier wave tolerance |
5ppm |
|
|
Modulation |
16kØF3E / 11kØF3E |
|
|
Max frequency deviation |
< 5kHz(Wide) |
|
|
Modulation character |
6 dB per fold frequency patch |
|
|
Emission current |
< 1.6A(5W) |
|
|
CTCSS / DCS |
0.5±0.1kHz(Wide) |
|
|
Sensitivity |
< 0.16µV(12dB SINAD) |
|
|
Silent sensitivity |
< 0.2µV |
|
|
Intermediation Distortion |
<10% |
|
|
Inter modulation |
8-12mv |
|
|
Adjacent channel selectivity( wide/narrow) |
<-65dB(Wide) <-60dB(Narrow) |
|

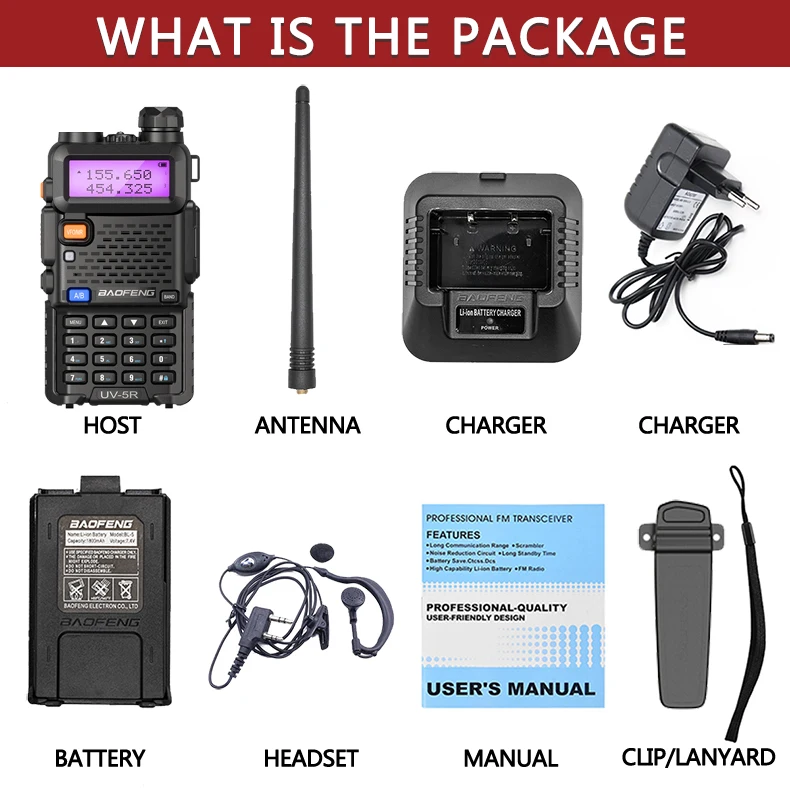

Package Include:
1 X Portable radio
1 X Antenna
1 X Li-ion battery pack
1 X LI-ion charger
1 X Belt clip
1 X The sling
1 X User’s manual
And other accessory depend on your choice in the link
