- Hign-concerned Chemical: None
- Power (W): 250w
- Brand Name: HAOYUNMA
- Origin: Mainland China
- Voltage: 380V
Pls NOTE: Because shipping cost rise fast recently, all our product price option on website is NOT free shipping price. The final price with shipment or customization is subject to the actual cost, please confirm with us! NOTE Again:Our All Product is customized and The final Price need to confirm with us Seller. Sales Manager :Amy Email:williammia008@outlook.com Tel/WhatUp/WChat:008615037847287
![]()
![]()
Product Description
Household-type freeze dryer, also known ashome freeze dryer, is a small vacuum freeze dryer.Apply to the family, online shop a small amount of freeze-dried use, widely adapted to fruits, meat, vegetables, Chinese herbal medicines, health products, etc.
Product Features
1.Stylish appearance, small size and exquisite;
2.Transparent plexiglass door for easy observation of the lyophilization process;
3.SUS304 stainless steel material plate and liner, safe and secure;
2.Transparent plexiglass door for easy observation of the lyophilization process;
3.SUS304 stainless steel material plate and liner, safe and secure;
4.Acrylic door with flexbile hinge to ensure vacuum degree
5.Import of key components, low noise, high capacity, high quality and high performance;
6.Touch screen operation, one-button start, automatic control of freeze-drying process, easy and convenient;
7.The freeze-drying process can be set and adjusted in real time, and the freeze-drying data and freeze-drying curve can be displayed.
8.Advanced system, low operating current and low energy consumption;
9.One-button fast defrosting technology, over temperature automatic protection.
10.Commercial grade vacuum pump with low noise (oilless vacuum pump is optional)
5.Import of key components, low noise, high capacity, high quality and high performance;
6.Touch screen operation, one-button start, automatic control of freeze-drying process, easy and convenient;
7.The freeze-drying process can be set and adjusted in real time, and the freeze-drying data and freeze-drying curve can be displayed.
8.Advanced system, low operating current and low energy consumption;
9.One-button fast defrosting technology, over temperature automatic protection.
10.Commercial grade vacuum pump with low noise (oilless vacuum pump is optional)
11.Customizable logo
Product Paramenters
|

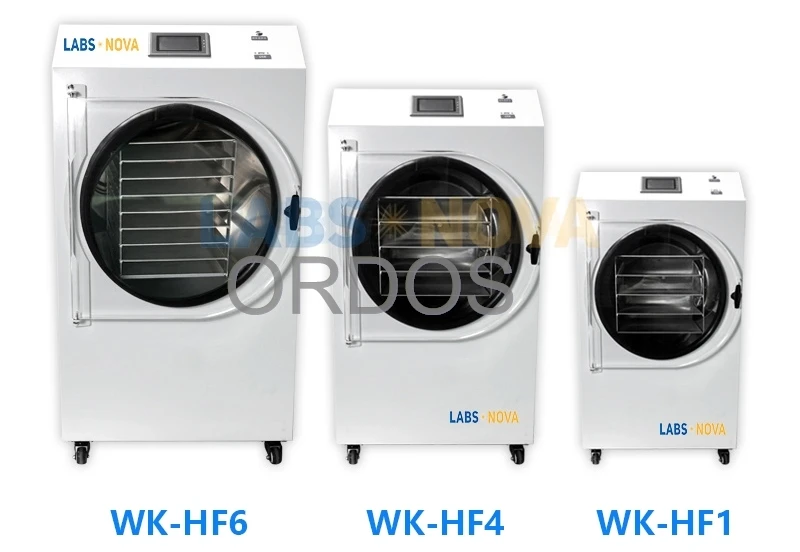

Model
|
WK-HF1
|
WK-HF4
|
WK-HF6
|
WK-HF7
|
WK-HF8
|
WK-HF9
|
|||||
|
Specification
|
Home Freeze-drying machine (Food grade)
|
||||||||||
|
Freeze dried area
|
0.25
|
0.35
|
0.52
|
0.65
|
0.85
|
0.9
|
|||||
|
Cold trap temperature
|
-55
|
||||||||||
|
Processing capacity(KG/batch)
|
2-3
|
4-6
|
6-8
|
8-10
|
10-12
|
12-14
|
|||||
|
Limiting vacuum
|
|||||||||||
|
Material tray size
|
200*425mm
|
200*425mm
|
310*420mm
|
250*425mm
|
250*425mm
|
200*425mm
|
|||||
|
Number of material trays
|
3 pieces
|
4 pieces
|
4 pieces
|
6 pieces
|
8 pieces
|
10 pieces
|
|||||
|
Material tray spacing
|
65mm
|
45mm
|
66mm
|
52mm
|
38mm
|
35mm
|
|||||
|
Pumping speed
|
2-4L/S
|
||||||||||
|
Supplementary water amount
|
3KG/24H
|
4KG/24H
|
8KG/24H
|
9KG/24H
|
10KG/24H
|
12KG/24H
|
|||||
|
Running noise
|
≤60dB
|
||||||||||
|
Supply voltage
|
220V/50HZ can be customized 110V or 380V
|
||||||||||
|
Machine dimensions(mm)
|
530*680*900
|
530*680*900
|
635*723*1130
|
635*723*1130
|
635*723*1130
|
600*645*1130
|
|||||
|
Net weight
|
75KG
|
78KG
|
120KG
|
125KG
|
130KG
|
135KG
|
|||||
|
Package size
|
610*780*1280
|
610*780*1280
|
710*800*1500
|
710*800*1500
|
710*800*1500
|
710*800*1500
|
|||||
|
Total weight with package
|
133KG
|
142KG
|
165KG
|
172KG
|
178KG
|
180KG
|
|||||
|
Overall power
|
1500W
|
1500W
|
1800W
|
2000W
|
2200W
|
2300W
|
|||||
|
Cooling mode
|
Air cooling
|
||||||||||
|
Temperature requirement
|
10-35
|
||||||||||
|
Relative humidity
|
≤70%
|
||||||||||
|
Environmental requirement
|
No conductive dust explosive corrosive gas and strong magnetic field interference
|
||||||||||
|
Host material
|
304 stainless steel
|
||||||||||
The enhanced version is the machine with the smallest volume and the smallest footprint on the market, occupying an area of less than 0.3. The condensation temperature can reach -50 degrees Celsius (the ambient temperature is lower than 25 degrees Celsius), because some materials have low eutectic points,Therefore, a lower temperature must be used for pre-freezing. The lower condensation temperature can capture the moisture in the material more favorably,To a greater extent, the moisture in the material is prevented from being pumped into the vacuum pump. The machine also adds a vacuum protection function to effectively prevent the vacuum pump from idling for a long time.

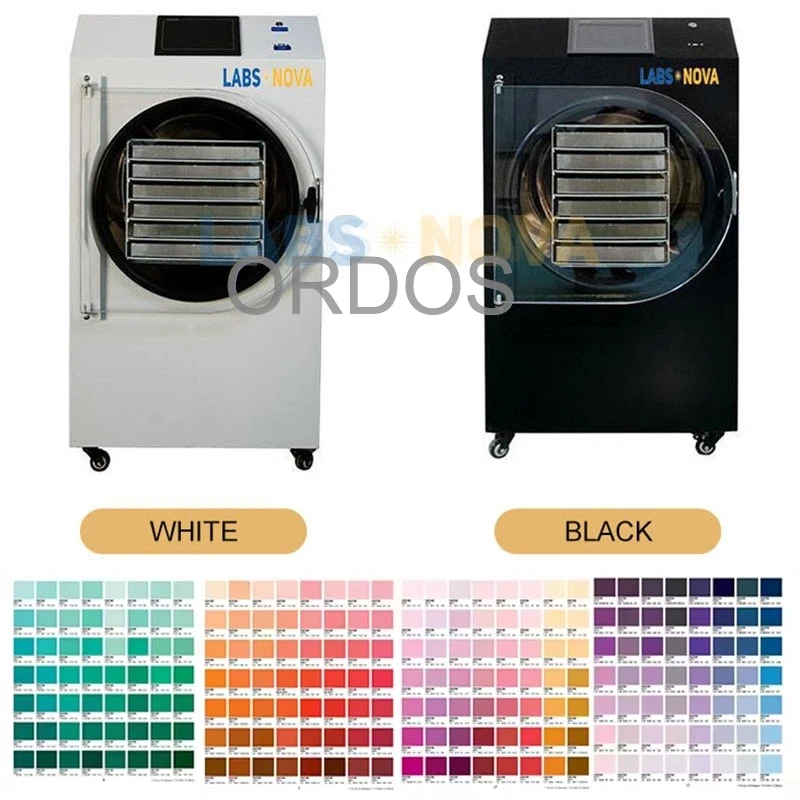

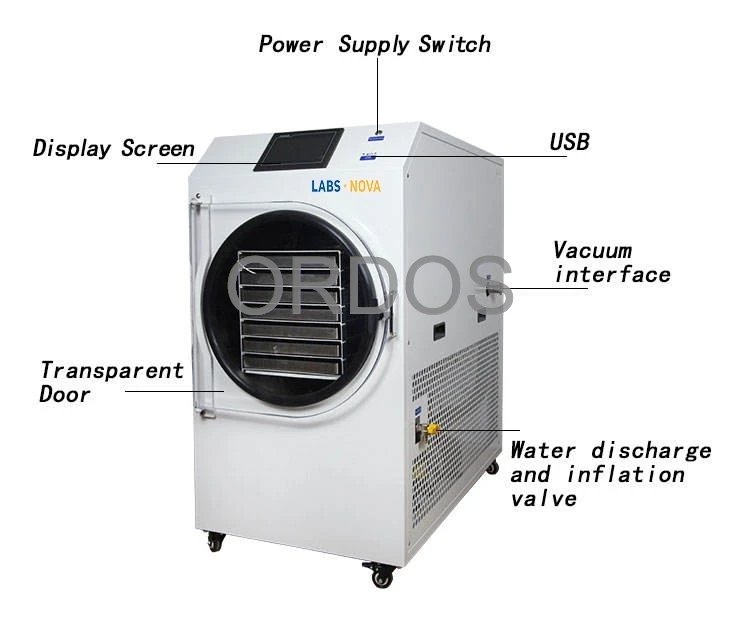

Product Show
Application
Freeze-drying is known to result in the highest quality of foods amongst all drying techniques because structural integrity is maintained along with preservation of flavors.Because freeze drying is expensive, it is used mainly with high-value products.Examples of high-value freeze-dried products are seasonal fruits and vegetables because of their limited availability, coffee; and foods used for military rations, astronauts/cosmonauts, and/or hikers.
Freeze-dried Products
Company Introduction
Zhengzhou Well-known Instrument & Equipment Co.,Ltd,founded in 2001,specialized in manufacturing extraction and distillation equipment from lab scale to production scale for almost 20 years.
Our main products include Freezer dryer, Rotary evaporator, Glass reactor, Heating&cooling circulator,Water circulating vacuum pump, Vacuum drying oven, Low temp cooling liquid circulating pump and so on.
So far, our products have been sold all over Asia, Europe and America. Also,we have covered most of laboratories in China.
So far, our products have been sold all over Asia, Europe and America. Also,we have covered most of laboratories in China.
Contact us
Sales Manager :Amy Email:williammia008@outlook.com Tel/WhatUp/WChat:008615037847287 Please Note Before Place Order! ! ! 1. If you choose “EXW Price /Factory price/Machine cost” it is the machine price ONLY, which doesn’t include the shipping cost. 2. If you choose “CFR by sea/With Sea shipping”, we will help you to arrange the shipment by sea and deliver to your nearest seaport!our offer is based on the CFR trade terms! That means, after arriving destination seaport, the buyer need to pay the destination port charges (such as terminal handling charges, documents charges, storage charges, ect), tax to do the customs clearance and pick up the goods by yourself. 3..If you choose ” by express to door “, we will help you to arrange the shipment by international express (such as DHL /TNT / FEDEX /ARAMEX, ECT) and directly deliver to your address (DOOR TO DOOR SERVICE)! If shipment by express,after arriving , the buyer only need to pay tax and assist shipping company to do the customs clearance is ok. 4.About the machine size, please kindly noted there might be some size deviation due to the manual measurement, please be careful if you worry about this. 5.Buyers should inspect package / goods carefully before signing receipt of goods.If there is any damages, please contact your local TNT / DHL / Fedex to ask the complaints and claims OR please contact with us within 24 hours. 6.Because our all machine is the customized products, once confirm the order and begin to produce, there is NO support refunds .before you place the order, please read it clearly. 7.About the documents ,usually includes the Bill of Lading, Packing documents, Commercial invoice,if need other documents,please let us know in advance. 8.According to the transportation and import and export requirements, the refrigeration machine does not contain Freon (refrigerant) by default, if you have special requirements, please inform the seller in advance before production!
