- View Angle: 170°
- Guiding Line: Yes
- Lens Material: Plastic + Glass
- Length of Video Cable: 6M
- Shell Material: Plastic
- Material Type: Abs
- Alarm Type: Alarm Systems,Remote Starters,Vehicle Backup Cameras,ACCESSORIES,Front,Front Side,Rear Side
- Brand Name: JISUIDA
- Origin: Mainland China
- Certification: CE
with 8 LED Lamp, will be very clear even at night
170 degree wide angle, find the potential reverse in reality, such as kids in a blind eye, novice drivers reverse the dilemma, transfer from the car parking area.
with CCD core, the video and picture will be more clear
waterproof, shockproof and dustproof
good quality and longer service time.
Drill Hole Style Car HD Rear-View Camera, gives you a full sight of the back of your car when you are driving
8 LED Infrared Night Vision ensures the car driving safety when backup or parking at night
Helps to avoid incidents, accidents abrasion and ensure your safety
Anti-fog glass, CMOS imaging sensor
Support NTSC/PAL video system
With the high sensitivity, you can get rid of the poor rear vision
High definition and up to 170 degrees wide viewing angle
Use high-quality Chip to make vivid and clear images
Compact design, easy to install and operate
IP68 waterproof design, shock-proof and anti-jamming functions
Applicable to variety of vehicles: car, truck, RV, etc
Specifications:
Image Sensors: PC1030 1/4 Inch Color CMOS
Sensor Area: 4.08 x 3.12mm
Effective Pixels: 648 x 488 Pixels
LED Quantity: 8 IR LED
Lens Angle: 170 / 135 degrees
Image pipeline feature: Auto exposure, AWB, AGC, Auto flicker detection and cancellation
Video System: PAL/NTSC(Automatic throw-over)
Minimum Illumination: 0.2Lux
Scanning System: 2:1 Interlace
Resolution : 420TV lines
Electronic Shutter: 1/60(NTSC) / 1/50(PAL)1/1000s
Gamma Coefficient: 0.45
S/N Ratio: 45.6db
Dynamic Range: 63.5db
Waterproof Class: IP 68
Operation Temperature: -20℃ +75℃
Storage Temperature: -40℃+85℃
Video Output: RCA connector, 1.0vp-p, 75Ohm
Working Power: DC12V
Current Consumption:60mA
Note:
This Item Without Video cable and power cableyou need to purchase them another.
Due to the light and screen setting difference, the item's color may be slightly different from the pictures.
Please allow slight dimension difference due to different manual measurement.

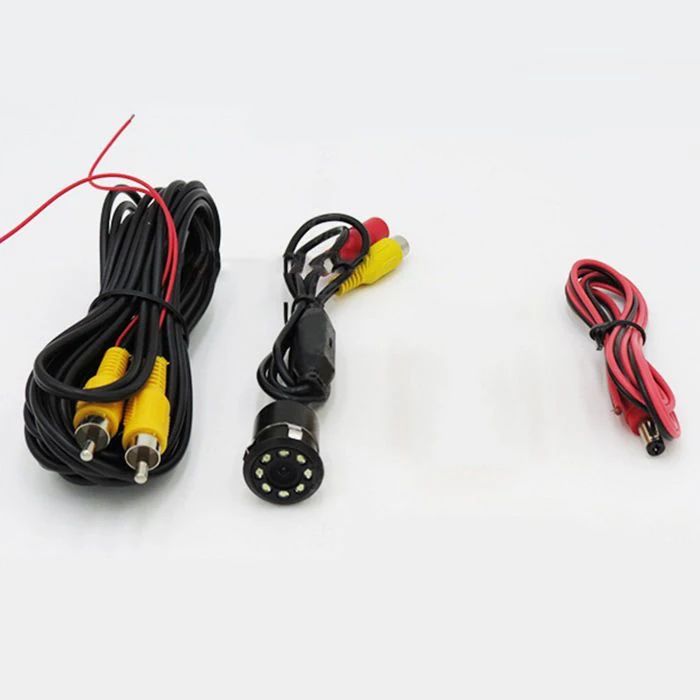

Package including:
1 x 8 LED round back up camera
