- Model Number: TS130
- Type: Test Instruments
- Origin: Mainland China
- Name: Infrared Power Meter
- IR Solar Power Meter: infrared tester
- car wrap film tester: car solar film testing meter
- Solar Power Meter: heat Insulating tester
- vinyl wrap tool: car wrap film tool

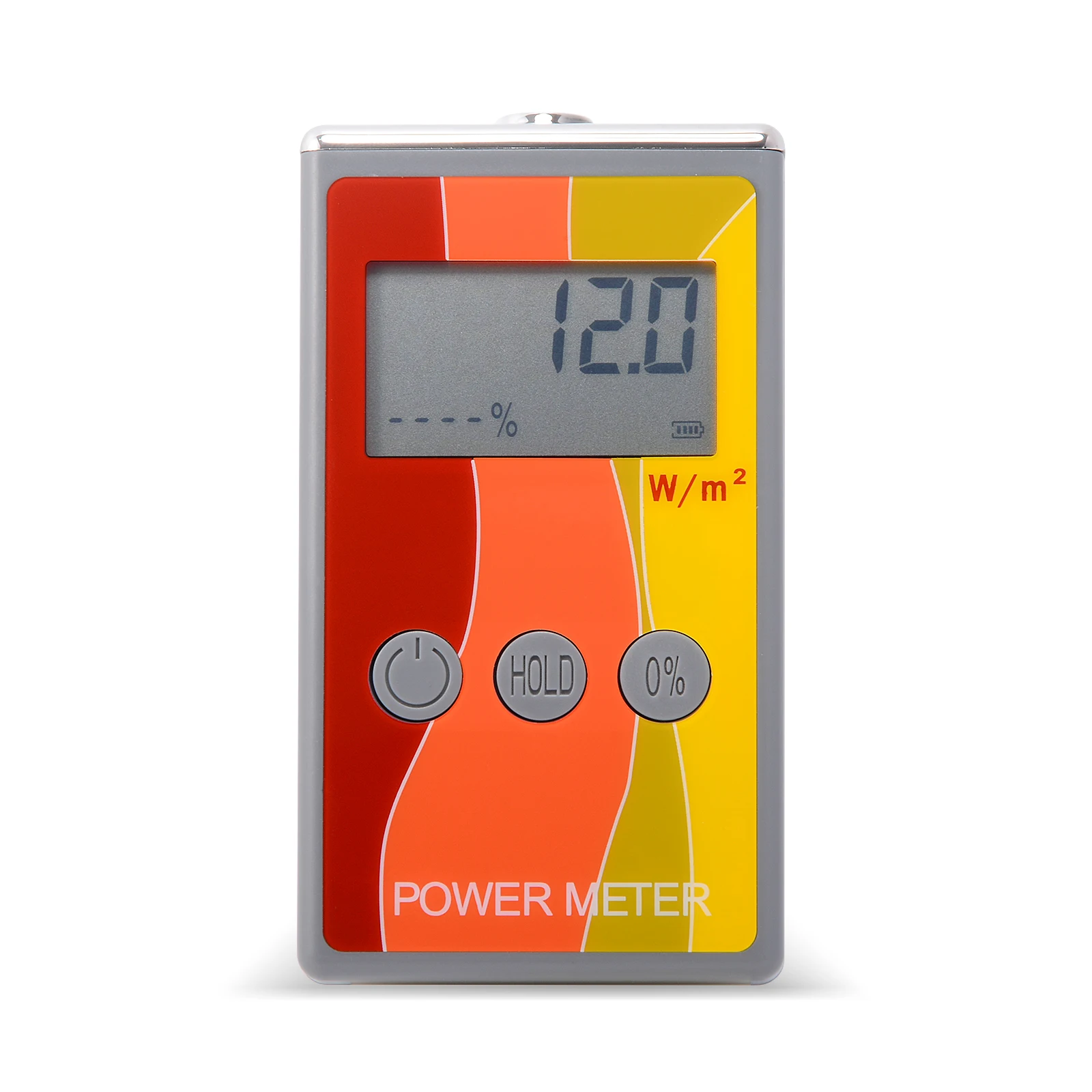

IR Solar Power Meter Infrared Intensity With Rejection Value Energy Tester Car Insulation Film Window Glass Heat-insulating Test

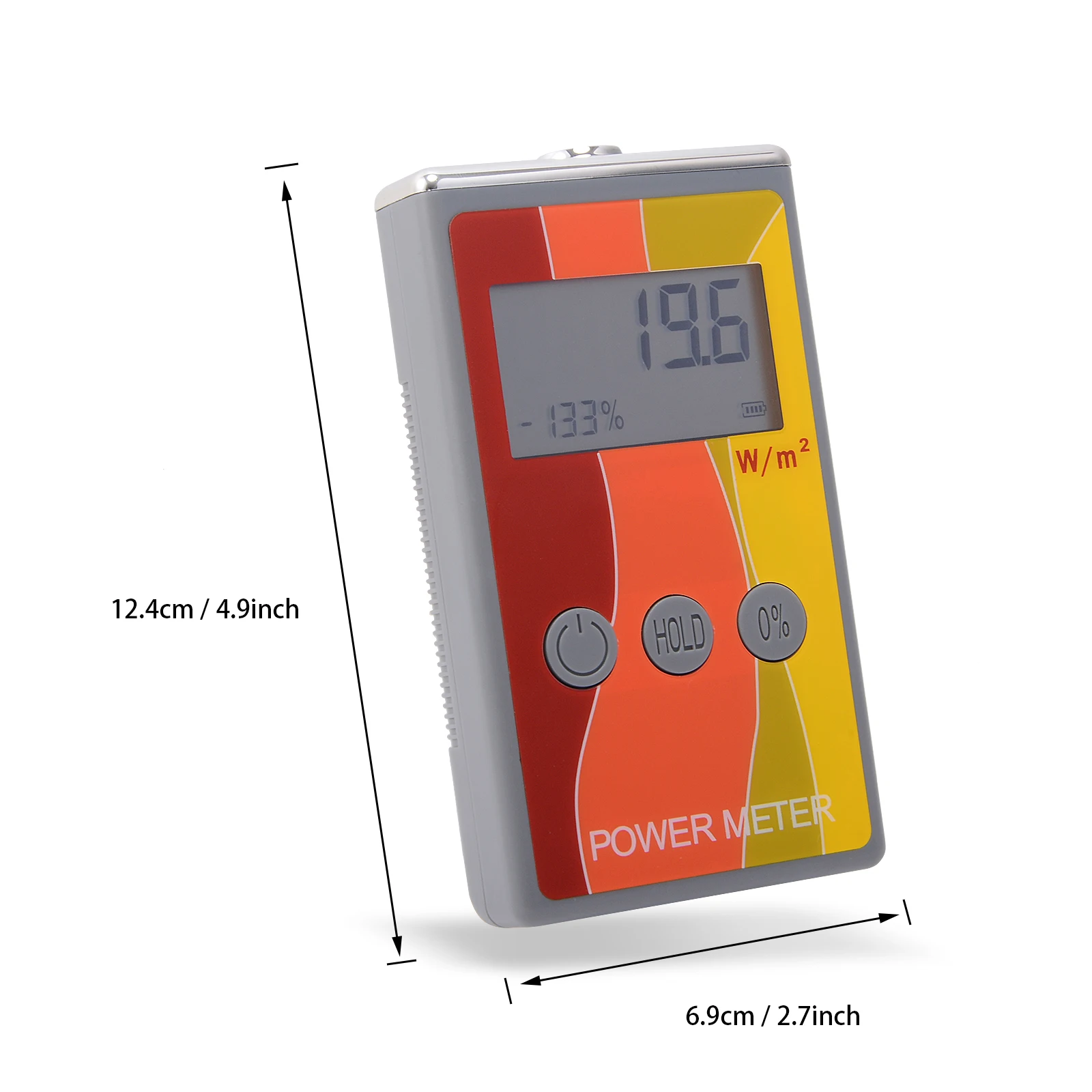

Size: 12.4 x 6.9 x 2.45 cm
Accuracy: ±10%
Operating Temperature: -20℃ ~ +70℃
Infrared Blocking Rate: -999% ~ 100%
Power Range: 0 ~ 40000W/m2
Spectral Response: 1000 ~ 1700nm

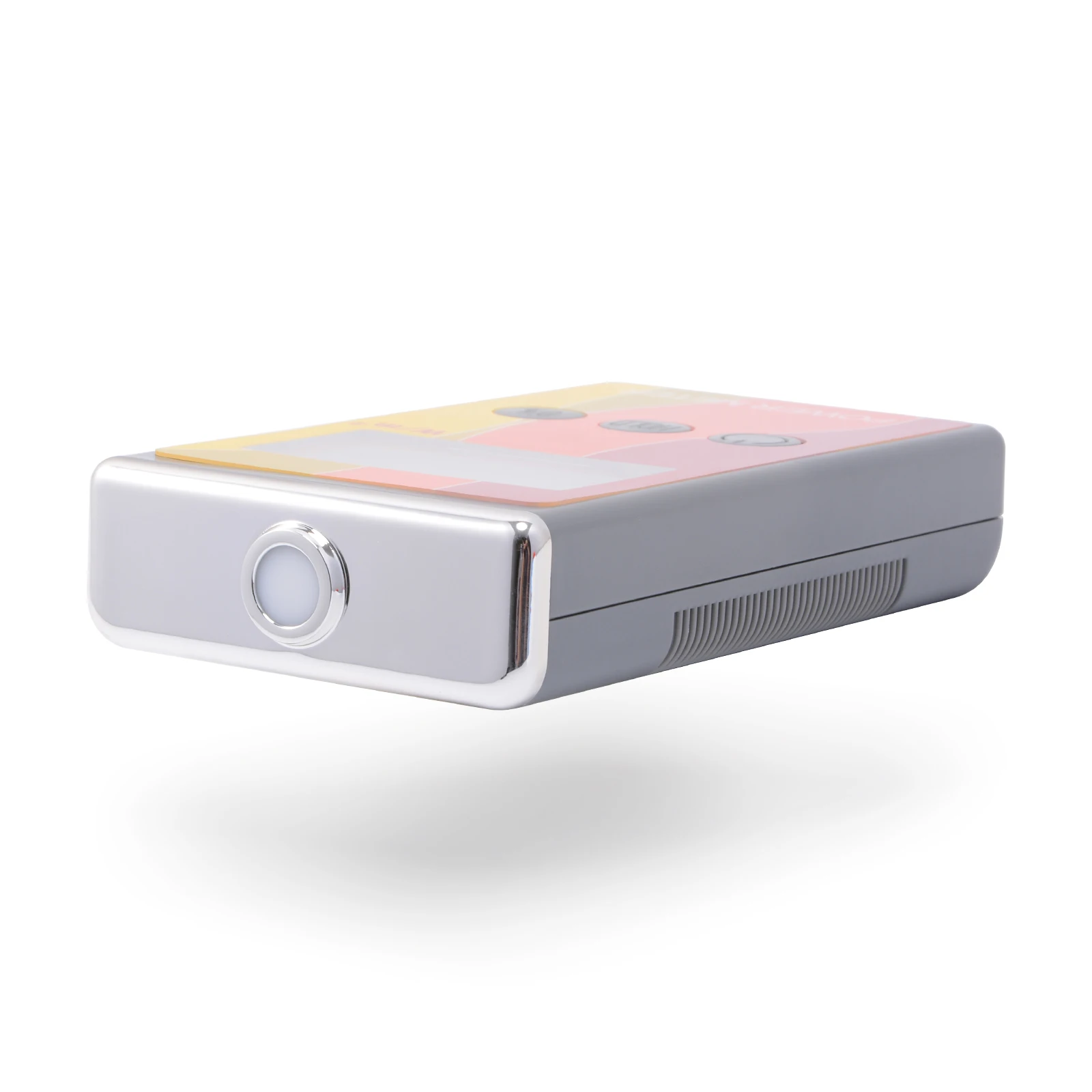

Photosensitive Aperture: 10mm
Working Power: 4pcs AAA battery
Warranty: 12 months
Features:
1. IR transmission meter, IR power meter, 2 functions in 1 device.

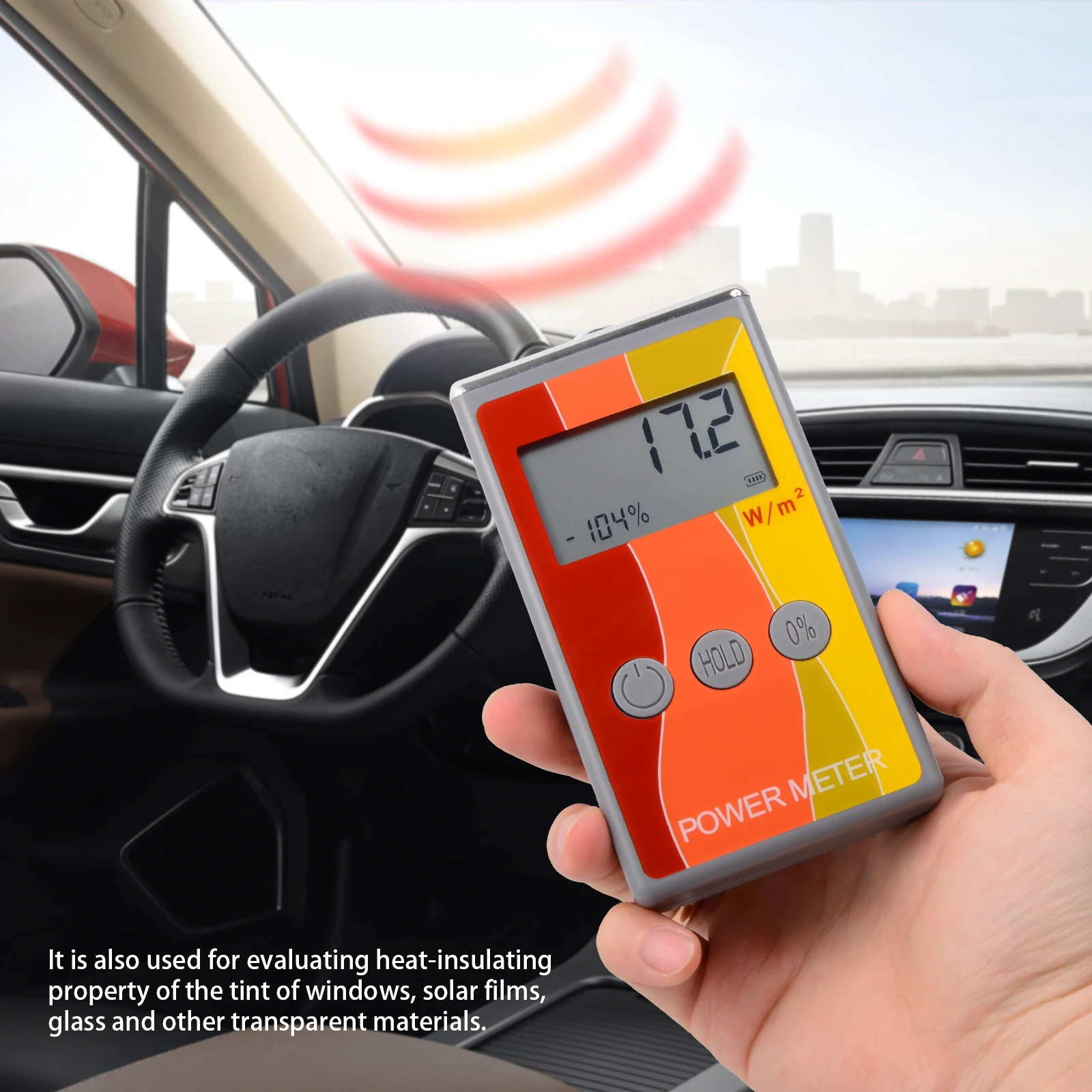

2. Evaluate heat-insulating property of the tint of windows, solar films, glass and other transparent materials.
3. Measure optical power density of infrared ray, wavelength response (1000nm-1700nm), giving visual and reliable results.
Usage Field:
1. It is used to test the infrared barrier performance of buildings/automotive insulation film/insulation glass, etc.
2. To measure the radiation intensity of infrared light sources (sun, infrared lamps, etc.).
3. It also can be used to analyze the heat absorption performance of solar equipment.
Package includes:
1 x tester
1 x user's manual
*** not include battery
