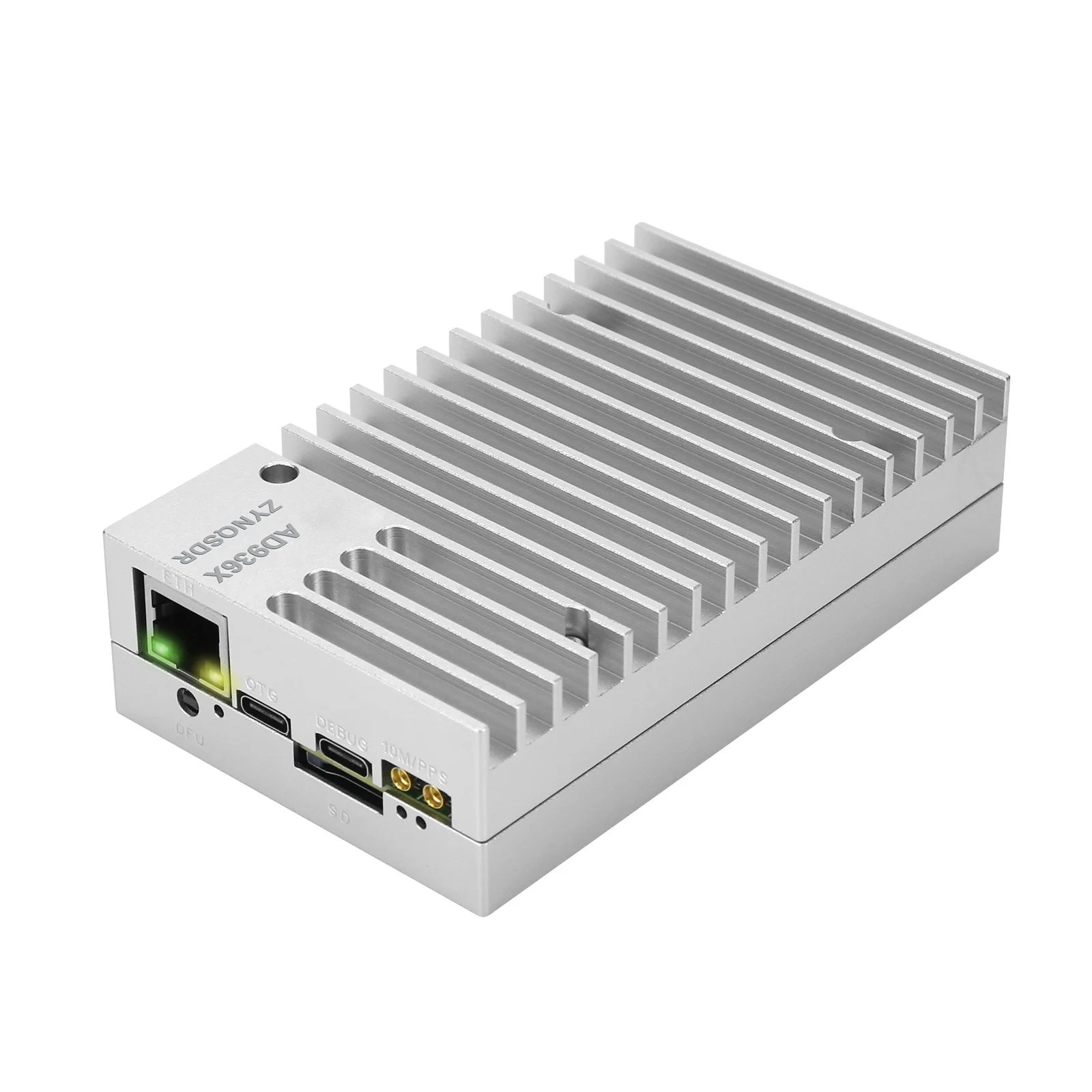

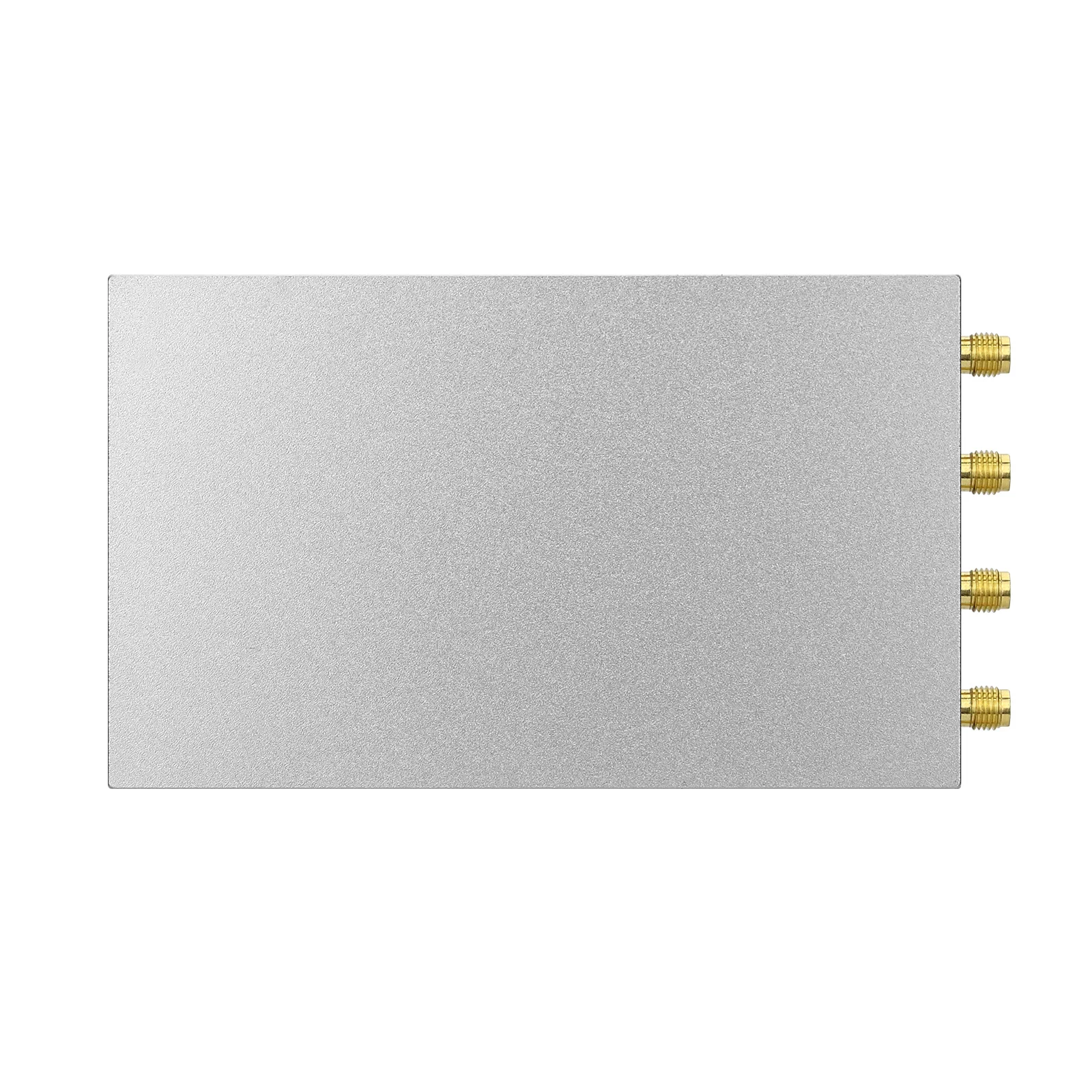

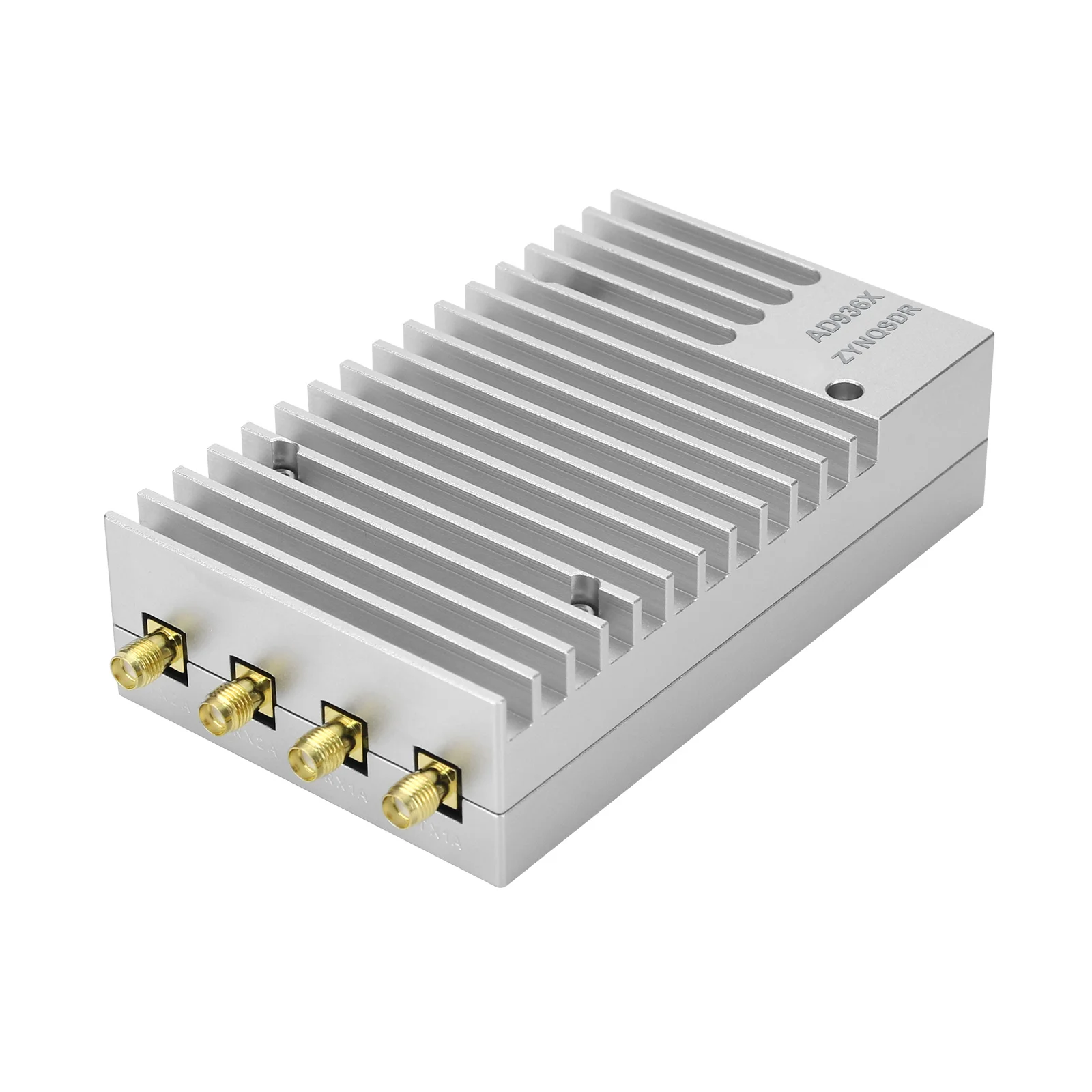

HamGeek ADI Pluto+ 70Mhz-6Ghz SDR Software Defined Radio AD936x for Libiio iioscope SDRsharp Matlab

Statement:

* HamGeek ADI Pluto+ is intended for educational, scientific and hobby use only. Please consciously abide by the laws and regulations of your country or region!

Features:

* Using XC7z020-2CLG400I FPGA with 2-core Cortex A9

* The AD9363 RFSOC is turned on in AD9361 mode. The frequency range is 70MHz~6GHz, and the maximum sampling rate is 61.44MHz

* 1GB 32bit wide DDR3 1066MHz frequency

* With 32M QSPI storage, HamGeek ADI Pluto+ supports TF card expansion

* Supports automatic switching of QSPI boot and TF card boot (insert a TF card for TF card boot; remove the card for QSPI boot)

* On-board JTAG circuit and USB to serial port. Only one cable is required to supply power and debug

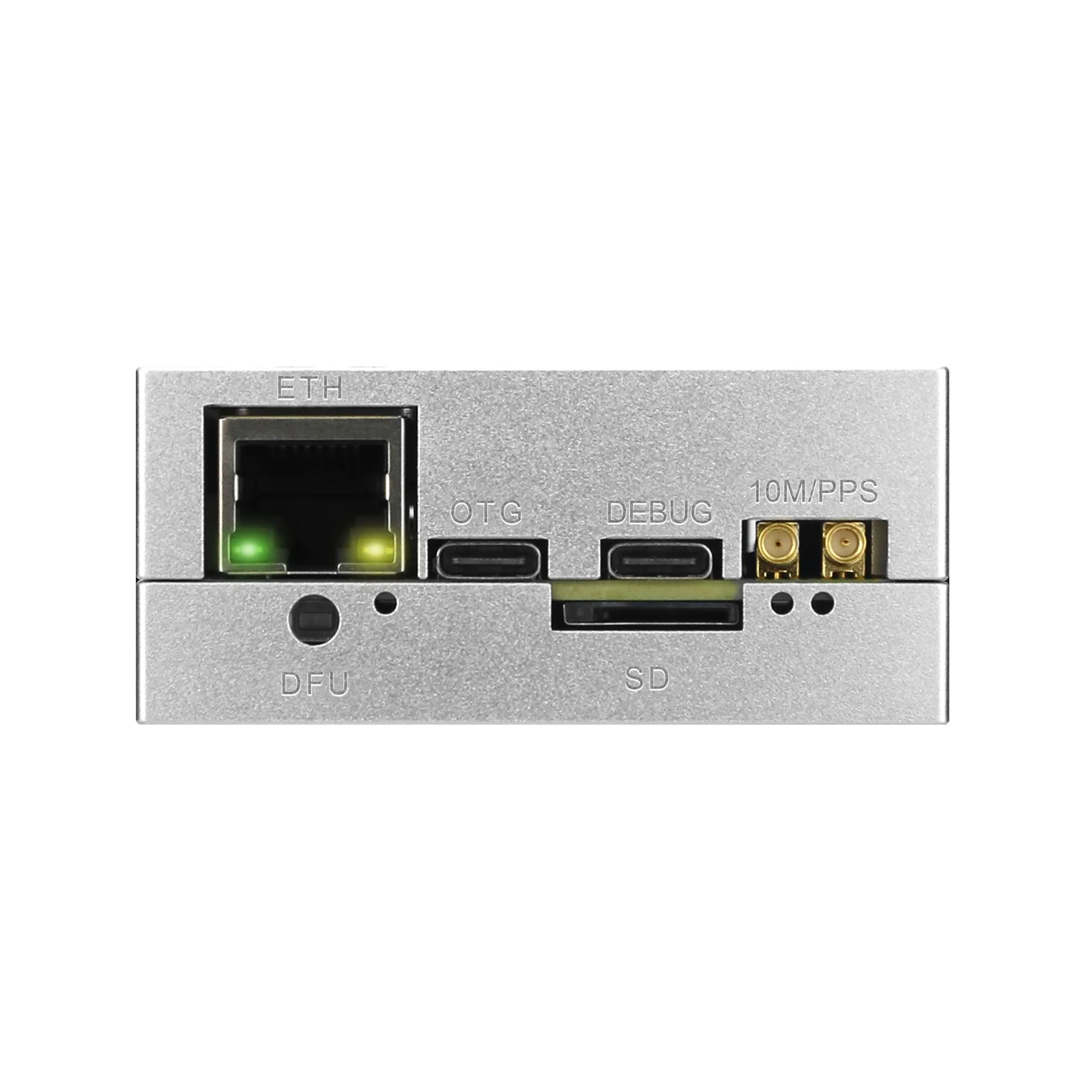

* Supports USB OTG interface, master and slave. All USB interfaces are TYPE-C interfaces. Supports OTG mode automatic recognition and opens the USB port to supply power

* VCTCXO is used. The initial frequency accuracy is 0.5PPM, and it supports PPS or 10MHz external disciplined oscillator

* Gigabit Ethernet interface

* The design current of all power rails in the digital part is 4A. The current is abundant. AD936x is powered by a ADP1755 high-performance LDO to improve RF performance

* HamGeek ADI Pluto+ is designed with 10 layers of PCB, impedance matching, and signal integrity

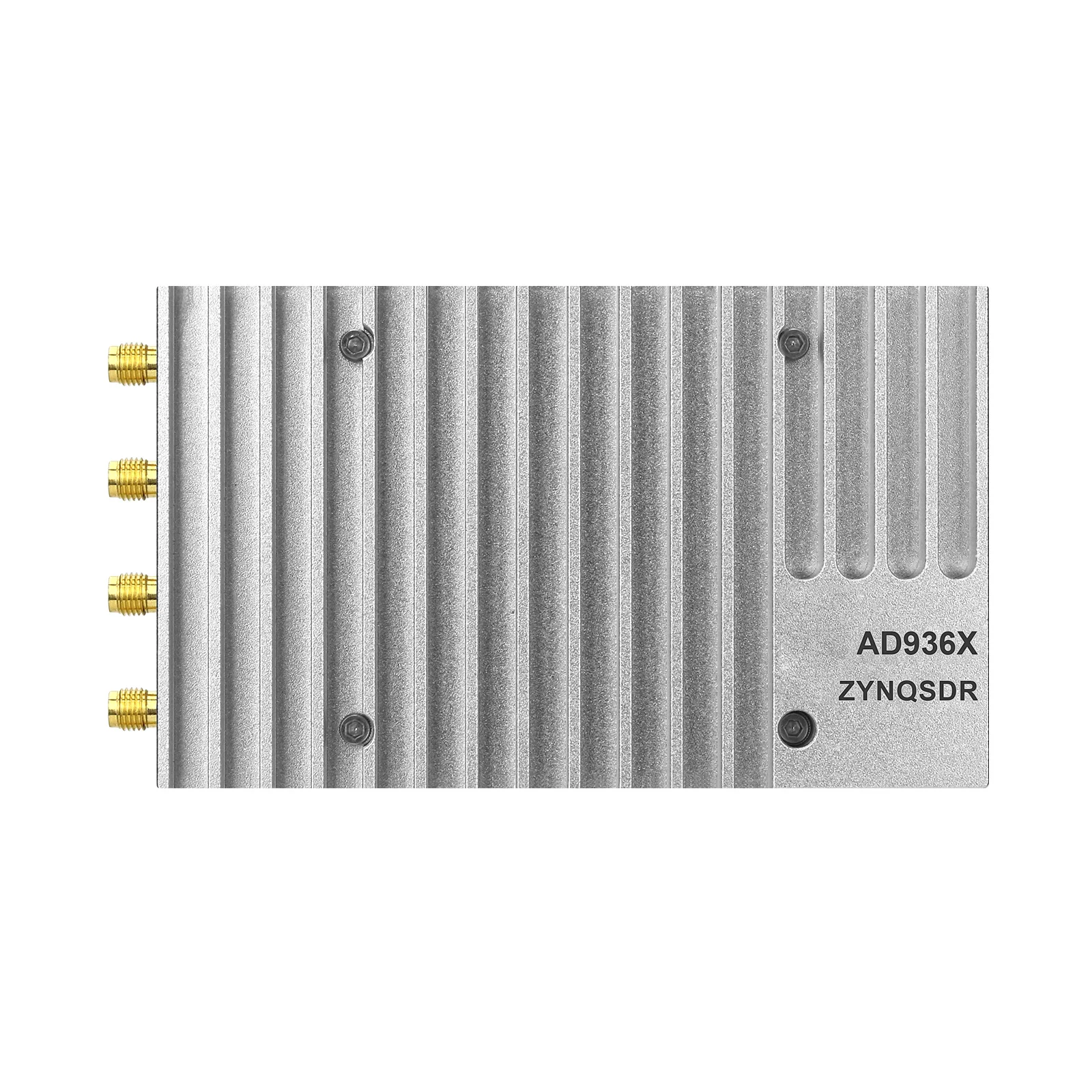

* The product adopts a CNC shell to strengthen heat dissipation and ensure strength

* The software interface is libiio. It can be connected to libiio-enabled software such as for iioscope, SDRsharp, Matlab and GNURadio. In addition, you can contact customer service for other signal processing problems

Package Included:

* 1 x Main unit

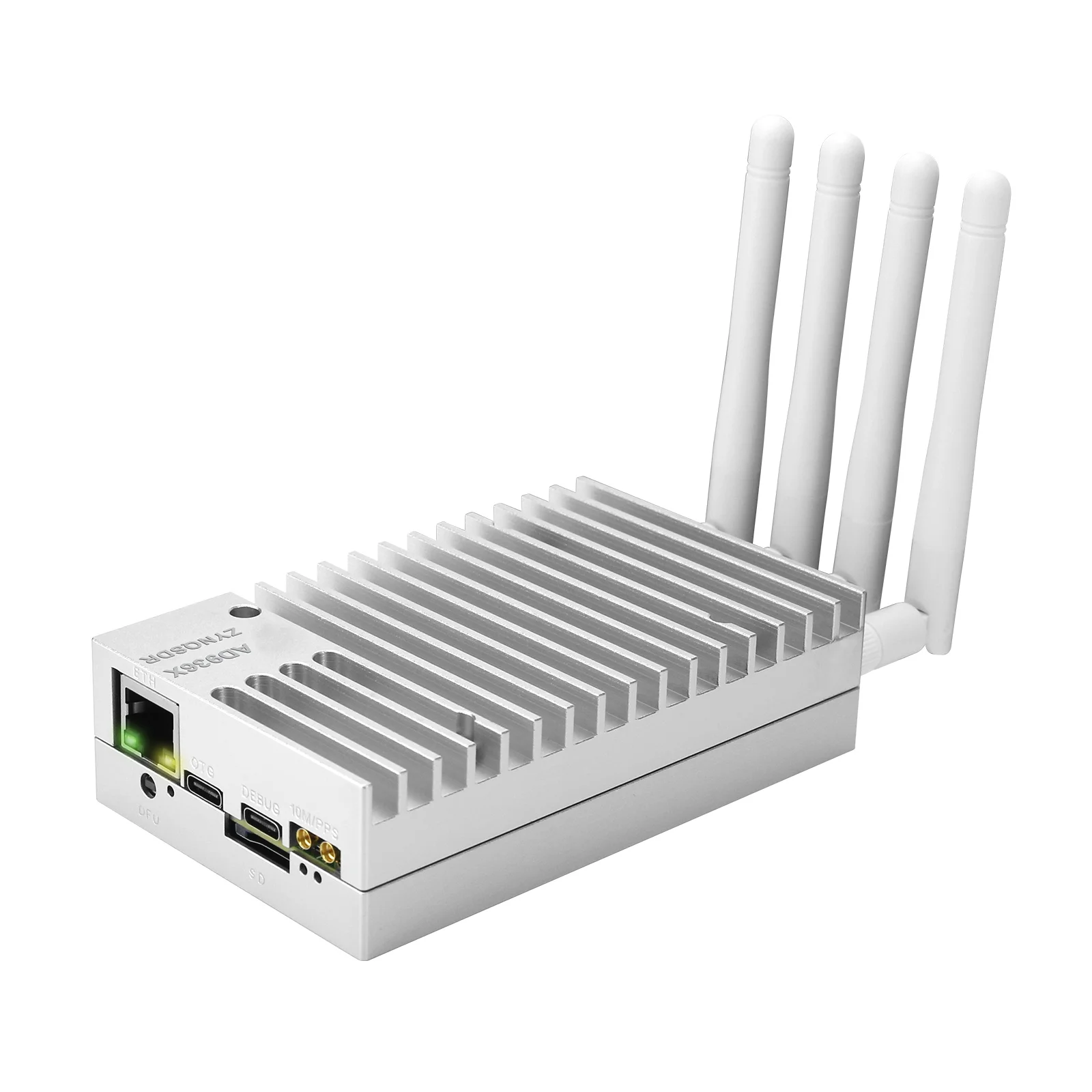

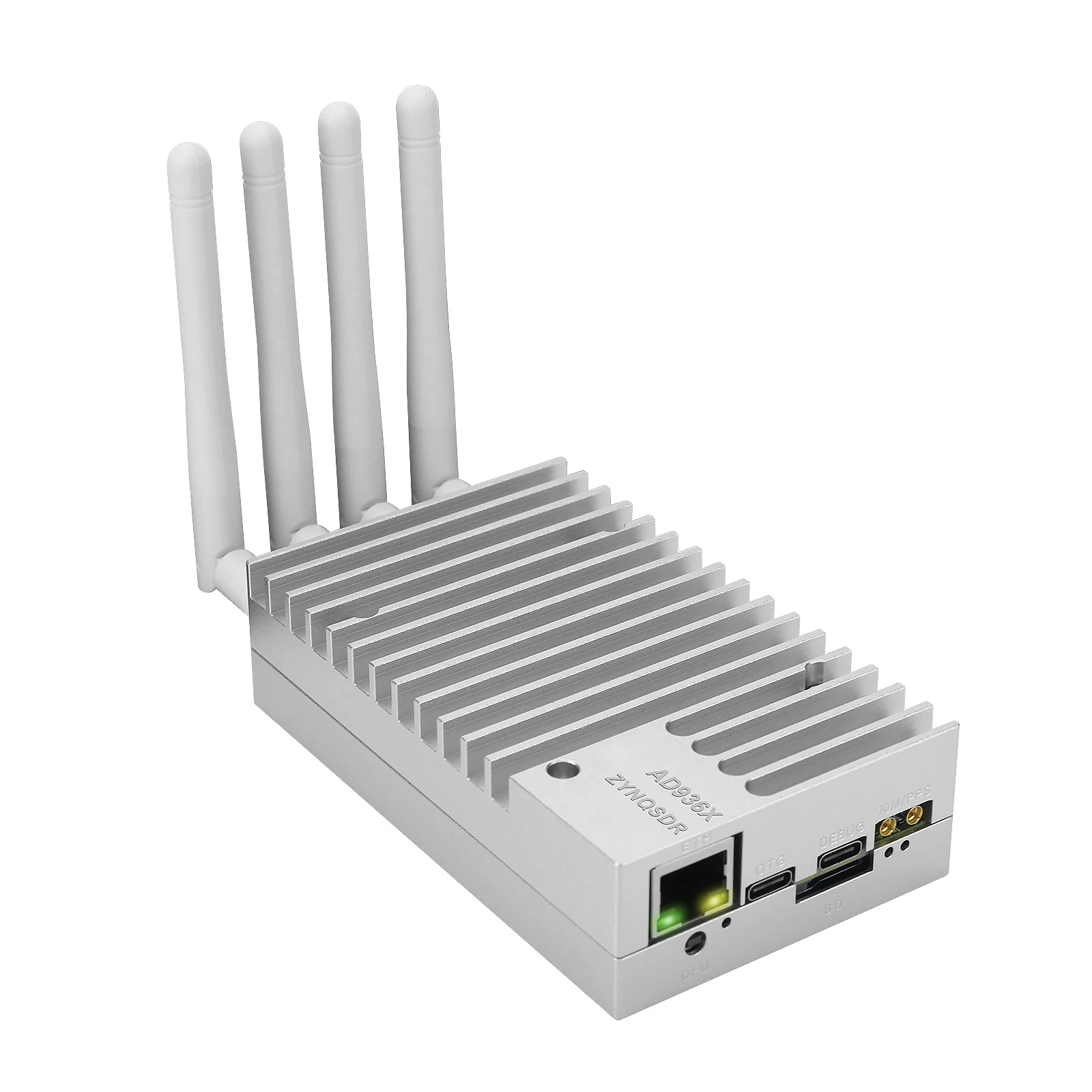

* 4 x Antennas

* 2 x USB cables

* 1 x Cable adapter

* 1 x Wrench

* 1 x Network cable

Packaging Details:

* G.W.: 0.6kg

Note:

* TF/SD card is not included.

* We only sell hardware, No firmware provided.

   (This product is compatible with many firmwares, and buyers can find firmwares on various websites.)
