- Hign-concerned Chemical: None

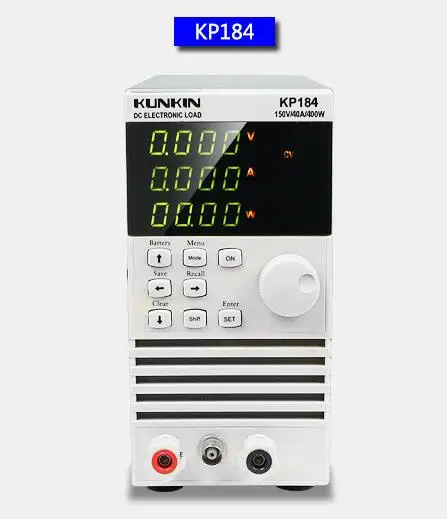

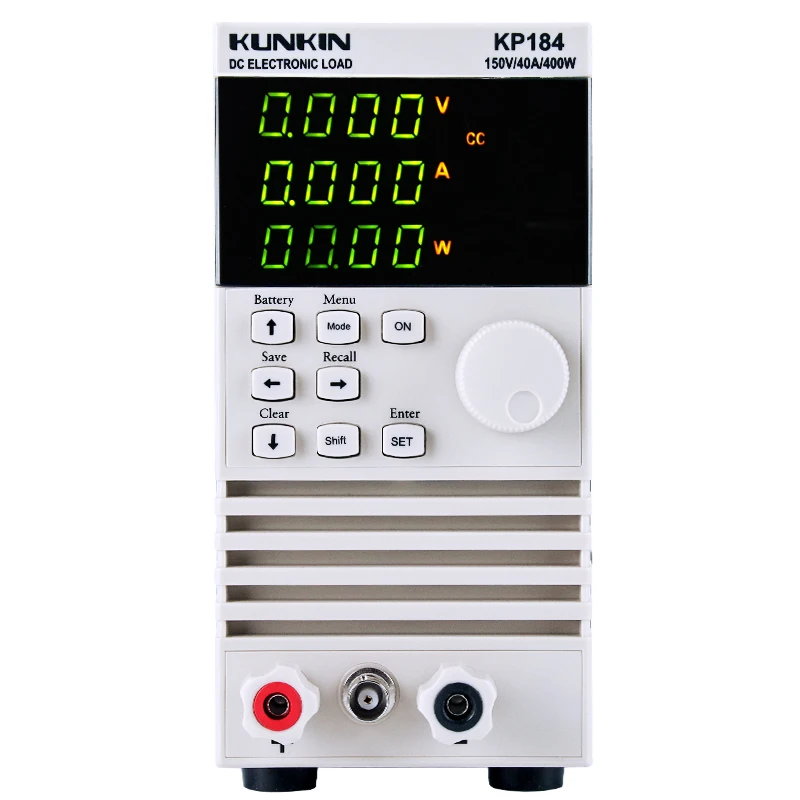

- Model Number: KP184
- DIY Supplies: ELECTRICAL
- Origin: Mainland China
- Certification: none

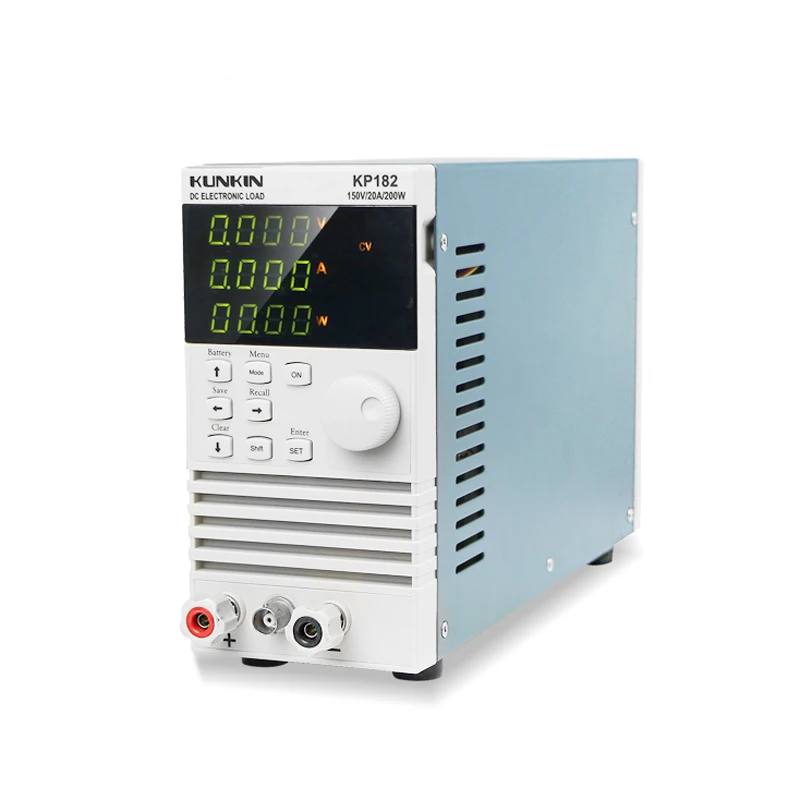

KP182 series products have special functions and advantages:
● With four basic load modes: CC, CV, CW and CR;
● Input positive and negative reverse connection protection and alarm;
● Optimized heat dissipation structure to achieve high power density;
● Digital control mode, high accuracy and good stability;
● With over voltage, over current, over power, over temperature protection;
● Remote voltage measurement function;
● Automatic test function, with external I / O trigger signal, PASS, FAIL indication signal;
● 10KHz dynamic test function;

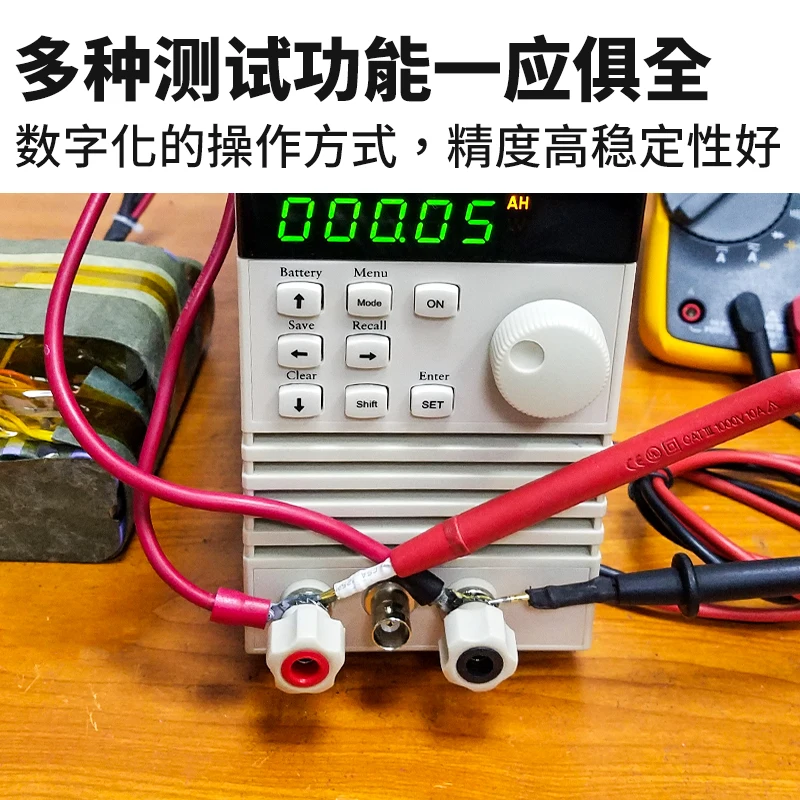

● Battery capacity test function;
● Battery internal resistance test function;
● Over-current protection point / protection time test function;
● Fan PWM temperature control;
● Switching between 110VAC / 220VAC;
● RS485, 232 communication interface, MODBUS protocol (KP184 only);
● With multiple load online synchronous operation function (only KP184);
● Powerful interface friendly PC software support (KP184 only);
Technical parameter specification :
|
Indicator type |
KP182 |
KP184 |
||
|
Power input |
Voltage |
AC 110V / 220V ± 10%, 50 ± 2Hz |
||
|
Power consumption |
<20 W |
|||
|
Load input |
Load voltage |
DC 1 -150 V |
||
|
Load current |
0-20A |
0-40A |
||
|
Load power |
0-200W |
0-400W |
||
|
measurement accuracy |
Current |
± 0.1% + 5mA |
± 0.05% + 5mA |
|
|
Voltage |
± 0.1% + 5mV |
± 0.05% + 5mV |
||
|
control precision |
Current |
± 0.1% + 5mA |
± 0.05% + 5mA |
|
|
Voltage |
± 0.1% + 5mV |
± 0.05% + 5mV |
||
|
communication method |
Communication is not supported |
RS232 / RS485 |
||
|
protection |
Overvoltage (OV) |
Greater than 152 V |
||
|
Over temperature (OT) |
85 ℃ |
|||
|
Over power (OP) |
210W single channel |
Single channel 410W |
||
|
Power input fuse 0.5A |
||||
|
Use ambient temperature range |
0 to 50 0 C |
|||
|
Operating ambient humidity range |
10 ～90% RH |
|||
|
DC input terminal withstand voltage |
± 500VDC |
|||
|
DC input terminal to chassis insulation resistance |
> 20M Ω, at 500VDC |
|||
|
AC input terminal to chassis insulation resistance |
> 20M Ω, at 500VDC |
|||
|

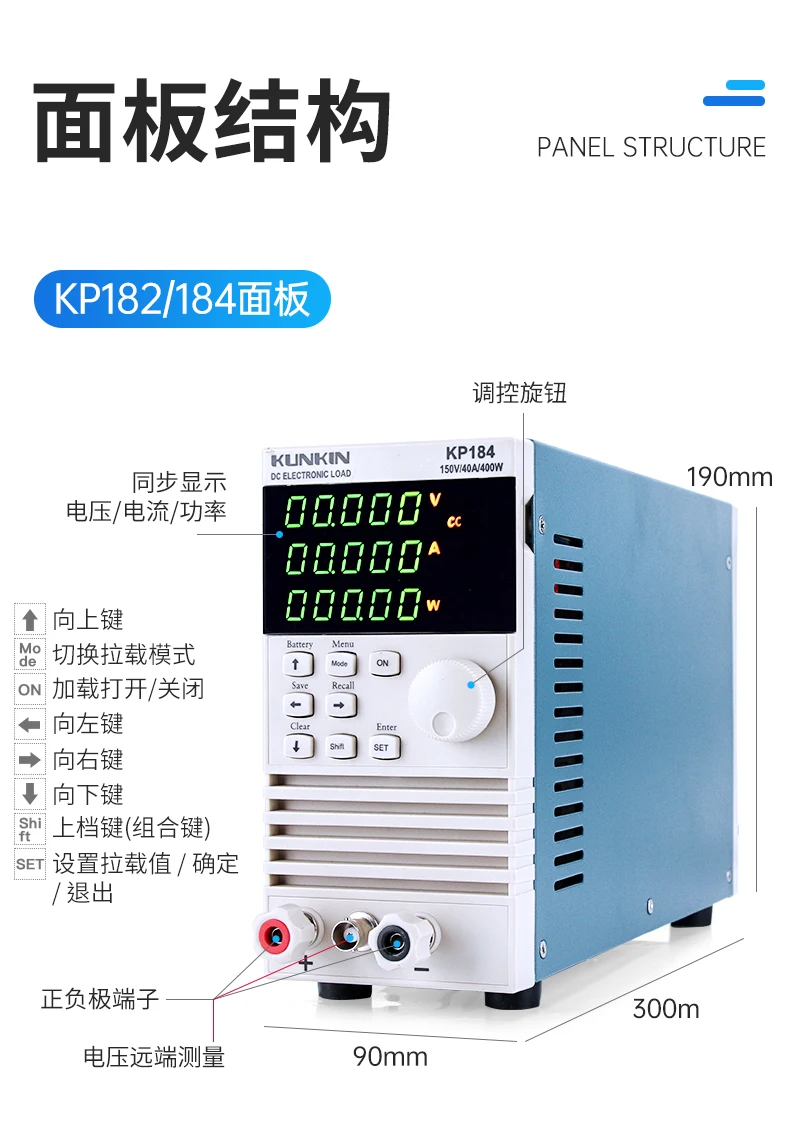

Dimensions (mm) L × B × H |
Approx. 300 × 90 × 190 |
|||
|
Weight (approx.) |
3.5 Kg |
4.5 Kg |
||
