- Hign-concerned Chemical: None
- Commodity Quality Certification: GS（消费电子）,3C,UL（纺织品）
- Material: Metal
- Model Number: WM-285-K
- Brand Name: GreatLife Dent
- Certification: none
- Origin: Mainland China
- Type: Oral Therapy Equipments & Accessories
Good Touch Screen Dental X Ray Camera Original 100% HyperLight X-Ray Machine Portable Dental RVG Imaging Sensor System Supplier
Dental X-ray 1
Feature
Features
High cost performance

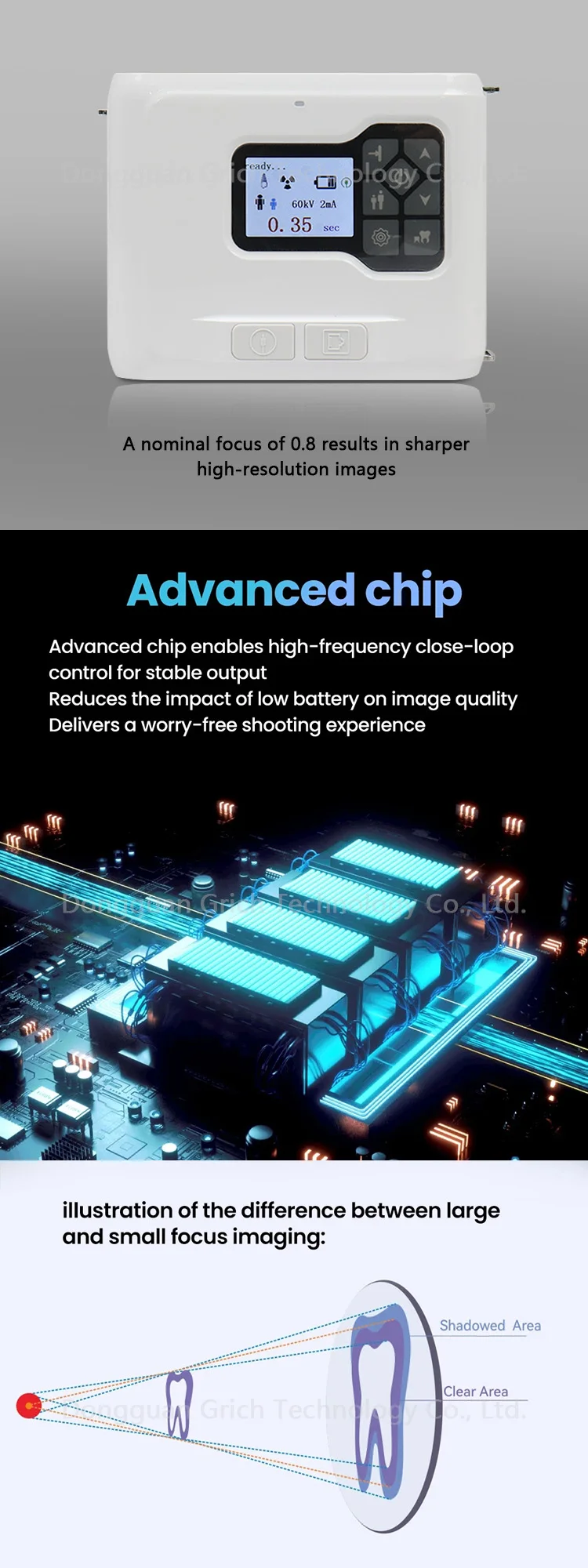

A nominal focus of 0.8 results in sharper high-resolution images
Easier to image
Oil tank and beam limiter use 99.9% pure lead shielding
to maximize the protection against radiation leakage.
Super performance Release high efficiency
Ensure X-ray output stability and output quality Escort for the shoot
Product Detail
Constant DC high frequency high voltage and current output
Ensure that the ray output is not affected by battery voltage fluctuations
Unique interior layout and lead protection
Effectively reduce X-ray leakage
Maximum operator protection from ionizing radiation

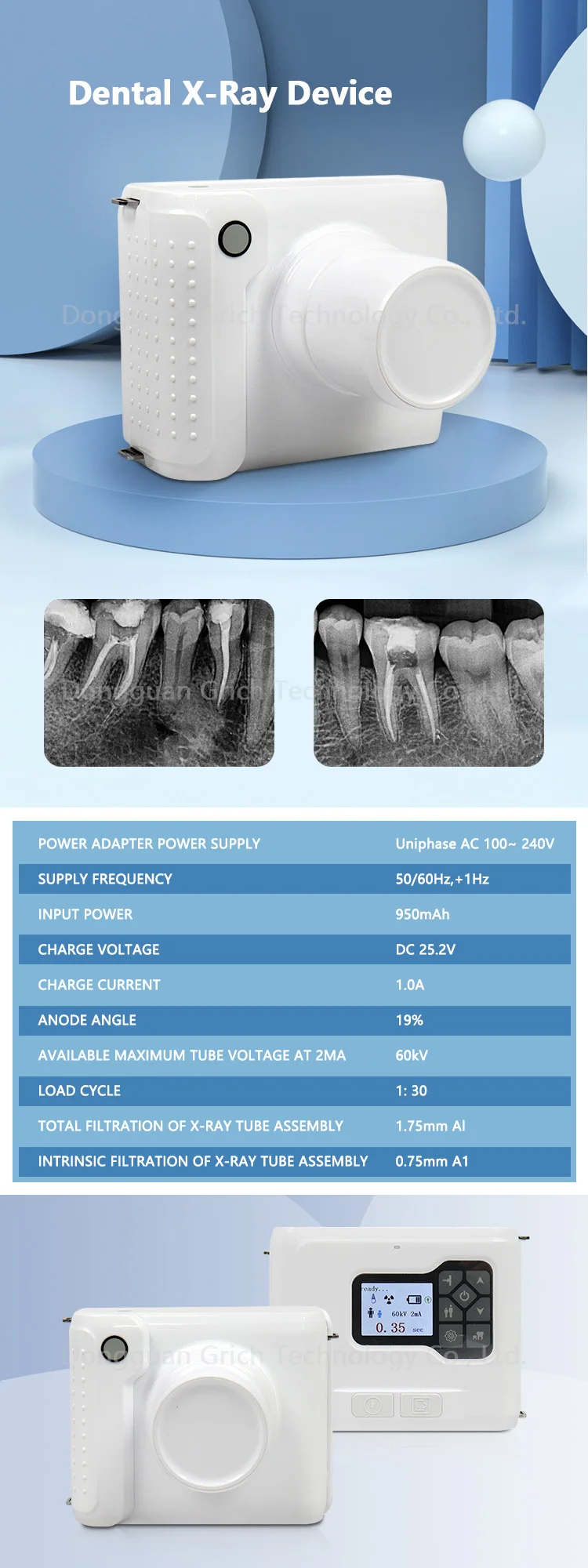

Model Number : KL 28
Power adapter power supply : Uniphase AC 100~ 240V
Supply frequency : 50/60Hz, +1Hz
Input power : 950mAh
Charge voltage : DC 25.2V
Charge current : 1.0A
Anode angle : 19%
Available maximum tube voltage at 2mA : 60kV
Load cycle : 1: 30
Total filtration of X-ray tube assembly : 1.75mm AI
Intrinsic filtration of X-ray tube assem : 0.75mm A1
Power adapter power supply : Uniphase AC 100~ 240V
Supply frequency : 50/60Hz, +1Hz
Input power : 950mAh
Charge voltage : DC 25.2V
Charge current : 1.0A
Anode angle : 19%
Available maximum tube voltage at 2mA : 60kV
Load cycle : 1: 30
Total filtration of X-ray tube assembly : 1.75mm AI
Intrinsic filtration of X-ray tube assem : 0.75mm A1

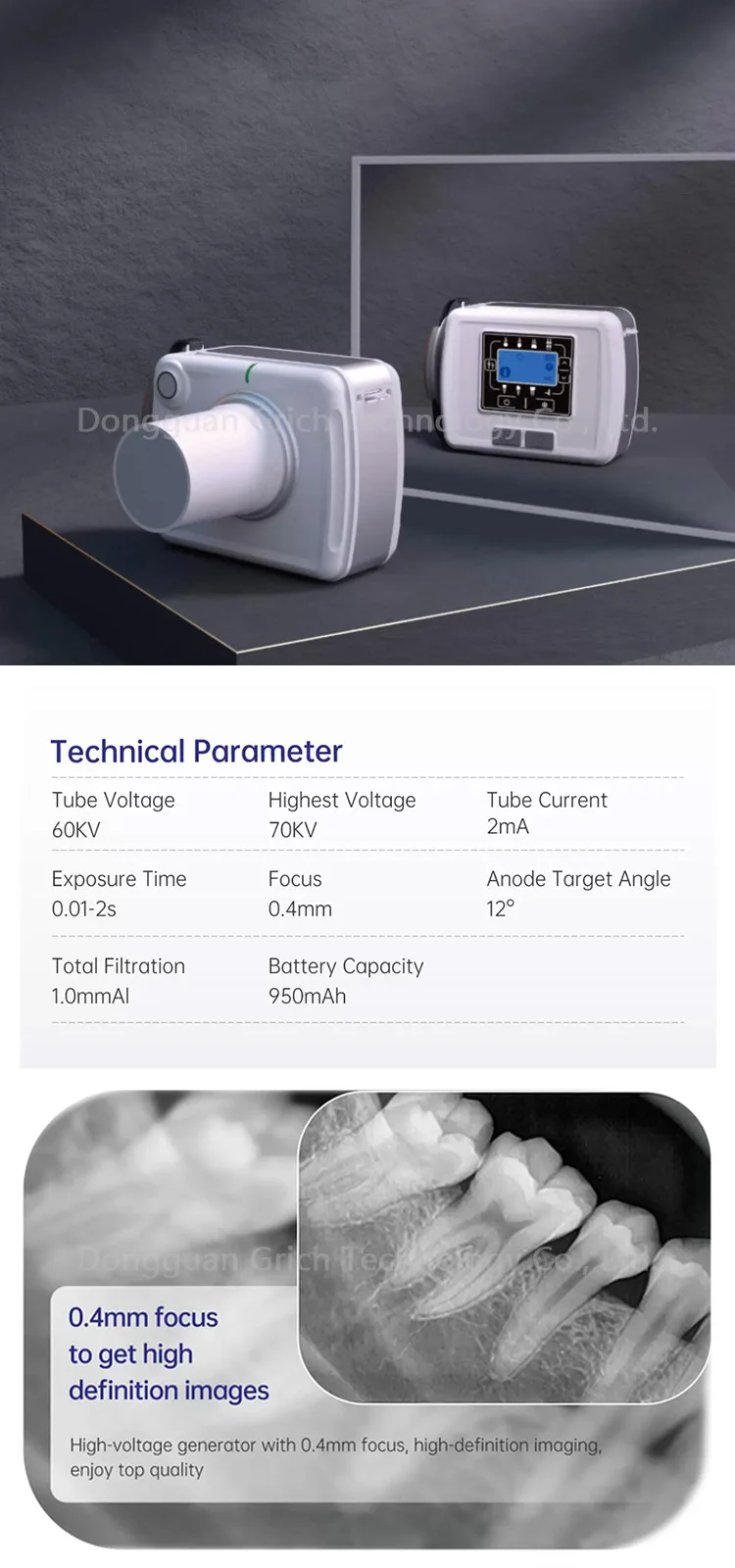

Dental X-ray 2
0.4mm focus to get high definition images
High-voltage generator with 0.4mm focus, high-definition imaging, enjoy top quality

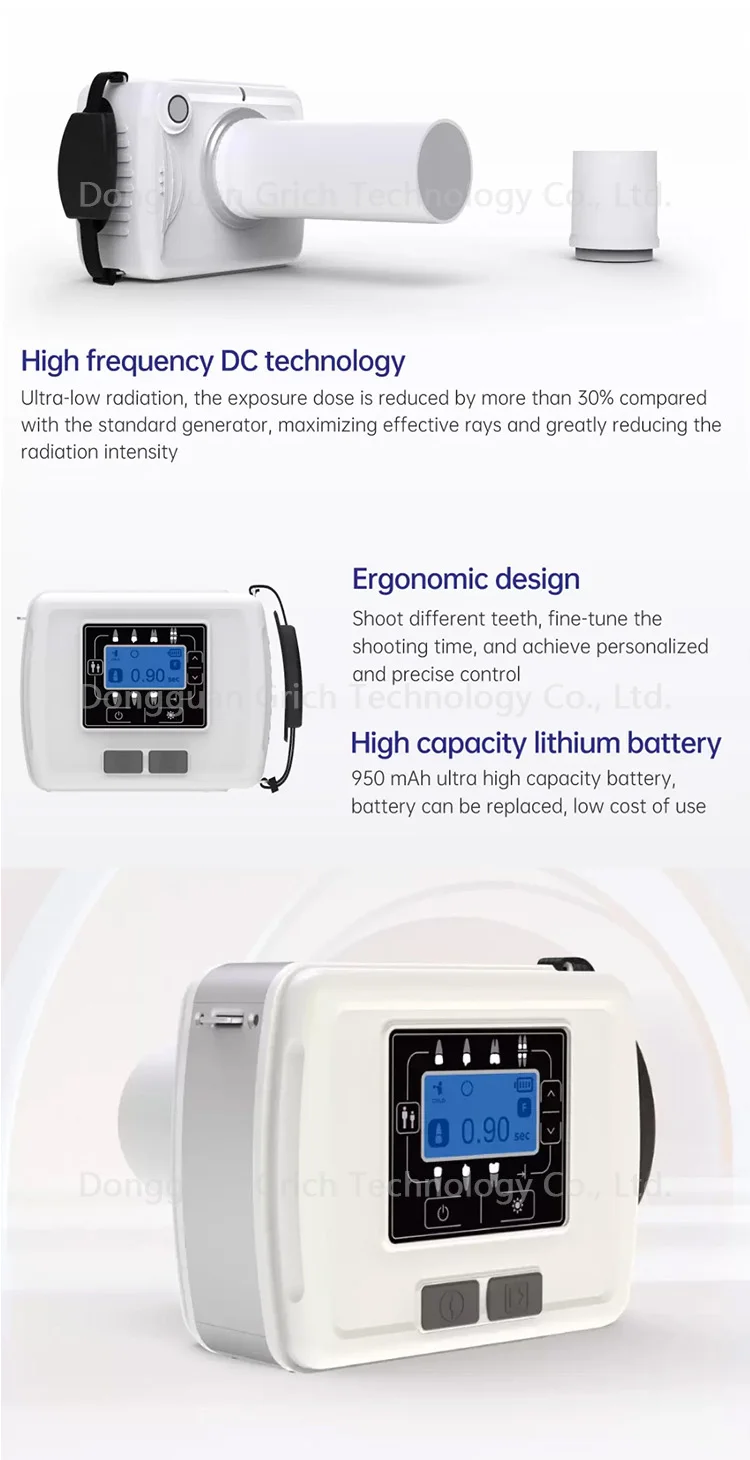

High frequency DC technology
Ultra-low radiation, the exposure dose is reduced by more than 30% compared with the standard generator, maximizing effective rays and greatly reducing the radiation intensity
Tube Voltage: 60K
Highest Voltage: 70K
Tube Current: 2mA
Exposure Time: 0.01-2s
Focus: 0.4mm
Anode Target Angle: 12°
Total Filtration: 1.0mmAI
Battery Capacity: 950mAh

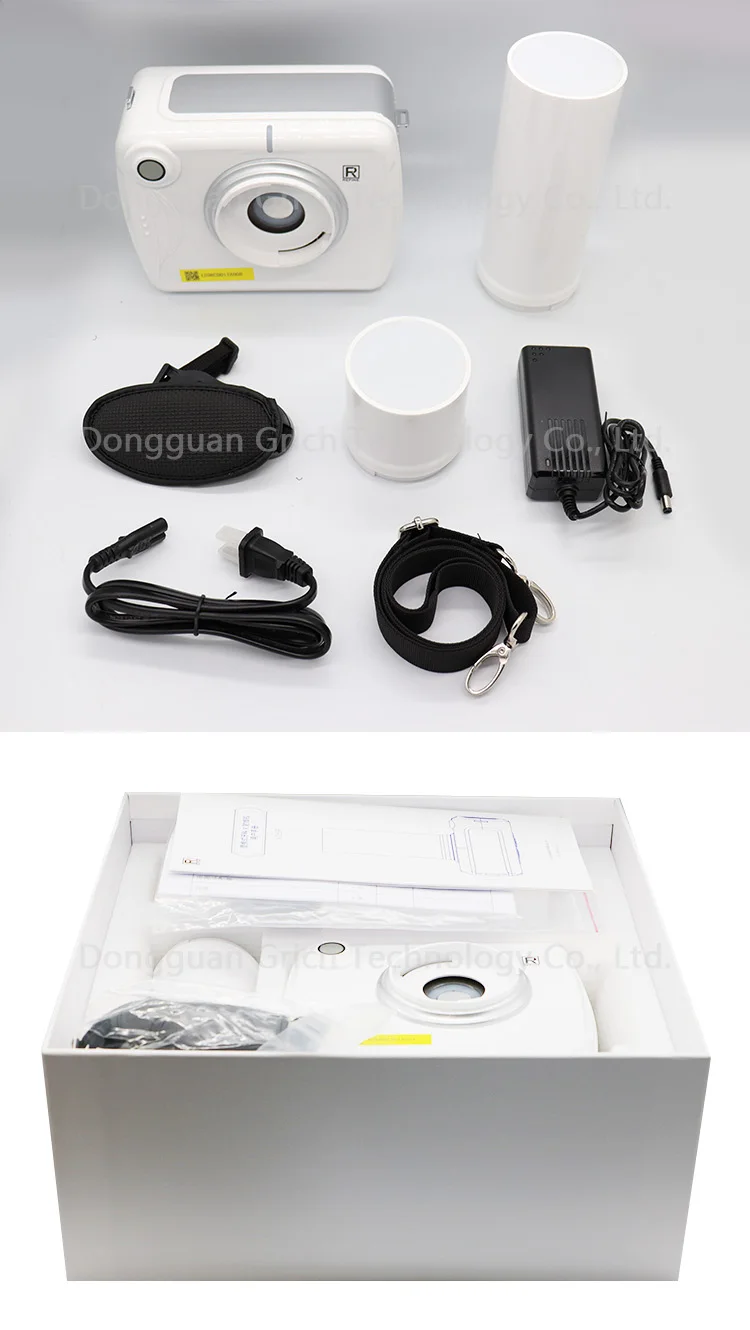

Dental X ray 3
FEATURES
1.High-frequency portable X-ray machine, compared with ordinary portable X-ray machines, the operators and
patients will suffer from less radiation with better image effects
2.The DC portable X-ray machine can be easily fixed on the chair for shooting, or simply detached for handheld shooting
independently
3.Adopting the micro-focus tube imported from Japan's Canon, with the focal point of 0.4mm and 12.5-degree anode angle, ensures a clearer image
4.The exposure time is short with only about 0.4 seconds, which is 5 to 8 times shorter than the that of ordinary portable X-ray machines to ensure less radiation it can also reduce the influences of external factors such as hand shake, providing a better shooting effect
5.The circuit components imported from South Korea adopt high-frequency closed-loop control. When the battery power is low, the image effect will not be affected
6.Small in size, light in weight, simple to operate, and available to be operated with single hand

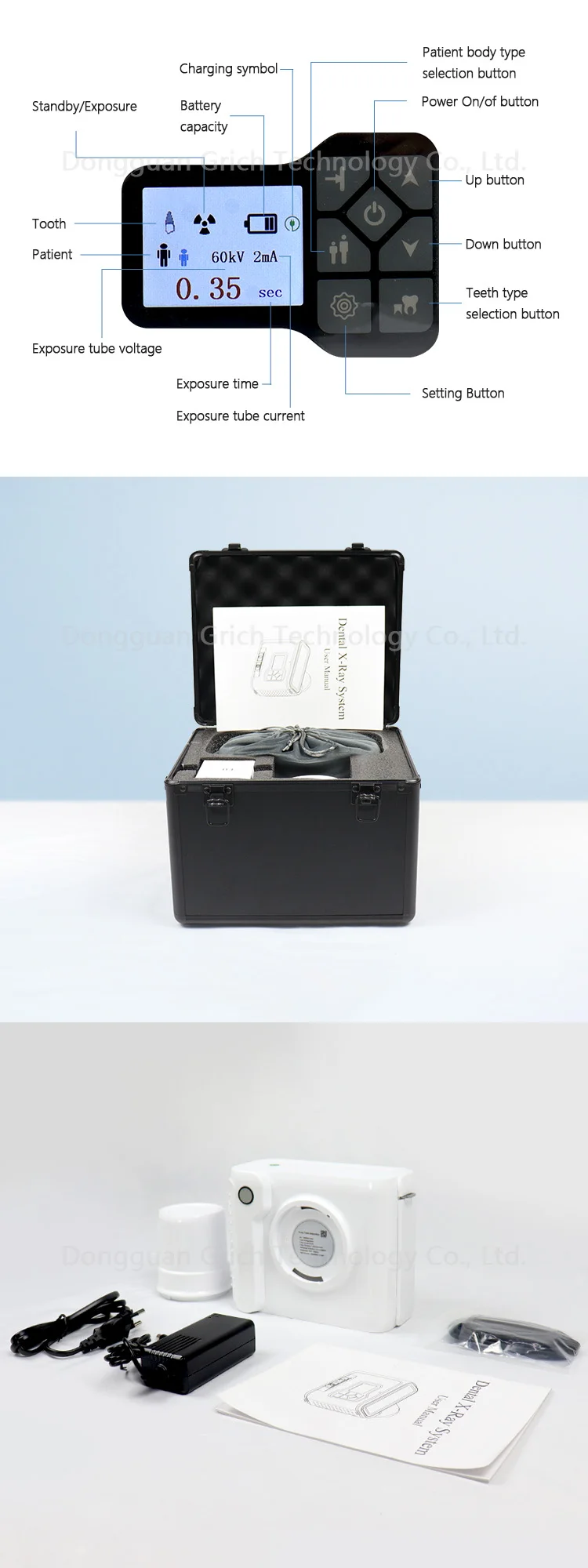

7.Digital display with simple operation
8.500 shots can be taken continuously after the battery is fully charged
9.Produced with quality assurance
Tube voltage:70KV±10%
Tube Current:2mA±20%
Charge input Voltage:100V-240V
Frequency:50Hz-60Hz
Anode Angle:12.5 °
Focus:0.4mm
Exposure time range:0.04s – 2.0s
Leak Emissivity:1 meter≤0.25mGy/h
Relative Humidity:30%RH~75%RH
GW:4Kgs
NW:1.9Kgs
Packing Size:340*250*255mm

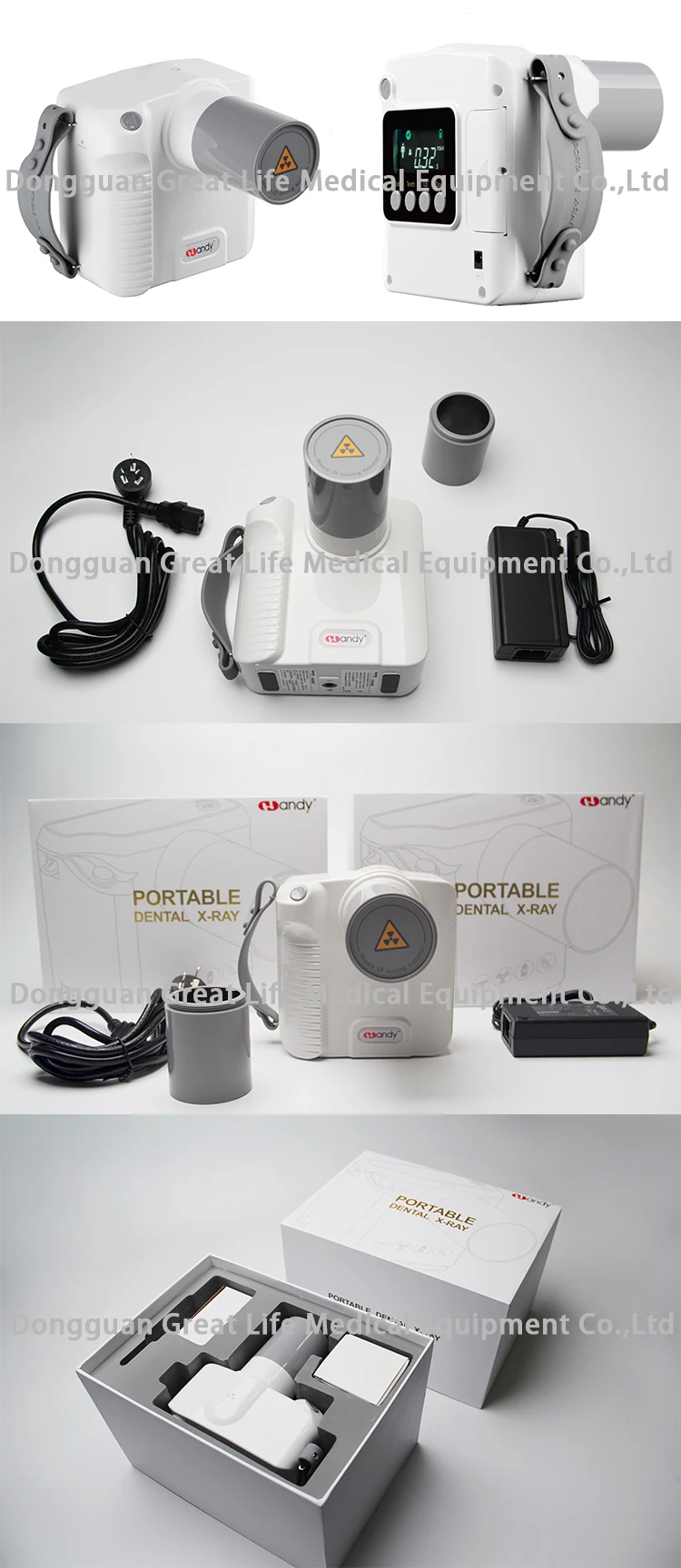

Dental X-ray 4

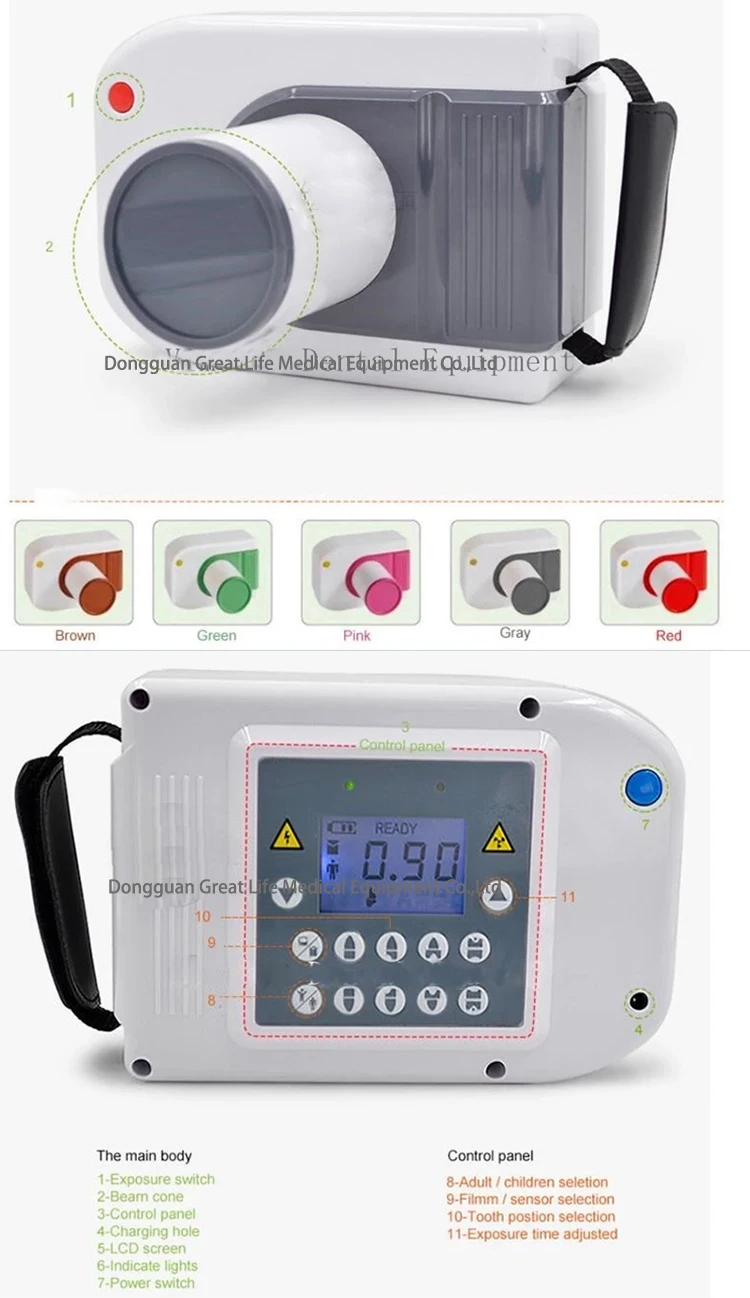

Feature

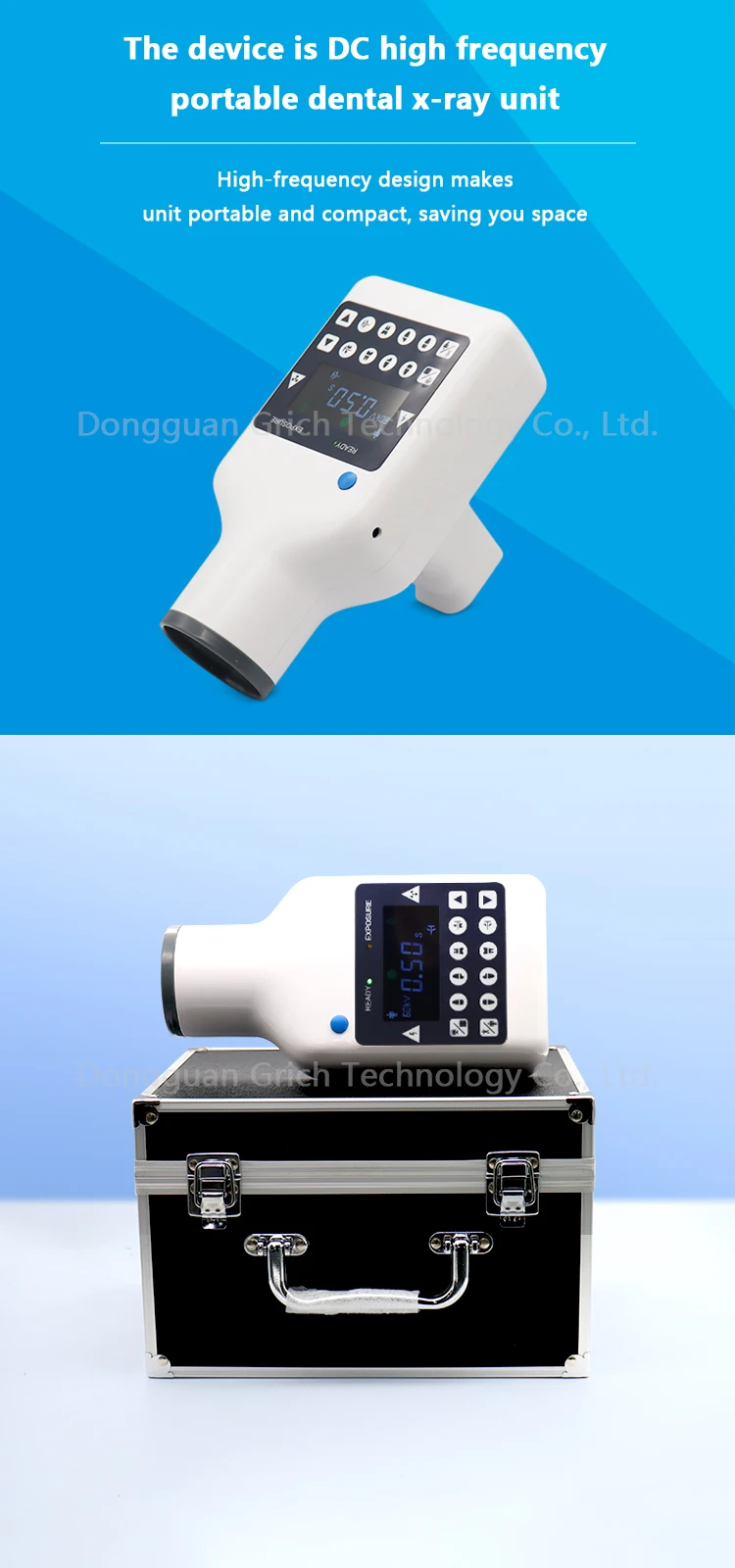

*The device is DC high frequency portable dental X-ray unit, small, light and nearly no radiation.
*There are manual buttons installed on the surface of shell, operate easily. All of the components are installed in the central PC board, insulation vacuum and sealed stereotype protection make its brilliant features.
*The unit mainly suitable for oral pre-treatment diagnosis of internal organization structure and root depth and so on, is indispensable in daily life clinic, especially for dental implant surgery.
*The battery is durability, it can take about five hundred images after full charged, and it can be charged and discharged for one thousand times in its life.
*It can be connected with intra-oral digital X-ray imaging system.

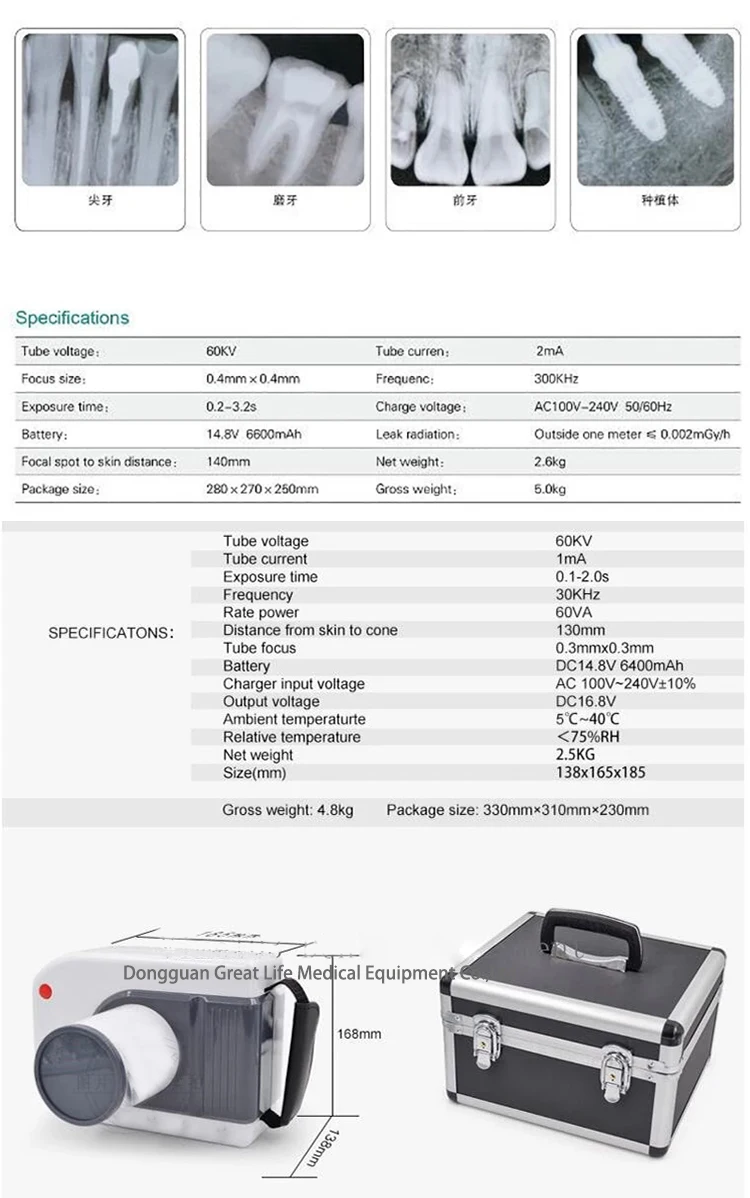

Type:Wireless Portable x-Ray Camra
Model:WM-285-F
Tube voltage:60KV
Tube current:1.5mA
Exposure time:0.1-2s
Frequency:30khz
Tube Focus:0.3mm×0.3mm
The distance from skin to cone:130mm
Battery:DC14.8V 6400mAh
Rated power:60VA
Charger input voltage:AC100V-240V±10%
Output voltage:DC16.8V
Ambient temperature:5-40ºC
Relative humidity:<75%RH

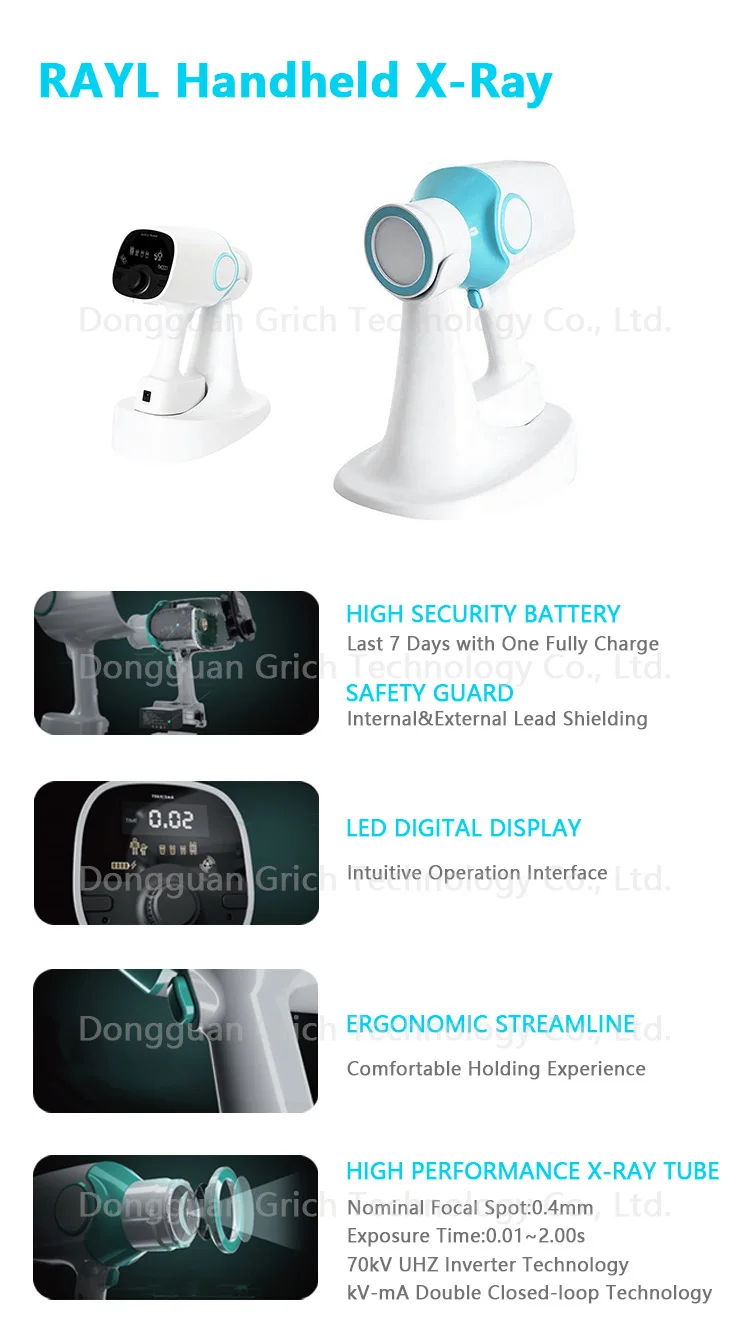

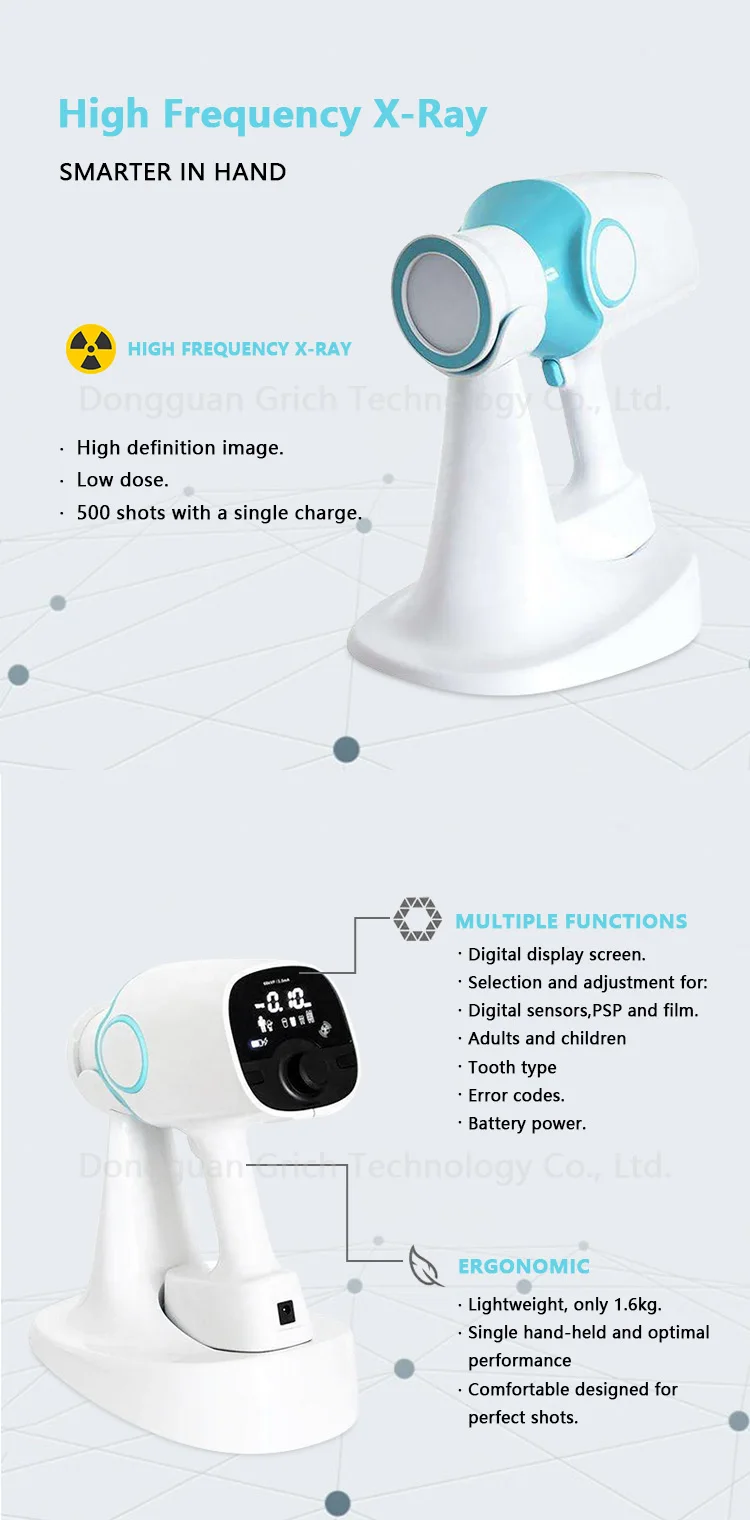

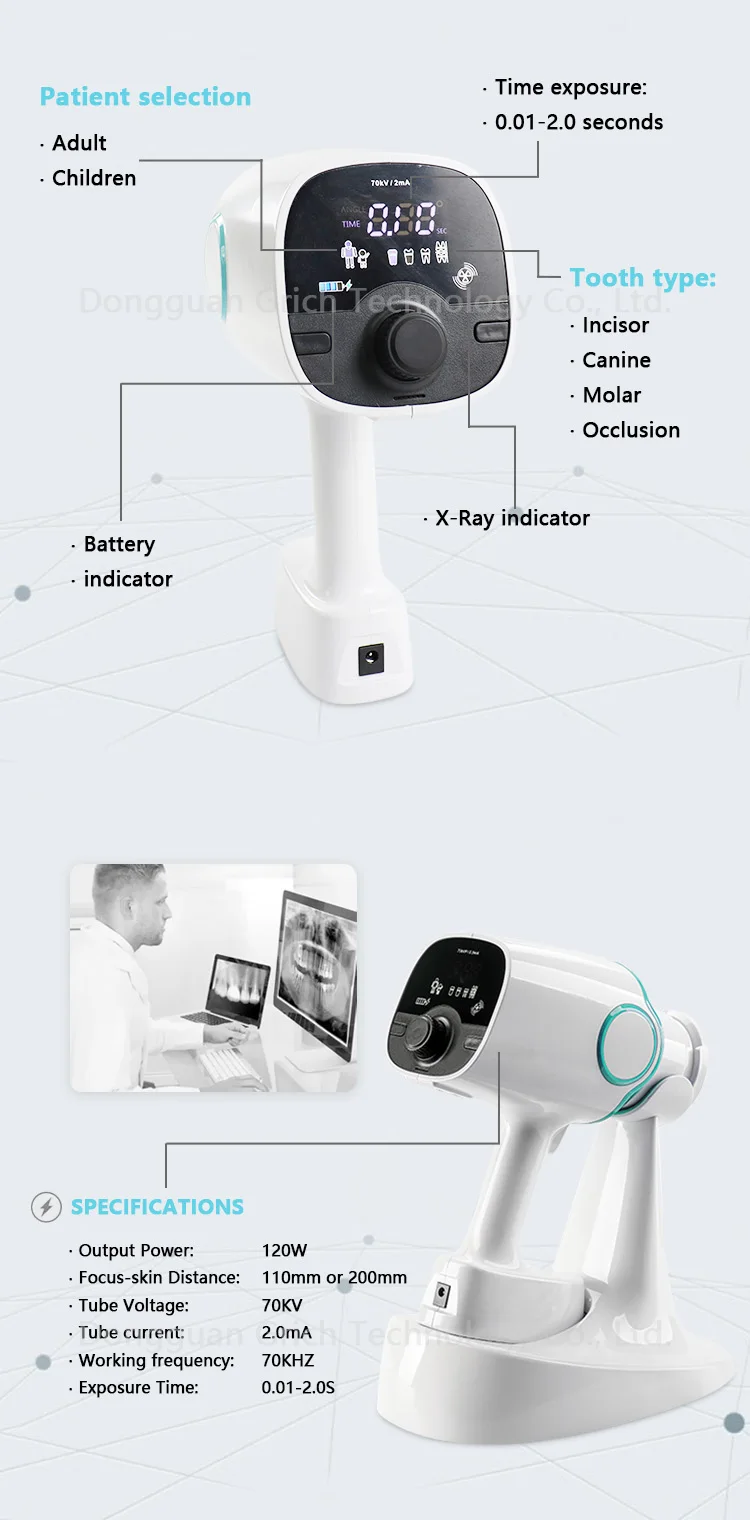

Dental X-ray 5

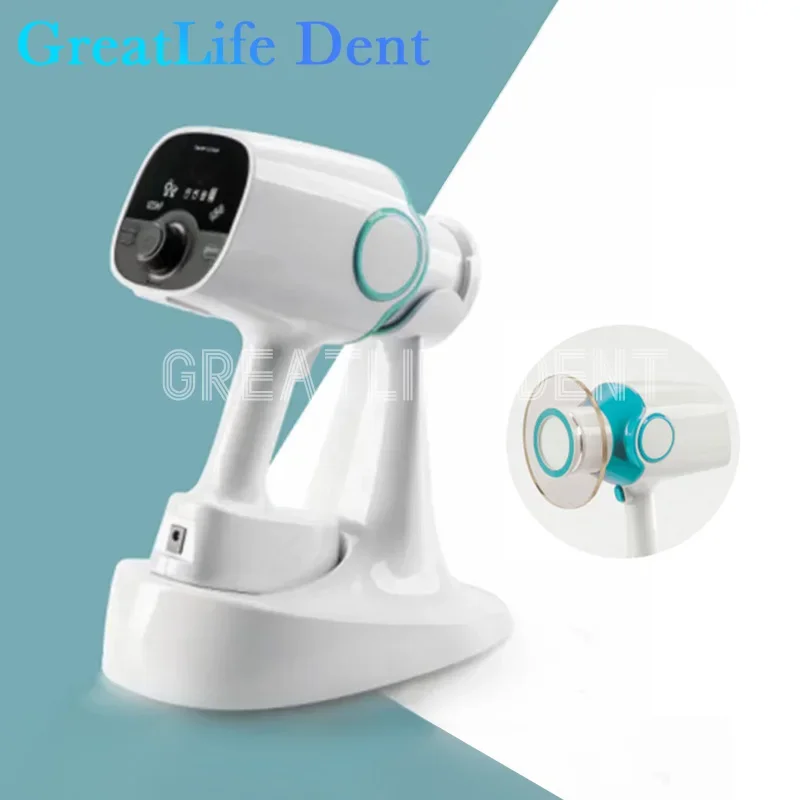

Technical Paramete
Product Name RAYL Handheld X-Ray
Voltage DC22.2V
Battery 950mAh / 21.09Wh
Focal Spot to Skin Distance ≥ 200mm
Tube Voltage 70Kv
Tube Current 2mA
Exposure Time 0.01~2.0s
Net Weight 1.6Kg
Charging Input AC100~240V
Charging Output DC25.2V
Feature:
Solid Insulation Technology
Tube adopts solid insulation technology, which abandons the
traditional transformer oil insulation and eliminates the potential oil
leakage
High Frequency Tube
High performance tube, 70kV UHF inverter technology, kV-mA
double closed-loop technology, more stable X-ray emitting,
stronger penetration and with higher quality
Ergonomic Handle, Better Feeling
Ergonomic streamline handle, easy to
achieve one-hand operation.

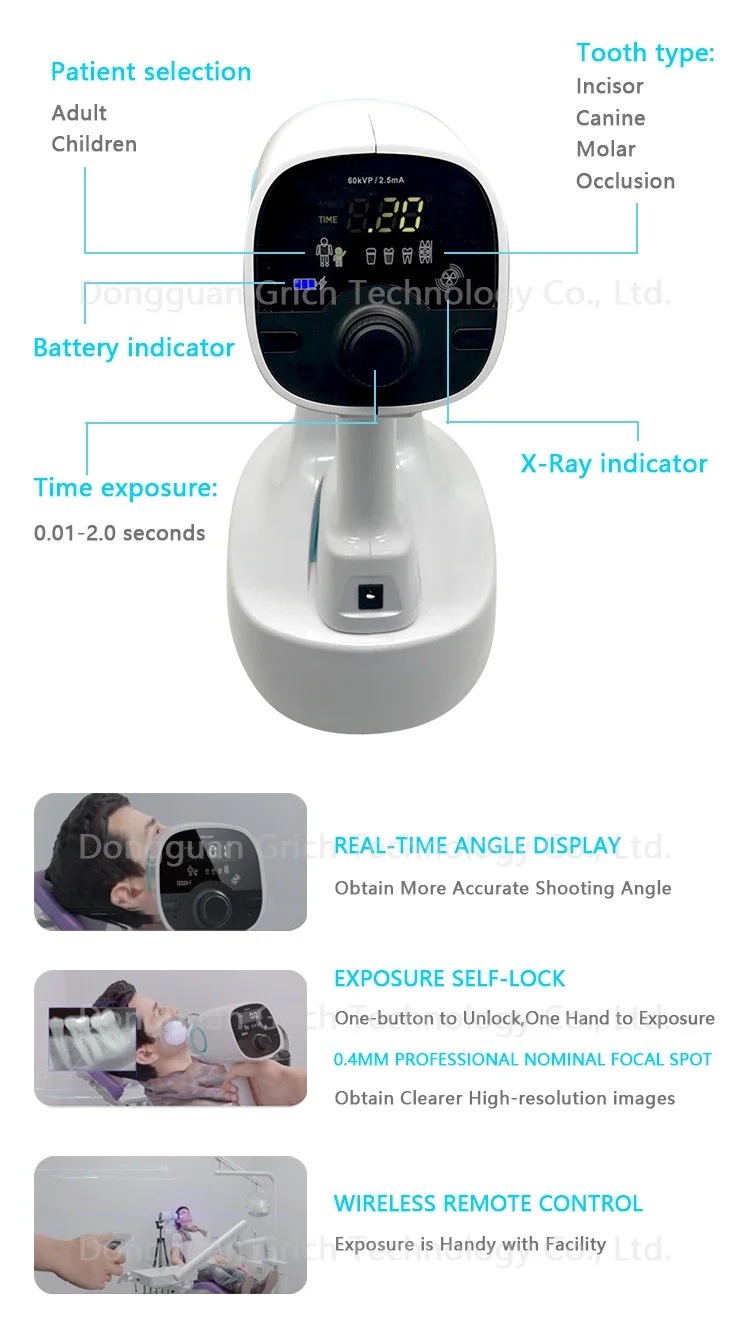

Smart Control
LED high-light digital tube display interface, more intuitive information
display.Operation interface is located at the tail of the body, facing the
operator, which is easier to operate and identify.Physical knob and
buttons, millions of fatigue tests, more durable and easy glove
operation.Wireless remote controller, realize remote exposure control.
Smart Digitization
Angle navigation function, real-time Angle
display, assist the operator to obtain more
accurate shooting Angle.
Dental X-ray 6

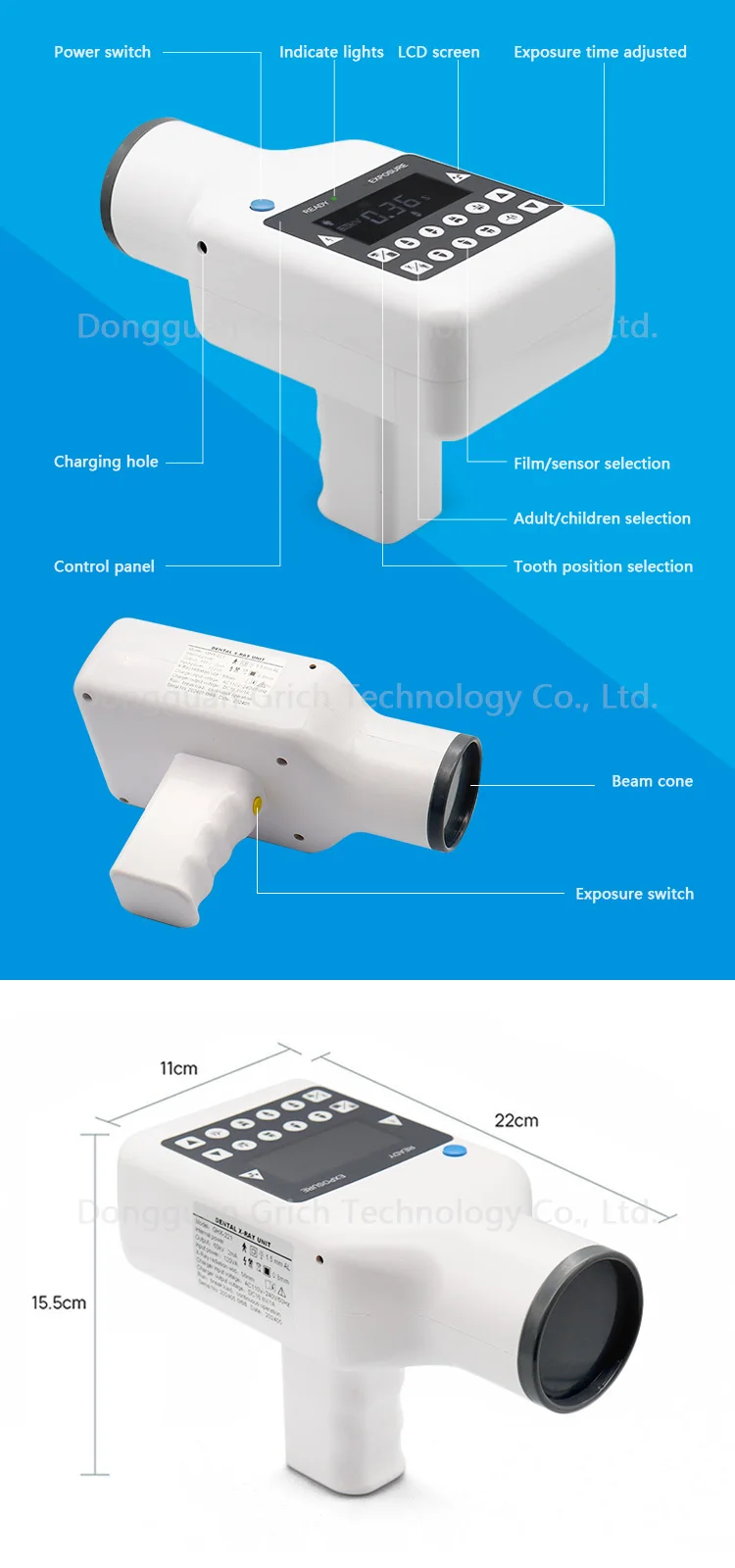

FEATURE:
1.Compatible with digital sensors, X-ray film, and image plate scanners.
2.Small and portable.
3.This portable dental X-ray machine is high frequency machine.
4.The body is small, light in weight, and the radiation leakage is less than 20μgy/h.
5.It has excellent image quality, portable storage, save more space.
6.It uses high frequency and DC international power supply.
7.All of the components installed in the central PC board concentrated. Shock,set-up, electron tubes, all of them are insulation vacuum, sealed stereotype protection.
8.Different exposure times are preset for adults and children.
9.The battery is durable, it can take about 4 hundred images after fully charged.

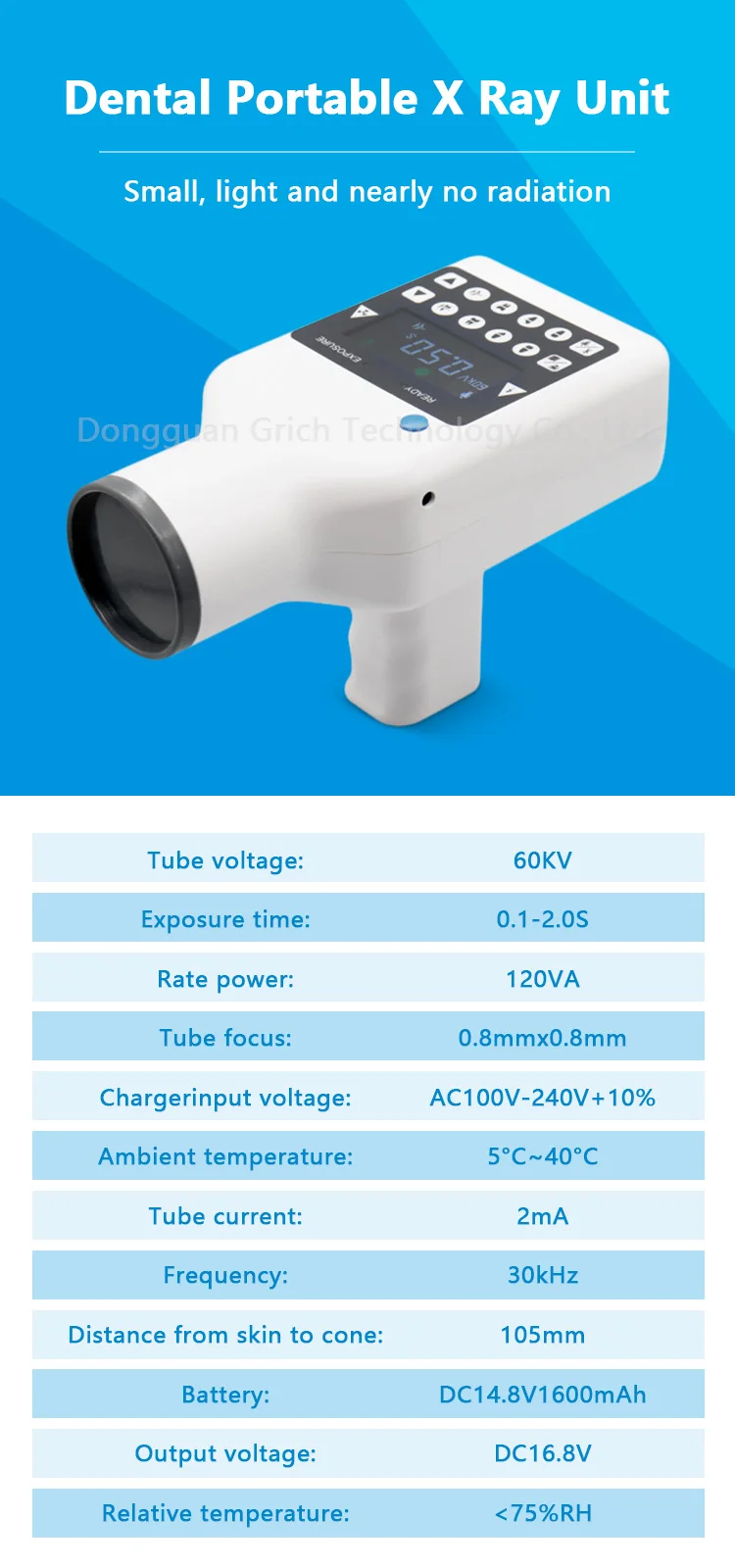

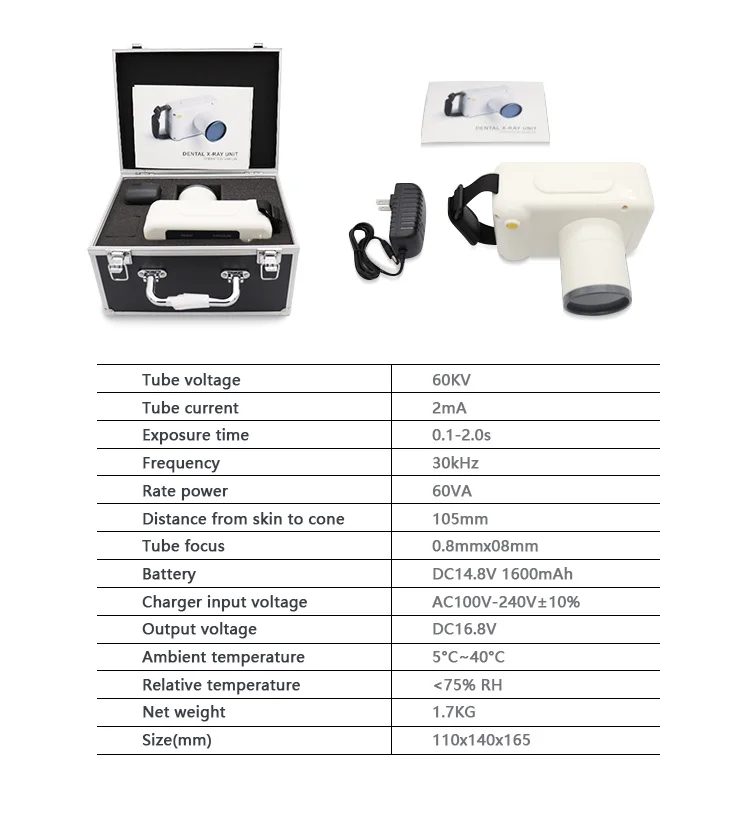

TECHNICAL SPECIFICATIONS:
1.Tube voltage:60KV
2.Tube current:2mA
3.Exposure time:0.1-2.0S
4.Frequency:30kHz
5.Rate power:120VA
6.Distance from skin to cone:105mm
7.Tube focus:0.8mmx0.8mm
8.Battery:DC14.8V 1600mAh
9.Charger input voltage:AC100V-240V+10%
10.Output voltage:DC16.8V
11.Ambient temperature:5℃~40℃
12.Relative temperature:<75%RH

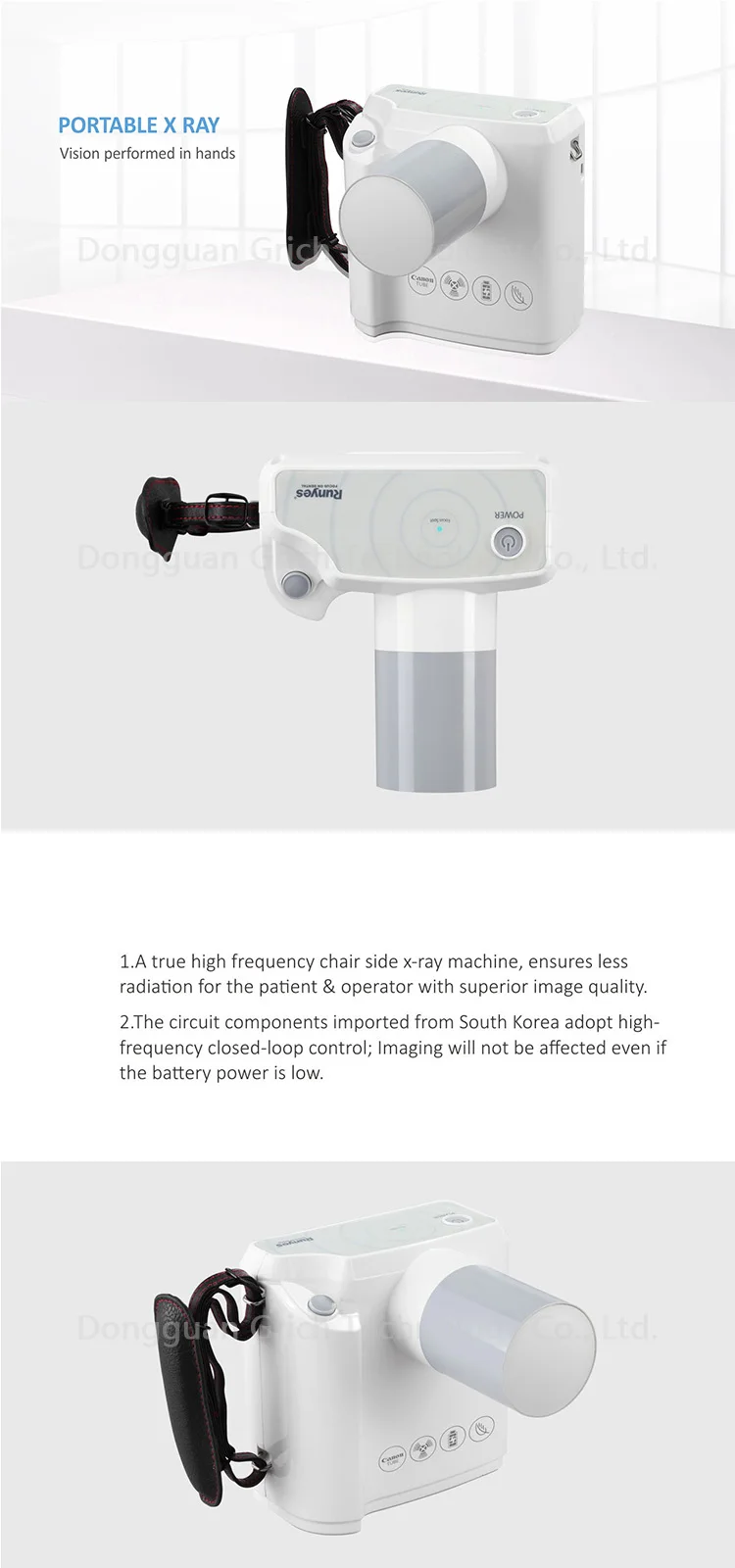

1.A true high frequency chair side x-ray machine, ensures less radiation for the patient & operator with superior image quality
2.The circuit components imported from South Korea adopt high frequency closed-loop control; lmaging will not be affected even if the battery power is low.

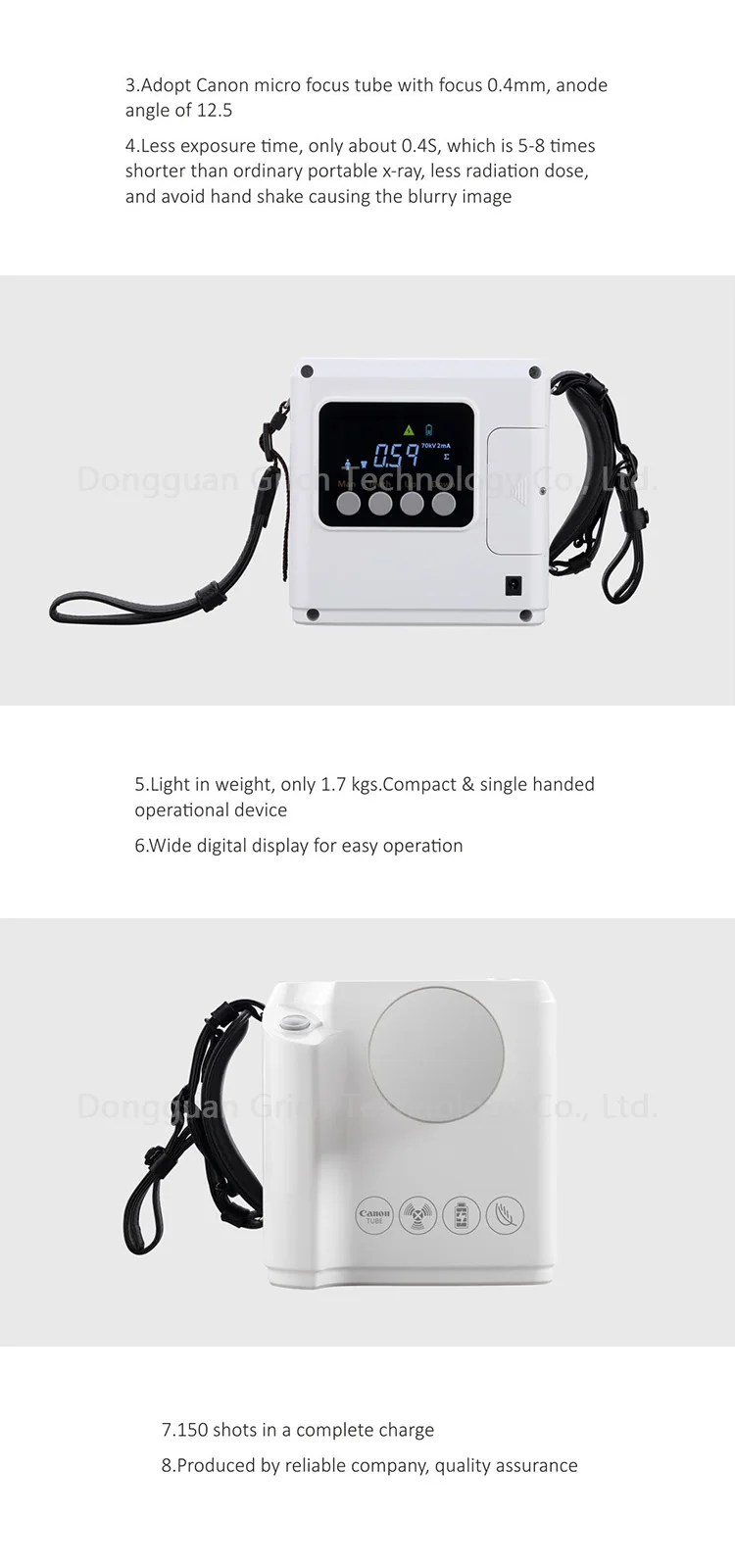

3.Adopt Canon micro focus tube with focus 0.4mm,anode angle of 125
4.Less exposure time only about 0.4S, which is 5-8 time shorter than ordinary portable x-ray, less radiation dose,and avoid hand shake causing the blurry image
5.Light in weight,only 1.7 kgs. Compact & single handed operational device
6.Wide digital display for easy operation
7.150 shots in a complete charge
8.Produced by reliable company, quality assurance

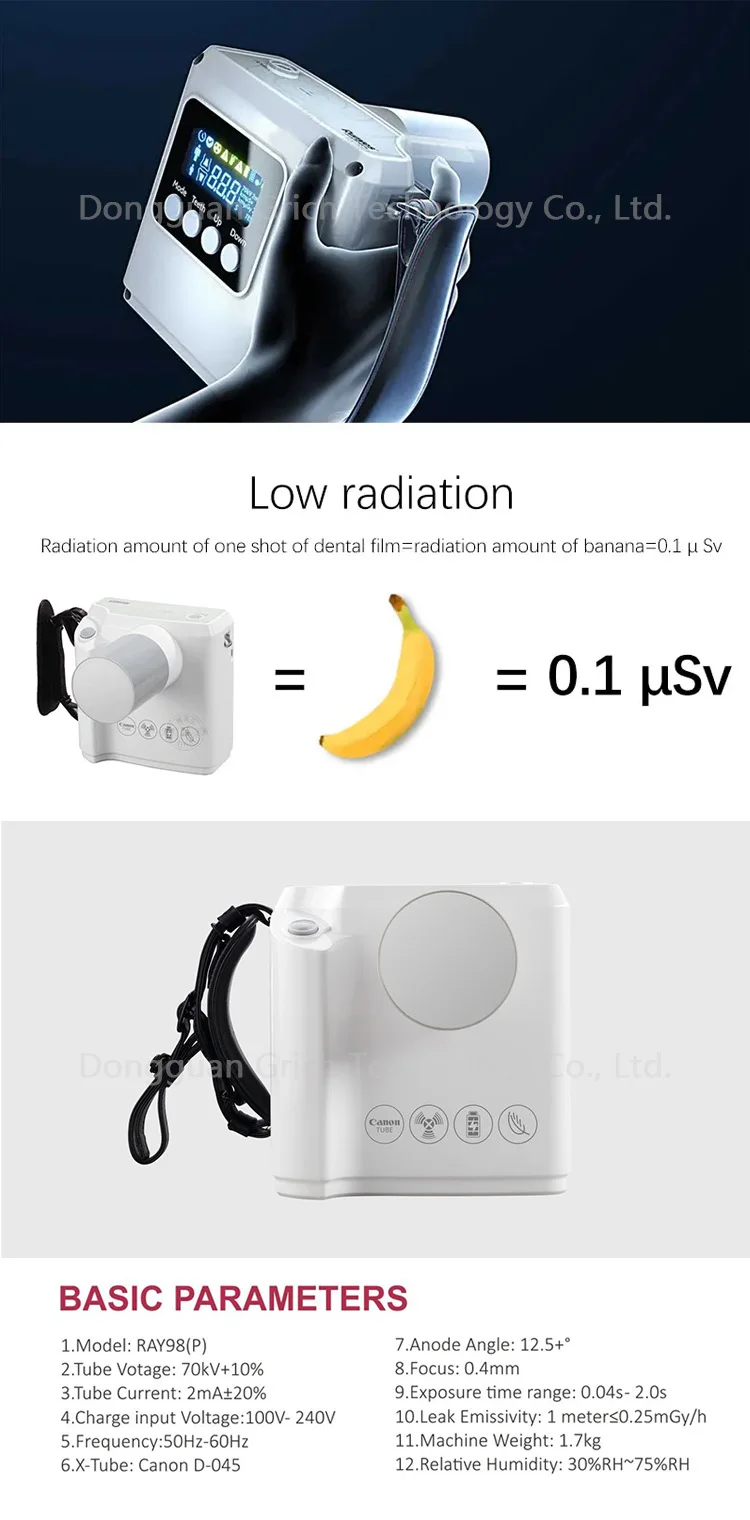

BASIC PARAMETERS
1.Model: RAY98(P)
2.Tube Votage: 70kV+10%
3.Tube Current:2mA+20%
4.Charge input Voltage:100V- 240V
5.Frequency:50Hz-60Hz
6.X-Tube:Canon D-045
7.Anode Angle:12.5+°
8.Focus:0.4mm
9.Exposure time range: 0.04s- 2.0s
10.Leak Emissivity:1 meter<0.25mGy/h
11.Machine Weight:1.7kg
12.Relative Humidity:30%RH~75%RH

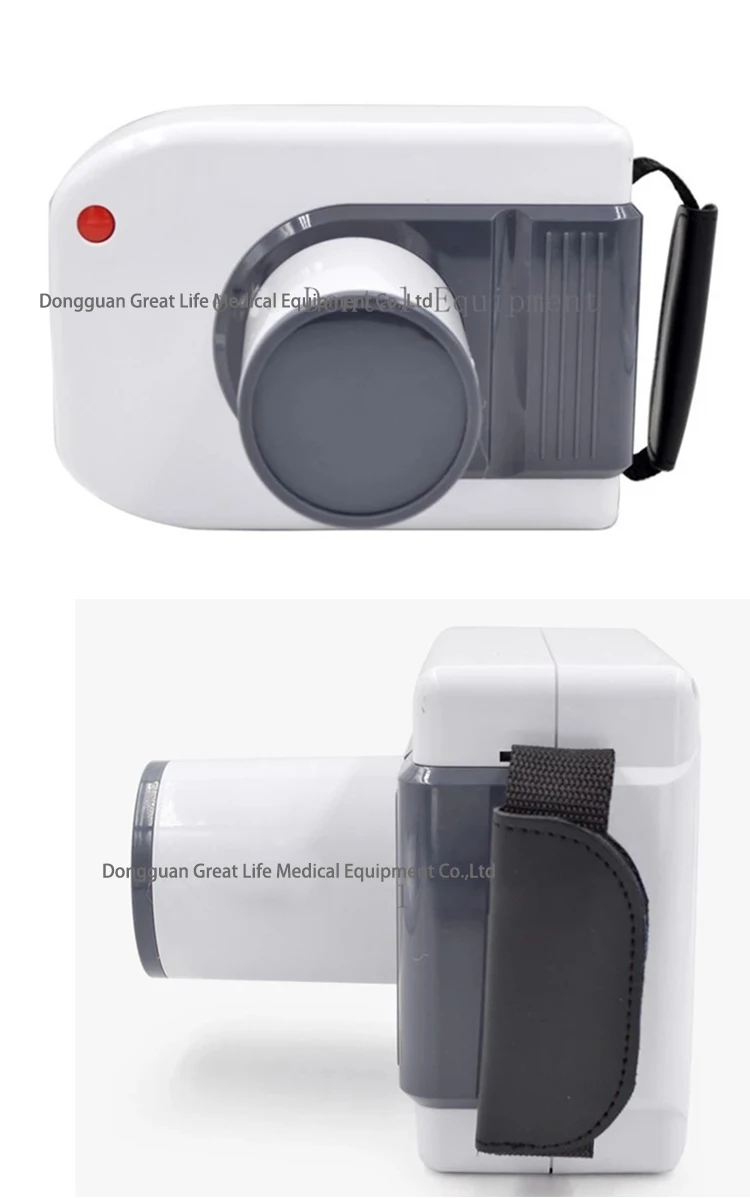

Dental X-ray 8
Tube voltage 60 KV
Exposure time 0.10-2.0s
Tube focus 0.8mmx0.8mm
Battery DC14.8V 1600mAh
Focal length 130mm
Package size 300x250x200(mm)
Tube current 2mA
Frequency 30 KHz
Rated power 120W
Charging Input Voltage AC100V-240V+10%
Charging output voltage DC16.8V
Gross weight 3.0kg
Net weight 1.7kg

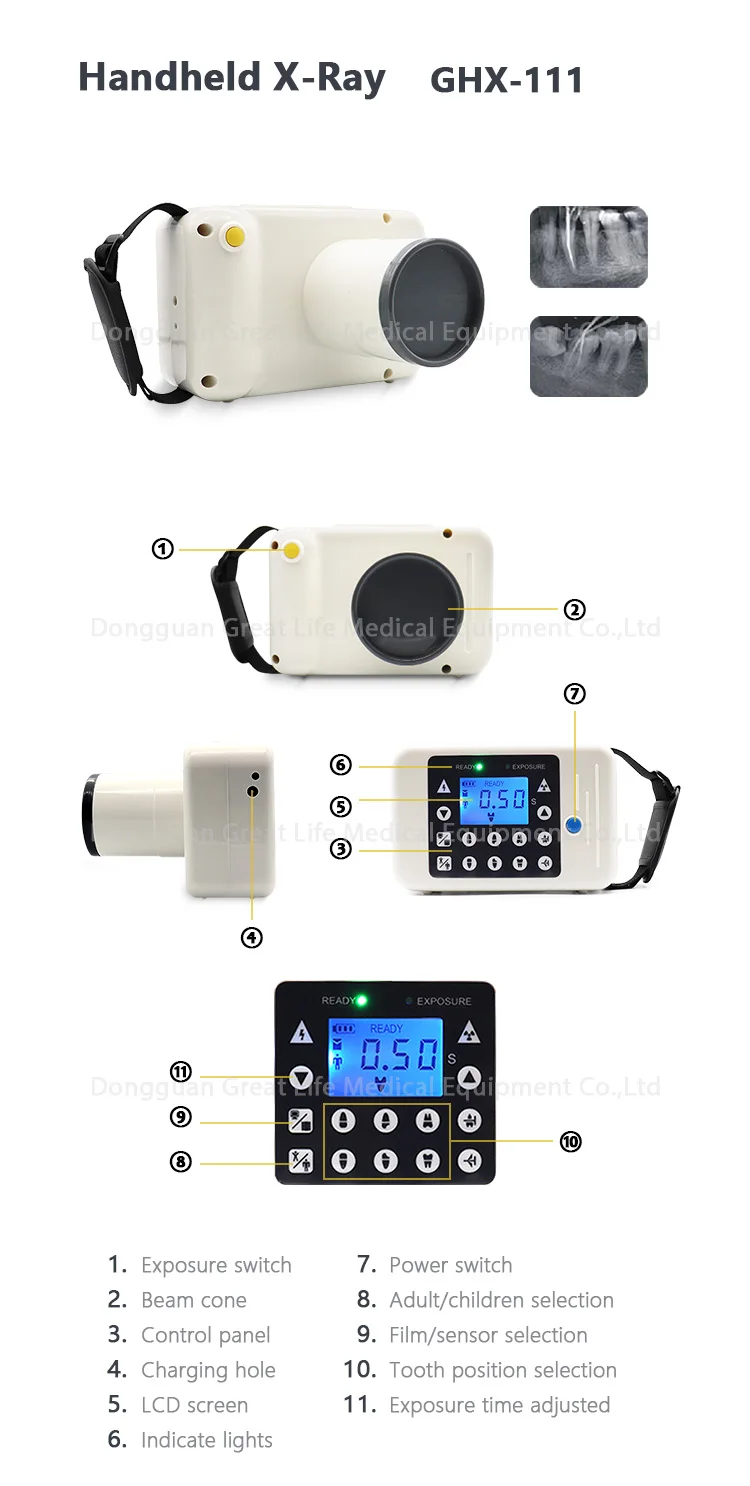

The device is DC high frequency portable dental x-ray unit,small,light and nearly no radiation.
There are manual buttons installed on the surface of shell,operate easily.All of the components are installed in the central PC board, insulation vacuum and sealed stereotype protection make its brilliant features.
The unit mainly suitable for oral pre-treatment diagnosis of internal organization structure and root depth and so on,is indispensable in daily life clinic,especially for dental implant surgery.
The battery is durability,it can take about five hundred images after full charged ,and it can be charged and discharged for one thousand times in its life.
It can be connected with intra-oral digital x-ray imaging system.
Dongguan Great Life Medical Equipment Co., Ltd is a professional enterprise that specializes in research and development,production and marketing of dental equipment .Our main product includes High and low speed handpiece ,LED Curing light, Scaler , Dental unit , Doctor's chair , Oil-free air compressor ,Dental Lamps ,Sterilizers and Dental Accessories,etc'Superior quality, resonable price and satisfactory sevrice' is our pinciple .We are sincerely looking forward to cooperating with companies from the whole world for mutual benefit cooperation business with a brilliant future.
