New 1/2″ 3/4″ Automatic Water Level Control Valve Float Ball Valve Tank Tower Pool Float Switch Water Inlet Valve Automatic Stop

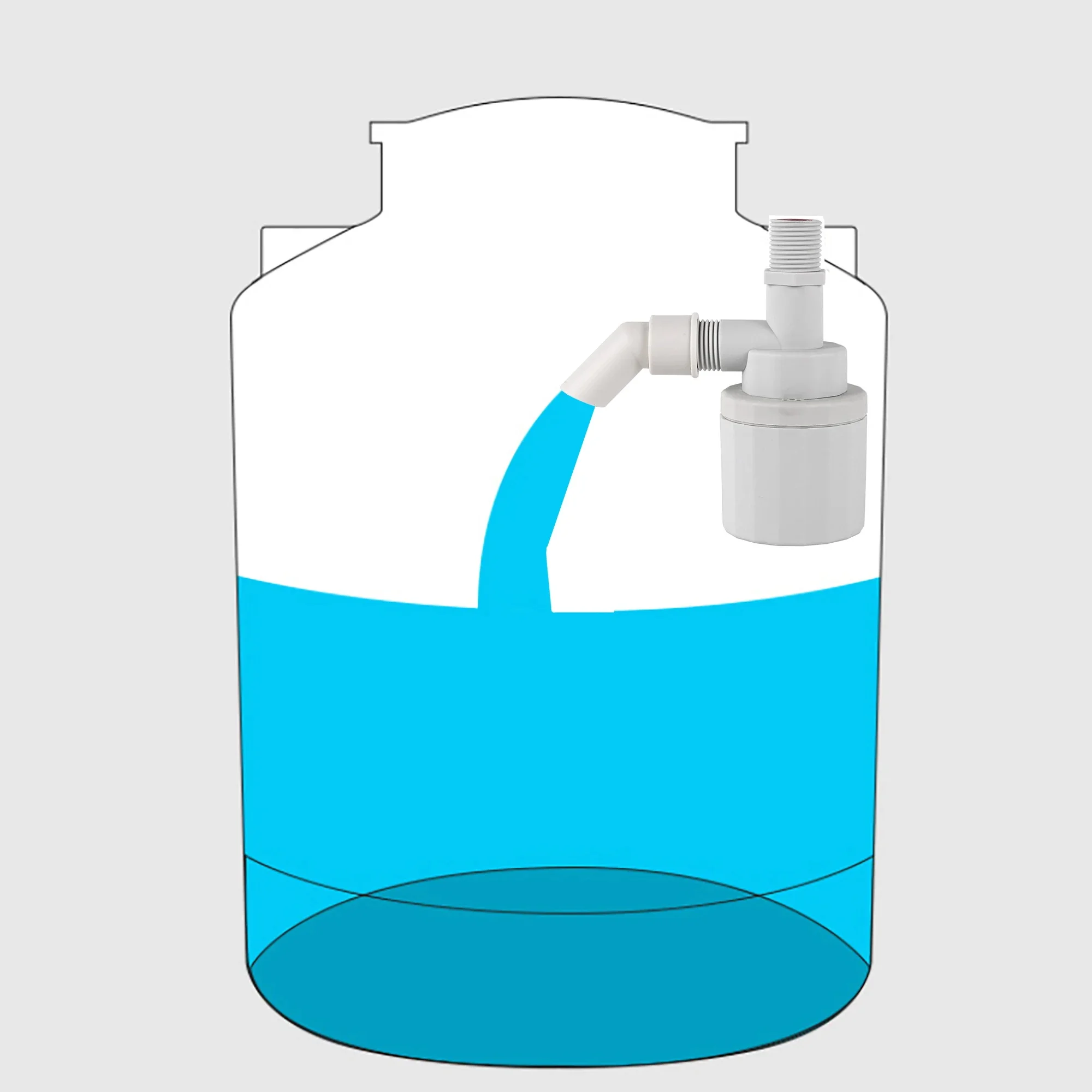

This valve is the replacement of the traditional float ballcock, which can be applied to various systems of high water tanks, pools, water towers of the industry and civil construction, etc.

Automatic control, low self-complementary water, water full automatic stop

Beautiful appearance, small size, practical, simple installation

Without electricity, easy to use, long life, low failure rate, saving water resources

Suitable for water tower pools, solar energy, hot water boilers, aquaculture, food machinery humidifiers, water heaters, livestock water and swimming pools, etc.

Specification:

Name: Automatic water level control valve

Material: Plastic

Working pressure range: 0.2~10kg

Applicable medium: Clean water

Applicable medium temperature: ≤70°

High temperature medium temperature: 70°~120°

Connection method: Thread

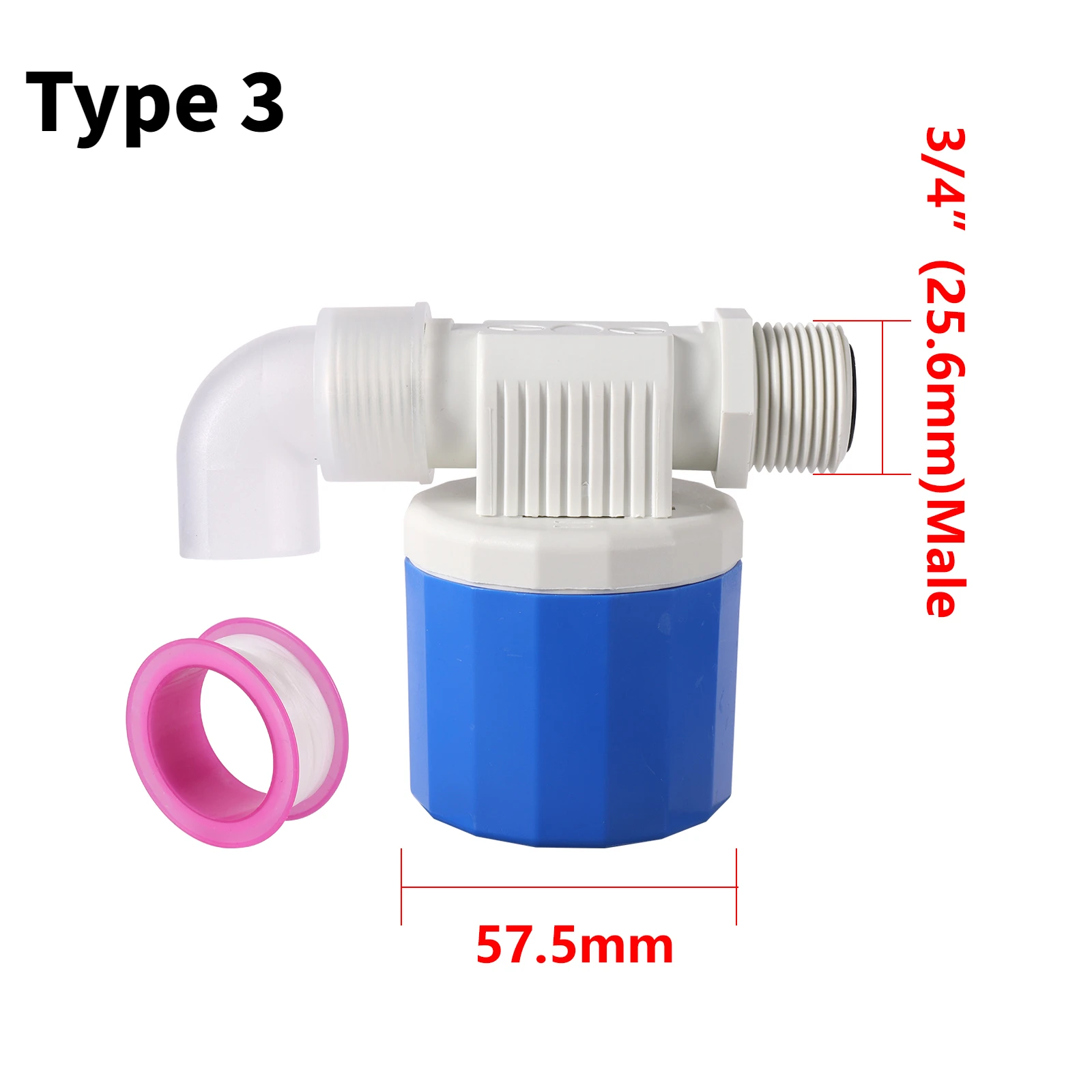

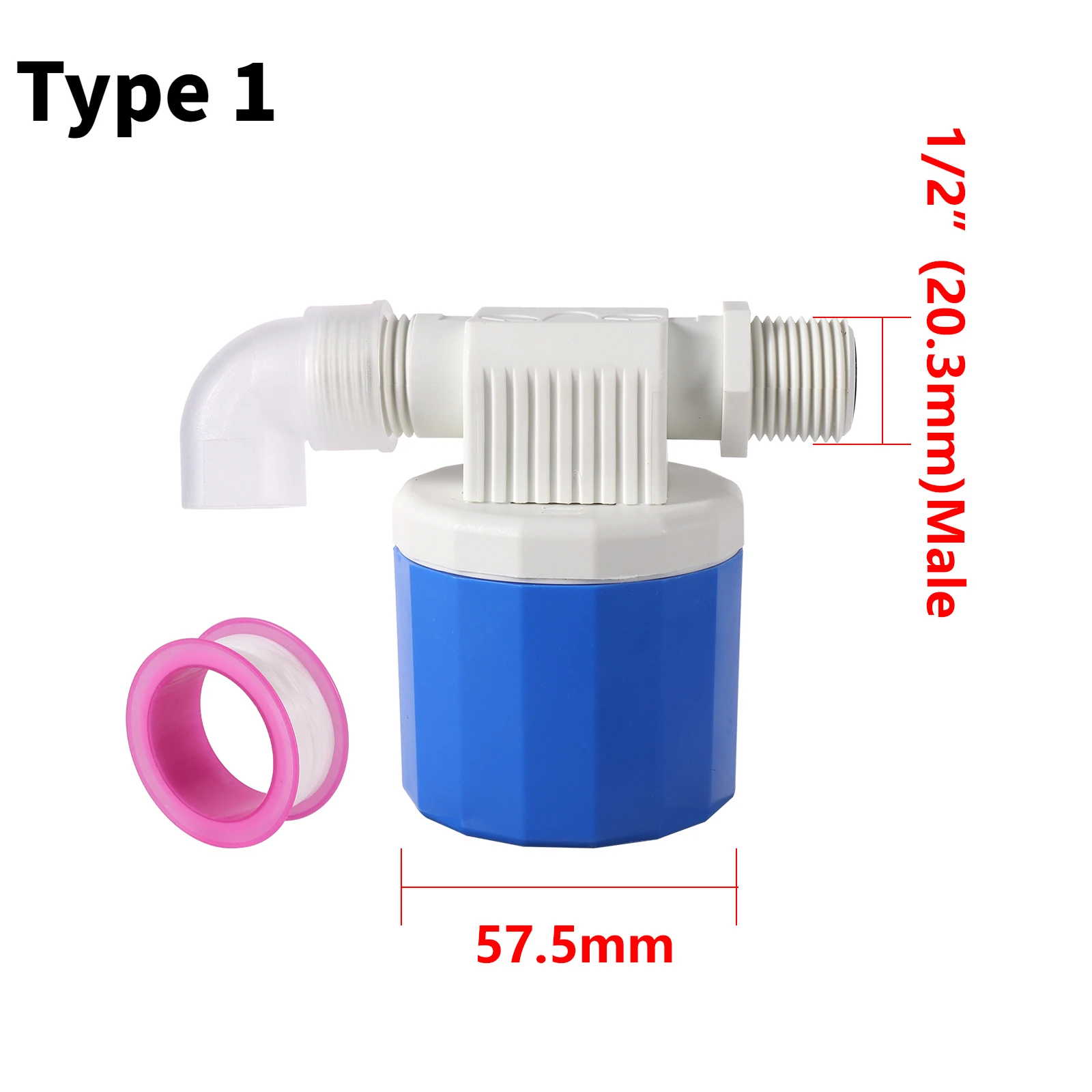

Connectionn size : 1/2",3/4 Male Thread,ID 20mm PVC elbow joint

Package include:(Look carefully at the SKU pictures and choose what you need)

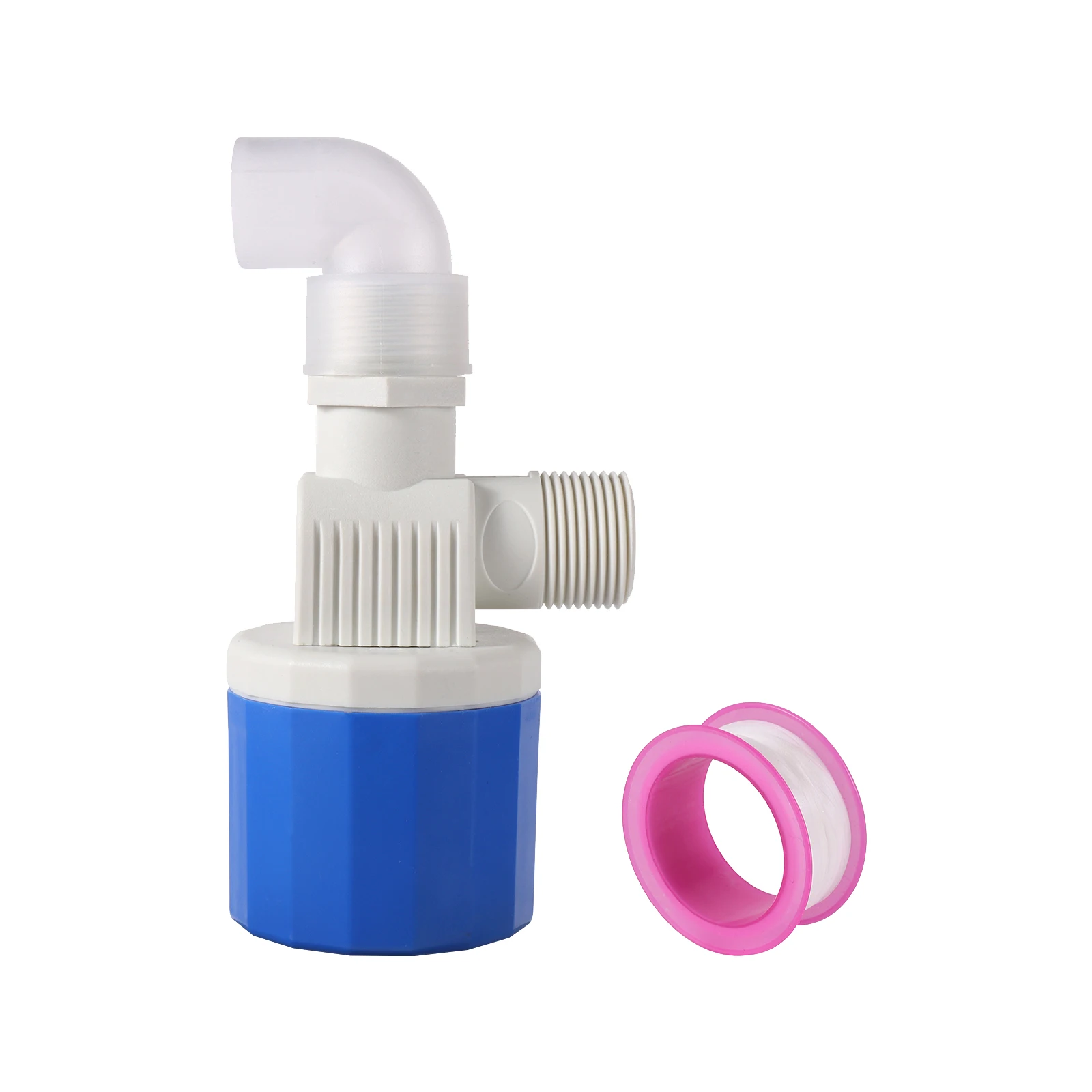

1Pc x water level valve

1Pc x Waterstop tape

Precautions and maintenance:

This production belongs to the liquid level control valves.

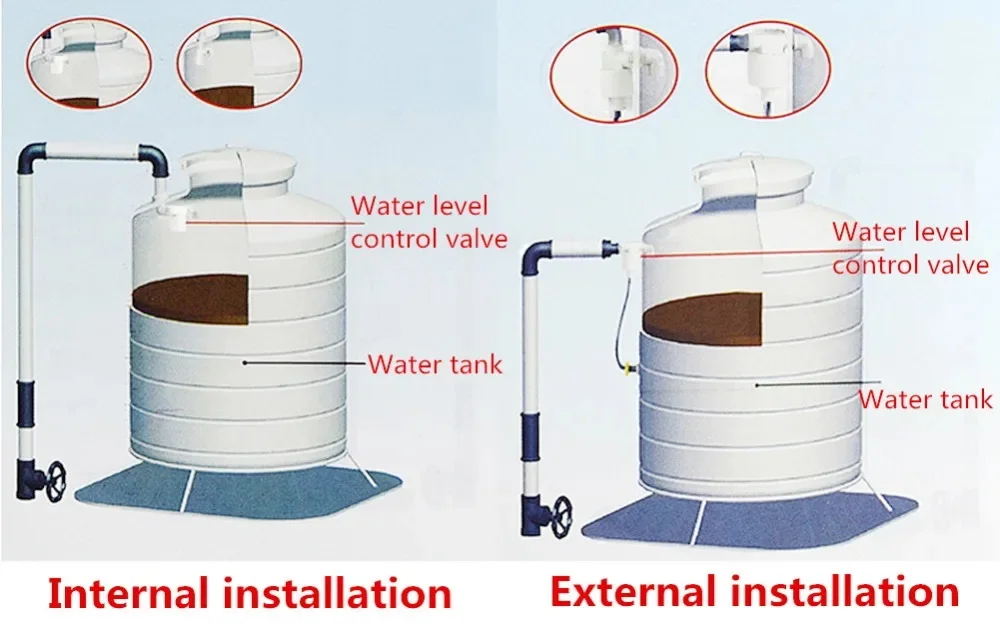

When installed, the float must be vertical. if you need to install from the top , a Elbow needed to connect the float valve and the inlet line.

Firstly, the feed line should be fixed in horizontal plane and then connect the automatic water level control valve on the water inlet according to the standard.

The main water inlet should be lined with the control valves' Normal Diameter.

When using, the globe valve should be all open.

If two valves are installed in the same pool, the two valves should be held in the same horizontal plane.

Before installing, please clean the impurities in the pipes in case of blocking.

If the water quality is not good, then the valves need to be maintained properly.

If the users find the time of adding water becomes longer, he can just upload the water inlet and make it washed.

Please note:

1.The size is measured by hands, please allow minor error of measurement. Photo color might be a little different from the actual product due to color display of different monitors.

Please read the product size on the details page carefully before purchasing. Thank you

2. Support dropship, there will be no information in the package.

3. Support wholesale, contact us, we will you the best price.
