- Origin: Mainland China
✔【PRODUCT SIZE】
The 2 gang switches panel can be applied to DC12V or DC24V operating voltage, the aluminum panel size: 2.91” x 2.68”, cutout size: 1.98” x 1.75”, it can fit various automotive vehicles.
The 3 gang switch panel can be applied to DC12V or DC24V operating voltage, the aluminum panel size: 3.96” x 2.68”, cutout size: 3.03” x 1.75”, it can fit various automotive vehicles.
The 4 gang switches panel can be applied to DC12V or DC24V operating voltage, the aluminum panel size: 5”x2.68”, cutout size: 4.07”x1.75”, it can fit various automotive vehicles.

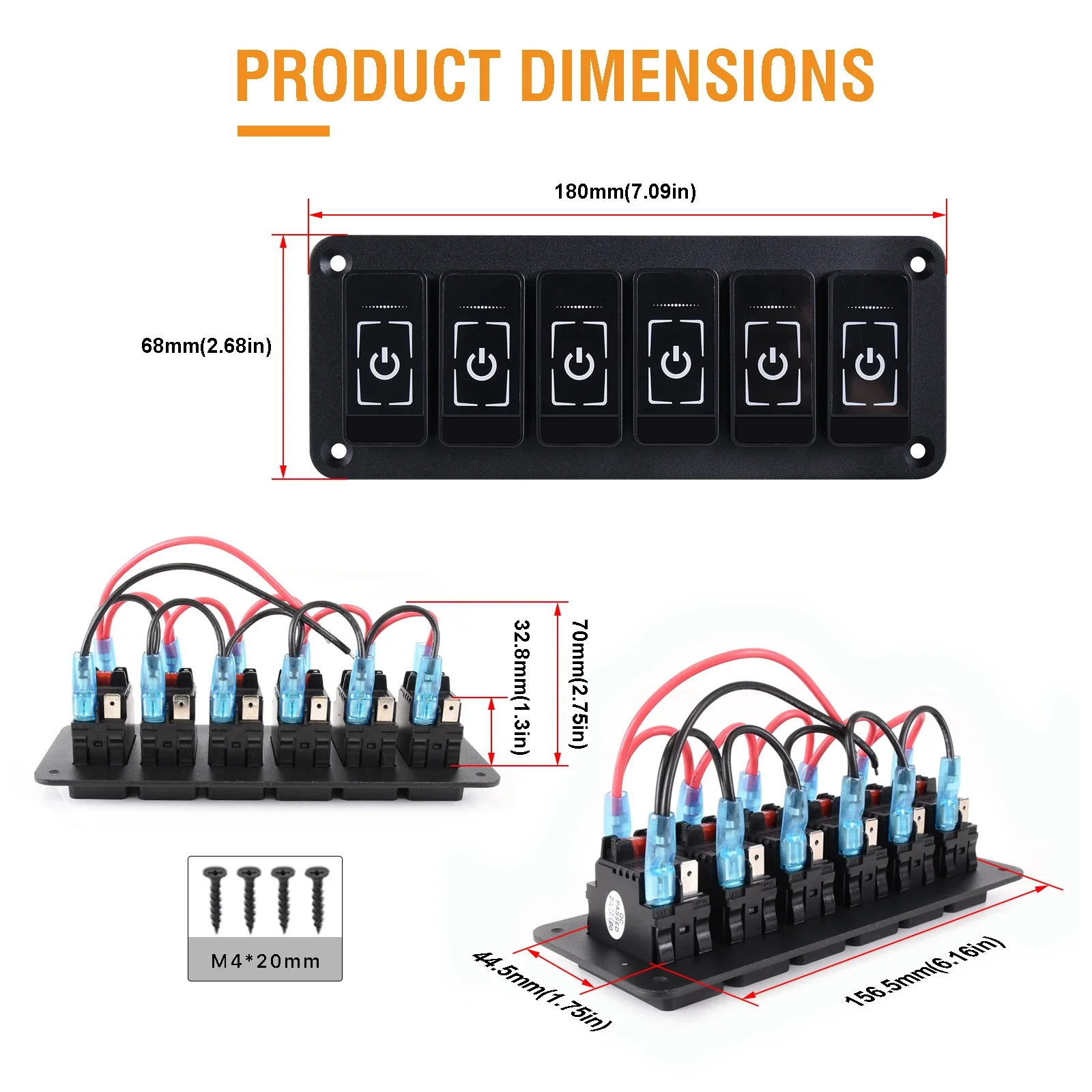

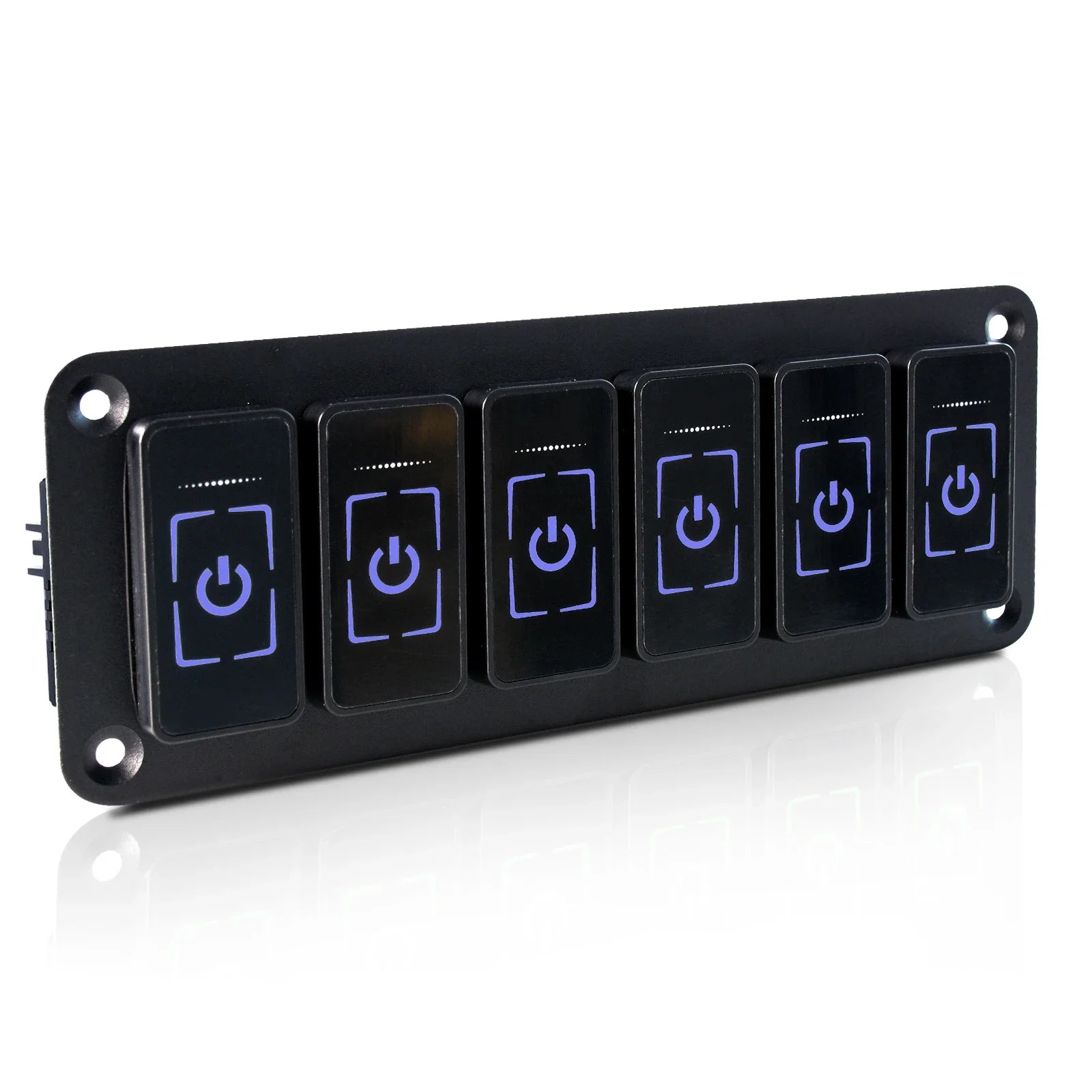

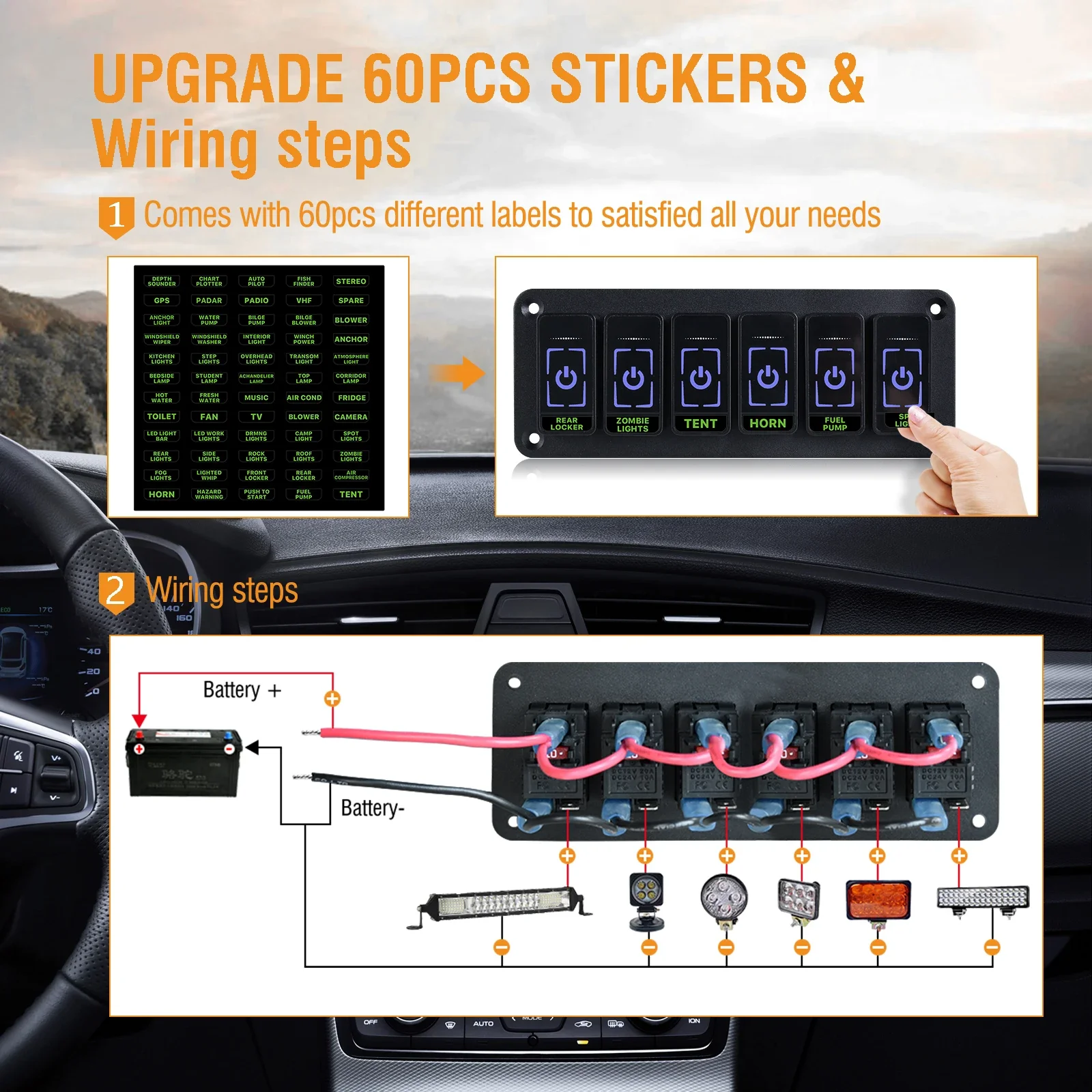

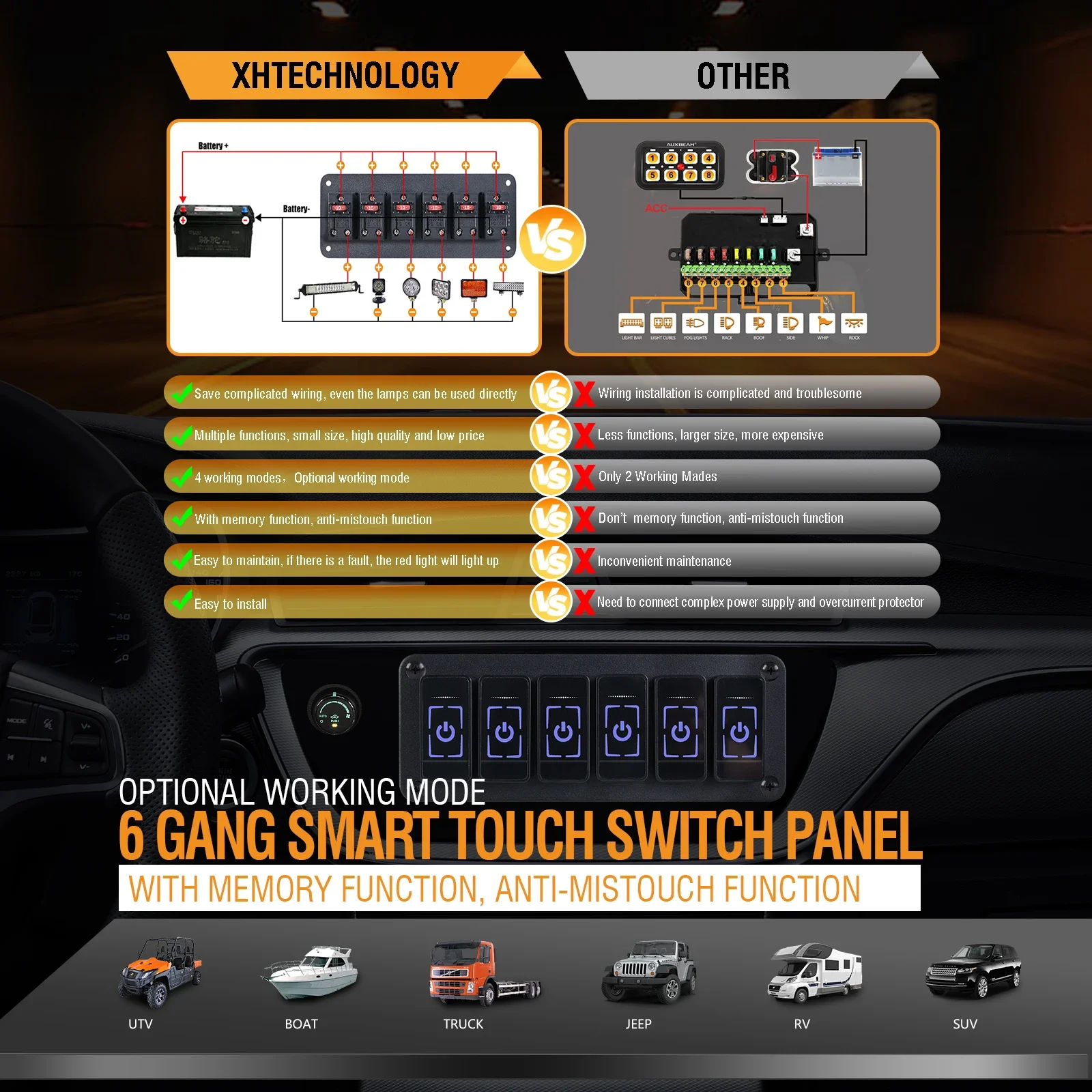

The 6 gang switches panel can be applied to DC12V or DC24V operating voltage, the aluminum panel size: 7”x2.68”, cutout size: 6.16”x1.75”, it can fit various automotive vehicles.
The 8 gang switches panel can be applied to DC12V or DC24V operating voltage, the aluminum panel size: 9.17”x2.68”, cutout size: 8.24”x1.75”, it can fit various automotive vehicles.
About this item
-

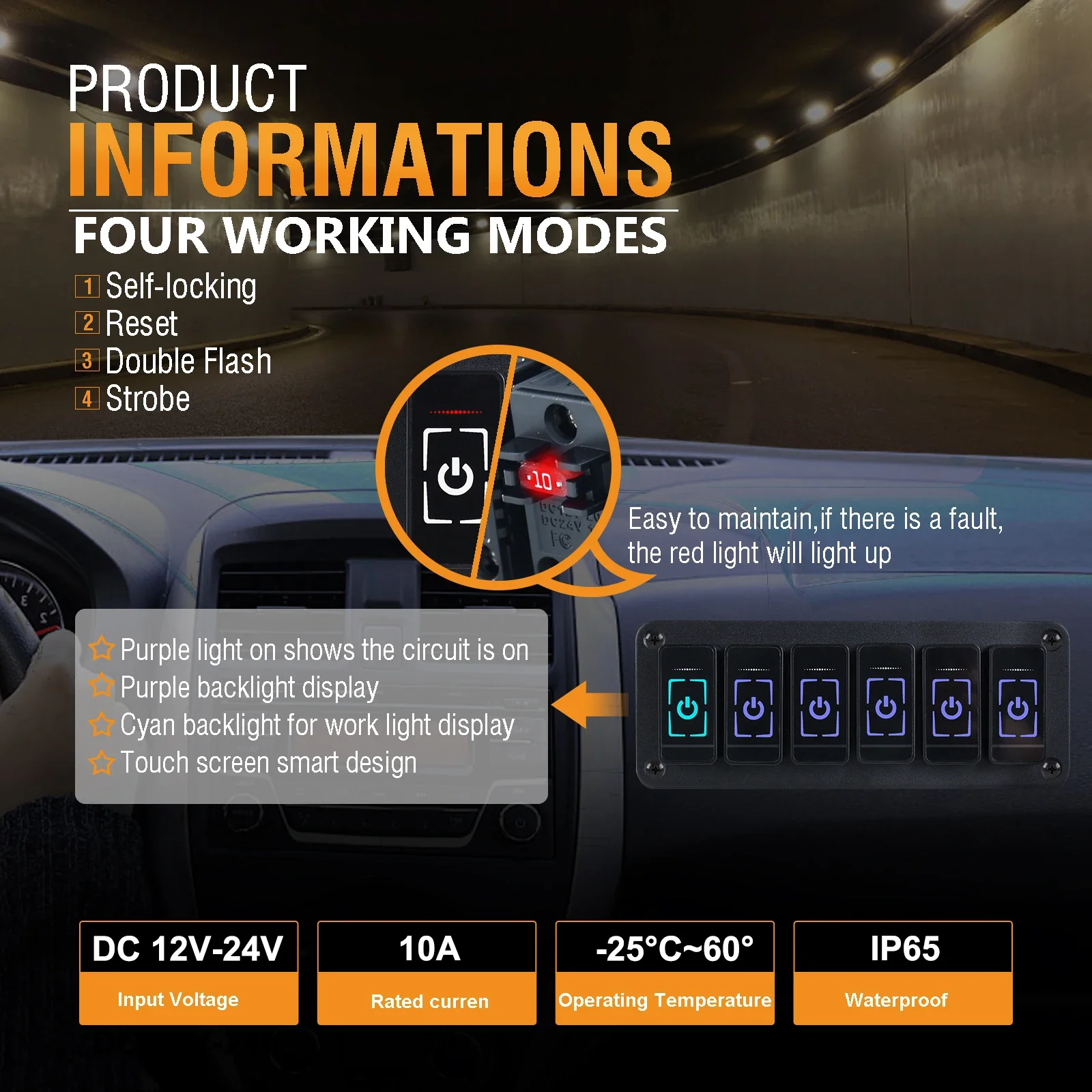

【Touch Panel Technical Specification】: Operating Voltage: DC12-24V Load Current: Rated Current 10A (Each Switch) IP Grade: Sruface IP65 Waterproof Operating Temperature: -25-65°C Storage Temperature: -30-80°C
-

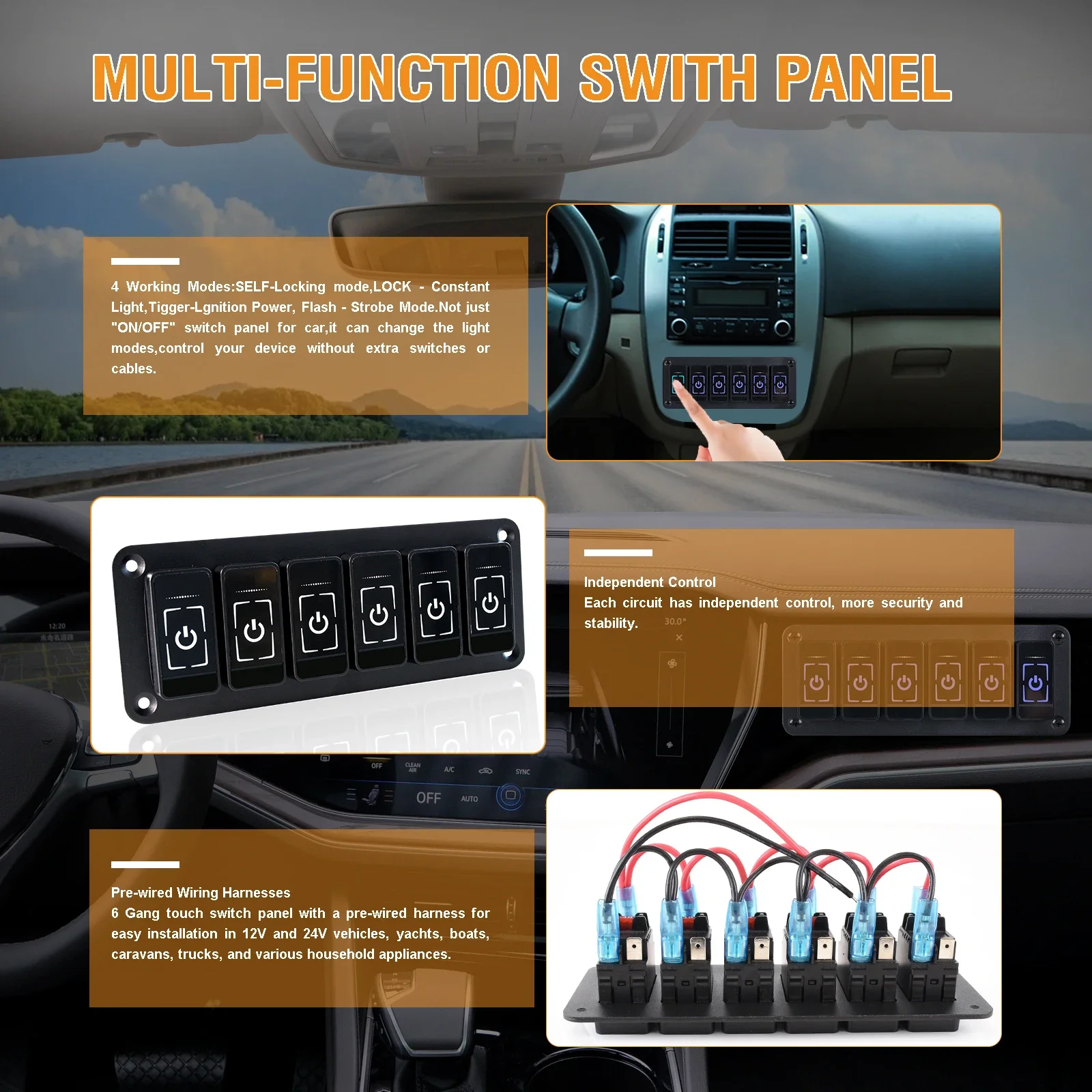

【New Upgraded Smart Touch Control Panel Switch】: The led light switch panel has memory switch status and master switch function. The working mode of each switch can be set freely: self-locking, reset, double flash and strobe mode. More than just a control panel, change lighting modes and control your appliances without extra switches or cables.
-
【WIDE USE】: Simple and beautiful design, the smart touch switch panel is suitable for most devices. Such as cars, trucks, marine boats, yachts, trailers, motorhomes, caravans, campers, buses, UTV/ATV and other 12-24V applications. Compact structure, does not occupy installation space.
-
【Multi-function】: This smart touch switch panel can choose any working mode, free DIY combination of multiple modes. It has memory function, anti-mistouch function, reliable quality, powerful function, wide range of uses, small and easy to install, and advanced intelligence.
-

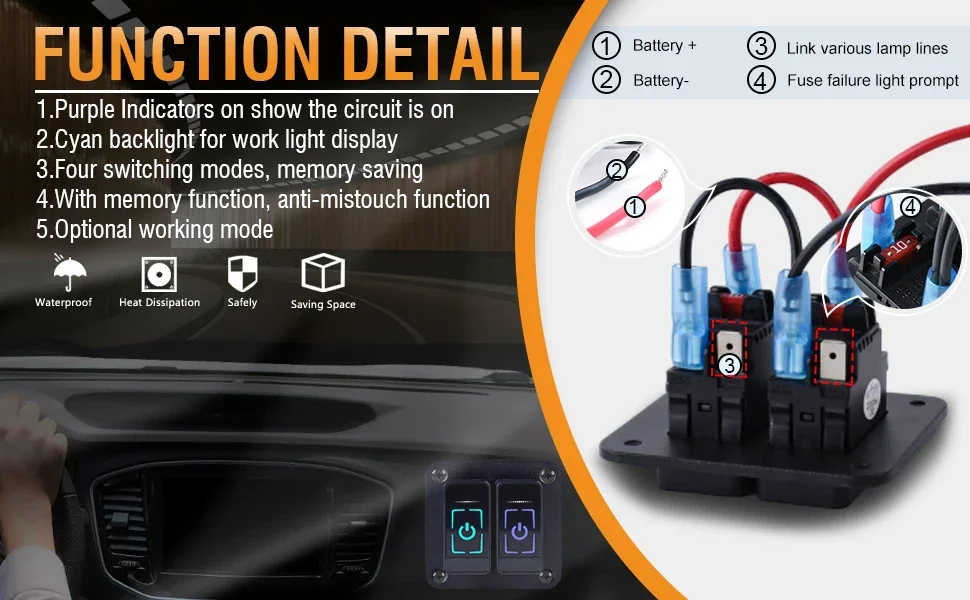

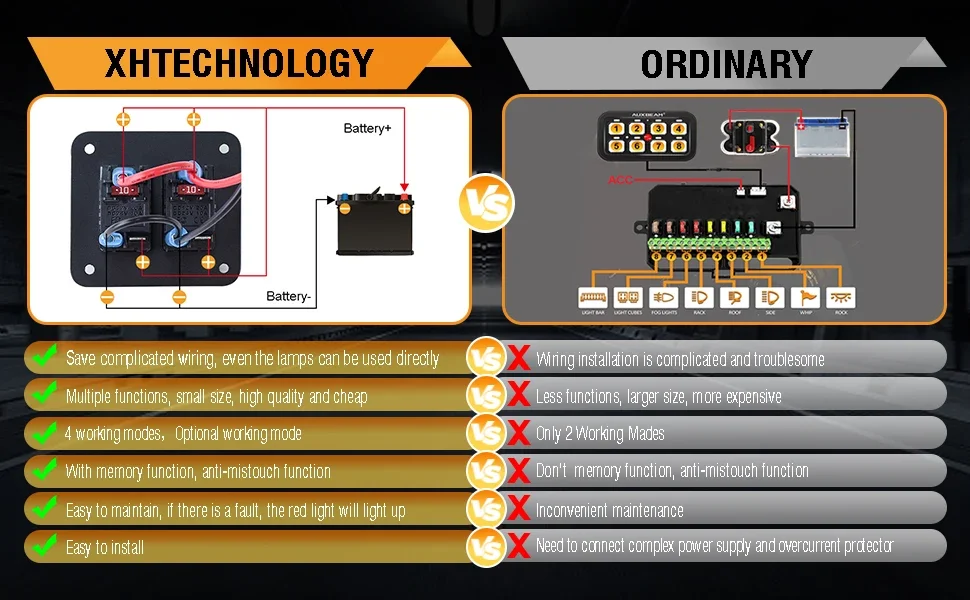

【Easy to Maintain】: This smart switch panel is simple to connect and easy to maintain, with a red fault indicator light. The cause of the failure can be found quickly and the problem can be solved. The switch is equipped with a car-grade relay and fuse to ensure the reliability of the circuit and the convenience of maintenance.
Instructions for operation:
Settings
Set the working mode:
Start setup mode: Touch the switch for 3s to enter the working setting mode; ON-OFF Mode: Backlight (purple light) flashes once
Trigger Mode: Touch the switch, the backlight (purple light) flashes twice
Double Flash Mode: Touch the switch again, the backlight (purple light) flashes three times Strobe Mode: Touch the switch again, the backlight (purple light) flashes four times
Then touch it once again, it returns to the ON-OFF mode, then loop the process
When you select the function you need (the function corresponding to the number of flashes of the backlight) and long-touch 3S to save the working mode and exit, the switch will prompt the function mode of the current save setting with the number of flashes of the backlight.
If there is no operation for more than 10s, the setting will not be saved, and the switch will maintain the original mode.
Working Status:
After saving the working mode settings and exiting, or after maintaining the original function and automatically exiting the settings, the function will stop and will not work automatically. It needs to be awakened by touch to work. Power on successfully, the backlight is on, and you can operate it; if there is no operation for 1 minute, the switch system will go to sleep, and the next time you want to turn it on, you need to wake it up with a short touch. The backlight flashes once, indicating that the wakeup is successful.
Start Working:
1)ON-OFF Mode: Short press–down to turn on, short press to turn off, short press to turn on, and so on, and the color of the touch background light becomes the color of the work light.
2)Trigger Mode: press to open, then close immediately, do not let go for more than 3 seconds to enter the function mode setting program, touch the color of the background light to change to the color of the working light, and immediately restore the color of the background light.
3)Double flash function: turn on at intervals of 0.4s: short press-down, 0.4s on, 0.4s off, cycle, the color of the working light flashes at intervals of 0.4s; short press-down again, stop.
4)Strobe mode: turn on at intervals of 0.25s: short press, 0.25s on, 0.25s off, cycle, the color of the working light flashes at intervals of 0.25s; short press again to stop.
Settings
Set the working mode:
Start setup mode: Touch the switch for 3s to enter the working setting mode; ON-OFF Mode: Backlight (purple light) flashes once
Trigger Mode: Touch the switch, the backlight (purple light) flashes twice
Double Flash Mode: Touch the switch again, the backlight (purple light) flashes three times Strobe Mode: Touch the switch again, the backlight (purple light) flashes four times
Then touch it once again, it returns to the ON-OFF mode, then loop the process
When you select the function you need (the function corresponding to the number of flashes of the backlight) and long-touch 3S to save the working mode and exit, the switch will prompt the function mode of the current save setting with the number of flashes of the backlight.
If there is no operation for more than 10s, the setting will not be saved, and the switch will maintain the original mode.
Working Status:
After saving the working mode settings and exiting, or after maintaining the original function and automatically exiting the settings, the function will stop and will not work automatically. It needs to be awakened by touch to work. Power on successfully, the backlight is on, and you can operate it; if there is no operation for 1 minute, the switch system will go to sleep, and the next time you want to turn it on, you need to wake it up with a short touch. The backlight flashes once, indicating that the wakeup is successful.
Start Working:
1)ON-OFF Mode: Short press–down to turn on, short press to turn off, short press to turn on, and so on, and the color of the touch background light becomes the color of the work light.
2)Trigger Mode: press to open, then close immediately, do not let go for more than 3 seconds to enter the function mode setting program, touch the color of the background light to change to the color of the working light, and immediately restore the color of the background light.
3)Double flash function: turn on at intervals of 0.4s: short press-down, 0.4s on, 0.4s off, cycle, the color of the working light flashes at intervals of 0.4s; short press-down again, stop.
4)Strobe mode: turn on at intervals of 0.25s: short press, 0.25s on, 0.25s off, cycle, the color of the working light flashes at intervals of 0.25s; short press again to stop.
Failure Analysis:
The fuse is blown, and the output signal is not detected as a fault.
Fault Prompt: After the blade fuse is blown, the fault indicator light is red, and the relay is turned off at the same time, returning to the non-working state.
After replacing the fuse, the operation is the same as before work. You need to wake up the backlight first, and then touch it to start working. The corresponding work light will display. If the work is normal, the fault light will automatically go out.
Application Notes:

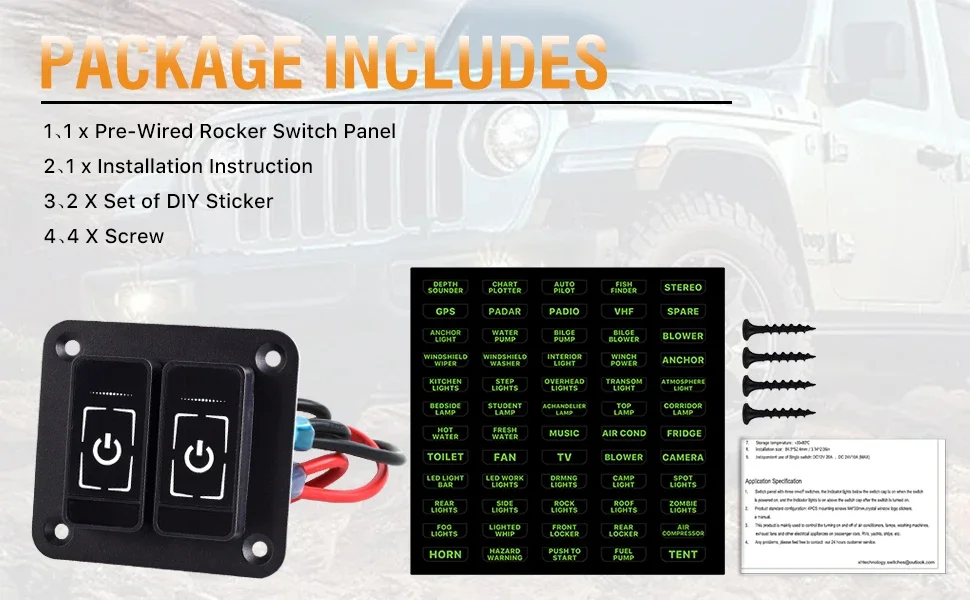

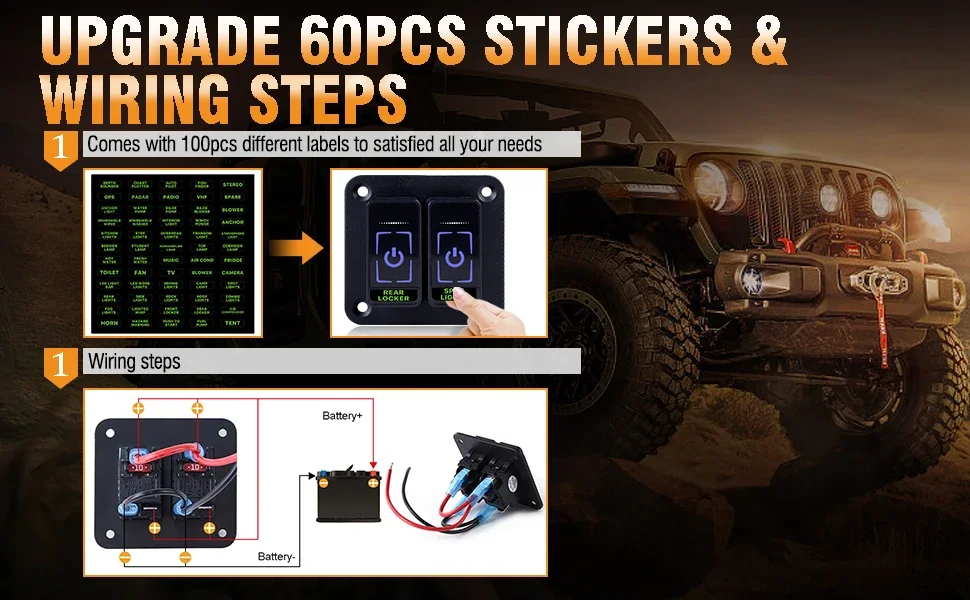

1.Product standard configuration: 4PCS M4* 20mm mounting screws, a manual.
2.This product is mainly used to control lighting, searchlights, fog lights, spotlights, working lights, horns, navigation, sonar and other low-power electrical appliances on and off on buses, RVs, yachts, ships, and machinery.
