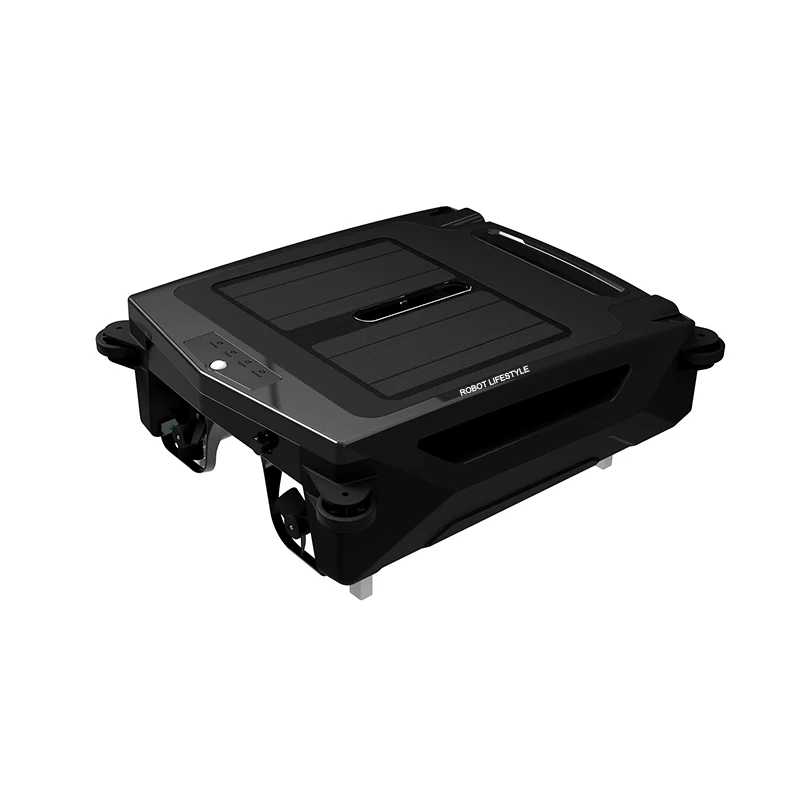

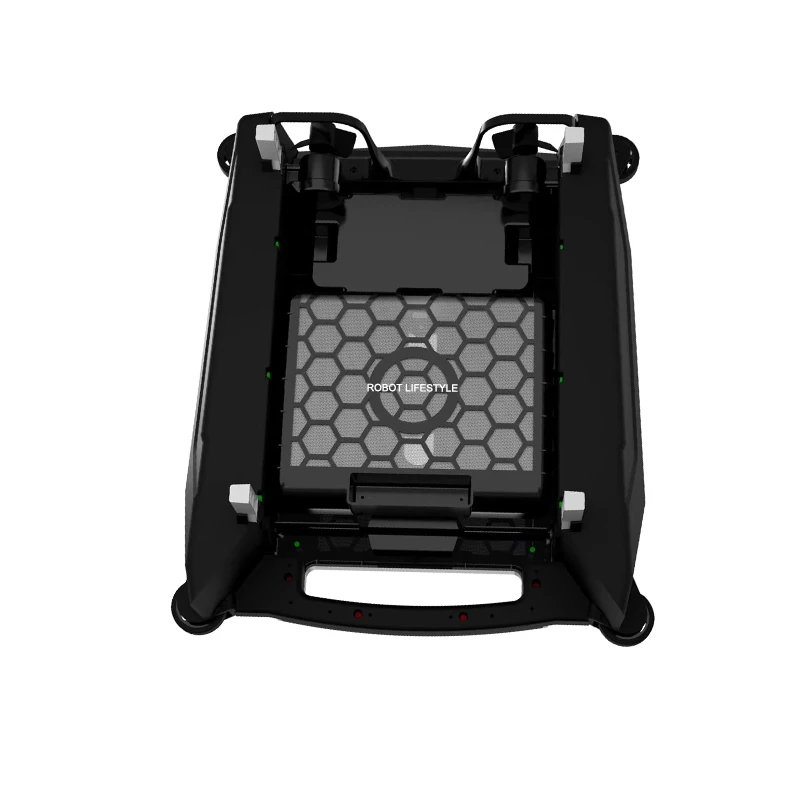

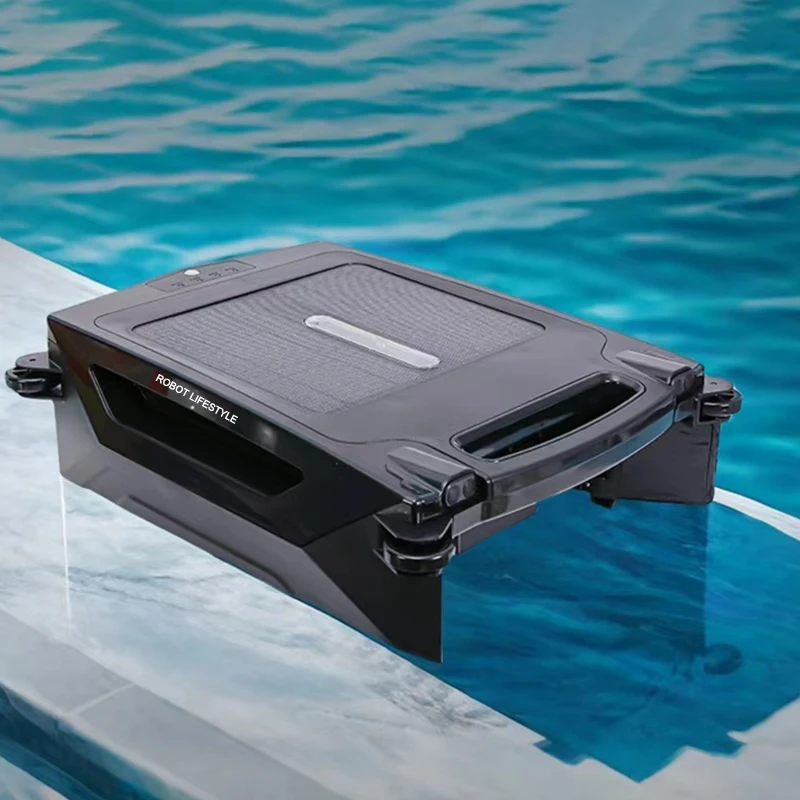

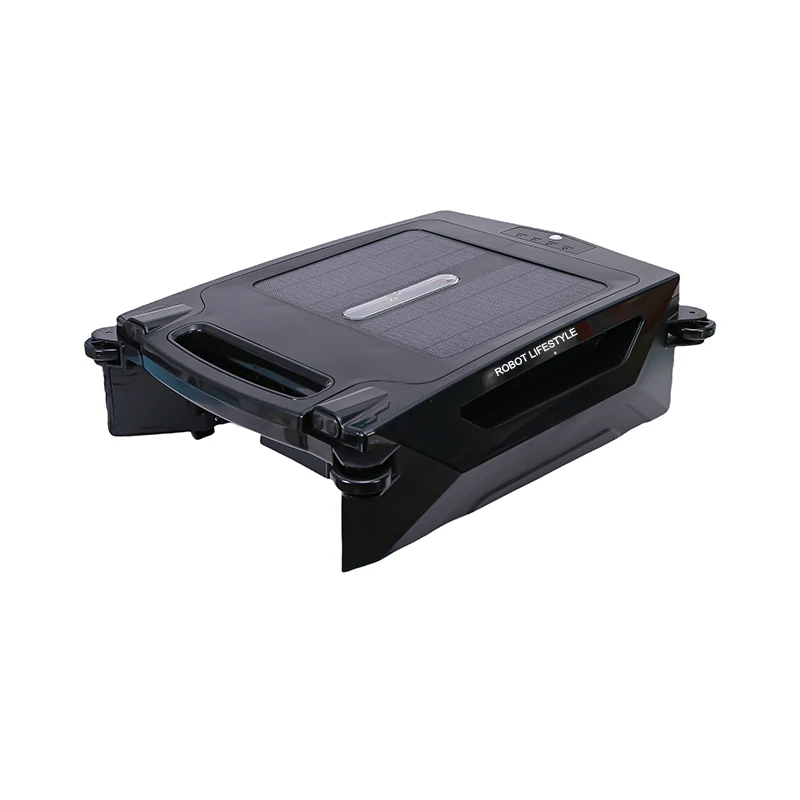

Pool Surface Skimmer Robot Cleaner, Solar Panel Cleaning Brush for Swimming Pools, 2500mAh Lithium Battery Robotic Pool Skimmer

Wireless Skimmer Swimming Pool Robot Cleaner S001, Cleaning Surface of Pools, 2500mAh Lithium Battery, Solar Panel Power 10W

1.Product Introduction

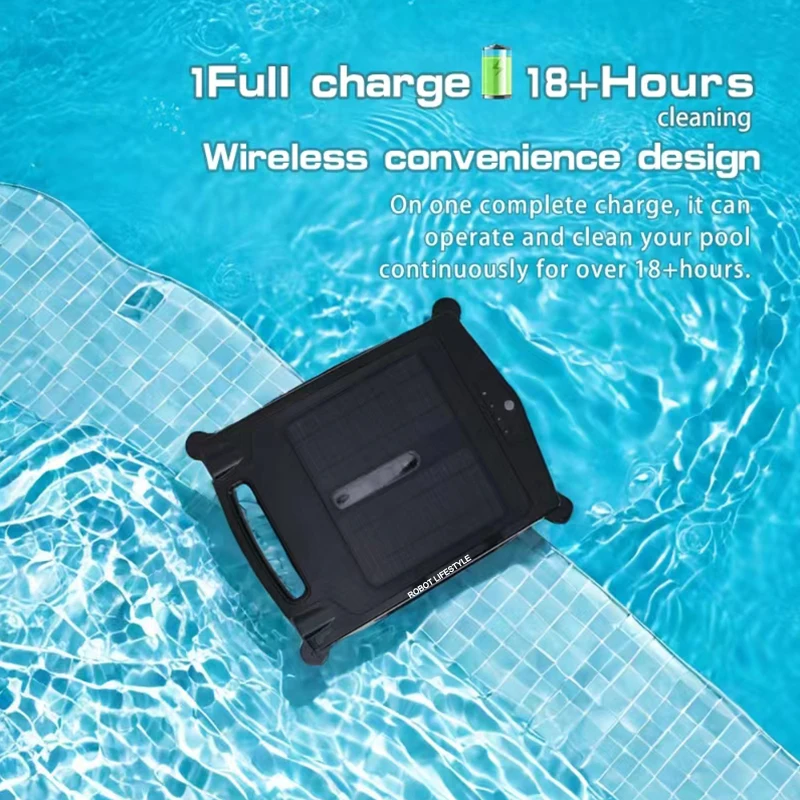

This product uses the combination of lithium battery and solar charging to power the machine, while retaining the external charger fast charging mode, so that the machine can have a good battery life and emergency ability. The machine’s propulsion and rolling motor are brushless electric machine which have high working efficiency and long service life. The machine has automatic obstacle avoidance and escape functions, certain maneuverability and wall-sticking effect on the water surface , so that all corners of the pool surface can be cleaned well.

2.Product Information and Specifications

Product Model RLS001
Filtering Capability 860 SQ/FT（80㎡）
Rated Voltage 11.1V
Solar Panel Power 10W
Power 8W
Filtering Density 400um
Cruising Ability More than 6 hours Movement Speed 5-10 meters/minute
Rated Input Voltage of the charger 100-240VAC IP Code IPX7
Rated Input Frequency of the Charger 50/60HZ
Swimming Pool Water Temperature
50℉-95℉(10℃-35℃)
Rated Output Voltage of the Charger 12.6VDC
Motor Type brushless
Rated Output Current of the Charger 1.0A Size 535(U)*465(W)*180(H)MM
Battery Capacity 2500mAh
Weight 10.91 LB
Charge Time 2-3 hours
Storage Temperature -4℉~113℉（-20℃~45℃）RH≤75%
Storage capacity 4.1L

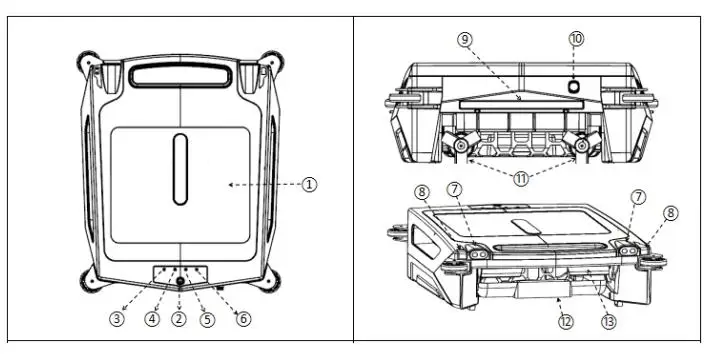

3.Function Instructions

1.Charging prompt function

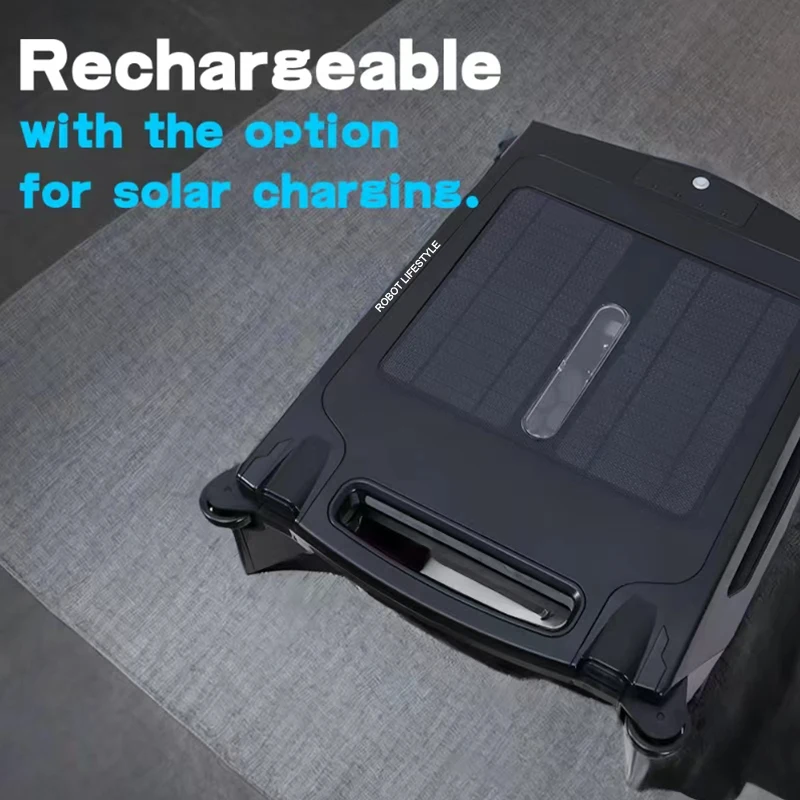

When the ⑩adapter charging port starts to charge and the battery is not full, the ③adapter charging prompt light will flash. When the battery is fully charged, the③adapter charging prompt light will light up and beep for one minute.When the ①solar panel is in the sun, the ④solar charging prompt light will light up.

2.Power switch function

Press and hold the ②function button for 2-3 seconds. The indicator, motor, buzzer and other hardware will self-check, indicating that the cleaner enters the normal working state.

In the startup state, long press the ②function button for 2-3 seconds to shut down the cleaner.

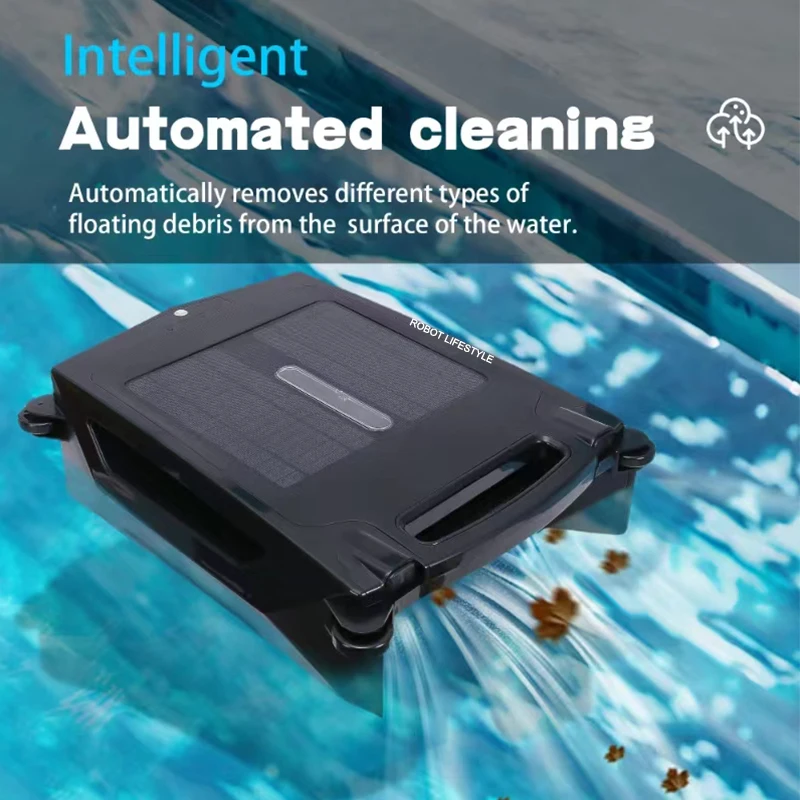

3.Cleaning function

The⑪ side-to-side propulsion motor and the⑬ rolling brush will start, wherein the rolling brush will roll in a clockwise direction. The⑧machine left and right headlightsand ⑨Tail light will flash.

4.Working modes switching

Press the ②function button to switch between the quick cleaning mode and the normal cleaning mode, and the corresponding prompt light will also switch; Power on for normal cleaning mode.

5. Barrier and escape function

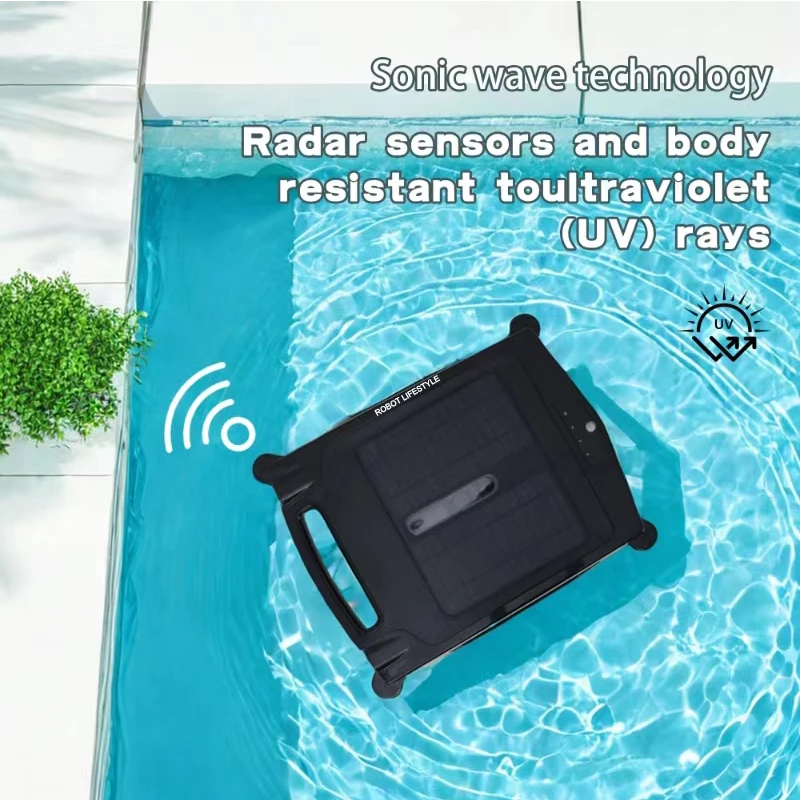

When the radar senses obstacles such as the pool wall, it will automatically adjust the direction of movement.

When the POOL SKIMMER enters the blind zone or is trapped, it will automatically backslide and turn to escape.

6. Automatic adjustment of cleaning direction

In order to enable POOL SKIMMER to clean the water surface with maximum range without dead corners, POOL SKIMMER will automatically adjust the cleaning direction.

7.Self-start function
In the state of manual power on, when the solar energy is charging and the battery voltage reaches a certain value, the machine will automatically start to clean;
The self-start function closes when the machine is turned off manually or when the adapter is fully charged;

8.Fault prompt function
When the brush motor is blocked or stuck, the tail light will flash red, suggesting that the brush needs to be cleaned or overhauled;

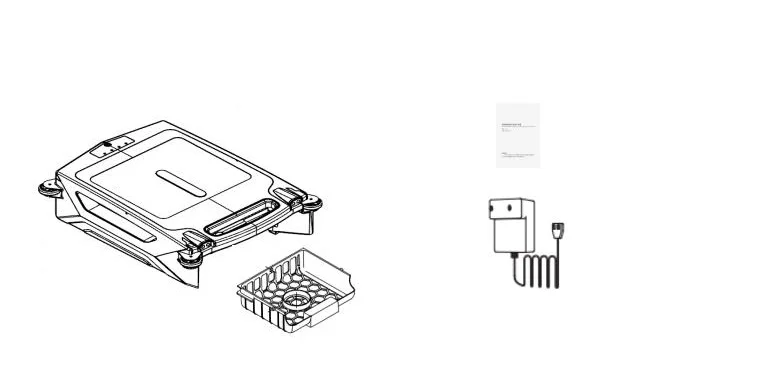

3.Packing List
