- Hign-concerned Chemical: None
- Is Smart Device: no
- Model Number: ST01
- Brand Name: POROMETISTO
- Origin: Mainland China
- Certification: CE
- Display: LCD Display
- Functions: Circuit Check , Voltage Test

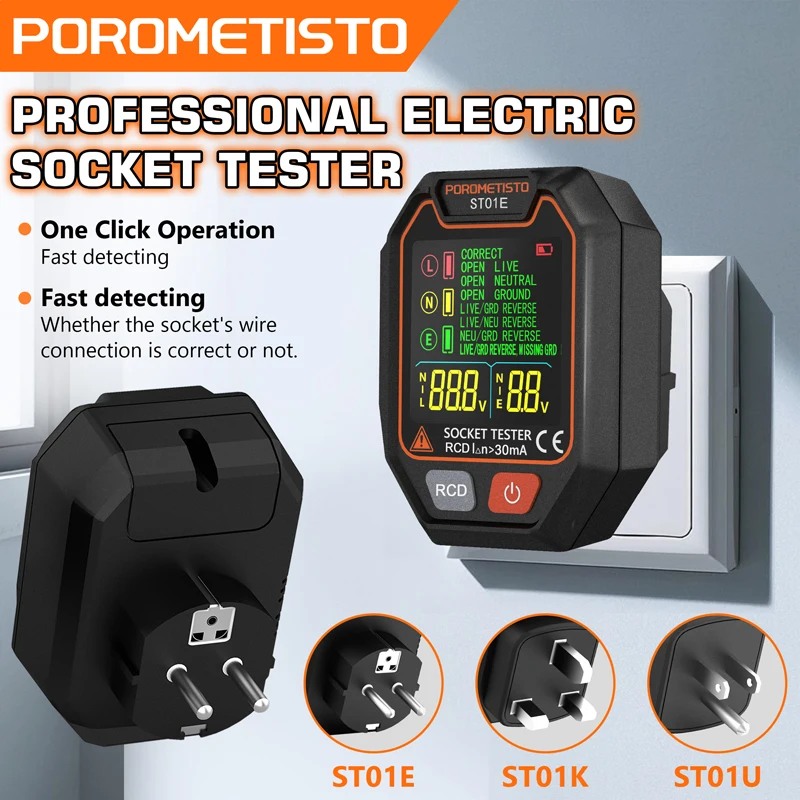

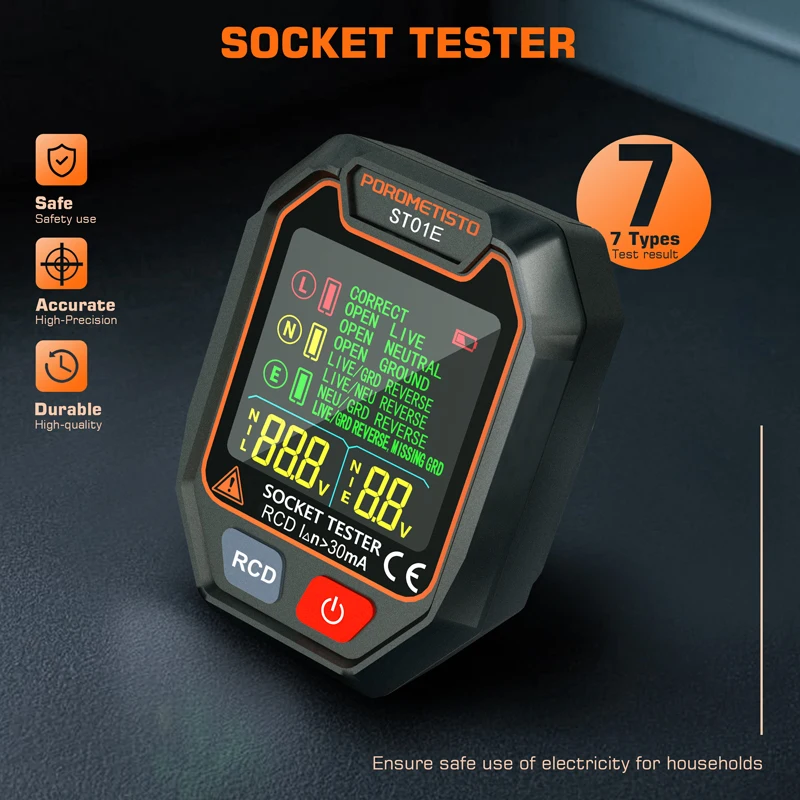

POROMETISTO ST01 Socket Tester Pro Voltage Test 30mA Socket Detector US/UK/EU Plug Ground Zero Line Plug Polarity Phase Checker
Description:
This color screen socket tester can help you check house wiring and connection polarity of socket, it can also use to test leakage tripping.It is a professional socket tester which rapidly detect whether the socket's wire connection is correct or not. With RCD/GFCI test function, it is more practical and safe.
Features:

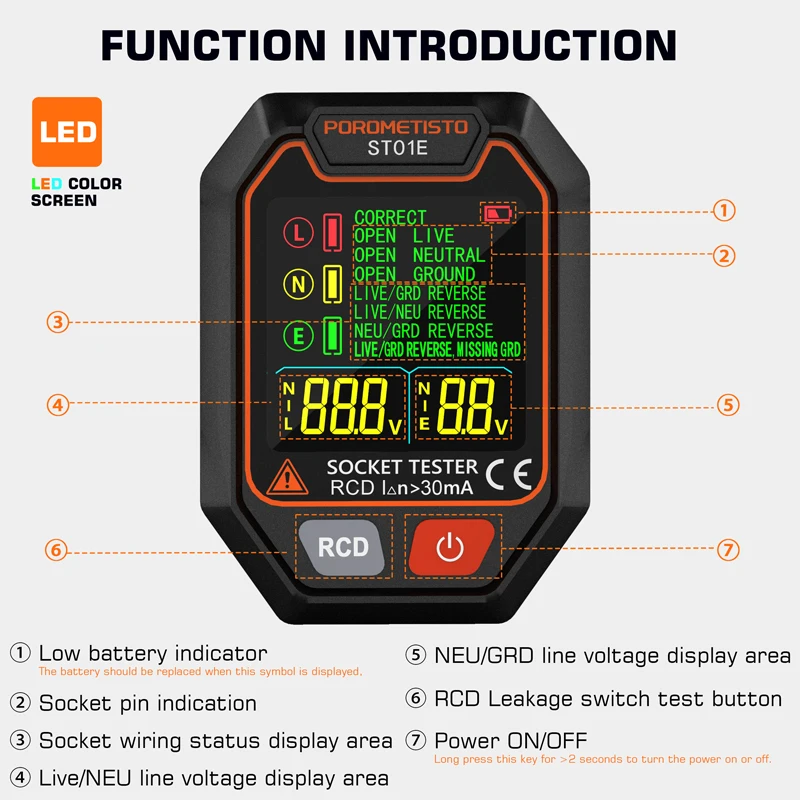

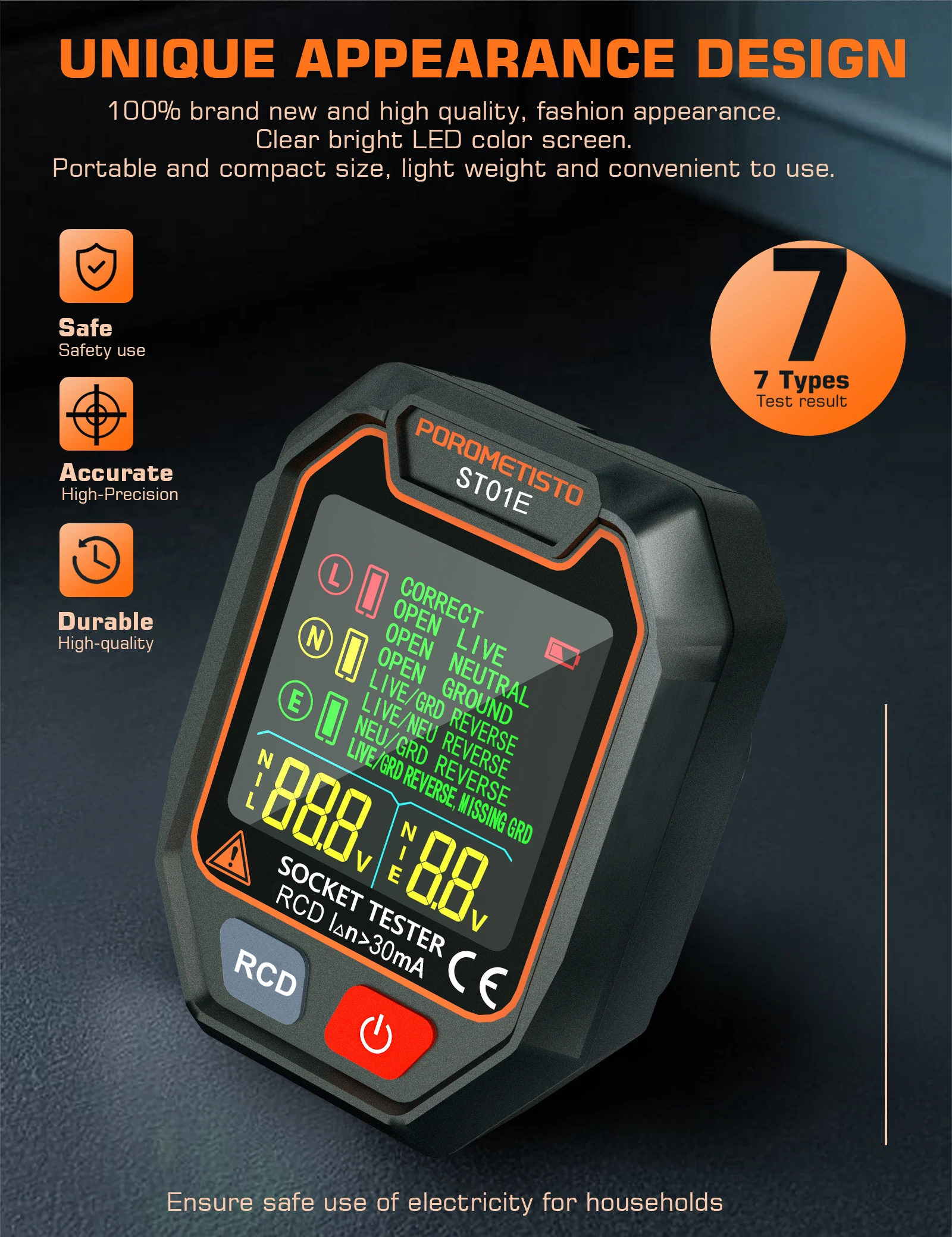

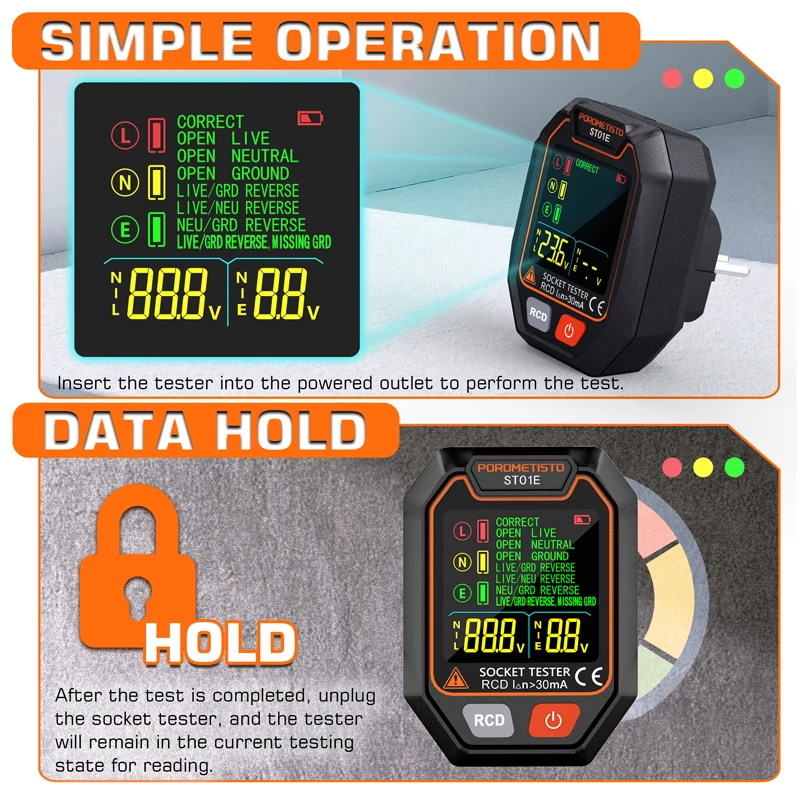

Backlit Color LCD Screen:
Bright color-coded neon lights for easy visual indication.The screen has clear LED light pattern classification, which is used to indicate the status of the socket and is easy to judge: CORECT OPEN LIVE、OPEN NEUTRAL、OPEN GROUND、LIVE/GRD REVERSE、LIVE/NEU REVERSE.

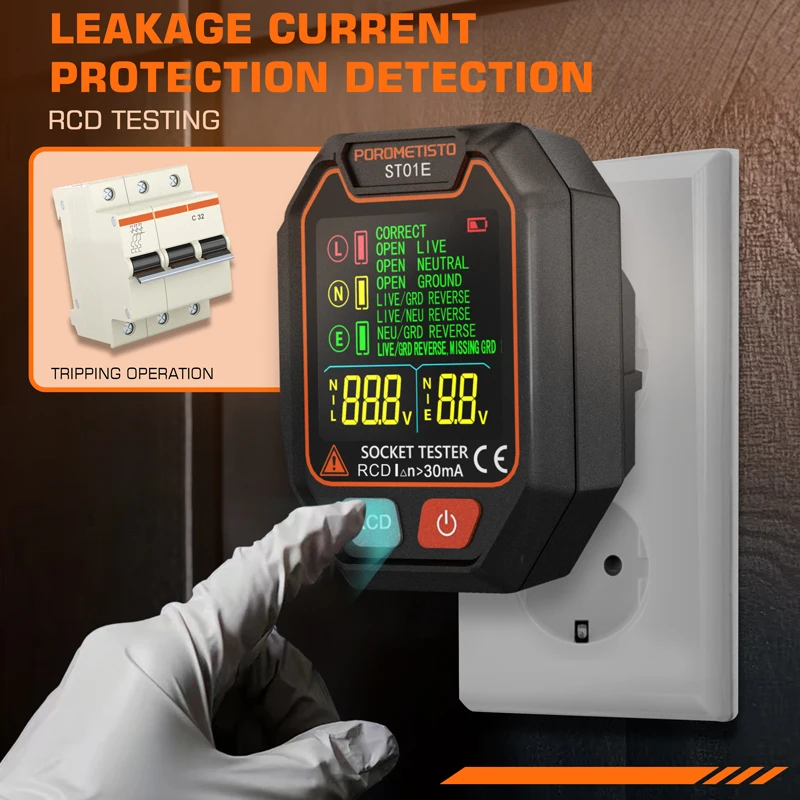

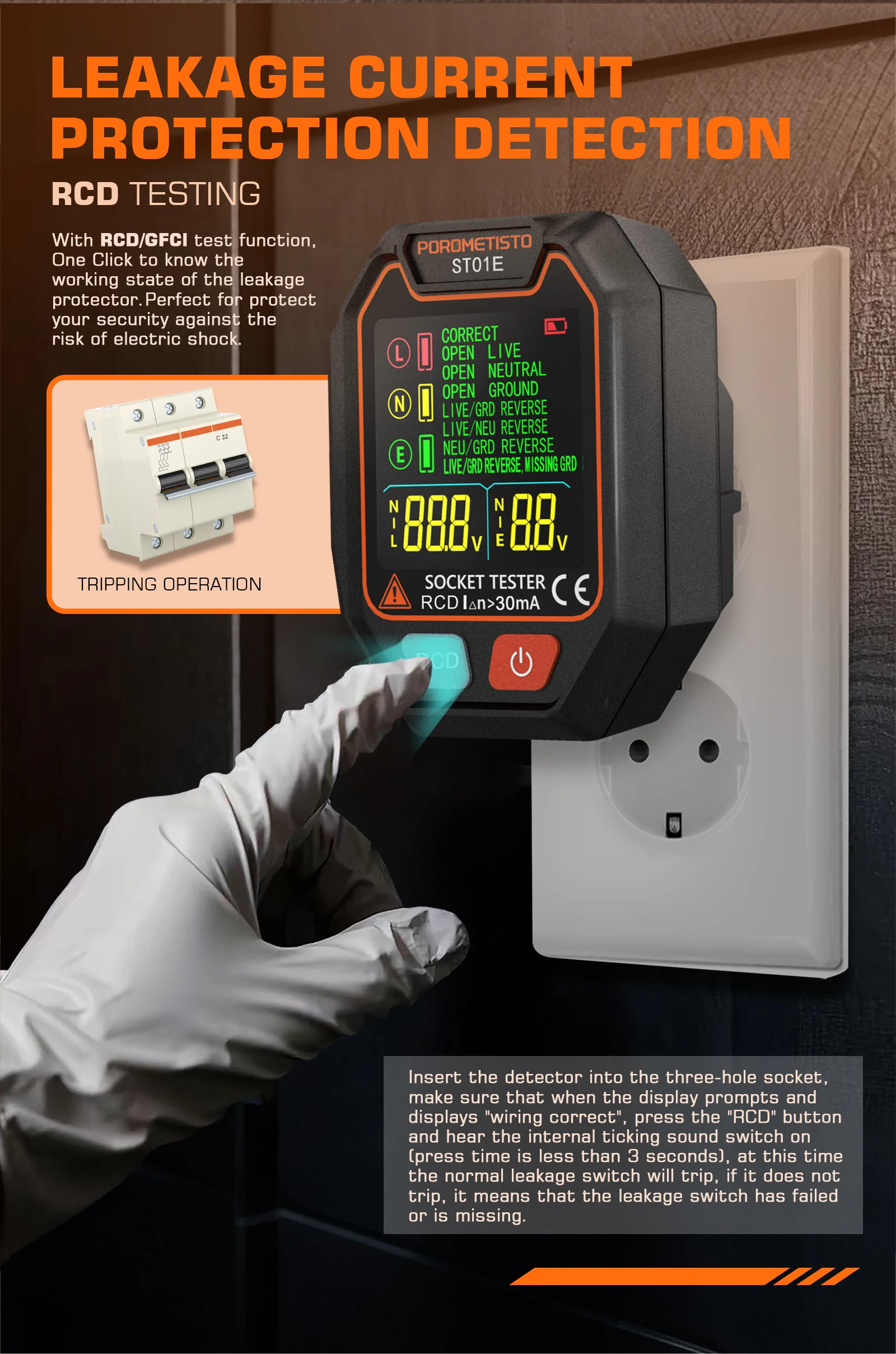

GFCI /RCD Function:
Designed with RCD/GFCI Test Button, One Click to know the working state of the leakage protector. Perfect for protect your security against the risk of electric shock.

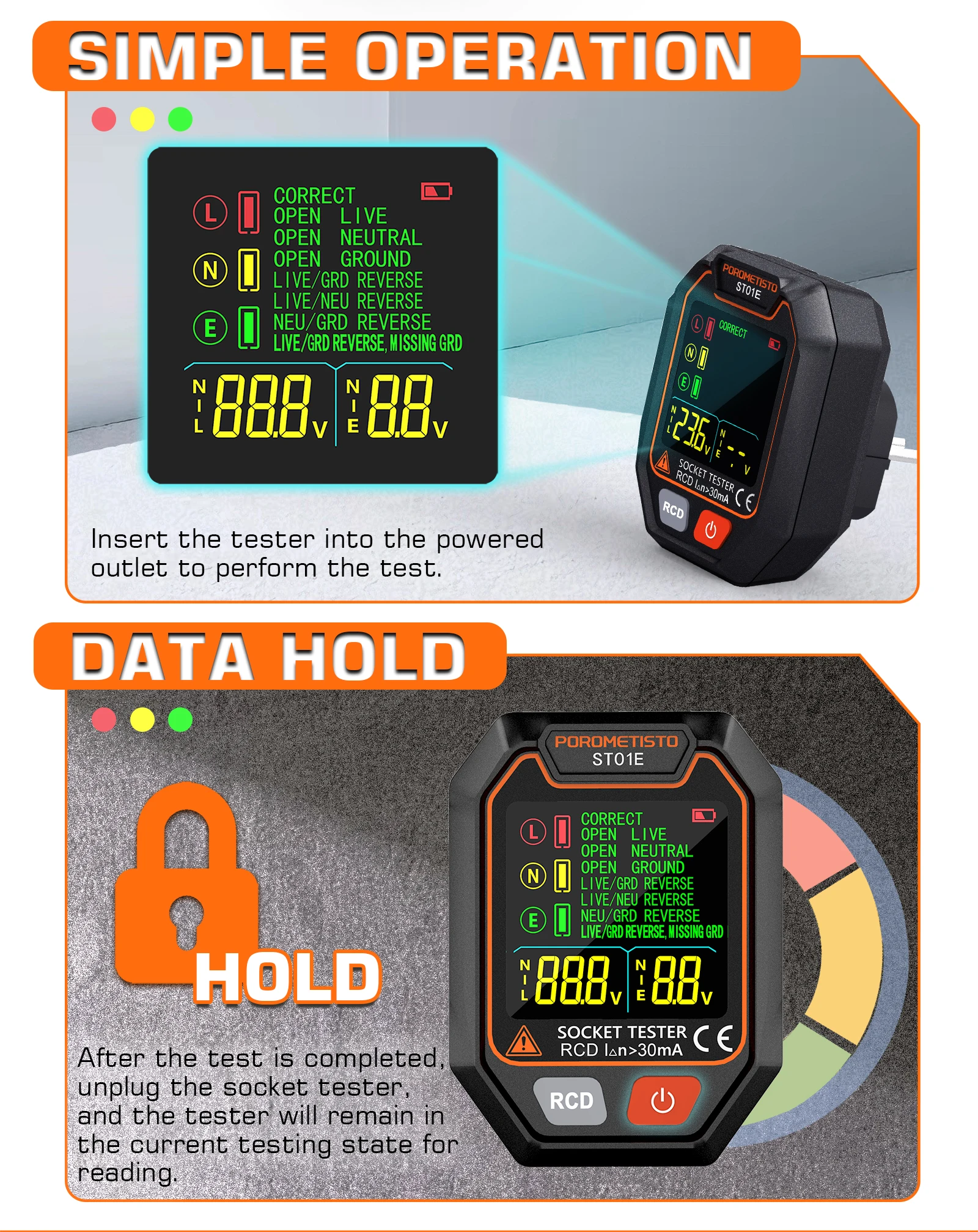

Convenient AUTO-HOLD Feature:
Auto-Hold function holds the reading for hard-to-reach outlets, providing convenience and ease of use.
Wide Operating Temperature Range:
Can be used in temperatures ranging from 32-degrees ° F to 140-degrees ° F (0-degrees ° C to 40-degrees ° C), providing versatility.

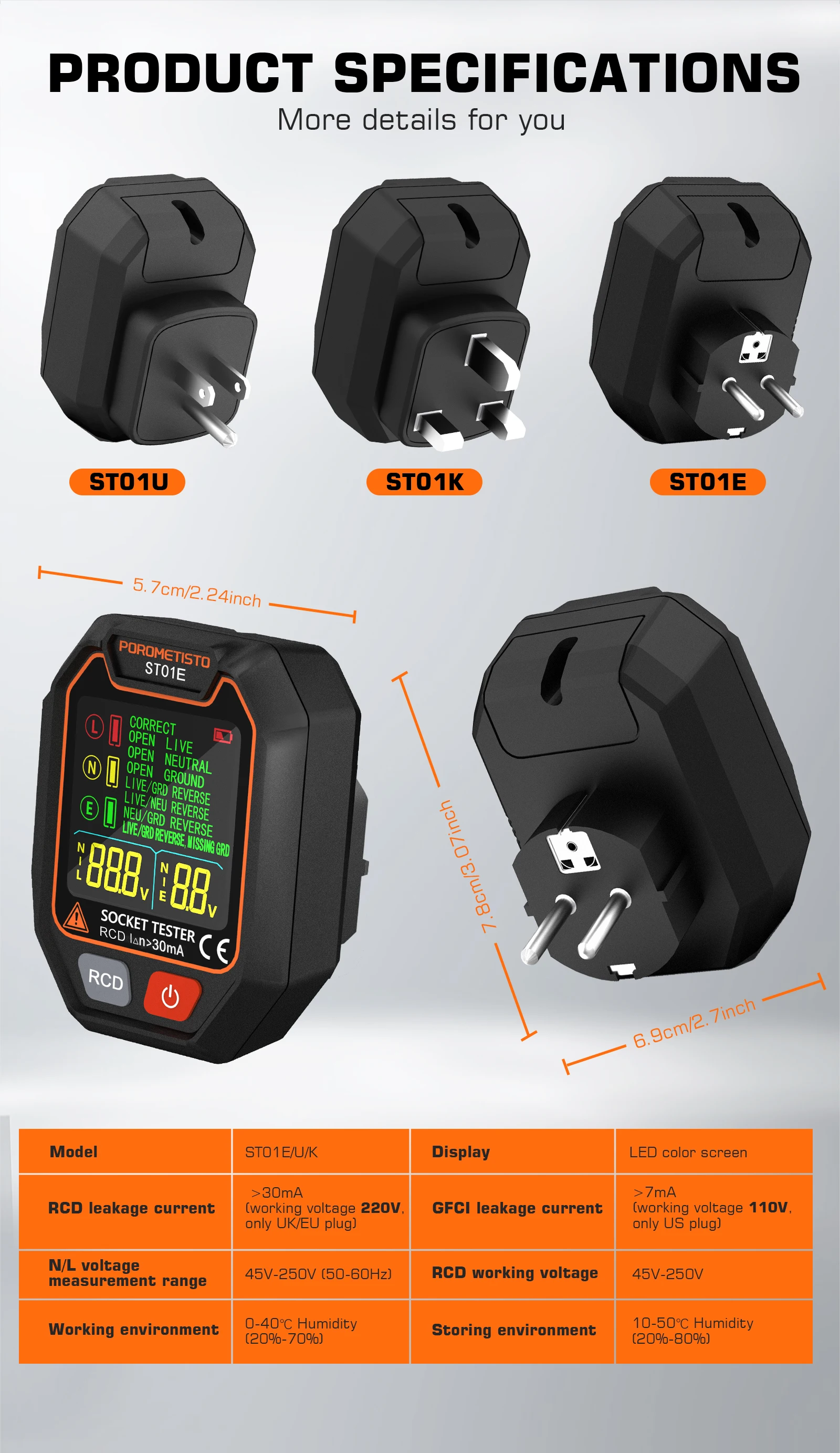

Specification:

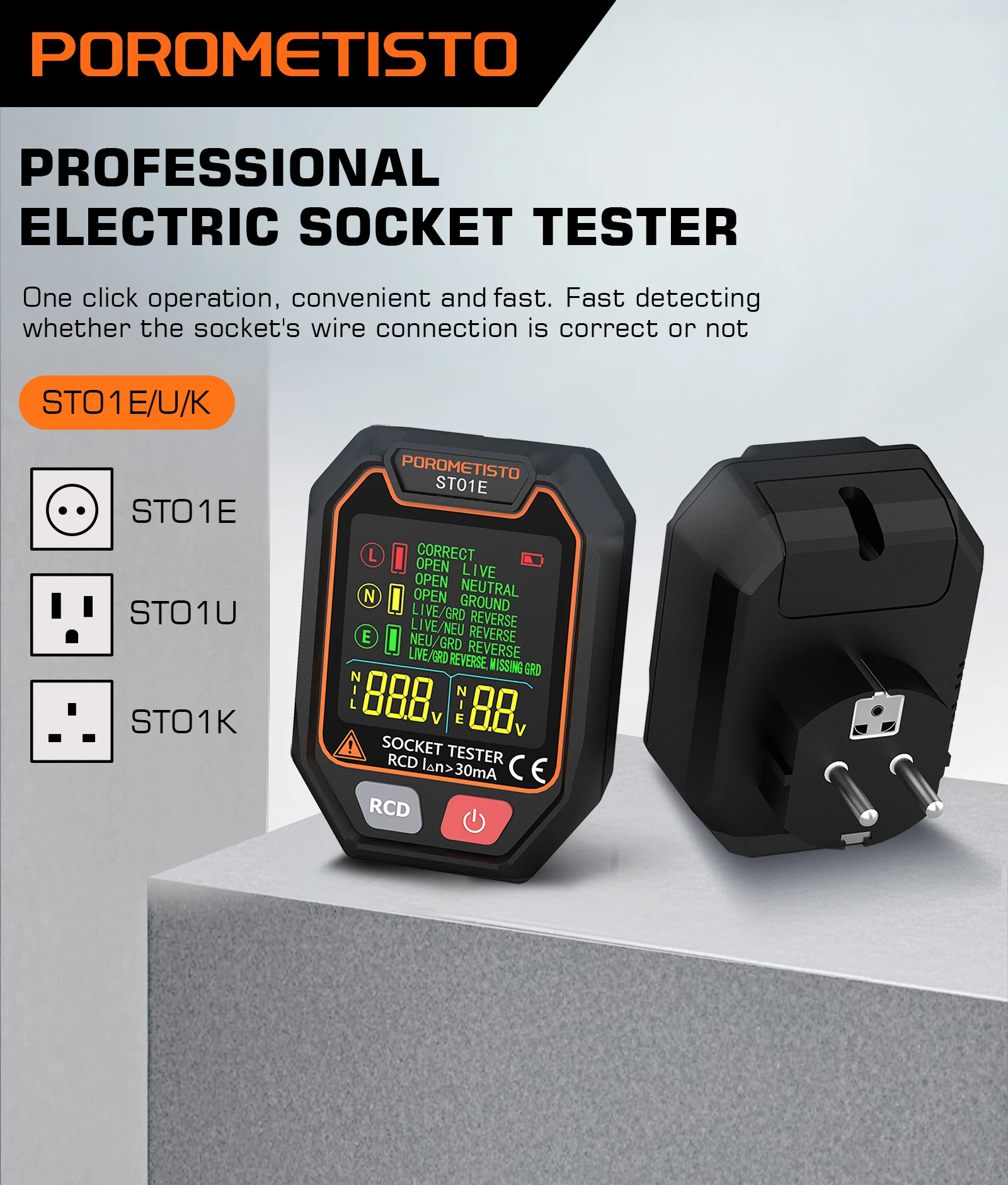

Model: ST01E/U/K
Display: LED color screen
Zero-fire Voltage Measuring Range: (L-N) 45V-250V (5 0-60Hz)
Zero Ground Voltage Measurement Range: (N-E) 0.1V-10V (5 0-60Hz)
Operating Environment: 0°C- 40°C
Humidity: (20%-70%)
Storage Environment :10°C- 50°C
Humidity: (20%-80%)
RCD Test:>30mA (EU/UK plug)
RCD Operating Voltage:220V
GFCI Test:>7mA (US plug)
GFCI Working Voltage:110V
Operating Voltage Range:45V~250V (AC)
Measurement voltage:48~250V
Product Size: 7.8*5.7*6.9cm / 3.07*2.24*2.71in

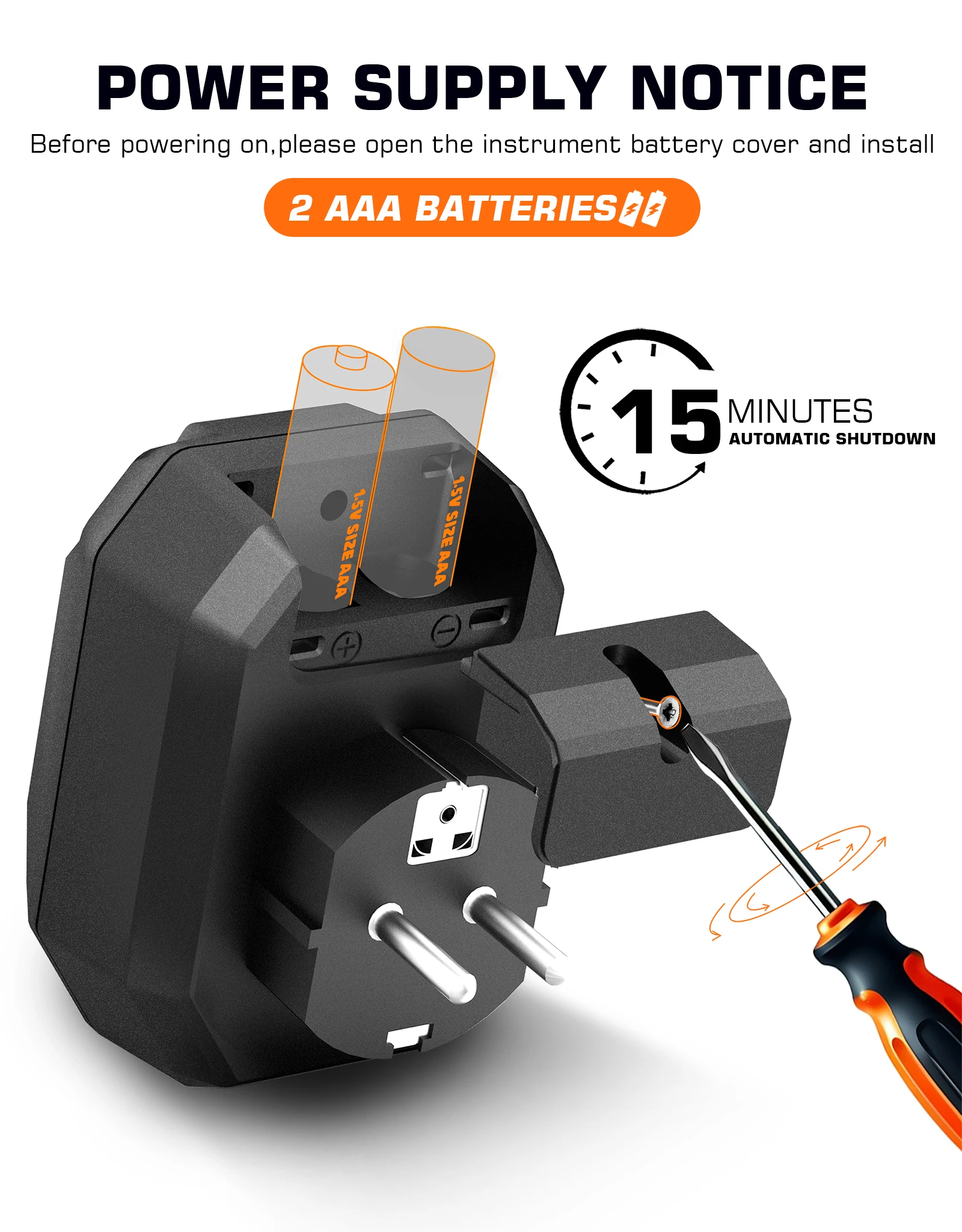

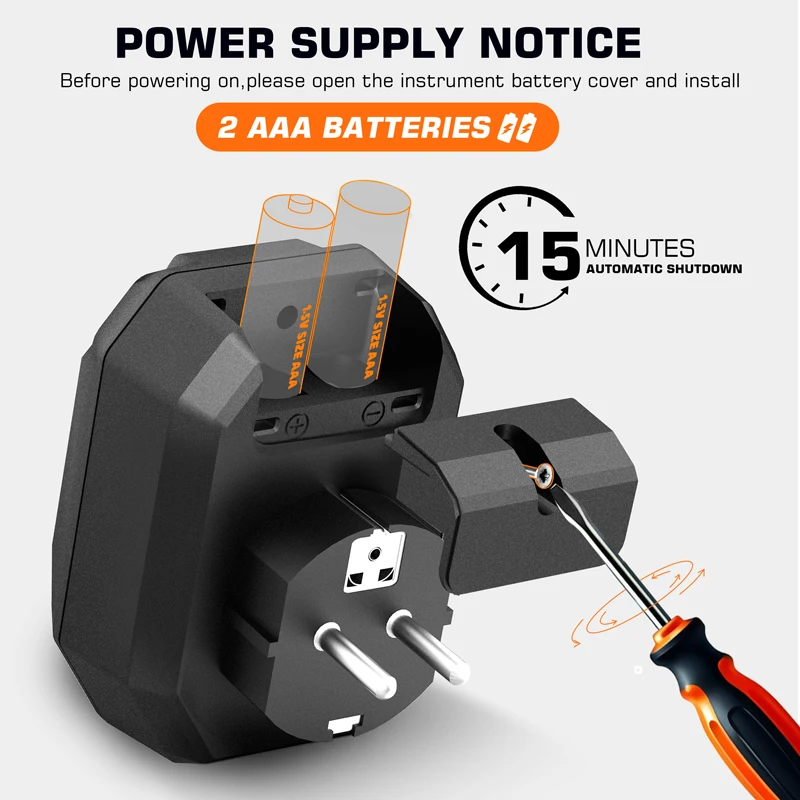

Battery: AAAx2 (Not included)

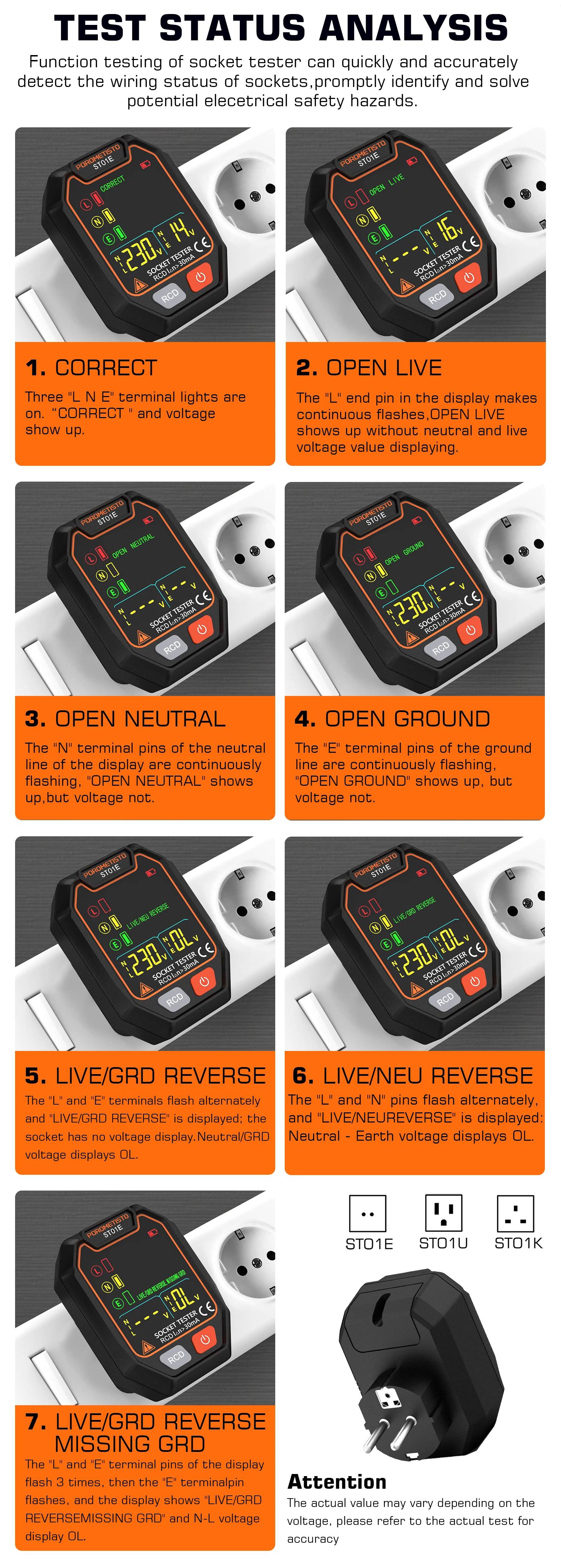

Socket connection detection:
CORRECT: The wire connection is correct
OPEN LIVE: The live wire disconnected
OPEN NEUTRAL: The neutral wire disconnected
OPEN GROUND: The ground wire disconnected
LIVE/GRD REVERSE: Connect the live wire and the ground wire in reverse
LIVE/NEU REVERSE: Connect the live wire and the neutral wire in reverse
NEU/GRD REVERSE: Connect the neutral wire and the ground wire in reverse
LIVE/GRD REYERSE, MISSING GRD: Connect the live wire and the ground wire in reverse, and the ground wire disconnected

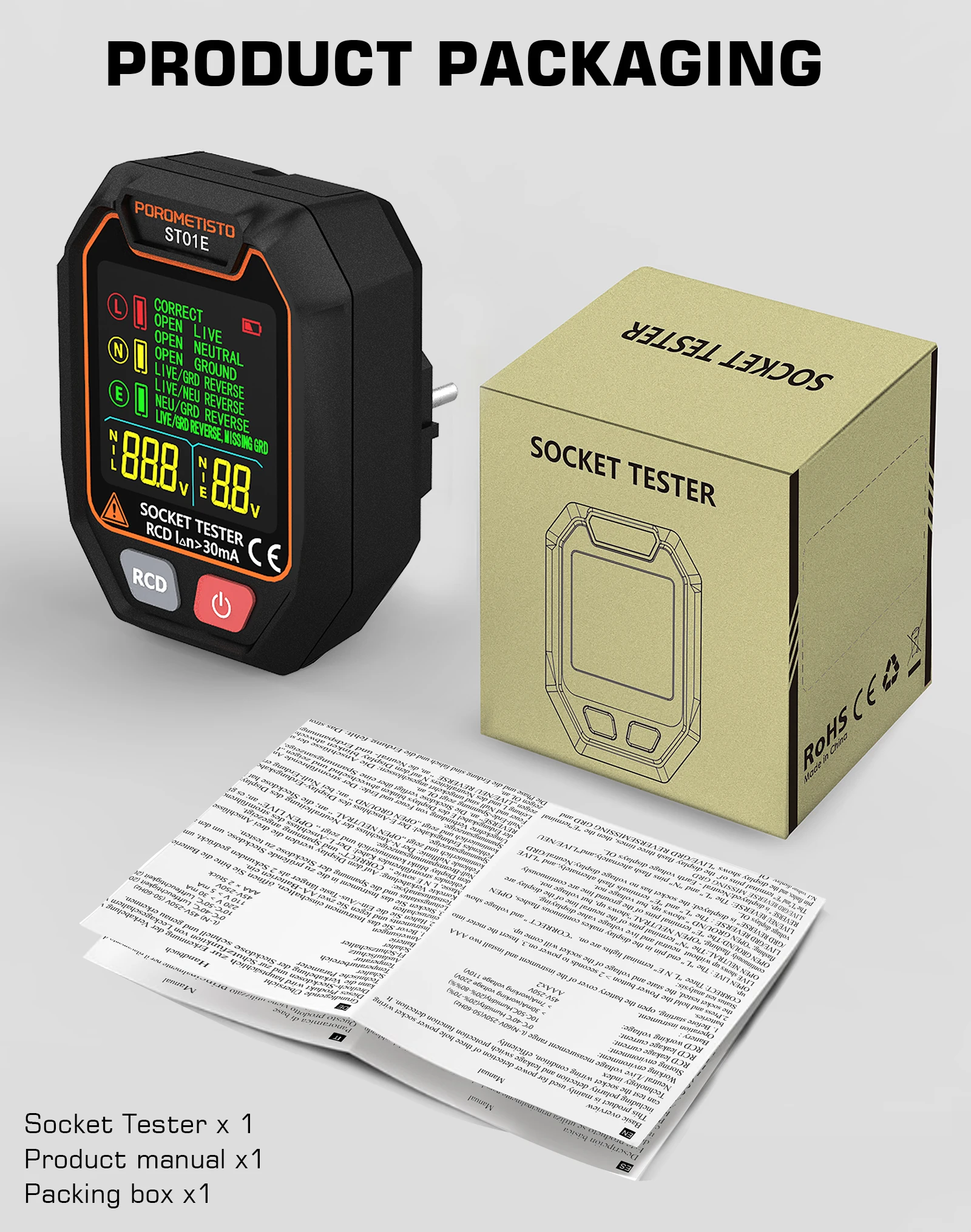

Packing List:
1 * Socket Tester
1 * User Manual
