- Hign-concerned Chemical: None

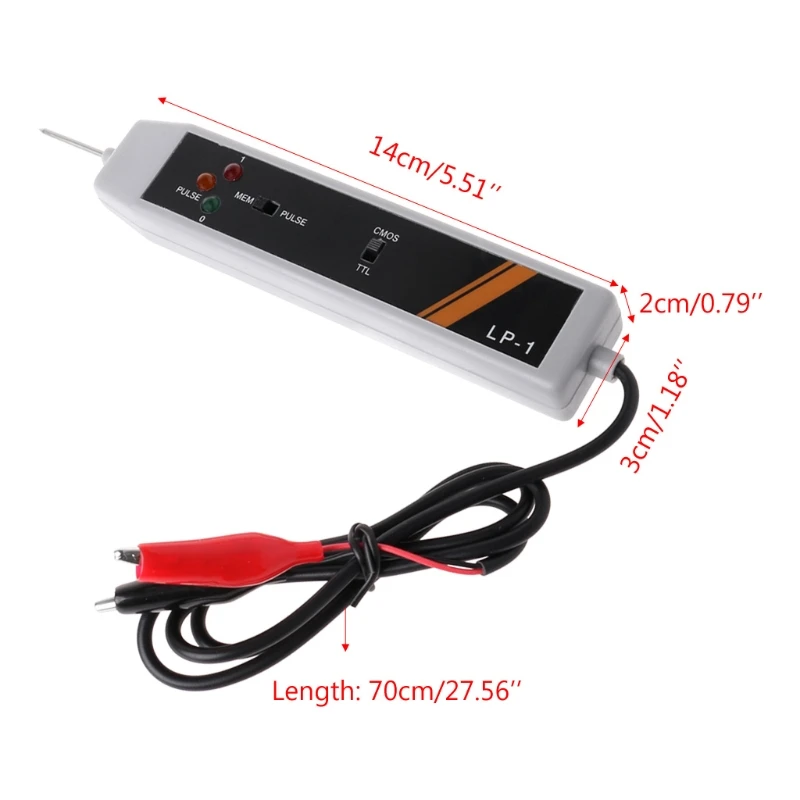

- Size: 14x3x2cm
- Type: Logic Probe Electronics Testing Tool
- Style: OTHER
- Output Type: OTHER
- Model Number: HX5F1AA800454
- DIY Supplies: ELECTRICAL
- Origin: Mainland China
- Certification: none
- sku: 1AA800454
- Feature 1: Pulse Memory Function,Pulse Memory Function,Pulse Memory Function
- Feature 2: Instant Indication,Instant Indication,Instant Indication
- Feature 3: High Frequescy Response,High Frequescy Response,High Frequescy Response
- Feature 4: For DTL, TTL and CMOS,For DTL, TTL and CMOS,For DTL, TTL and CMOS
- Feature 5: Handy, Quick and Easy,Handy, Quick and Easy,Handy, Quick and Easy
Feature:
OOTDTY
Handy, Quick and Easy
For DTL, TTL and CMOS
High Frequescy Response
Instant Indication
Memory Function
OOTDTY
Handy, Quick and Easy
For DTL, TTL and CMOS
High Frequescy Response
Instant Indication
Memory Function
How to use:
1. RED clip to + terminal and BLACK clip to terminal of the power source of the circuit under test. The supply should not 18V for DC
2. For TTL and DTL, set the upper select to the side marked "TIL"
For CMOS, set the upper select to the side marked "CMOS", contact the probe pin to the point to be tested. The LEDs will indicate its states:
A) ALL LEDs OFF -High impedance
B) RED LED ON High (1)
C) Green LED ON low (0)
D) Orange LED ON
3. For deteching and storing or level set lower select to side marked first. Contact the probe pin to the poin to be tested. The LEDs will indicate is basic Then set the lower select to side marked The orange LED will light when any or level is detected. The direction, in comparison with basic, cabe determined. After use, reset probe by setting the lower select to side marked
Package include:
1 * Probe
