Sold out
- Hign-concerned Chemical: None
- Model Number: HL-3GSDI-2Vv1D-T/R
- Item Type: cable
- Origin: Mainland China
- Product name: Fiber Video Converter
- Fiber Type: Single Fiber Single Mode
- Application: CCTV/Broadcast/Security/Airports/monitoring/government,transportation
- Wavelength: 1310/1550nm
- Audio Format: 44.1K,48K,96K,176K,192K
- Transmission distance: 20km
- Dimension: 440mm*230mm*44.5mm
- Type: LC connector
- Color: Black/Other
- Certification: CE RoHS FCC
Broadcast DVB ASI SDI To Fiber Extender 3G SDI Fiber Video Converter over Fiber up to 20km
Description
The unit can extend 2 channel forward 3G-SDI video with loopout and 1 channel bidirectional rs422 data over a fiber optic to far distance synchronously.
Uncompressed real-time audio and video transmission,professional broadcast level high quality,no delay.
Custom made is acceptable,even if MOQ 1 set,contact us if needed.
Function
2x 3G-SDI with Loop out
1x rs422 data
LC Optical interface.
Single-mode fiber 0~20Km
1U Rack Mount
Single-mode fiber 0~20Km
1U Rack Mount
Features
1.Comply with DVB-ASI, SMPTE424M, SMPTE292M, and SMPTE259M (C) standards;
2.Use full digital processing technology, clear image, no color phase difference;
3.With APC circuit, constant output optical power, large dynamic range;
4.CWDM technology to achieve multi-channel signal transmission, large capacity, easy to upgrade;
5.The input has a cable balance to compensate for the loss of cable transmission;
6.With the output clock recovery reduction signal jitter circuit, it can handle the distortion signal very well;
7.Input / output cable transmission distance of up to 80m (BELDEN8281 cable);
8.Industrial grade design, modular design makes the equipment reliable and flexible;
9.Single multi-mode compatibility, no relay distance of up to 20 kilometers;
10.Wall-mounted, 1U/2U/4U rack type;
11.Support for pathological signal (optional):
PLL signal; to detect the locked state of the SDI phase-locked loop.Ensure that the phase-lock ring of the optical terminal can work normally without locking in any scene;
Equalizer signal; it will truly reflect the design state of the equalizer.Effectively balance and process the coaxial cable
signals of different distances within a certain range to ensure the integrity of the signals;
SDI Matrix signal; synthesize the above two signals.No matter day or night, the images generated by any scene can ensure the effective transmission;
12.Devices are used in pair. note that devices are distinguished between transmitter and receive;
Detailed Images

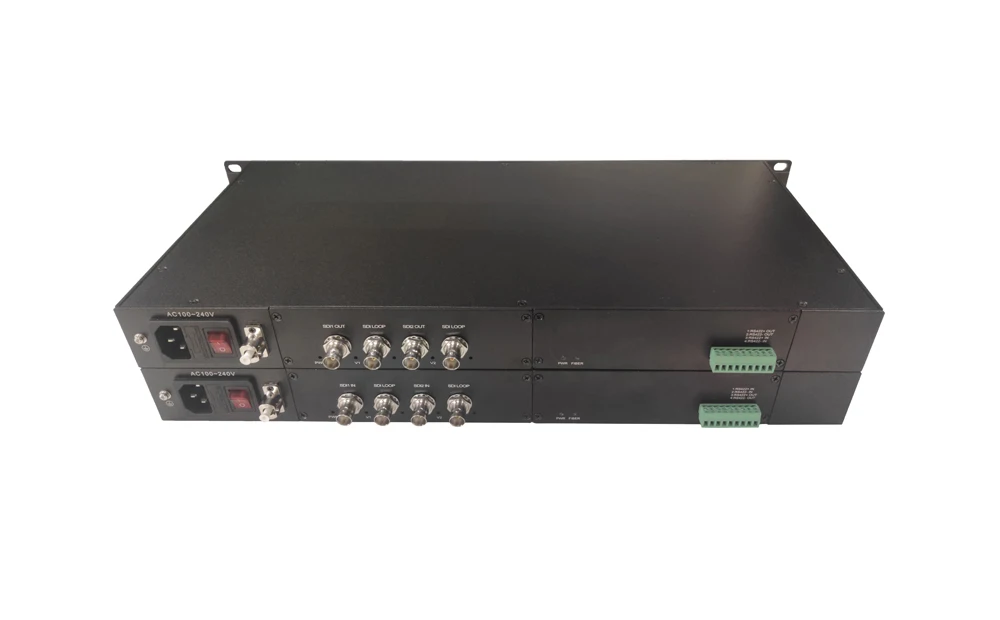

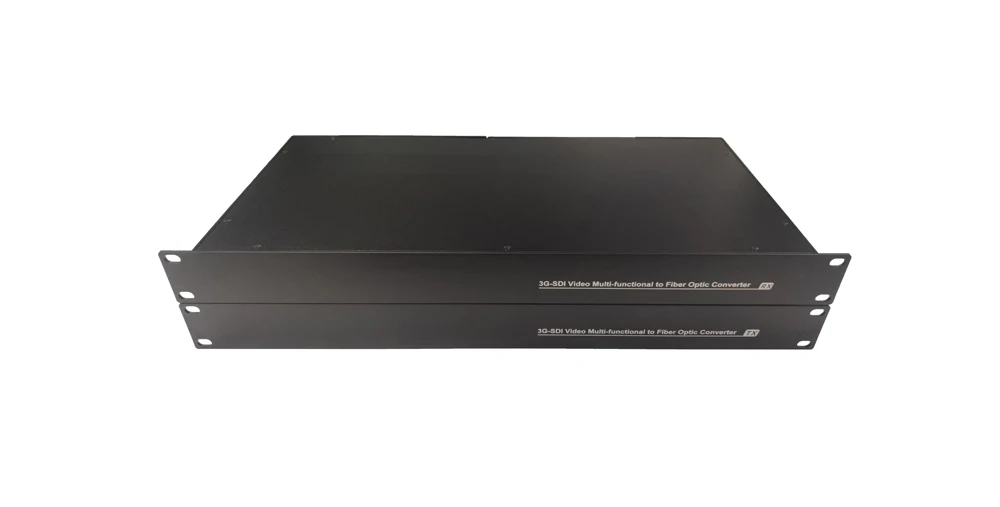

Product Presentation
Package Include
1. 3G-SDI over fiber Transmitter
2. 3G-SDI over fiber Receiver
3. 2 x External Power cable
4. 1 x User manual
2. 3G-SDI over fiber Receiver
3. 2 x External Power cable
4. 1 x User manual
