- Hign-concerned Chemical: None
- Output Power(w): 5w-10w
- Battery Capacity(mAh): 1600mAh
- Waterproof / Water-Resistant: IP55
- Battery Included: Yes
- Material: Plastic
- Storage Channel: 999
- Frequency Range: 144-148MHz,156-163MHz,430 – 440 MHz,446MHz,462-467MHz
- Dimensions: 115mmX60mmX37.5mm
- Model Number: TK11-8
- Walkie Talkie Type: Portable
- Is_Display: Yes
- Maximum Range: 5km-10km
- Brand Name: quansheng
- Origin: Mainland China
- Certification: CE,FCC,RoHS

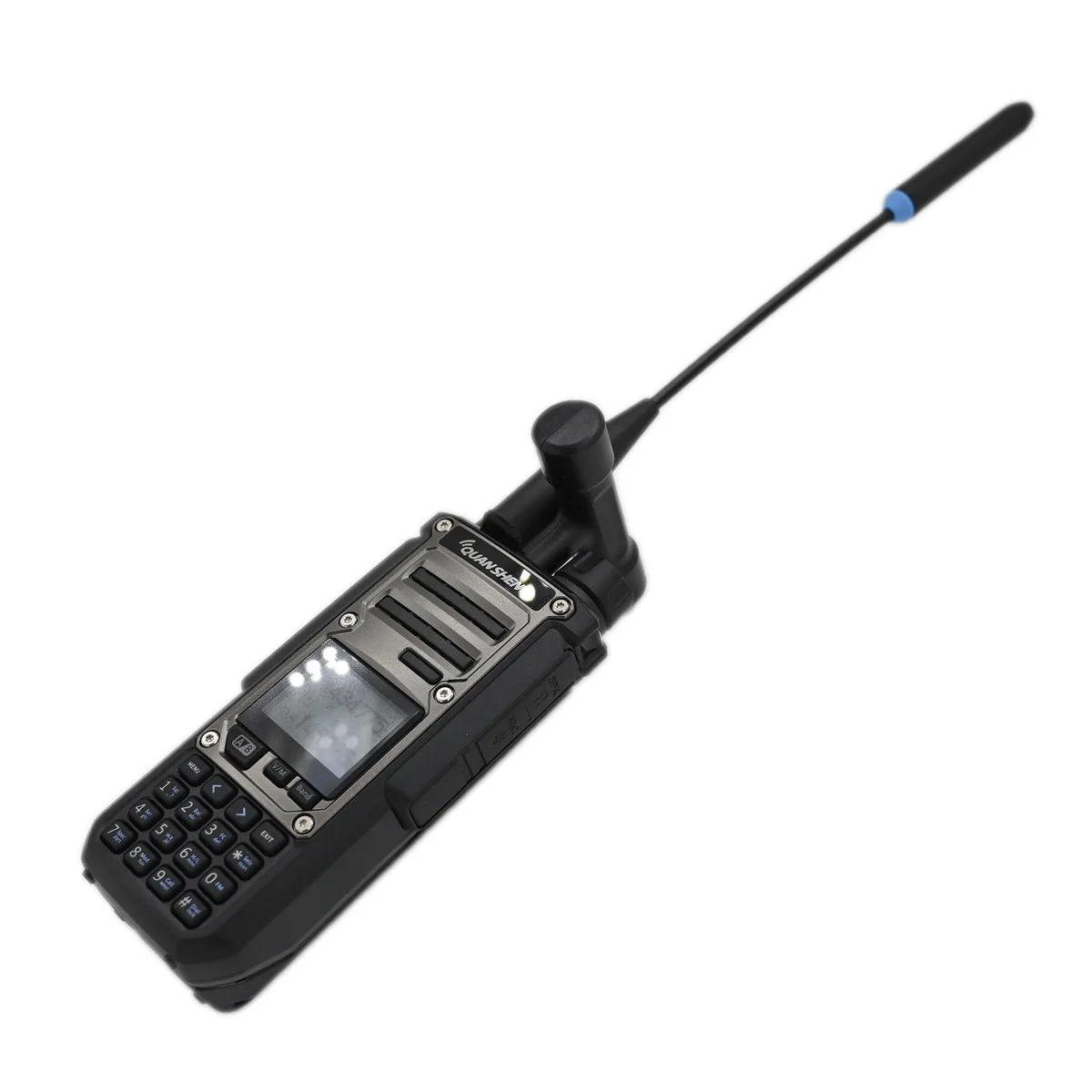

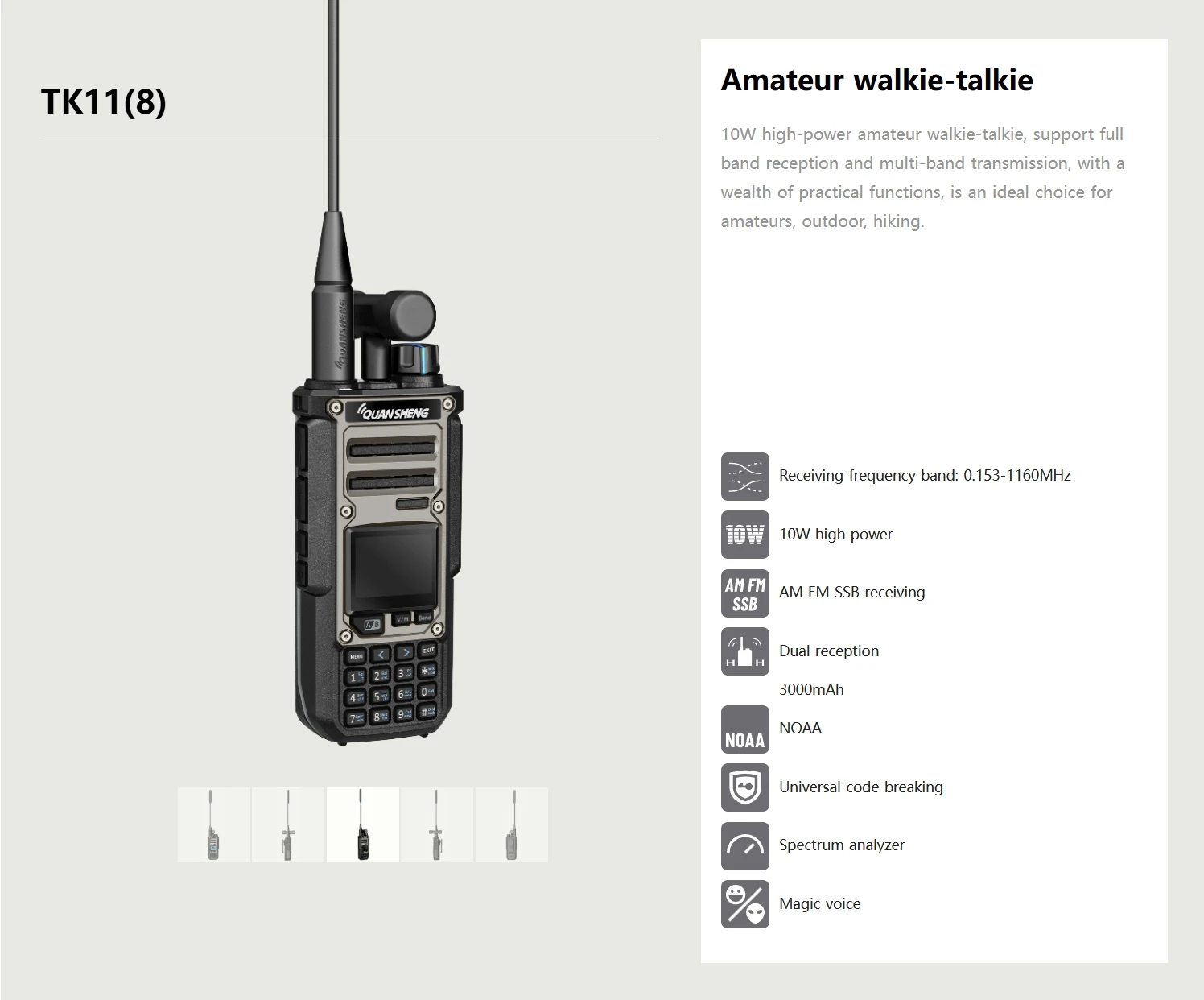

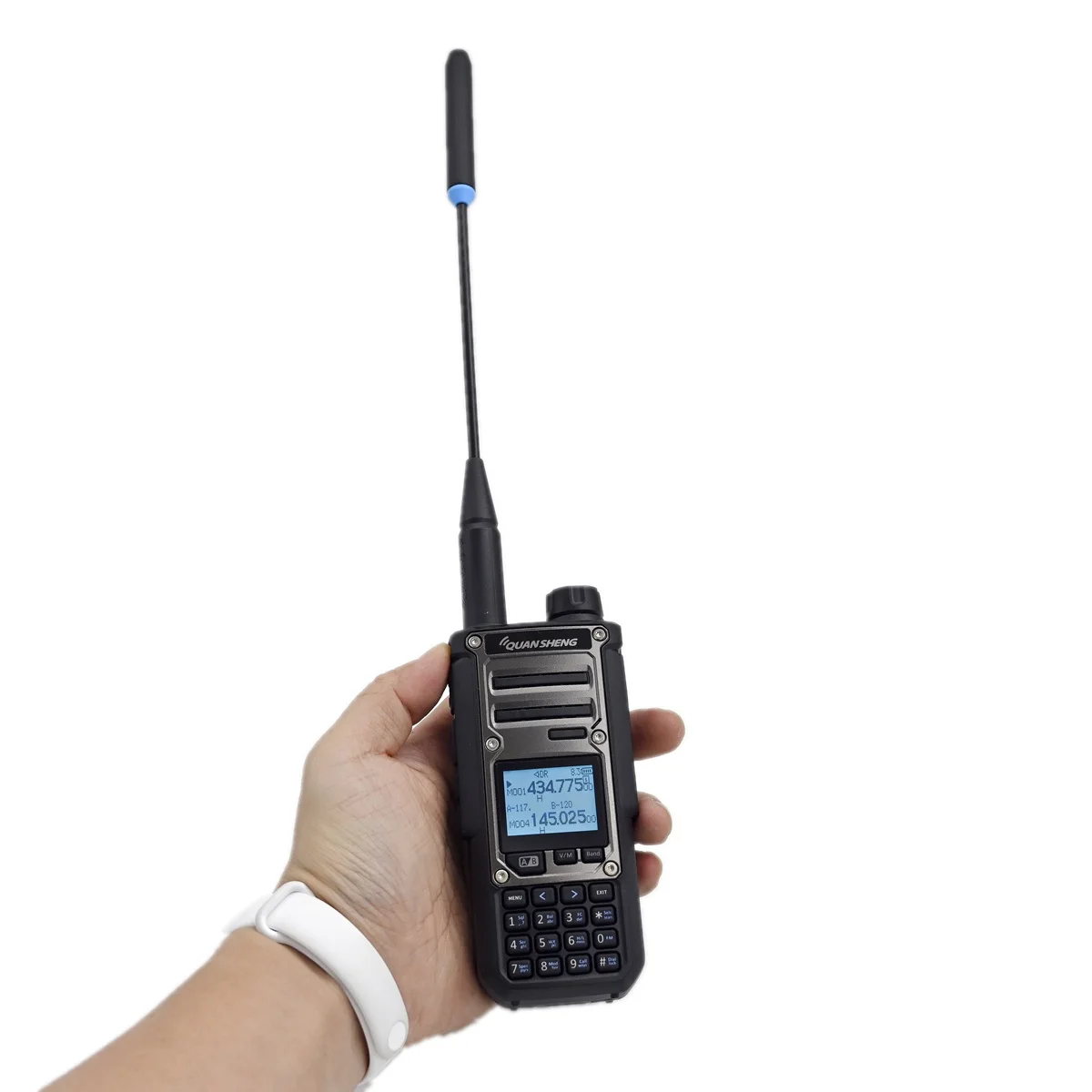

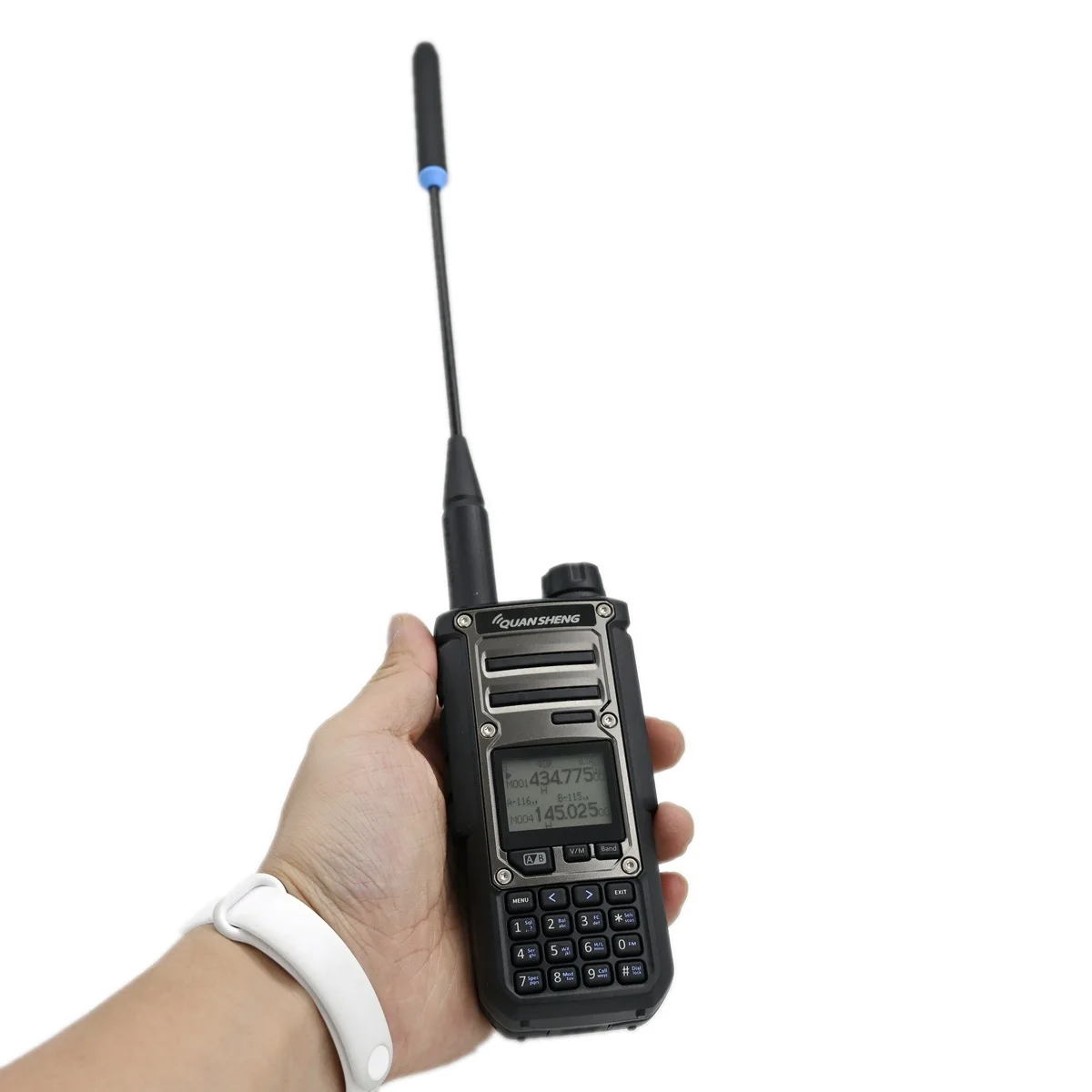

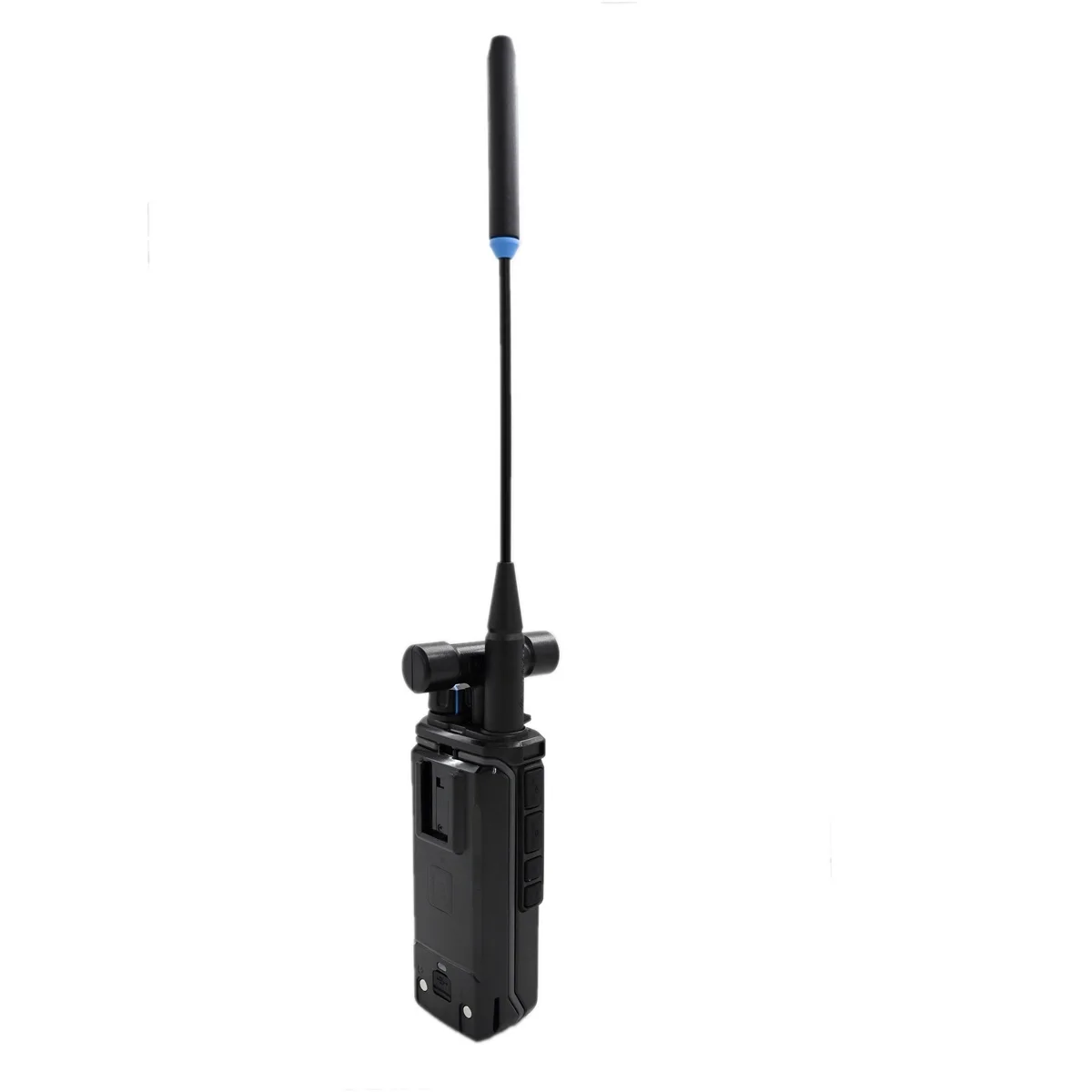

Quansheng Taiko Kong TK11(5) Amateur walkie-talkie

Dual Receiving
Receiving Band: 0.153~1160MHz
Transmitting Band: 25~29.8MHz、50~54MHz、 136~174MHz、400~469MHz
Support AM/SSB/FM Receiving

| General Specification | |
| Channel Number |
999 |
| NOAA Channel Number |
10 |
| Number of FM Radio Stores |
32 |
| Voltage |
7.4 V |
| Battery Capacity |
2500mAh |
| Dimension |
126mm X 58mm X 34.5mm |
| Weight |
289g |
| Screen |
1.44 inch ice blue |
| Key |
19 keys on the front, 2 PTT keys and 2 shortcut keys on the left |
| Megaphone |
16 euros 1W |
| Jacklight |
support |
| Working Temperature |
– 20 ℃ ~ 60 ℃ |
| Antenna Impedance |
50 Ω |
| Frequency Stability |
±1ppm |
| Modulation Mode |
FM:11KOF3E(12.5KHz),16KOF3E(25KHz) |
| Charging method |
Base Charger/Type-C Charging |
| Transmitting | |
| Transmitting Frequency Band |
25-29.8MHz 50~54MHz 136~174MHz 400~469MHz |
| Transmitting Power |
10W |
| Emission Current |
≤2.5A |
| Maximum Frequency Offset |
≤5KHz(25KHz),≤2.5KHz(12.5KHz) |
| Modulation Distortion |
≤5% |
| Stray Emission |
≤7.5uW |
| Channel Power |
70dB(25KHz),60dB(12.5KHz) |
| Residual Modulation |
40dB |
| Receiving | |
| Receiving Frequency Band |
0.153-1160MHz |
| FM Reference Sensitivity |
-121dBm |
| WFM Reference Sensitivity |
-121dBm |
| AM Reference Sensitivity |
-121dBm |
| Audio Power |
≥0.5W |
| Audio Distortion |
≤10% |
