- Structure: control
- Port Size: 1"(DN25), 1-1/4"(DN32), 1-1/2"(DN40), 2"(DN50), 2-1/2"(DN65), 3"(DN80)
- Media: Water
- Material: STAINLESS STEEL
- Temperature of Media: Normal Temperature
- Standard or Nonstandard: Standard
- Model Number: RS485 Digital Display Flowmeter Stainless Steel
- Origin: Mainland China
- Certification: CE
About this item

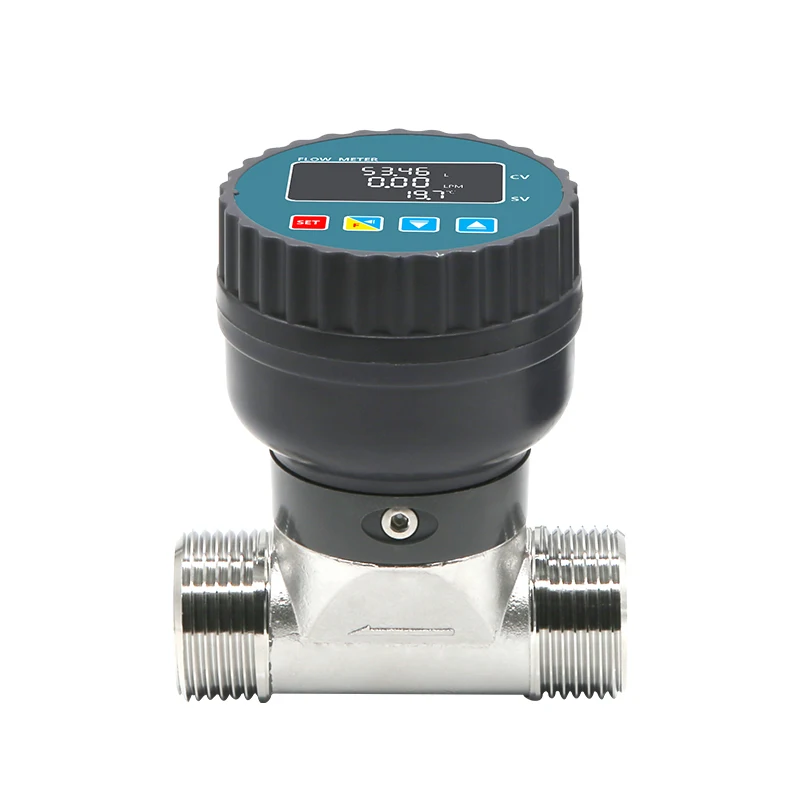

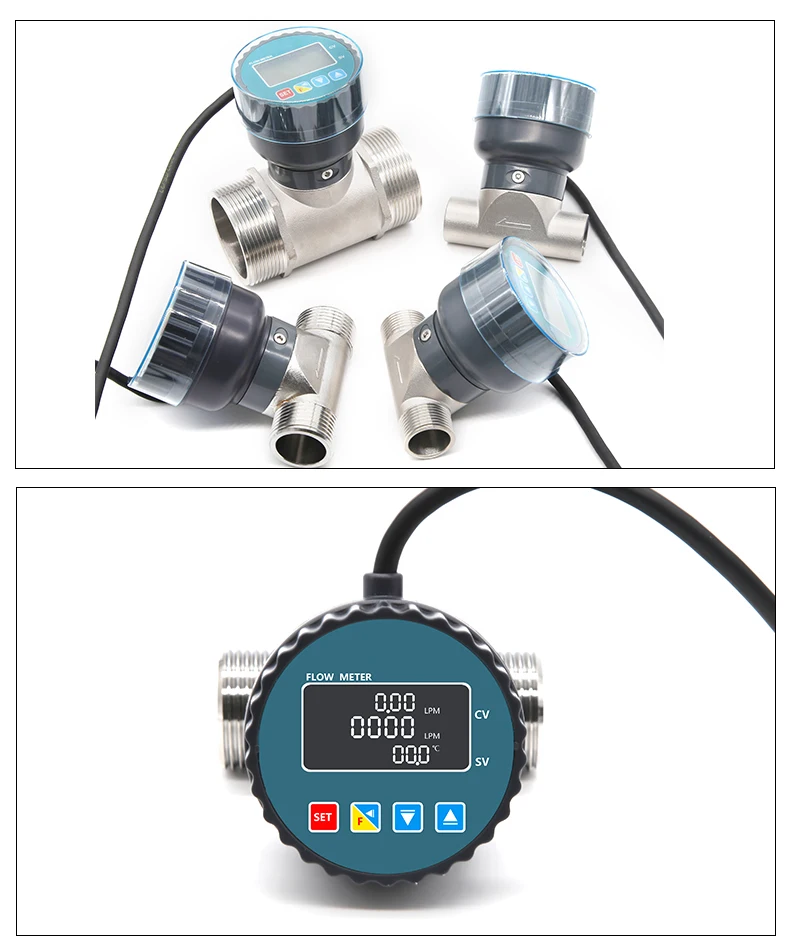

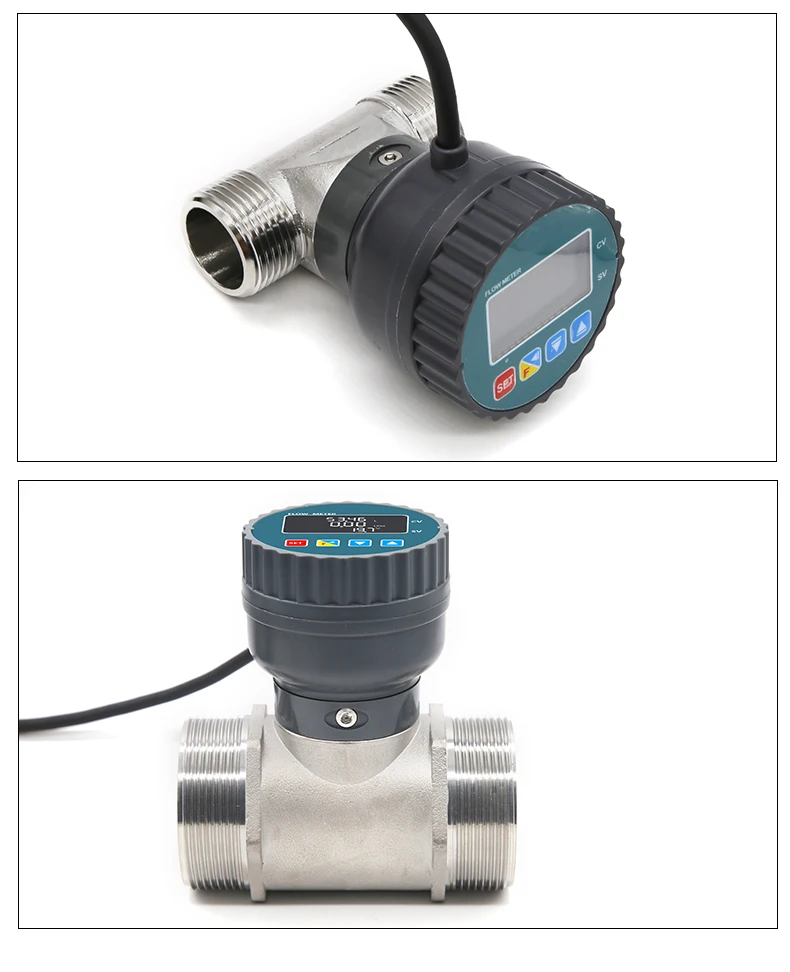

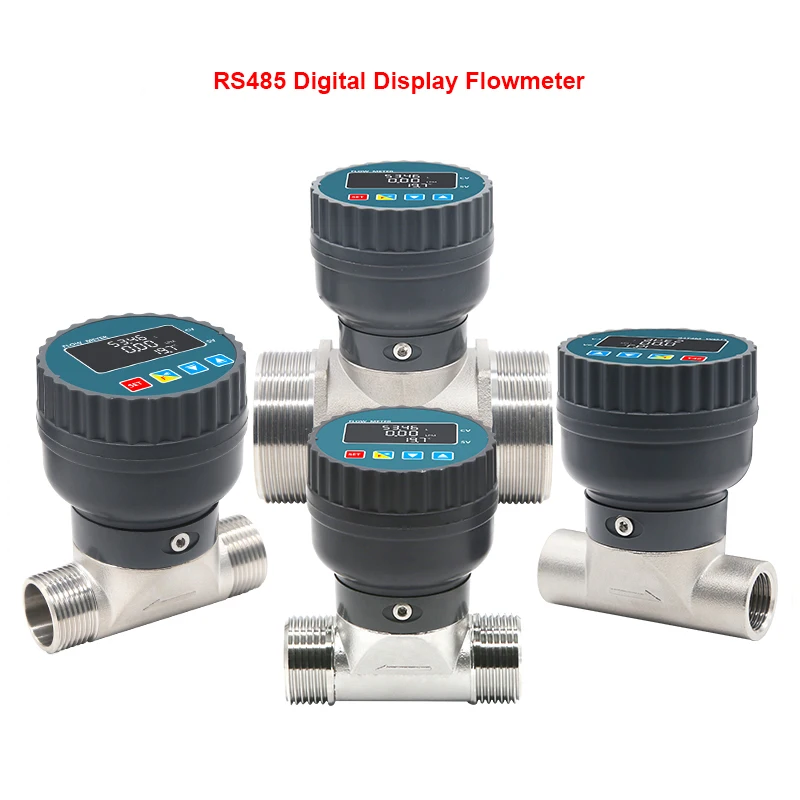

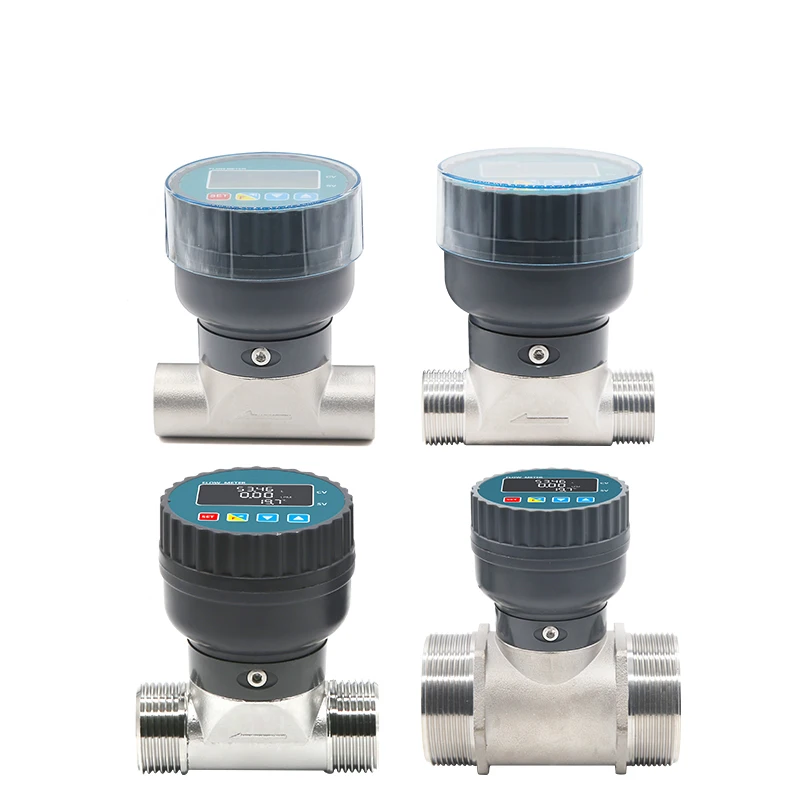

RS485 Digital Display Flowmeter Stainless Steel Smart LCD Electronic Flow Meter Flow Sensor Water, For Farm/Garden Irrigation

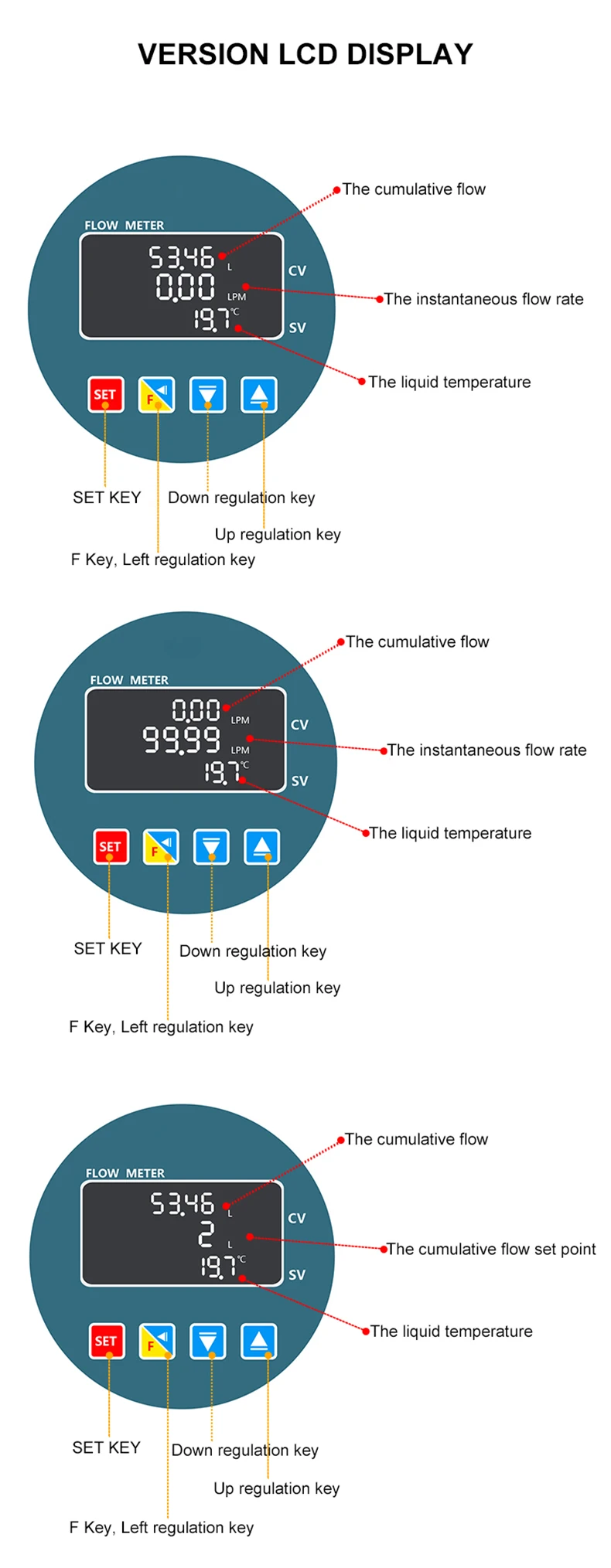

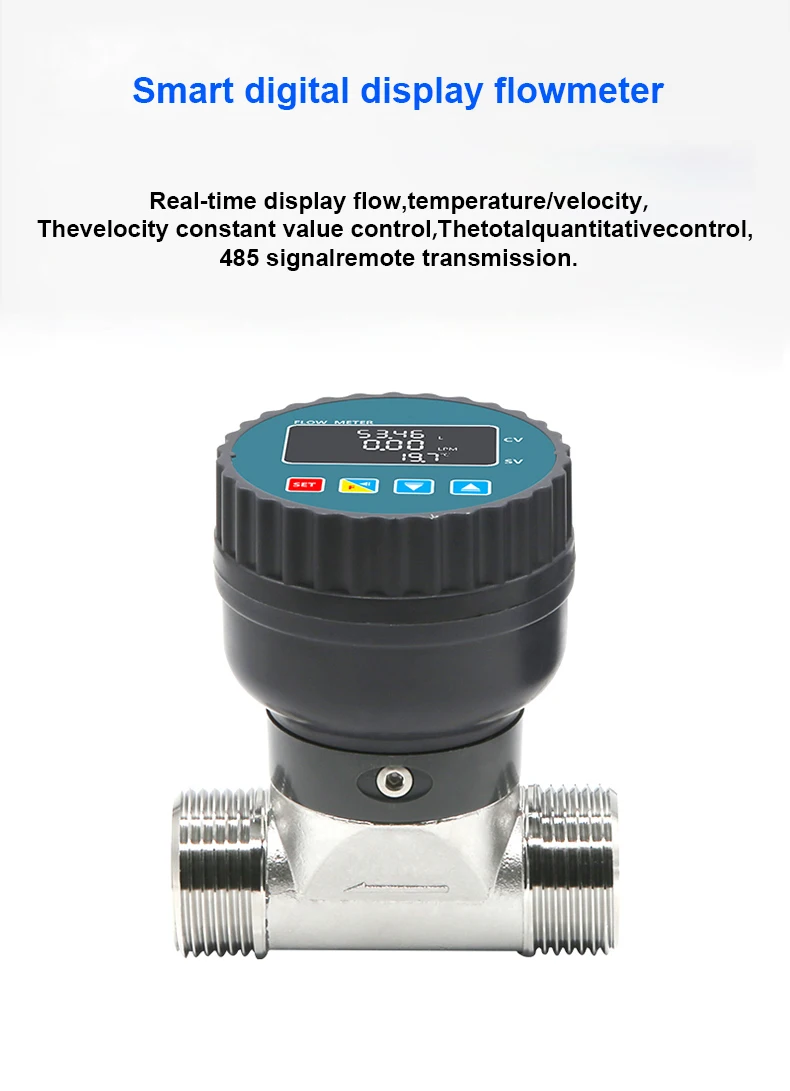

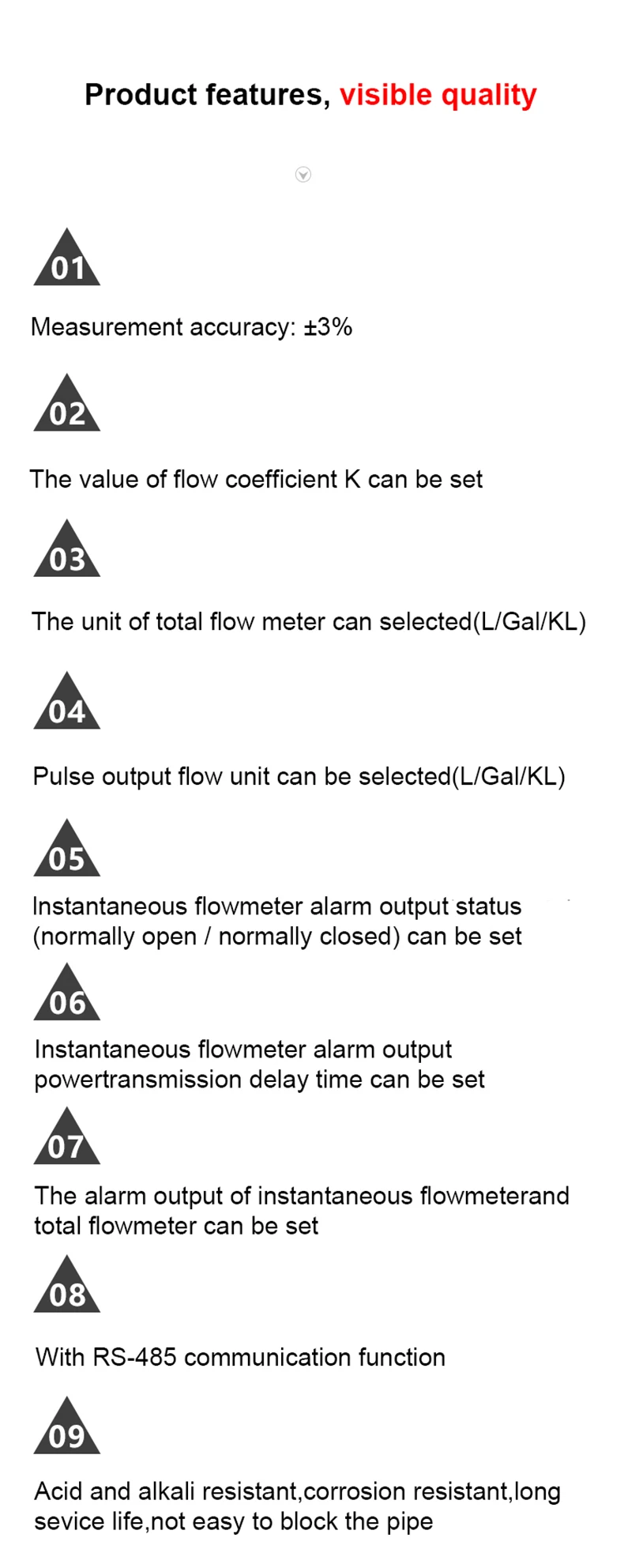

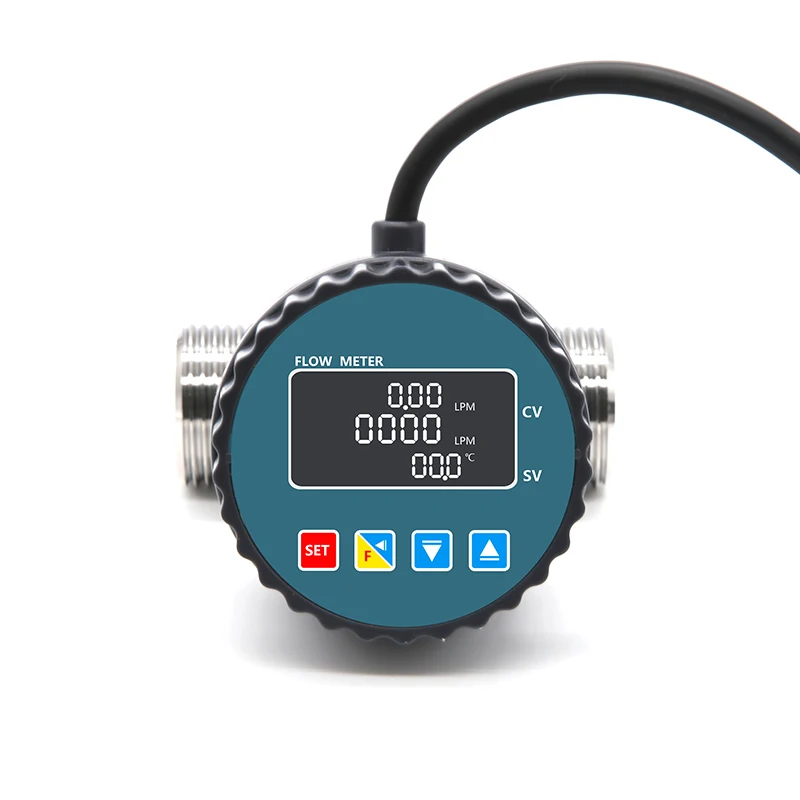

Main functions of RS485 digital display flowmeter: Real-timedisplay flow, temperature, velocity, Thevelocity constant value control, Thetotal quantitativecontrol.

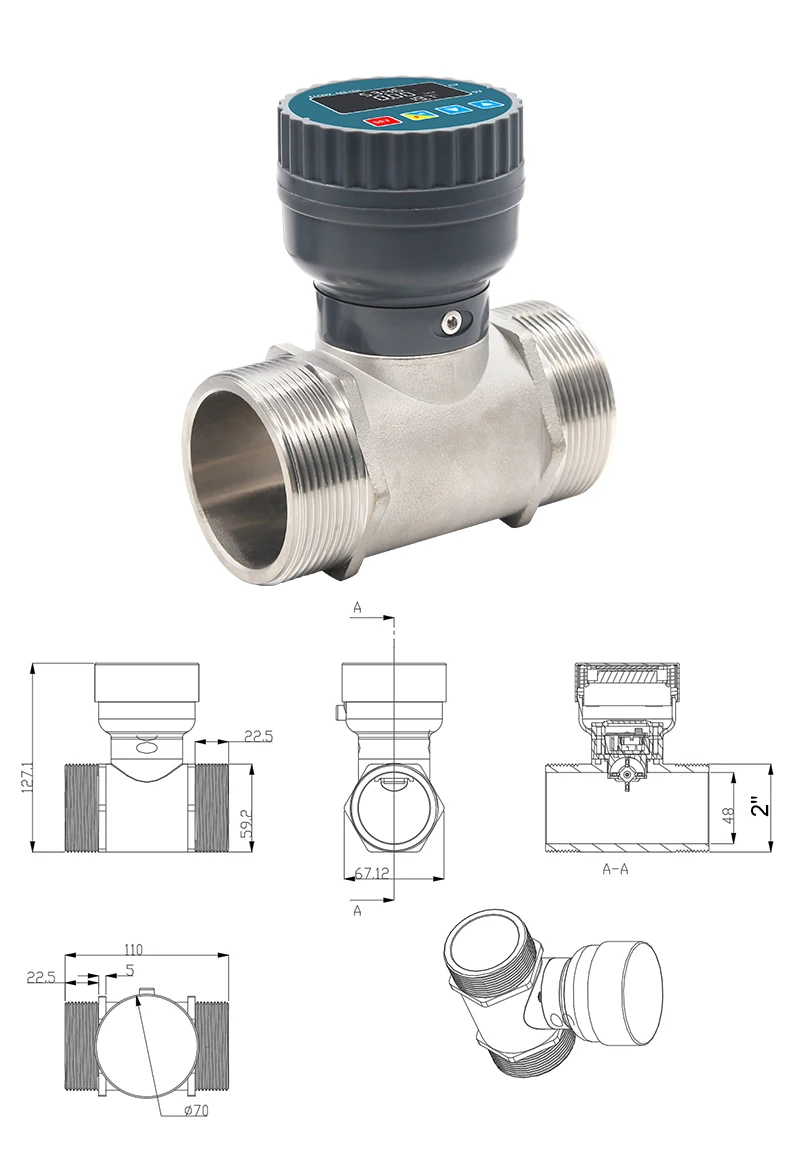

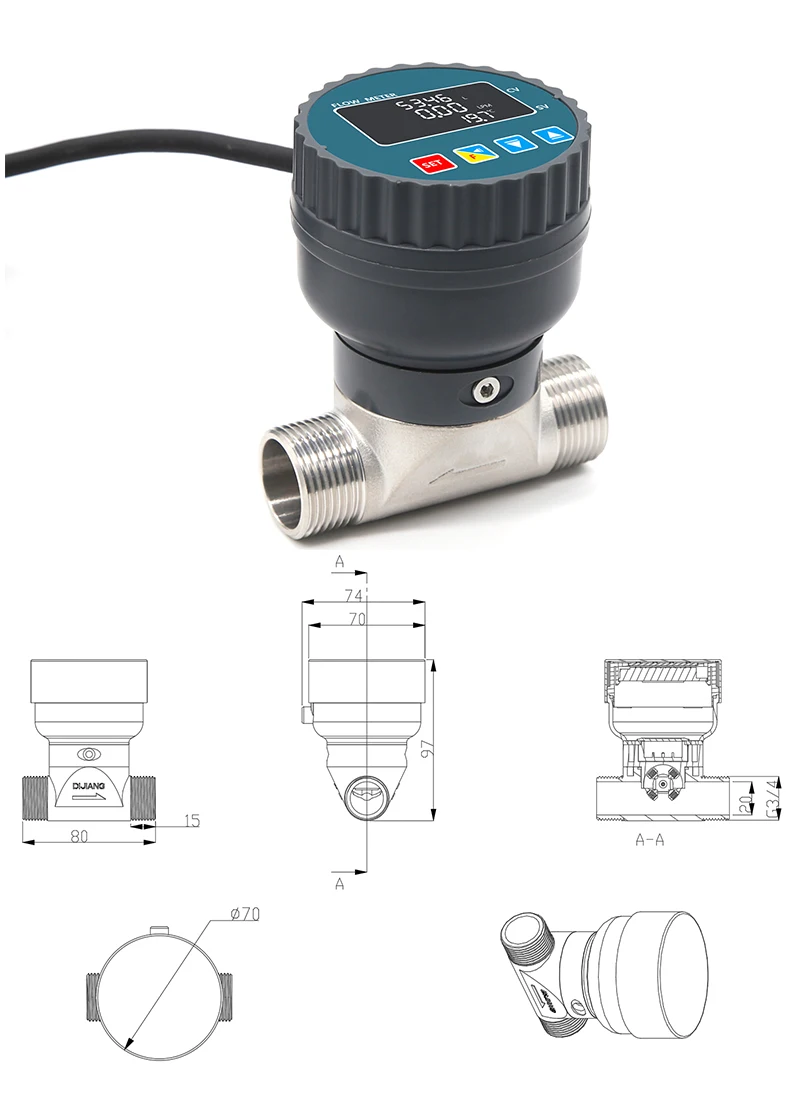

Turbine Electronic Flow Meter: DN15(1/2"), DN20(3/4"), DN25(1"), DN50(2").
Flow range: DN15(5-150 L/min), DN20(5-150 L/min), DN25(20-280 L/min ), DN50(60-1100 L/min) Error±10%.
Material: Stainless Steel
Working voltage: DC10~30V
Maximum working current: 15mA (DC 5V)
Measuring the liquid: Water or a liquid with a concentration similar to water
The reaction time: Real-time
Pressure of work: 5kg/cm²
Working environment temperature: -10℃~70℃

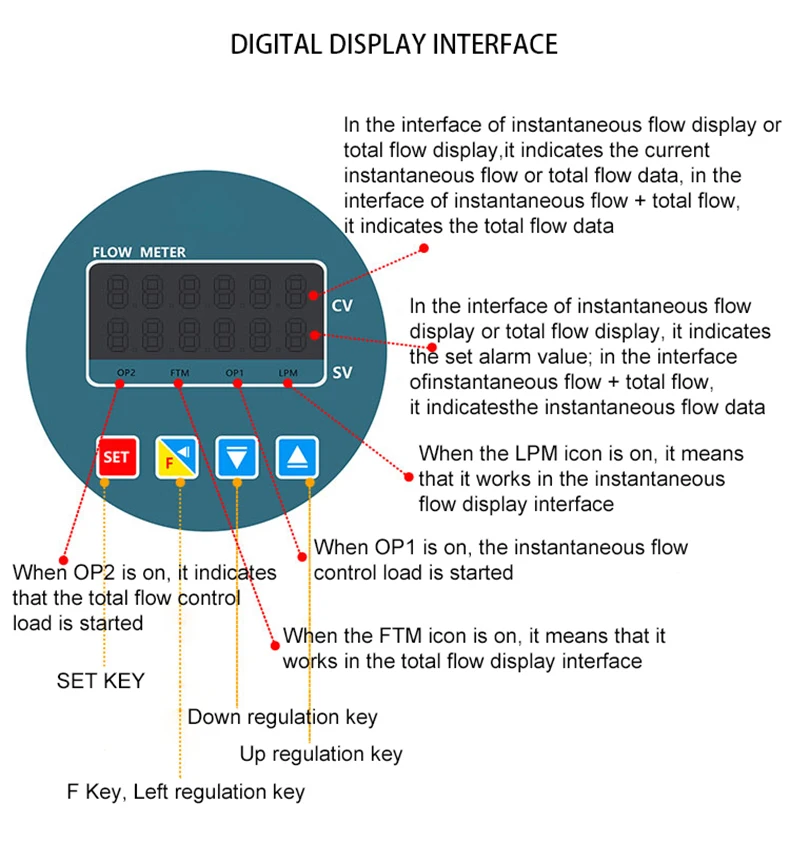

lnstantaneous flow meter can be set range (LPM): 0~999.99
Total flow meter can be set range (FTM): 0~999999
lnstantaneous flow control output: NPN ( 150mA Max)
Traffic control output: NPN ( 150mA Max)
Notice:

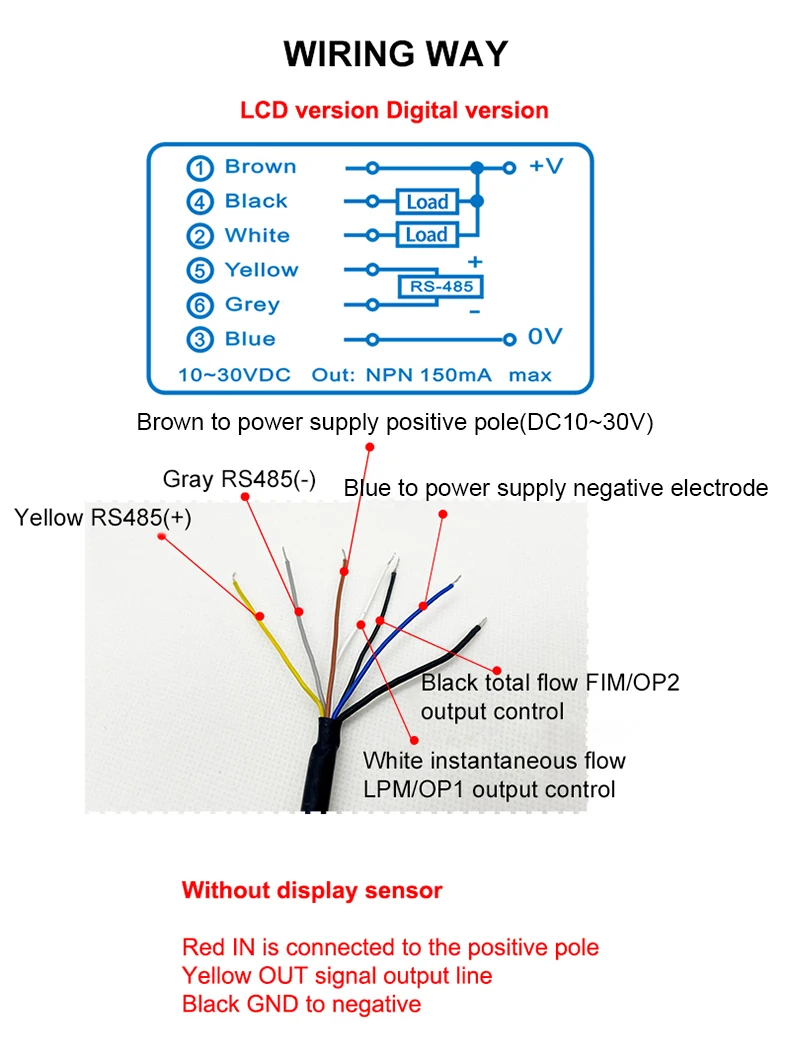

1. LCD version:RS485 data transmission,The display screen is not waterproof, and waterproof measures need to be taken.
2. The more you order, the more offers, please contact us.
3. Package list: Sensor*1pcs
