- Hign-concerned Chemical: Lithium Carbonate
- Battery Number: 1

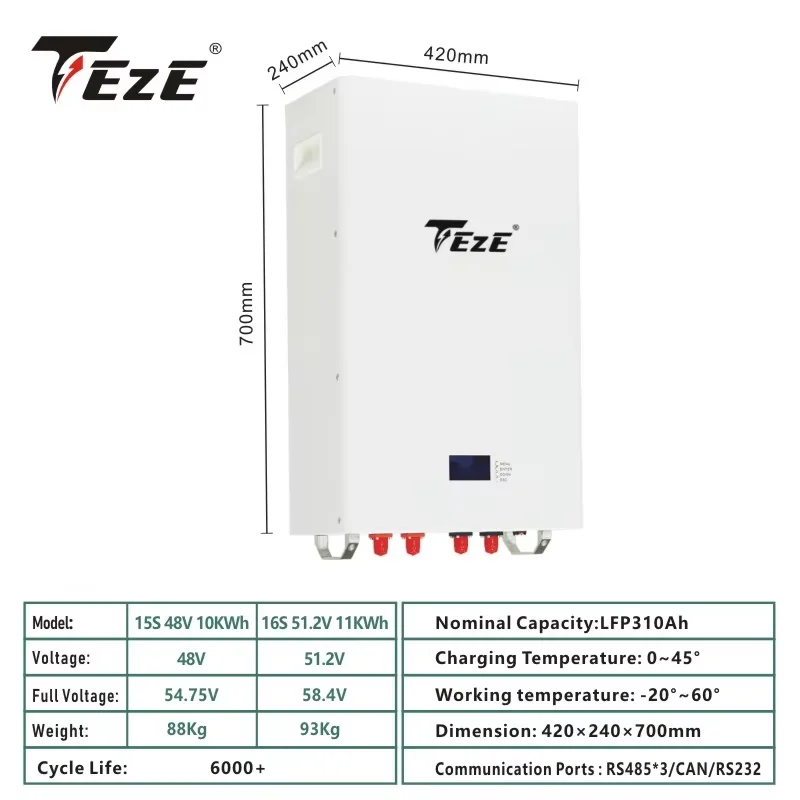

- Size: 700x420x240mm
- Set Type: Batteries Only
- Type: LiFePO4
- Nominal Capacity: 200AH
- Model Number: Lifepo4-48V/51.2V
- Brand Name: TEZE
- Origin: Mainland China
- Certification: CE
- Nominal Voltage: 48V/51.2V
- BMS: 15S/16S 100A
- Port type: M8
- Charging voItage: 53.2-57.6V
- Operating voItage: 40.5-58.4V
- Charging standard current: 40A
- Fast charging current: 80A
- MaXimum charging current: 100A
- MaXimum discharge current: 100A
- Charging temperature: 0℃to 45℃ (32℃to 113℃) @60± 25% reIative humidity
- Discharge temperature: -20℃to 60℃ (-4℃to 140℃) @60± 25% reIative humidity
- Storage temperature: -20℃ to 60℃ (-4℃to 140℃) @60± 25% reIative humidity
- Line joint: 120A SeIf- Locking Fitting Quick ReIease Connector
- Net weight ApproX: 82/86kg
- Communic ation protocoI: RS485 RS232 CAN
- Support inverter brand: Due to the large number of compatible inverter brands, please ask the seller.
10Kwh Storage System（15S）
Rate Capacity : 200Ah
Energy Power : 9696Wh
Nominal Voltage : 48V（15S）
Cycle Life : 6000 Cycles @0.2C
Max Charge Voltage : 53.2-54.75V
Weight : 88KG

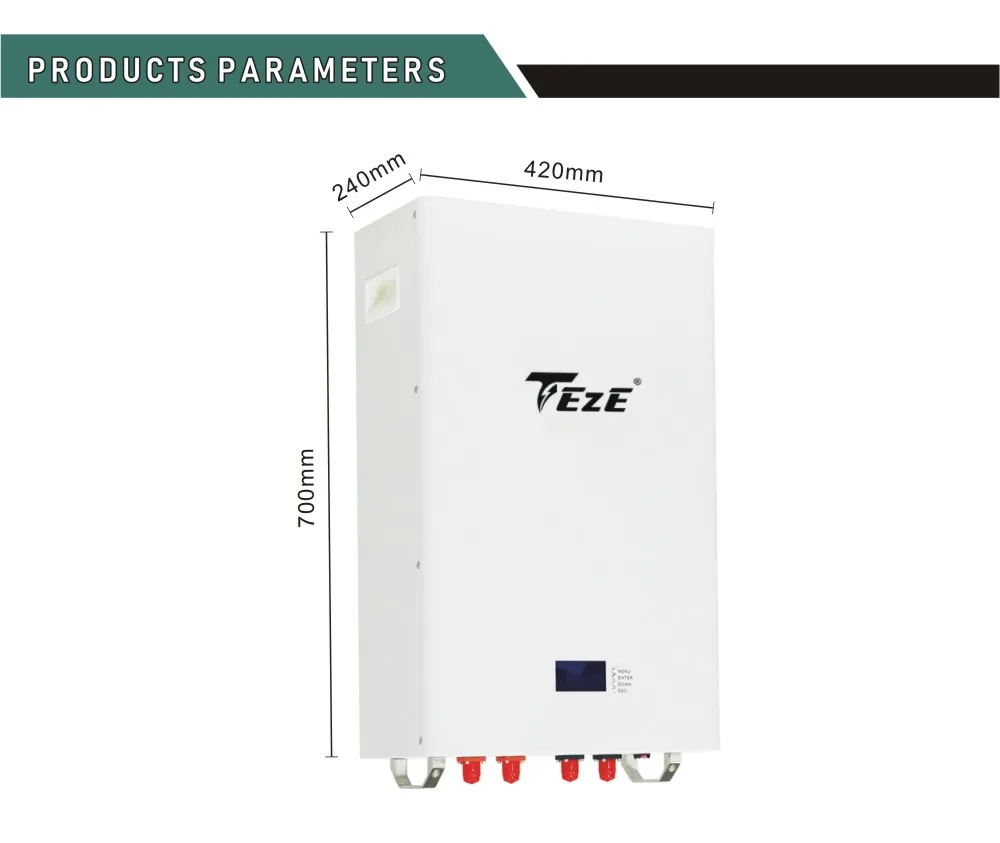

Dimensions(L*W*H) : 700x400x235mm
Standard Current: 50A
Maximum Power：5KW
Maximum Charging Current : 100A
Maximum Dicharge Current : 100A
Charging Temperature : -5~55°C
Discharging Temperature : -20~60°C
Communication : RS485/CAN/RS232
Support Inverter Brand: GROWATT、Deye、GOODWE、VICTRON、SOFAR、SRNE、VOLTRONIC POWER, ETC….
10Kwh Storage System（16S）
Rate Capacity : 200Ah
Energy Power : 10343Wh
Nominal Voltage : 51V（16S）
Cycle Life : 6000 Cycles @0.2C
Max Charge Voltage : 57.6-58.4V
Weight : 95KG
Dimensions(L*W*H) : 700x400x235mm
Standard Current: 50A
Maximum Power：5KW
Maximum Charging Current : 100A
Maximum Dicharge Current : 100A
Charging Temperature : -5~55°C
Discharging Temperature : -20~60°C
Communication : RS485/CAN/RS232
Support Inverter Brand: GROWATT、Deye、GOODWE、VICTRON、SOFAR、SRNE、VOLTRONIC POWER, ETC….

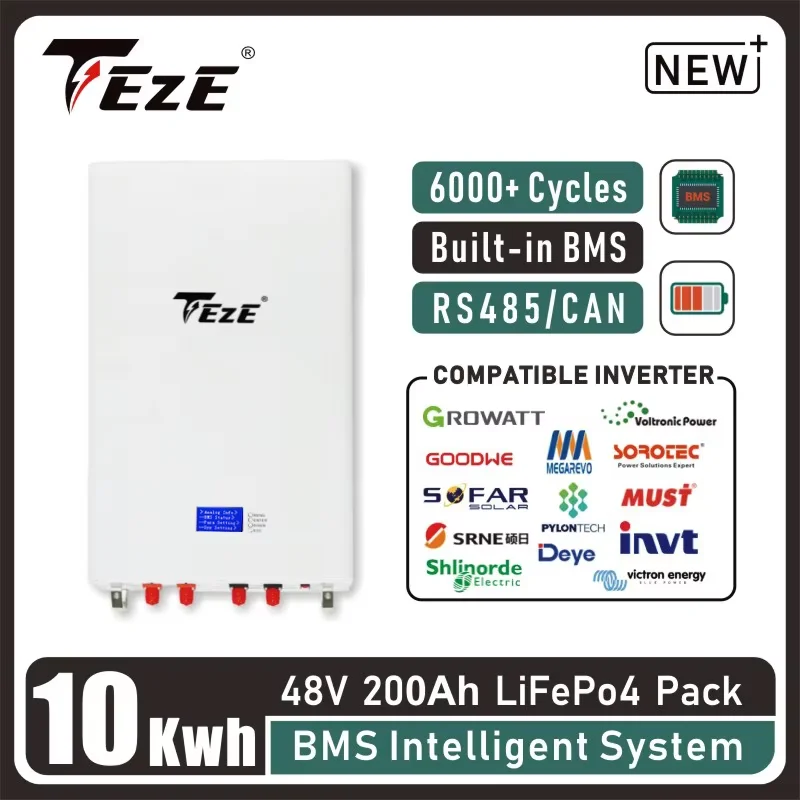

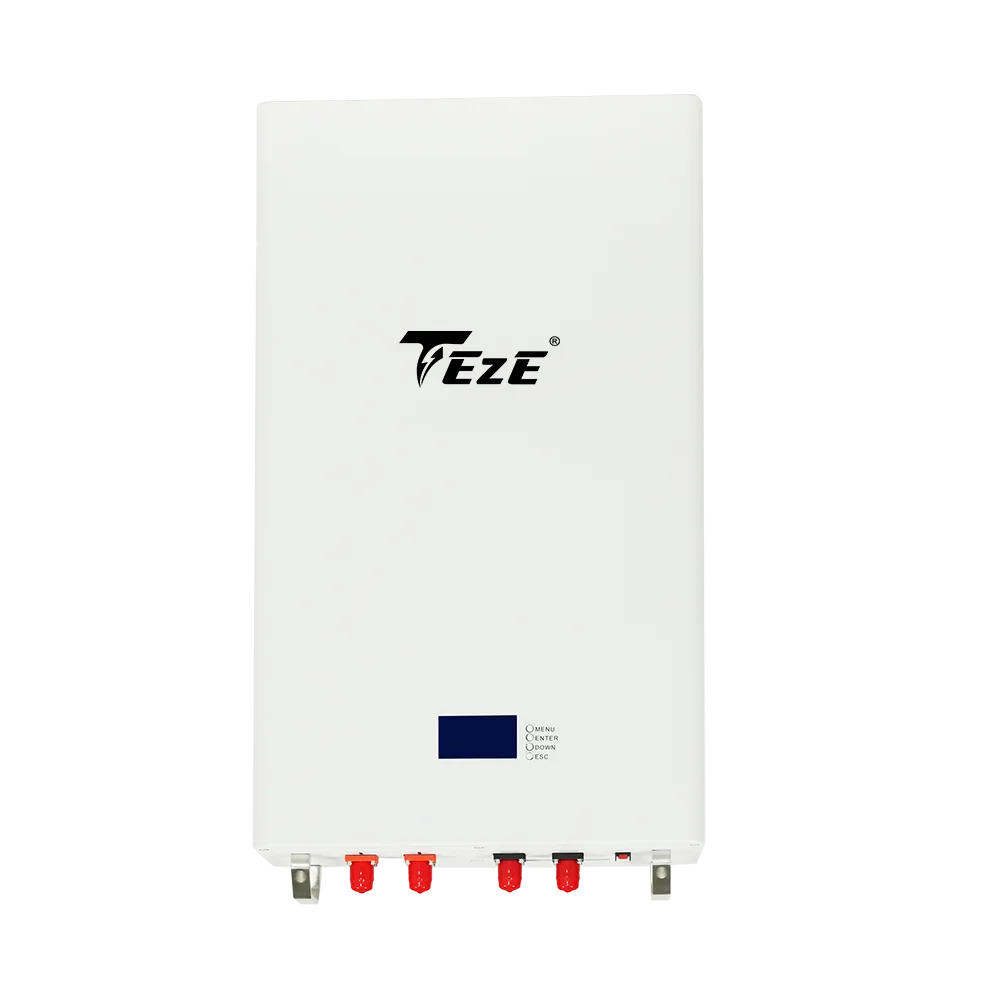

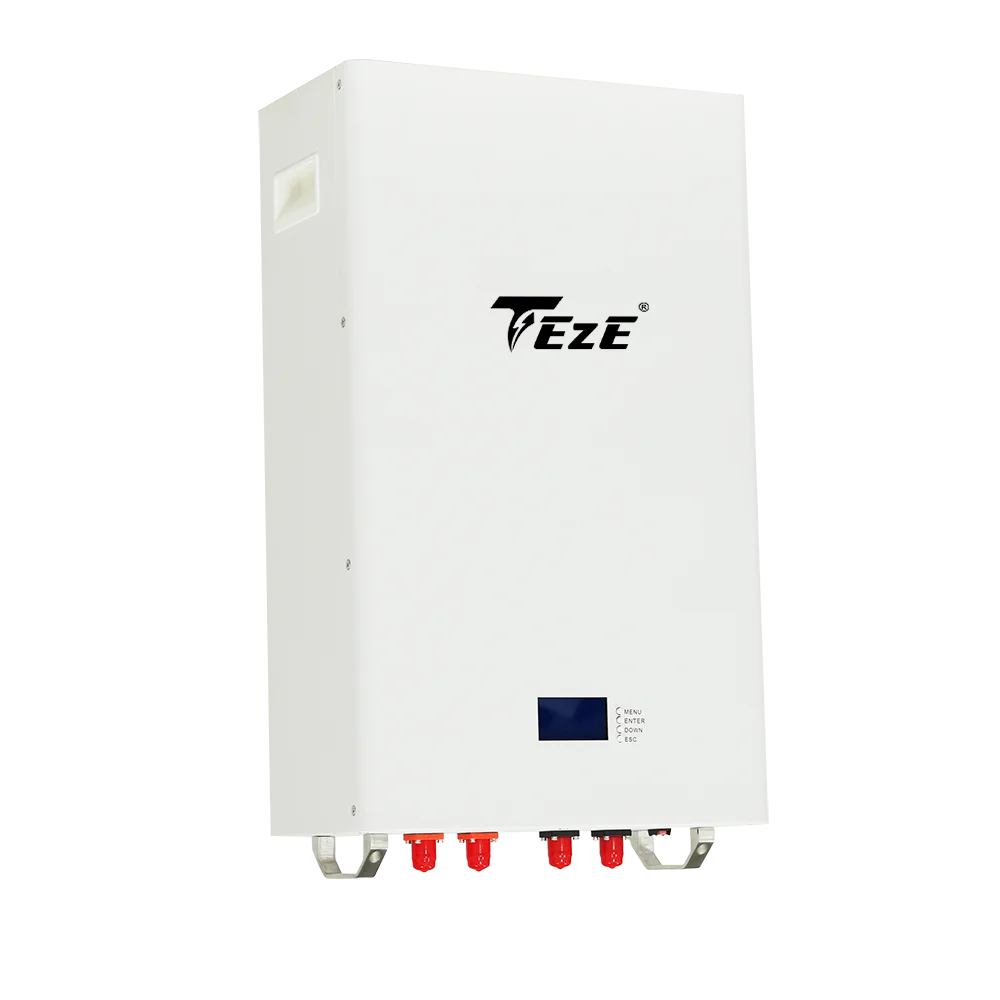

48V 200AH 10KWH Powerwall home energy storage system
1.RS485/CAN Communication
2.Built-in BMS
3.2X High Current Port

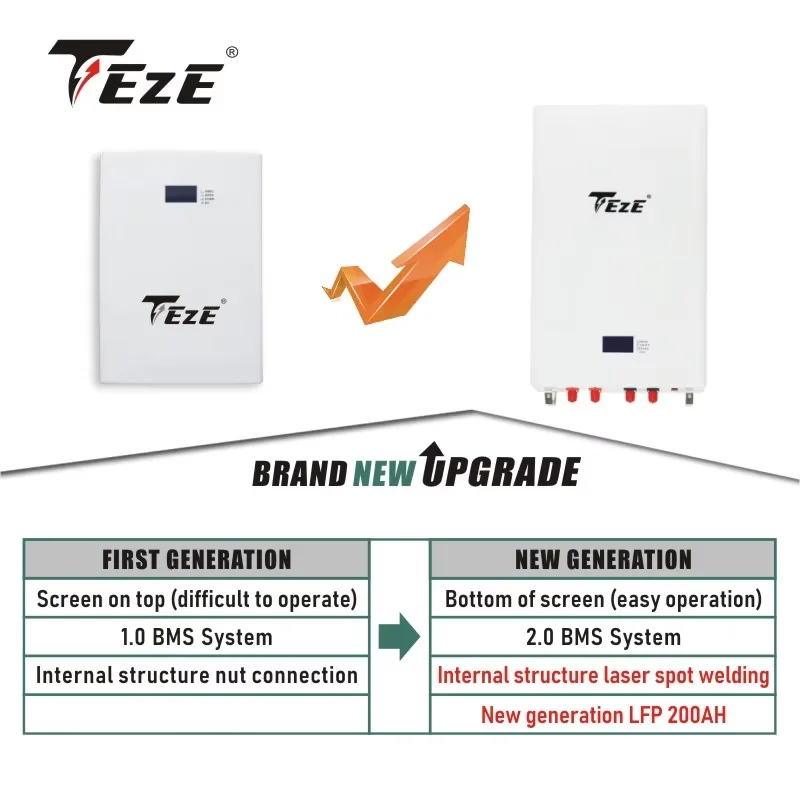

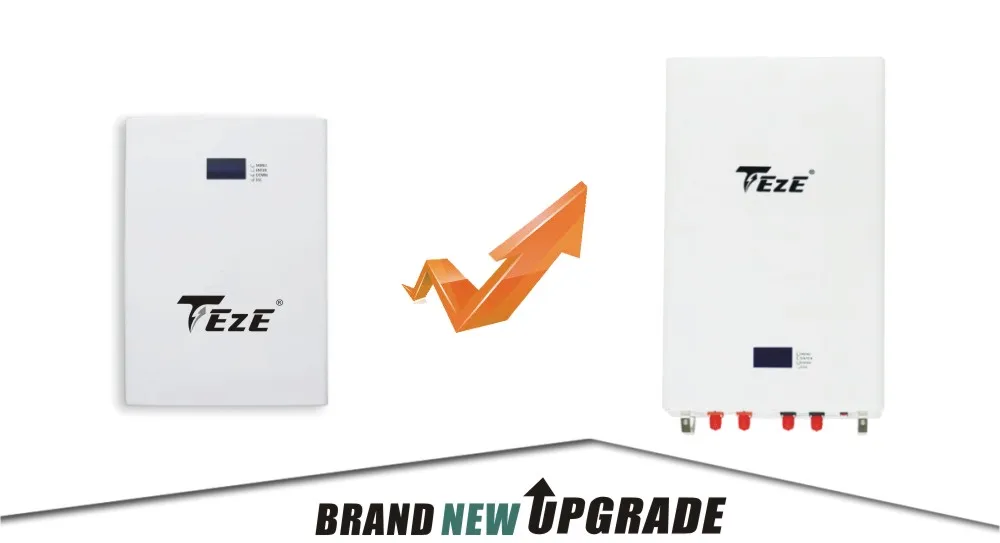

Brand New Upgrade

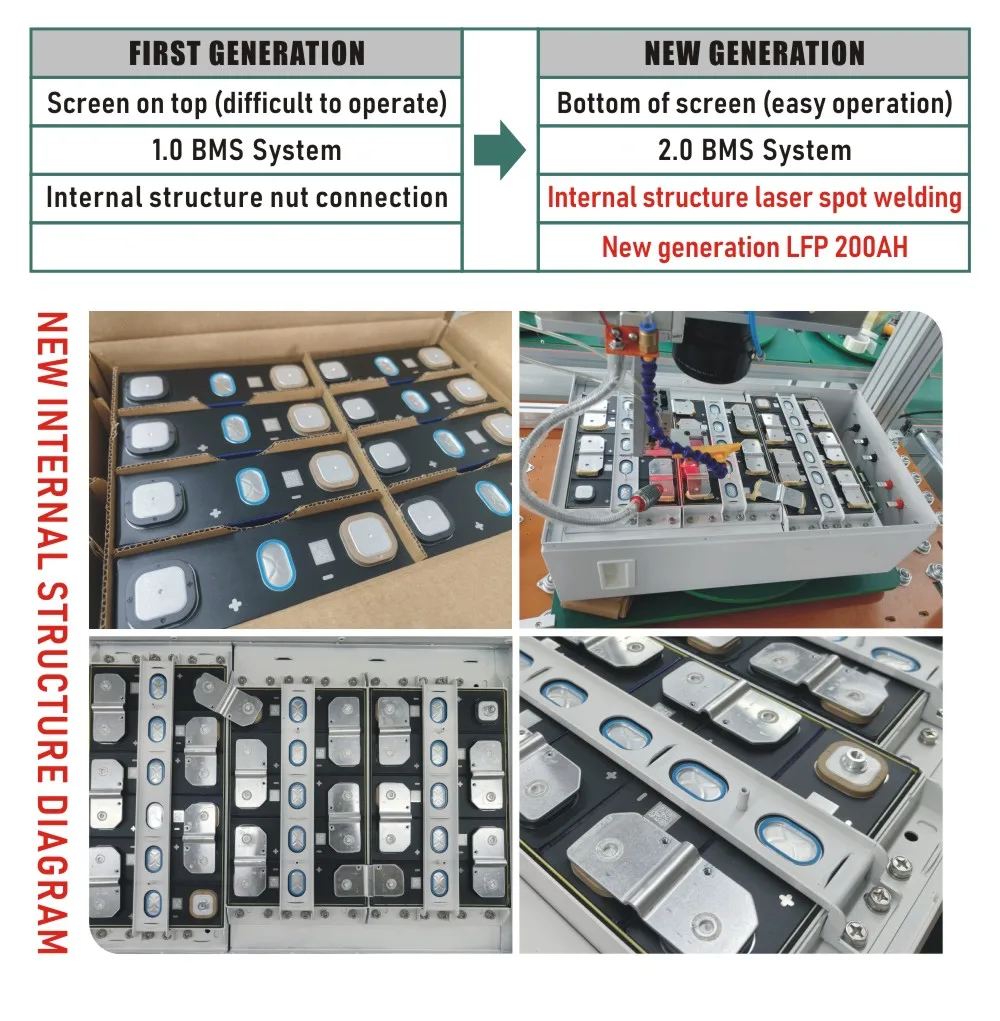

1.Screen on top(difficult to operate) to Bottom of screen(easy operation)
2. 1.0 BMS System to 2.0 BMS System
3.Internal structure nut connection to Internal structure laser spot welding New generation LFP 200AH

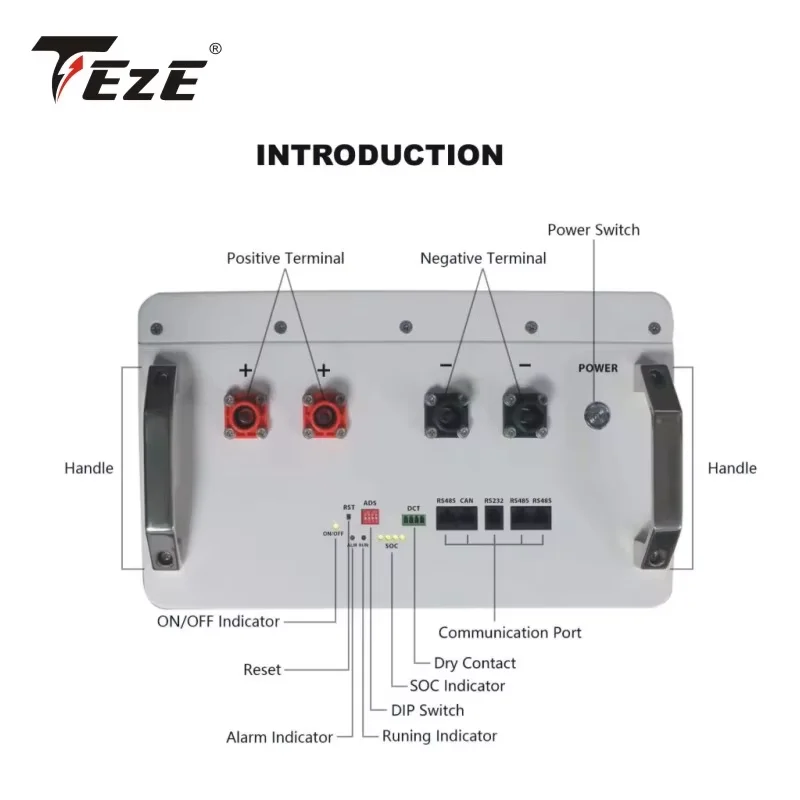

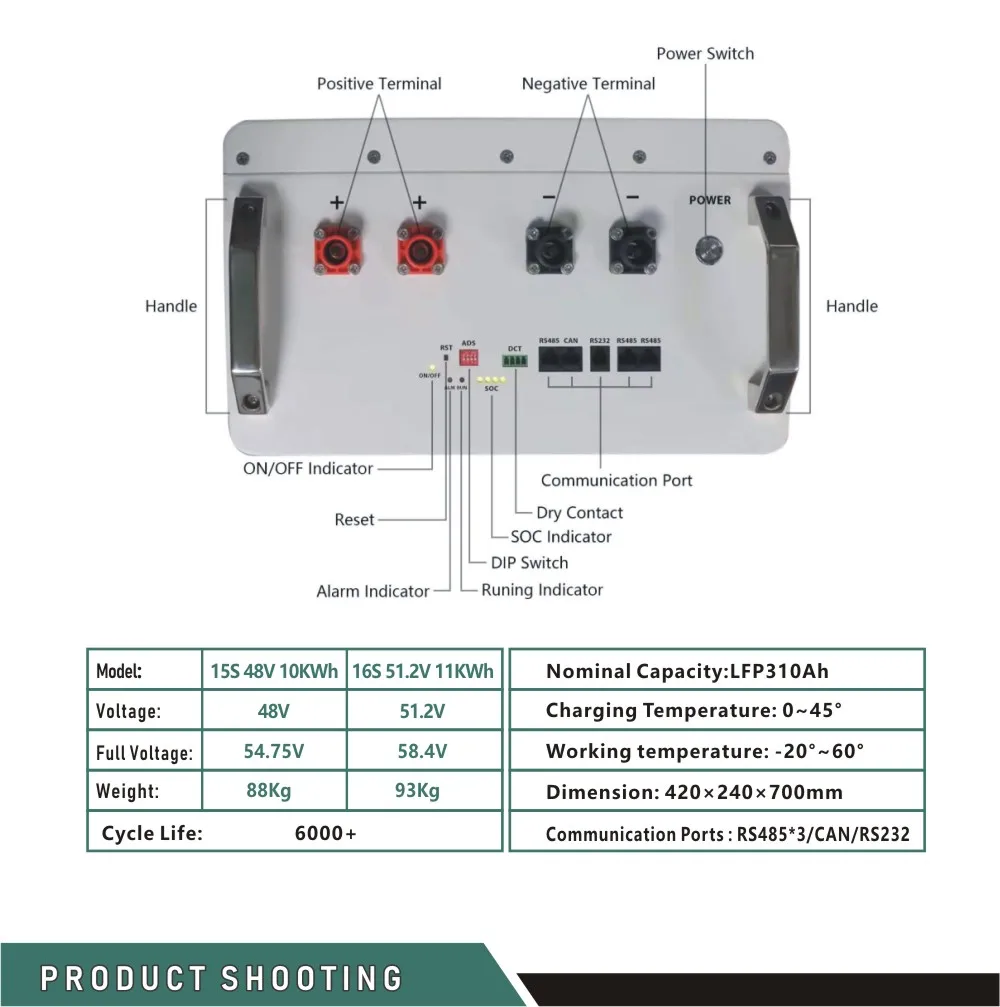

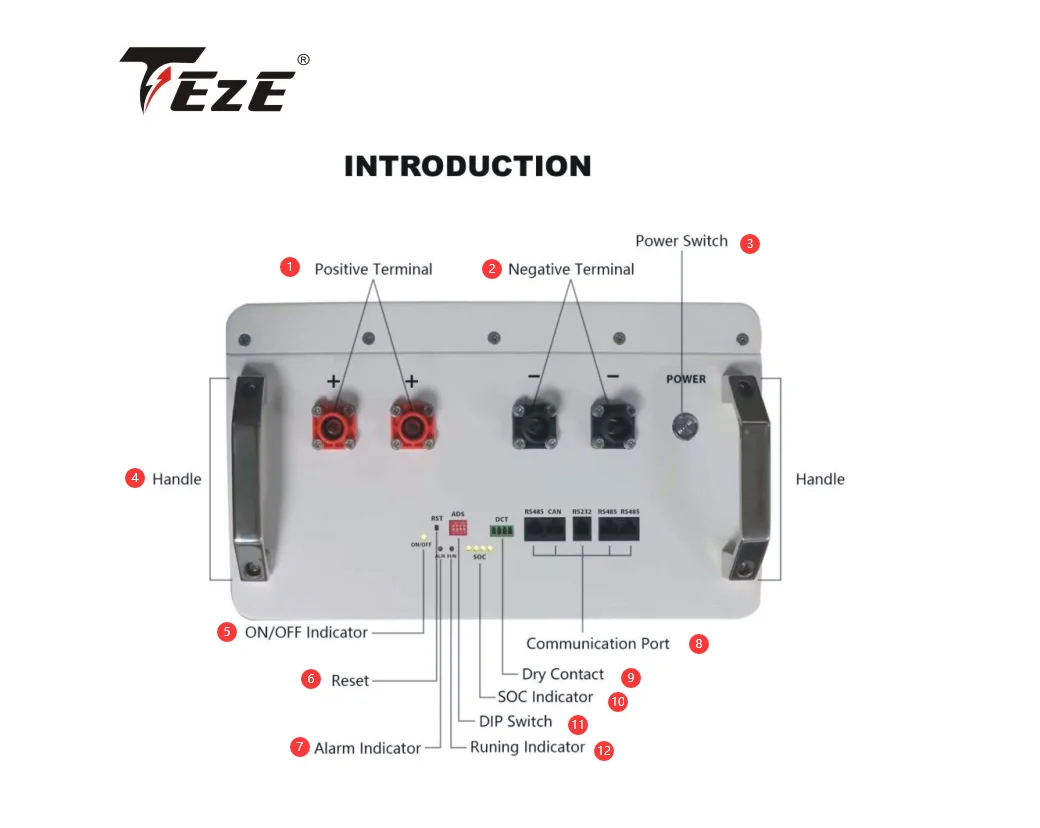

①Positive Terminal
②Negative Terminal
③Power Switch
④Handle
⑤ON/OFF Indicator
⑥Reset
⑦Alarm Indicator
⑧Communication Port
⑨Dry Contact
⑩SOC Indicator
⑪DIP Switch
⑫Runing Indicator

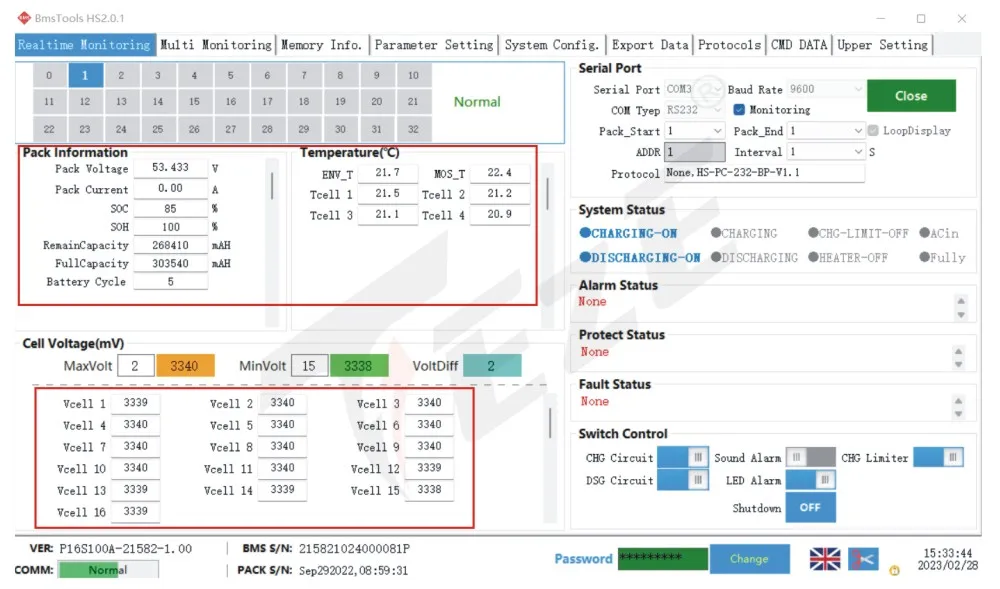

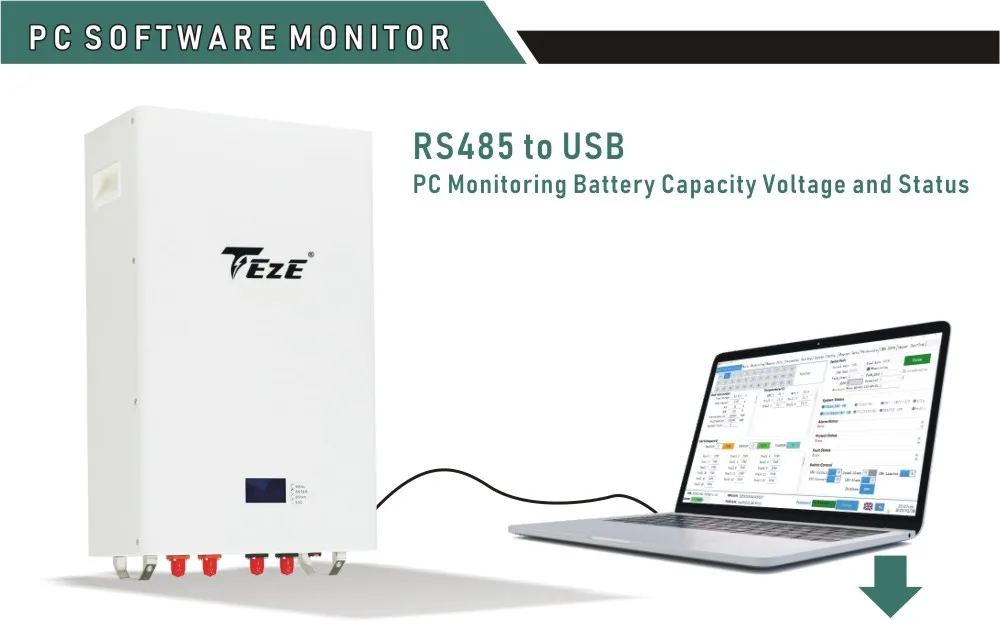

PC Software Monitor
RS232 TO USB
PC Monitoring Battery Capacity Voltage and Status

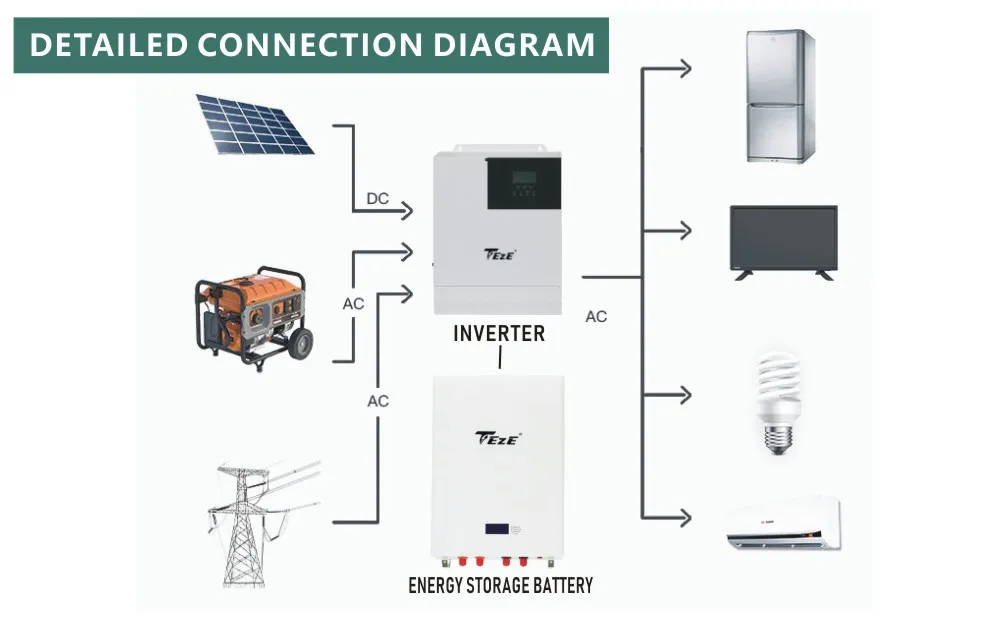

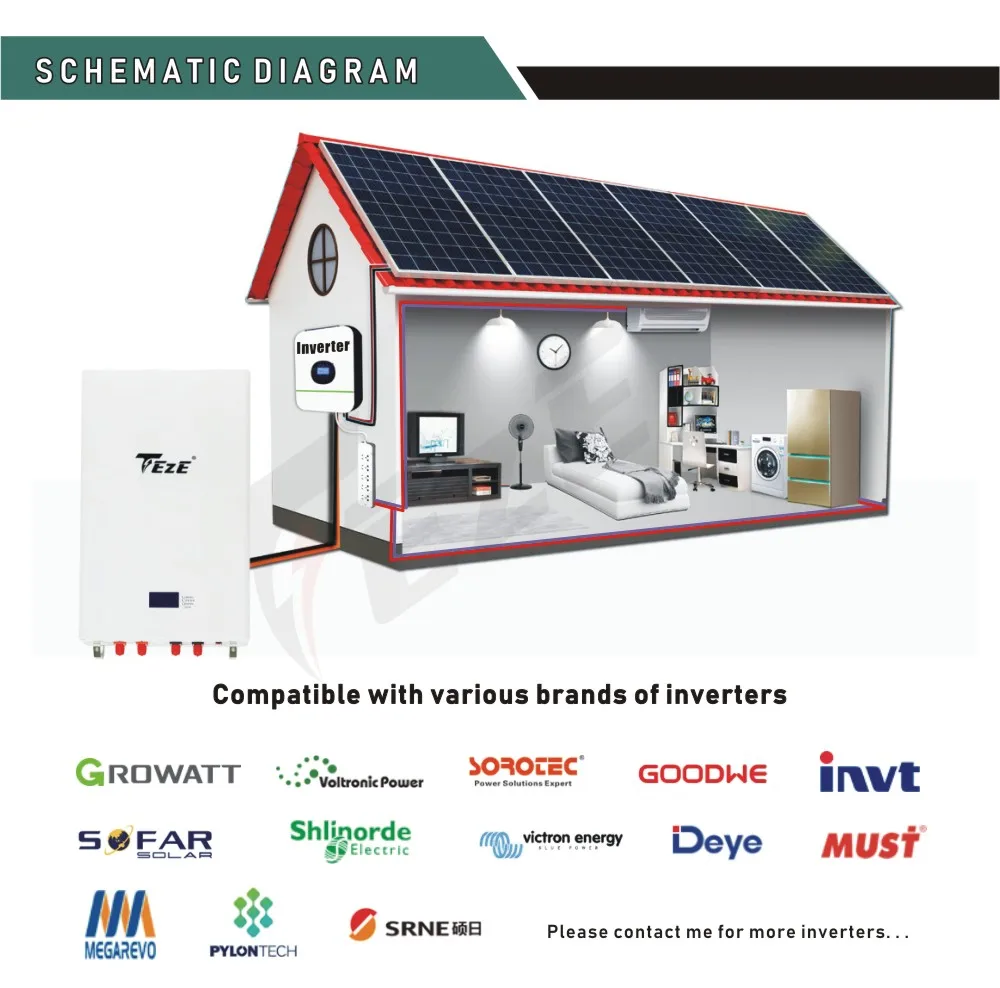

Compatible with various brands of inverters
Victron,Pylon,Deye,SMA,SRNE Solar,Growatt,Goodwe,Voltronic,MPP Solar,LUXPOWER,Sofarsolar,Megarevo,Tbbpower,
Schneider,MUST,ARUN,SOLAX,LTW,SZPC,BAYKEE

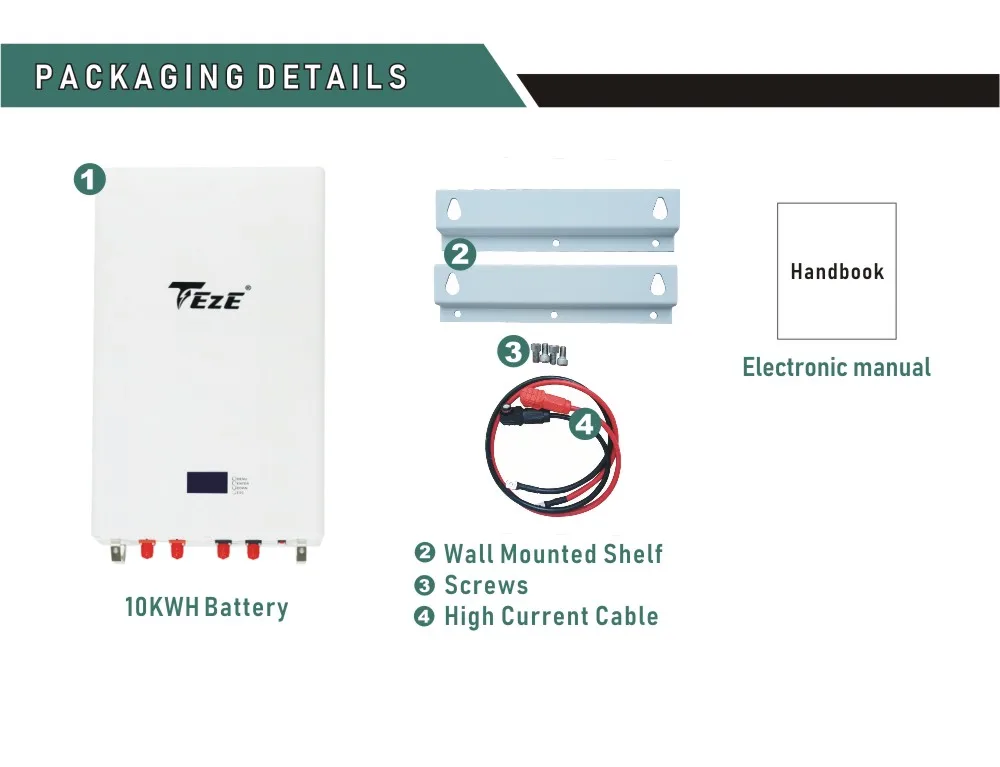

Packaging Details
1.10KWH Battery
2.Wall Mounted Shelf
3.Screws
4.High Current Cable

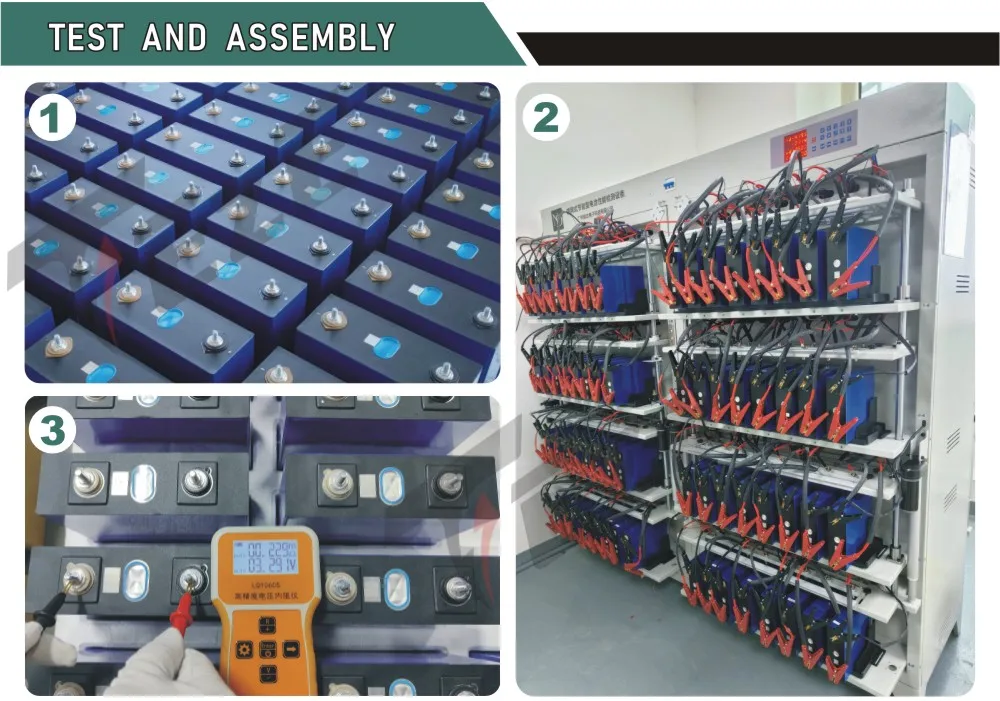

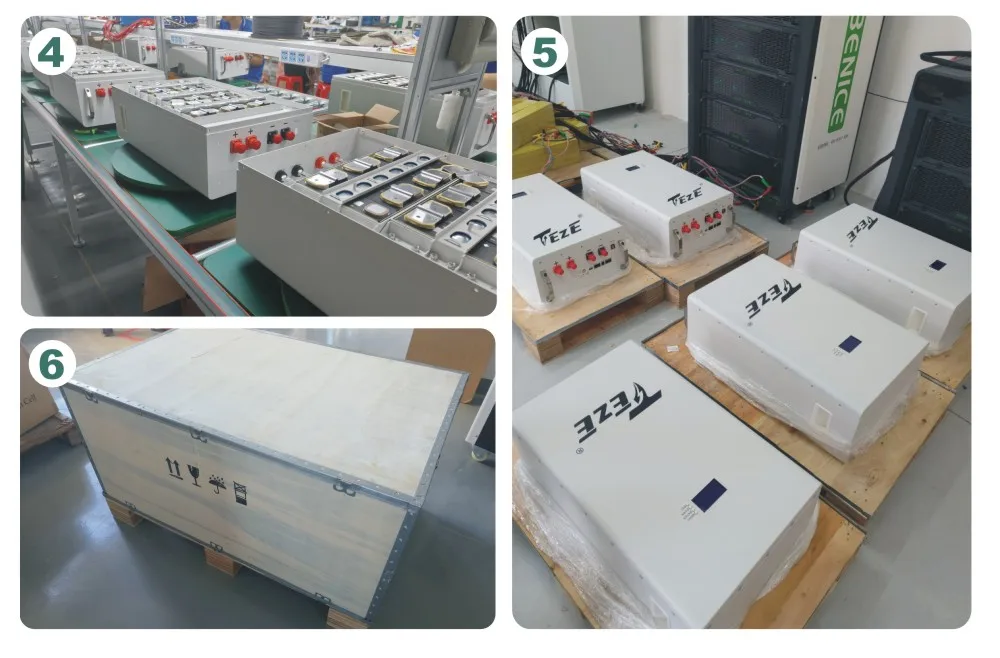

Real Pictures
—— Customer Reviews ——
Precautions
•No matter what the charging model is, once the temperature of the cell is above the absolute charging temperature, charging should be stopped.
• Please check the orientation of the positive and negative terminals before packaging.
•Connect the terminal or wire to the battery module, and pay attention to insulation to prevent short circuit.
• When not in use for a long time, the battery should be stored in a cool and dry place (<35°C, 30%~50% SOC, charge and discharge once every 3 months).
• Do not place the battery in direct sunlight or a heat source.
• Do not wear metal jewelry (such as rings, watches, accessories, etc.) when handling the battery unit.
Prohibited matters
Do not charge beyond the maximum charging rate.
Do not disassemble or modify the battery.
Do not throw or hit the battery.
Do not pierce the battery with sharp objects (such as nails, knives, pens, electric drills).
Do not mix with other types of batteries or modular units.
Do not excessively squeeze the battery during use.
Do not place the battery in a high temperature greater than 60°C.
Do not use conductive materials to connect the positive and negative terminals (such as metals, wires).
Very Important! About delivery and transportation Time&Please note:
1,The battery (especially the high-power battery you purchased) is a special commodity, the terms of transportation are very strict, all logistics companies in China, including China Post, UPS, FedEx, DHL, are unable to directly transport electricity Pool,
2,So we have shipped your order. Once the battery arrives in Europe or the US, we will declare the import at European or US customs. When the battery goes through European or US customs, we will ship it to you via UPS or FedEx. So the UPS number we provide will not be updated until the battery is over. This is a normal phenomenon.Secondly, we will help you solve the customs clearance problem.
3,Delivery takes 30-45 working days. Generally, 35-45 working days later, the package will arrive at the transfer station. After the customs clearance is completed, the package will be picked up and delivered, and the logistics information will be updated. Once the shipping number is updated, you can receive the goods within 3-5 days at most.
