- Hign-concerned Chemical: None
- Use: others
- Output Power(w): 25w-50w
- Battery Capacity(mAh): 0
- Waterproof / Water-Resistant: IP45
- Battery Included: No
- Material: Strong Polycarbonate Plastic
- Storage Channel: 200
- Frequency Range: Optional 136-174/400-480MHz/200-260Mhz
- Dimensions: 145*47*190mm
- Model Number: TH-9000D Plus/Pro
- Walkie Talkie Type: Car
- Is_Display: Yes
- Maximum Range: 10km-50km
- Brand Name: TYT
- Origin: Mainland China
- Certification: CE,Dot,EAC,EPA,FCC,GMP,RoHS,TGA,UL,KC,pse,weee
- Net Weight: 2005G Approx.
- Color: Black
- Package: Box
- Item: TYT
- Output Power: 60W/45W
- Voltage Rating: DC 13.8V
- Item Name: Car Walkie Talkie
- LCD: Color LCD display
- Optional Frequency1: VHF: 136-174Mhz
- Optional Frequency2: UHF:400-490Mhz
- Optional Frequency3: 200-260Mhz
latest firmware. do not update any more!!!

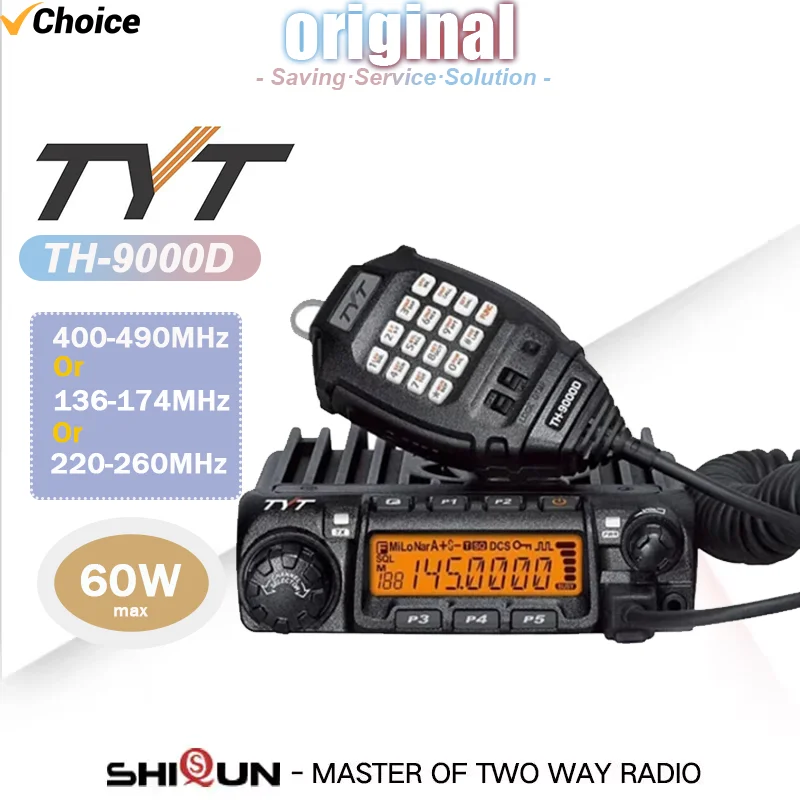

TYT TH-9000D Plus/Pro
Optional Bands
136-174MHz / 400-490Mhz / 200-260Mhz
45W/60W . 200CH . 8 Groups Scrambler
Car Truck Mobile Ham Radio
Frequency Range: VHF:136-174MHz 245-245.9875MHz (220-260MHz);
UHF: 400-480MHz. (These Frequency Range can be selectable to use.)
– Output Power: VHF: 10W/25W/60W UHF: 45W/25W/10W
– 8 Group’s of Scrambler
– 1750Hz Tone CTCSS/DCS setting & scanning
– 0-9 SQL grade setting
– Frequency/Channel scanning
– High/Mid/Low power selectable
– Voice commander
– Repeater offset shift
– Keypad lock function
– Contact book
– Battery voltage display
– DTMF/2 tone/5 tone
– ANI ID
– Remote kill/ stun/ activate/ revive
– Emergency alarm
– Wide/Narrow band setting
– TX inhibit
– Busy Channel Lock-Out
– Channel name editing
– Reverse frequency
– Talk around
– Scrambler(Optional)
– Voice prompt
– Time-out Timer
– Auto Power off
– VFO step setting:5/6.25/10/12.5/20/25/50kHz
|
|

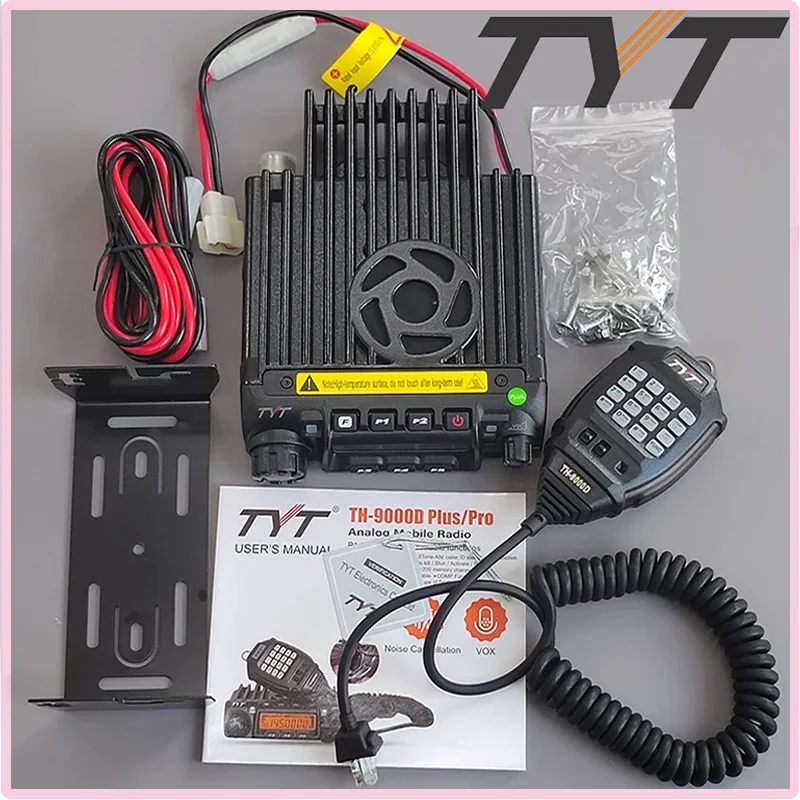

1 x Mobile radio
or
or
1 x Mobile radio+1 x Power cable
and the products in the picture you have selected.
and the products in the picture you have selected.
General:
Frequenvy Range: 136-174/245-246 (220-260MHz) /400-490MHz
Channel Capacity: 200
Channel Spacing: 5/6.25/8.33/10/12.5/15/20/25/30/50KHz
Freruency Stability: 2.5ppm
Operating Temperature: -20℃ ~ + 60℃
Operating Voltage: 13.8V DC ± 15%
Dimension(HxWxD): 145mm x190mm x47mm
Weight(with bracket): 1200g
Receiver:
Reference Sensitivity: 0.2μV @ 12dB SINAD
Operating Bandwidth: 60dB@12.5KHz /70dB@25KHz
Adjacent Channel Selectivity: 60dB@12.5KHz 70dB@25KHz
Inter-modulation Rejection: ≥60dB/ ≥65dB
Spurious Response Rejection: ≥70dB
Rated Audio Response: +1-+3dB
Rated Audio Distortion: <5%
FM Hum&Noise: ≥40dB@25KHz /≥45KHz @12.5KHz
Transmitter:
RF Power: 45W/25W/10W (UHF)/60W/25W/10W (VHF)
Frequency Modulation: 11kΦF3E / 16kΦF3E
Modulation Distortion :< 5% FM Noise: ≥36dB@25KHz /≥40KHz @12.5KHz
Adjacent Channel Power: ≥60dB@12.5KHz /≥70KHz @25KHz
Audio Response: +1-+3dB
Audio Distortion: <5%
