- Hign-concerned Chemical: None
- Use: Motor vehicle
- Output Power(w): 25w-50w
- Battery Capacity(mAh): –
- Waterproof / Water-Resistant: No
- Battery Included: No
- Material: Metal
- Storage Channel: 809
- Frequency Range: 10M/6M/2M/70CM
- Dimensions: 145*47*190mm
- Model Number: TH-9800
- Walkie Talkie Type: Car
- Is_Display: Yes
- Maximum Range: 10km-50km
- Brand Name: TYT
- Origin: Mainland China
- Certification: CE,FCC

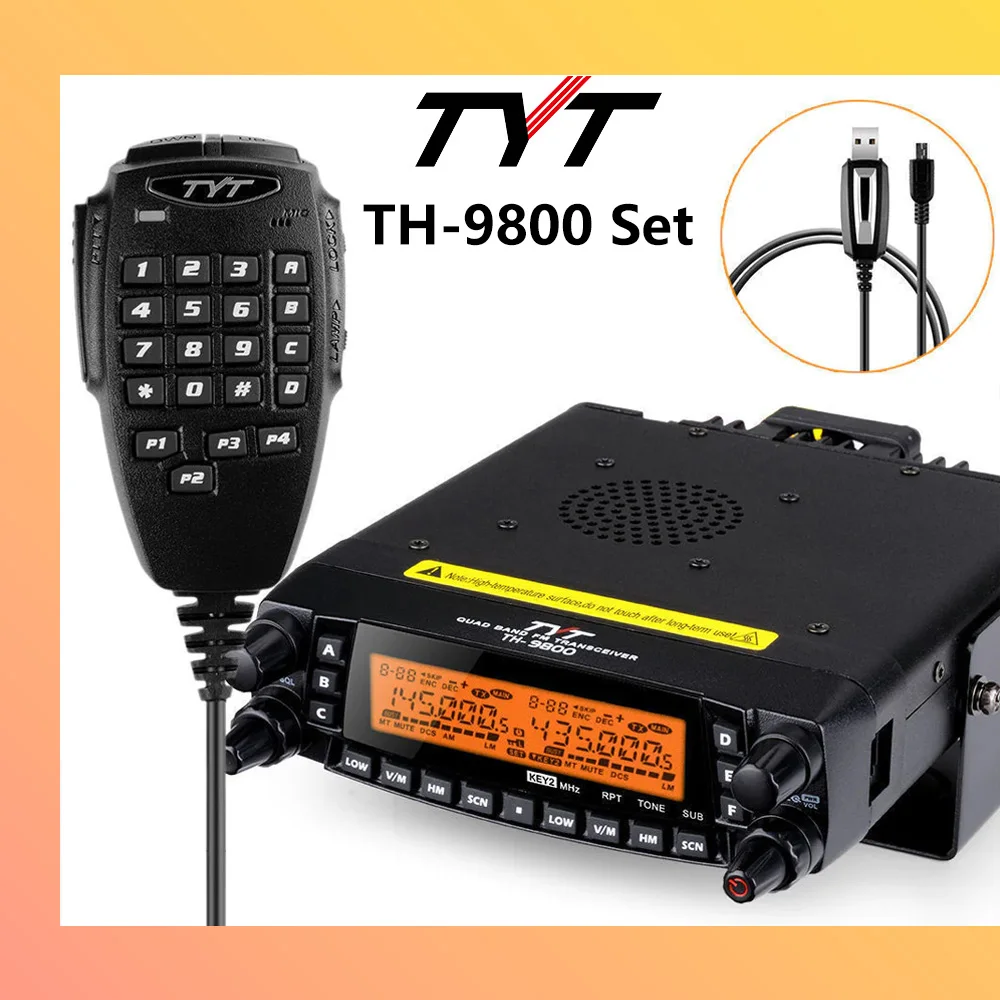

TYT TH-9800 Mobile Radio 50w Quad Band Transceiver TH9800 Walkie Talkie Car Truck Radio Repeater Scrambler
Main Features:

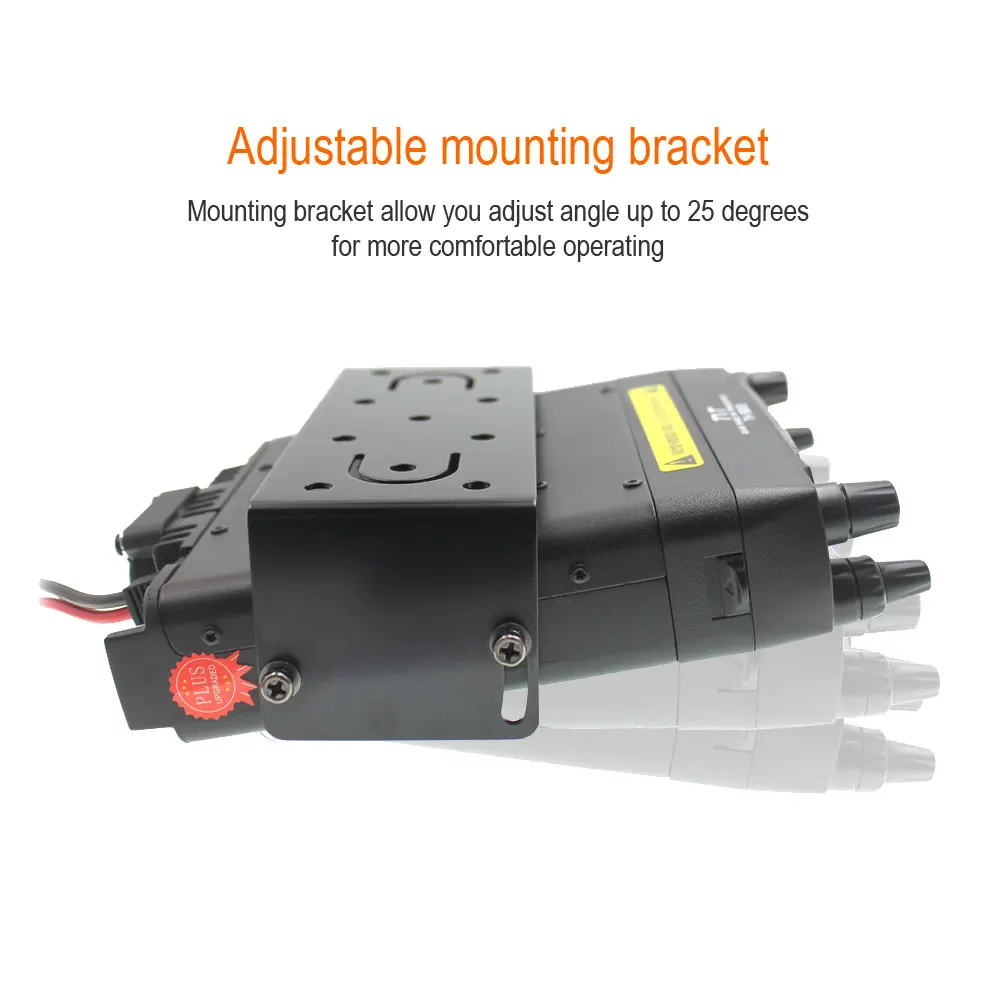

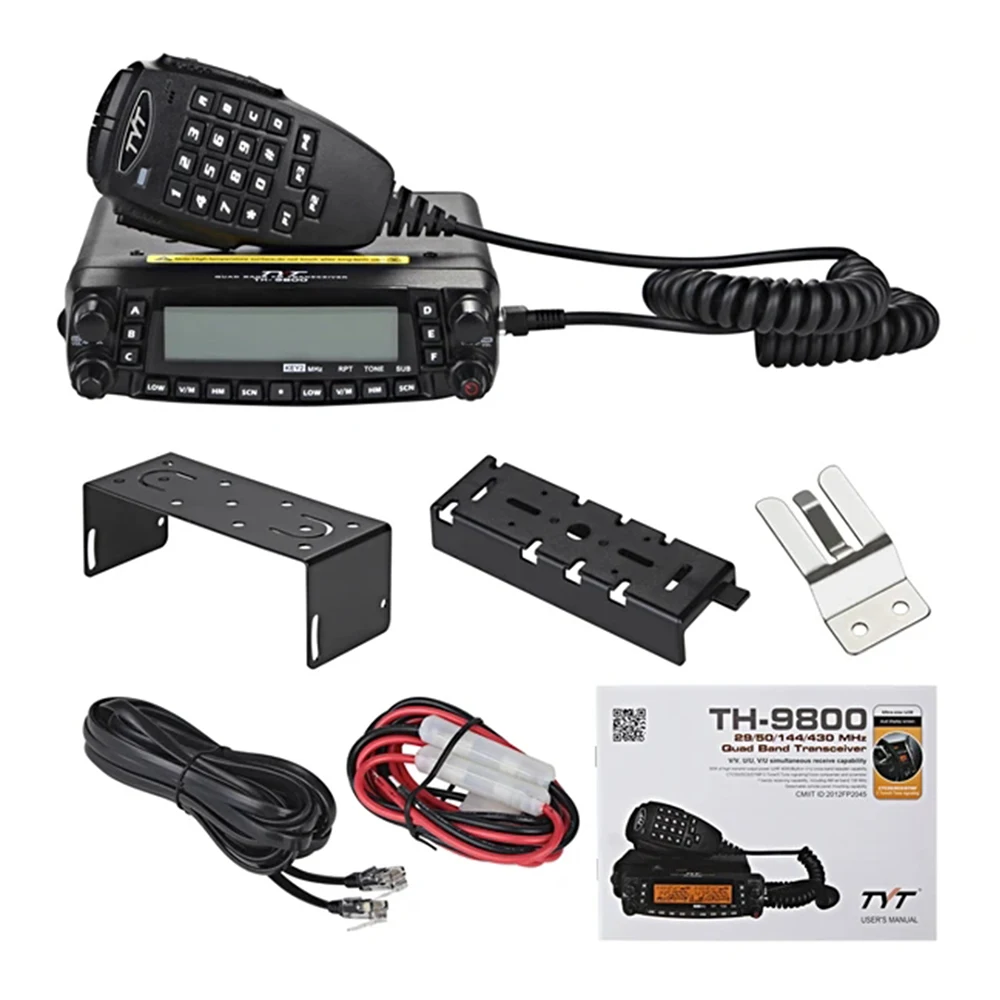

★★ Welcome to Off-Road Equipment, The Latest Plus Version of TYT TH-9800, 50W/40W Full Quad Band Dual Display FM Amateur Mobile Radio/Transceiver, A MUST HAVE For all HAMs, FUN & GREAT VALUE as BASE STATION. Size: 5.5 x 1.6 x 6.6″, Weight: 2.65 lbs. Package Content: TYT TH-9800, Mic Hanger, Power Cable, Mounting Bracket & Screws, User Manual, Programming Cable & Factory Disc.
★★ Frequency: TX 26-33(10M)/47-54(6M)/136-174(2M)/400-480MHz(70CM), RX: 26-33/47-54/108-180/320-512/750-950MHz (P.S. AM mode selectable on VHF receive frequencies for Air Band reception), Output Power VHF: 50/20/10/5W UHF: 35/20/10/5W.
★★ Features: V/V, U/U, V/U Simultaneous Receive, V+U Cross-Band Repeater,

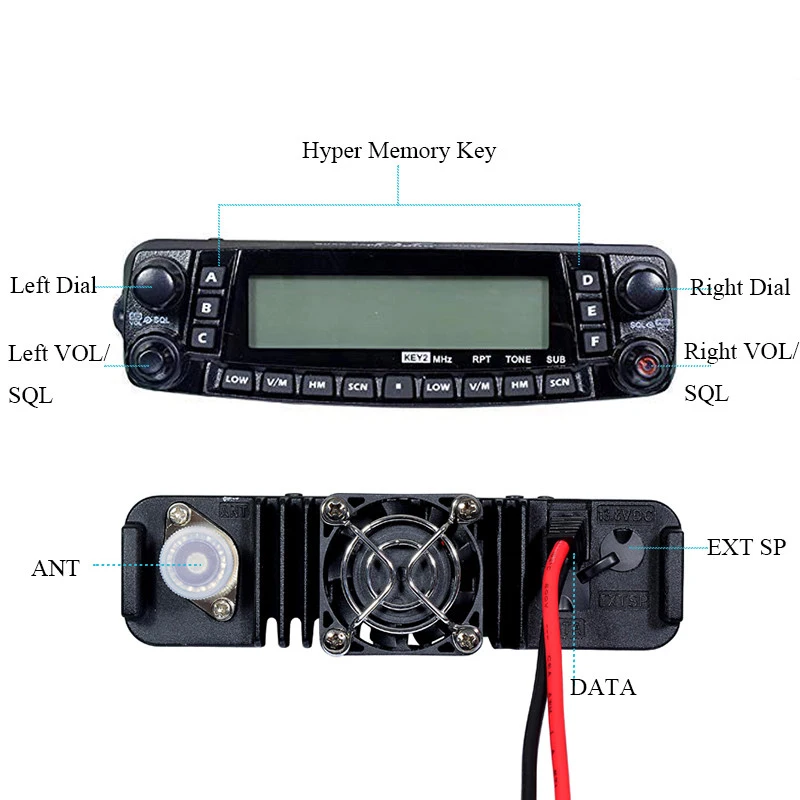

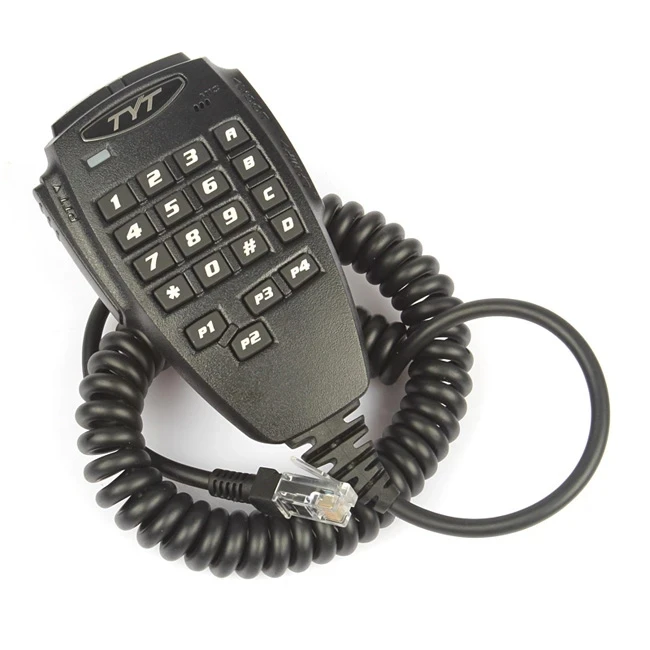

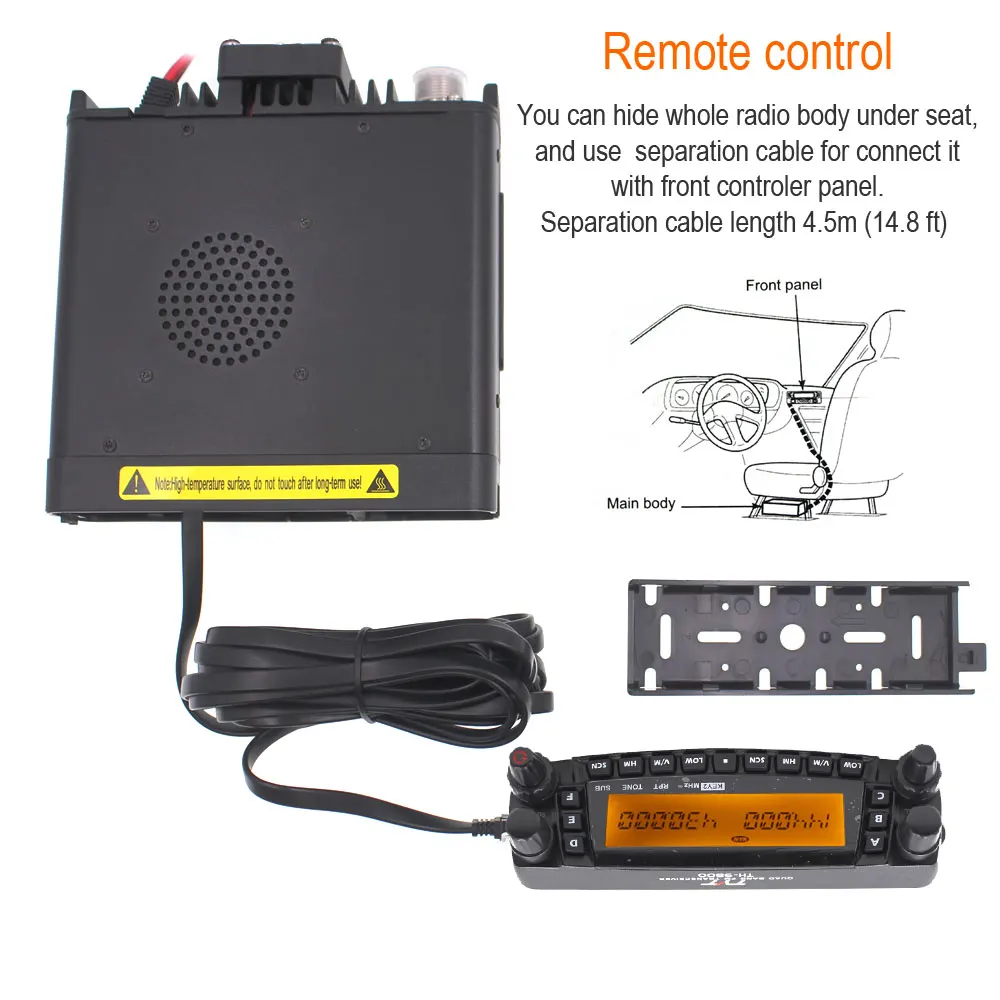

Full Dual Display and Receive, High/Mid1/Mid2/Low Power Setting, Wide/Mid/Narrow Bandwidth Selectable, CTCSS/DCS, DTMF, 2 Tone & 5 Tone, Voice Compander & Scrambler, Remote Detachable Faceplate, 809 Alphanumeric Memory Channels, SQL, Scan, TOT, Full Direct Entry Keypad Mic.
Feature:
– Channel Capacity: 809 Alphanumeric Memory Channels
– Channel Spacing: 2.5/5/6.25/7.5/8.33/10/12.5/15/25/30/50/100KHz
– Operating Voltage: 13.8VDC (±5%)
– Current Consumption(Approx): RX: 0.5A (Squelched); Feature:
– Outstanding 0.2uV sensitivity across 10M/6M/2M/70CM bands
– Brilliant crossmodulation, intermodulation rejection and strong signal performance-similar to commercial radios
– Commercial quality and commercial performance
– 809 memory channels

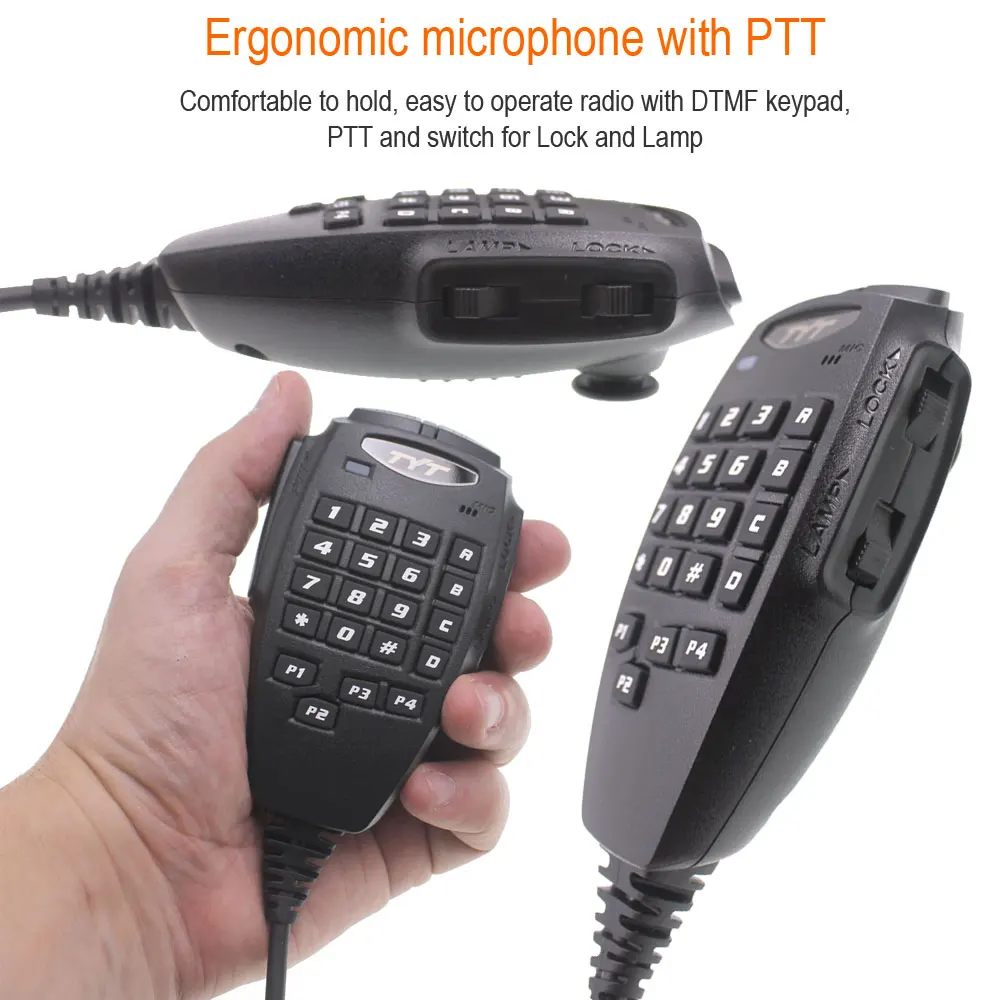

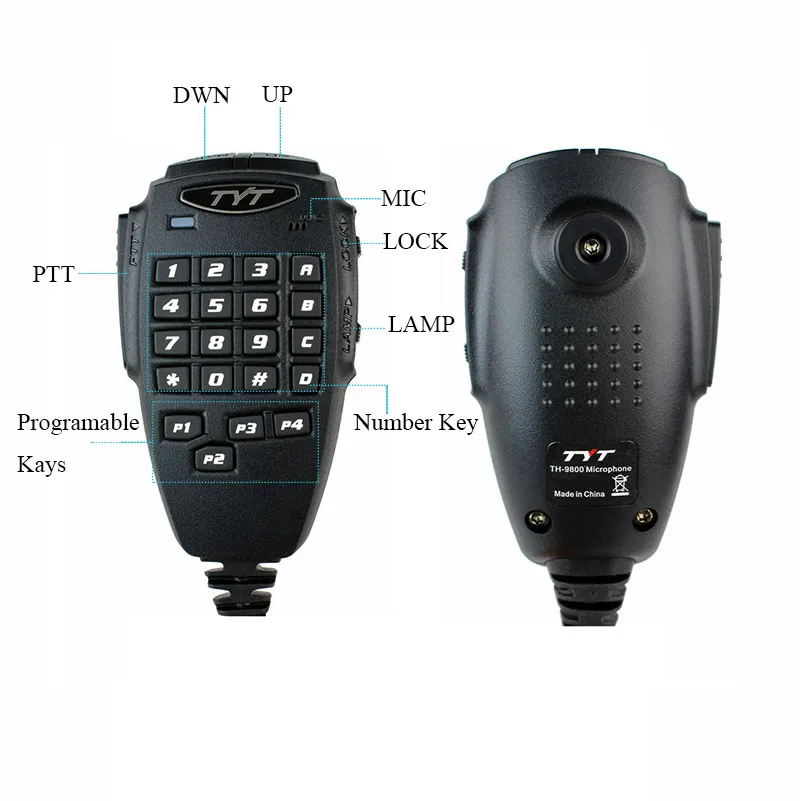

–Â DTMFÂ mic
– Digital FM broadcast band radio
– High/mid1/mid2/low output power levels
– Reverse frequency selection
– Dual (V/U) squelch set levels
– Dual repeater offsets selectable
– Multi-function scanning
– Repeater offset selectable
– Keypad lock function
– Channel name editing
–Â CTCSS/DCSÂ encode/decode
– Dual Band/Dual Receive: (Full Duplex)
– Cross Band Repeat
–Â TXÂ Power:Â 5-50Â Watts
–Â Memories:Â 256

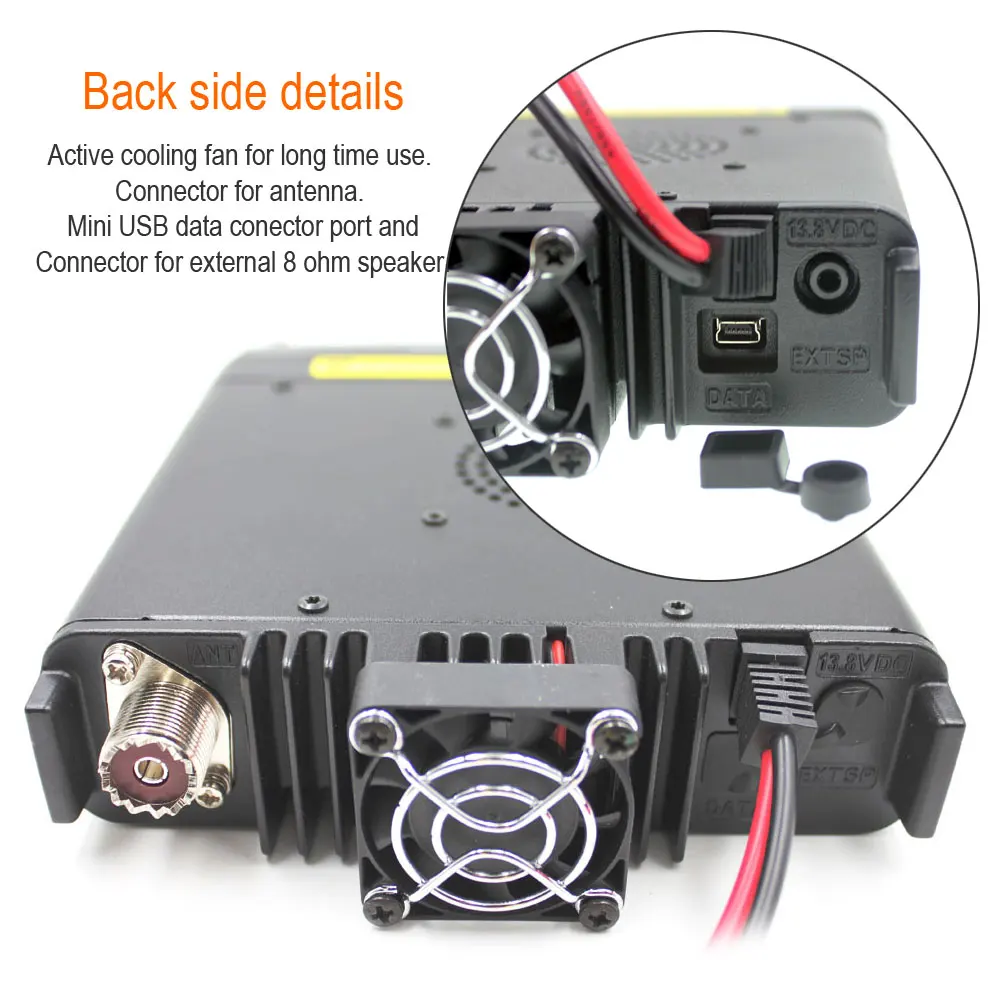

– Antenna Connection: Single SO-259S
|
General |
|
|
Frequency Range (Default) |
26-33MHz / 47-54MHz(RX/TX)(AMbandRX) |
|
Channel Steps |
2.5/5/6.25/7.5/8.33/10/12.5/15/25/30/50/100 KHz |
|
Modes of Emission |
FM |
|
Antenna Impedance |
50 Ohms, unbalanced (Antenna Duplexer built-in) |
|
Frequency Stability |
± 5ppm |
|
Operating Temperature Range |
-20°C~ +60 °C |
|
Supply Voltage |
13.8 V DC (±5%) |
|
Current Consumption |
RX: 0.5 A (Squelched)TX: 8.5A |
|
Case Size (W x H x D) |
140 x 41.5 x 168 mm |
|
Weight |
1.2 Kg Â
|
|
Transmitter |
|
|
Output Power |
50 / 20 / 10 / 5W (29/50/144 MHz) |
|
Maximum Deviation |
± 5KHz |
|
Spurious Radiation |
< -60dB (29 MHz: < -50dB) |
|
Modulation Distortion |
<3% |
|
Microphone Impedance |
2 kΩ Â
|
|
Receiver |
|
|
Intermediate Frequencies |
49.95 MHz / 450 KHz (Left band) |
|
Sensitivity (for 12dB SINAD) |
<0.2 μV |
|
Squelch Sensitivity |
< 0.16 μV |
|
Selectivity |
12 KHz/30 KHz |
|
Maximum AF Output |
2 W @ 8Ω for 5% THD Â
|
