Features

1. Plug and play, simple installation method , don't need to change and disassemble the original car equipment
2. 7 inch universal, suitable for all model. For VW / Nissan / Toyota / Honda / SEAT / KIA / HYUNDAI / FORD / MAZDA…
3. Support connection to the original car Radio, use the original car sound quality, retain the original car Radio and functions
4. Wireless Carplay & Android auto, suitable for Apple and Android mobile phones, you can synchronize mobile phone pages when you get in the car
5, Support Bluetooth, support hands-free calls, Bluetooth music. . .
6. Support Multiple Devices. Connect up to 2pcs devices

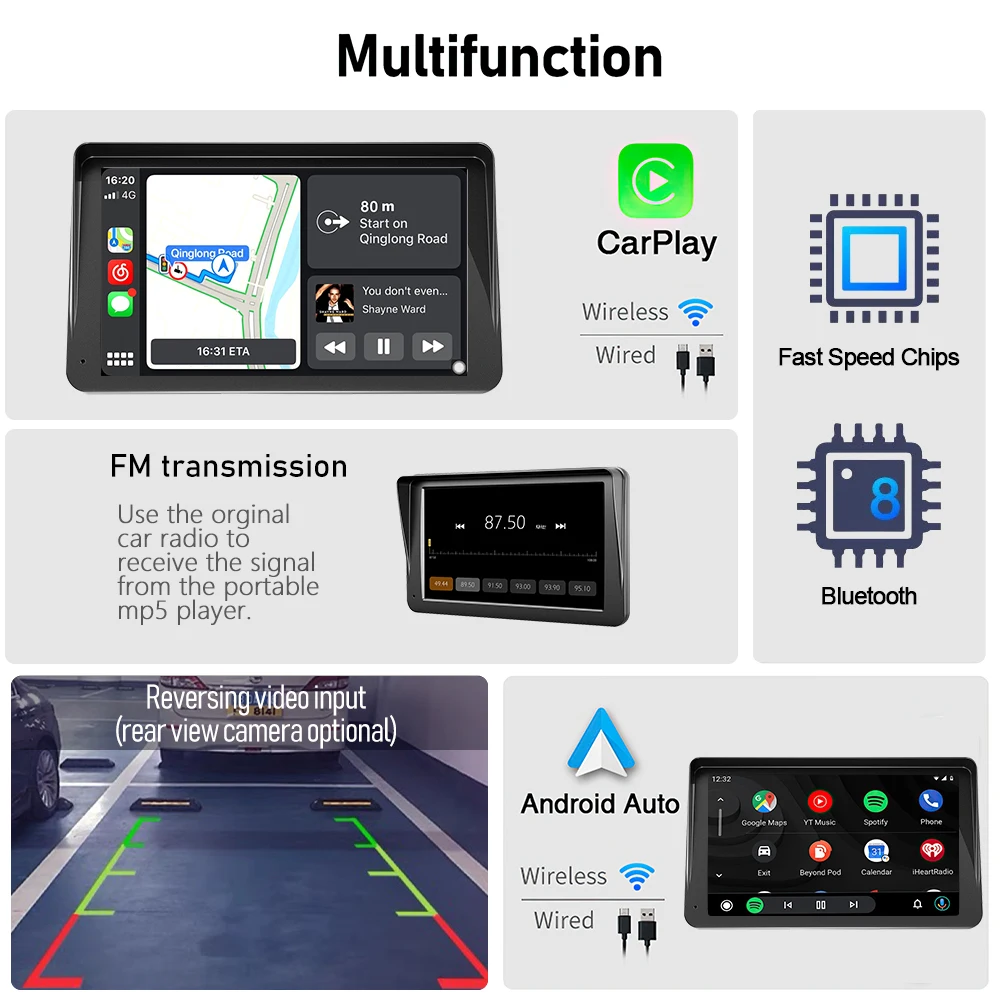

7. Support SD Card, play music and video Wireless Carplay/Wireless Android Auto/Reverse Camera

Operation System :Linux OS

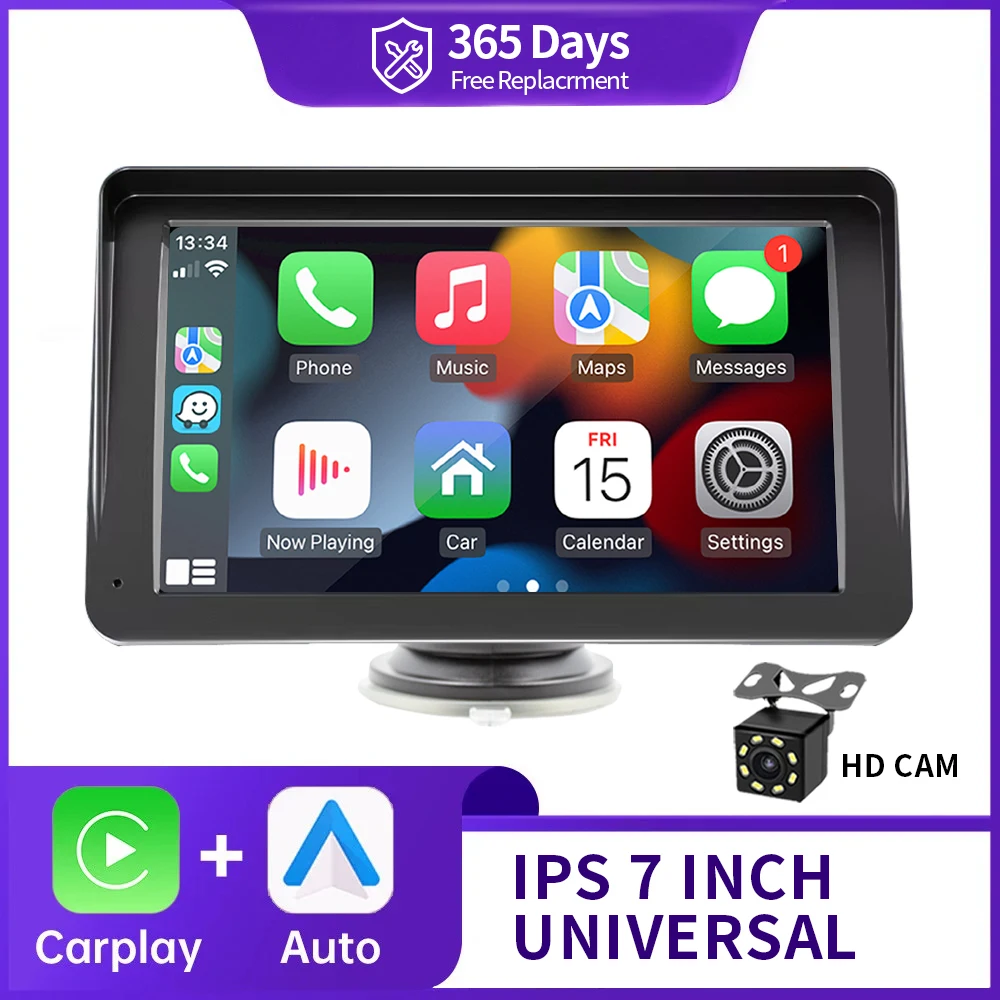

TFT Display:7" IPS 1024*600 resolution

Touch Screen:Capacitive Touch Screen

bluetooth:BT5.0

wiFi:2.4G+5G

speaker:3W/4Q

Working Voltage:12V-24V

FM Radio:87.5MHz-108MHz

U disk:Maximum to 256GB

Micro SD:Maximum to 256GB

AUX IN:3.5MM

Backup Camera in:2.5MM

Multi-Language:English, Korean, Russian, Japanese,German, Italian, Arabic, French, Portugal Function Introduction

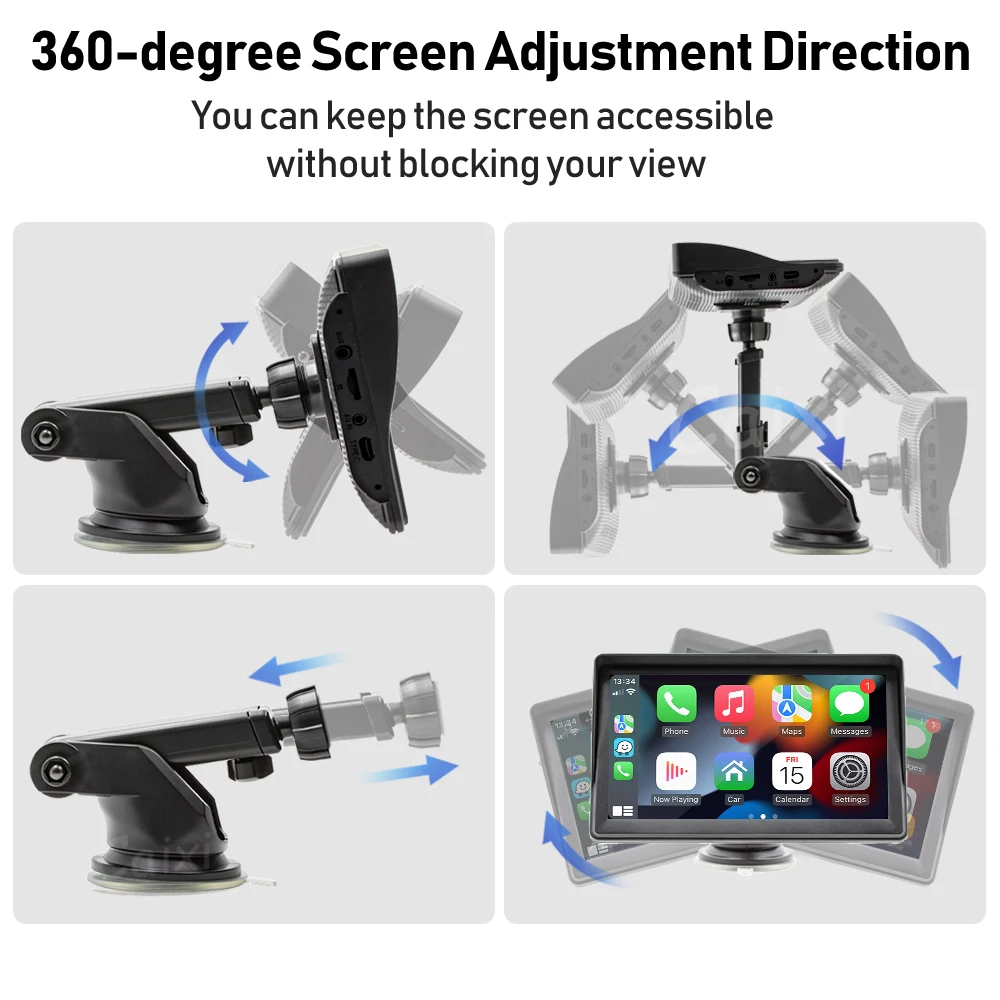

360-degree Screen Adjustment Direction

Bluetooth 5.0 Make Driving Safe

12NMprocessor-faster speed and less heatdissipation

Can be external

Connection IndicatioCompany ProfileCertifications FAQ:

1:Is this device suitable for my car?
This is a 7" universal car radio, just fix it on the center console or attach it to the windshield, and you will get a perfect car companion

2: How to connect wireless carplay/android auto?

First pair the mobile phone with Bluetooth, and then connect to the WIFI signal. After both are connected, carplay/android auto will automatically jump to the corresponding interface.

3: How to connect wired carplay/android auto?

It can be connected through the mobile phone data cable, please pay attention to use the original car cable that can be used for data transmission.

4: How to connect airplay?

First complete the setting: setting – phone link – I0S device (iso mirror) /wireless connection (airplay), after the setting is completed, restart the car radio to use the airplay function normally.

5: Why is there no sound from the device?

1. The AUX cable is inserted and the FM transmitter switch is turned on.
2. When the FM transmitter switch is turned on, the speaker has no sound.

6:Is it possible to transmit audio to the car's speakers via Bluetooth?

No, only via AUX cable or FM channel.

7:How to sync sound via FM?

Turn on the FM TANSMITTER on the device, click ON on the device, adjust the channel of the car radio to a blank station, and set the radio on the device to the same frequency as the radio on the car, the setting is complete.

8:How to sync sound via AUX cable?

Find the AUX cable in the package, then connect one end of the cable to the AUDIO port on the top left of the device, connect the other end to the AUX-IN port on the car, and enter the AUX playback interface of the car radio to synchronize the sound – Set up.

9:Why doesn't the screen light up?

1. Check whether the power supply is plugged in properly. If one end of the cigarette lighter is installed in place, the indicator light on the USB will light up, and the other end will be connected to the lowermost DC 12V power supply port on the left side of the device.
2. After confirming that the power is turned on, if the screen is still not on, there is a reset button on the back of the device, press and hold for 3 seconds.
3. Software problems, you can upgrade the software, please contact customer service.

10:What should I do if the touch buttons do not work after the upgrade?

Follow the upgrade video, the upgrade process takes two times, and only one upgrade may cause the touch buttons on the bottom of the device to not work. (Please contact customer service for upgrade software and upgrade video).

11:What should I do if the screen is blurry or I can't see the screen clearly when I wear sunglasses?

Adjust the VCOM parameters in the settings (if you need to operate the video, please contact customer service).

12:Can I use the rear camera of the original car/other brand?

No, only the rear camera of Grandnavi is supported, the camera of the original car/other brands is not suitable for the device.

13:How to install the bracket?

1. Front windshield installation: attach the bracket to the front windshield through the adhesive suction cup
2. Center console installation: Adsorb the bracket on the center console through the adhesive suction cup. If the surface of the center console is not smooth enough, you can lock the mounting pad on the center console with screws, and the stability of the bracket will be improved.
