- Output Power(w): 10w-25w
- Battery Capacity(mAh): 3800mAh
- Waterproof / Water-Resistant: No
- Material: Plastic
- Storage Channel: 999
- Frequency Range: 65-520MHZ
- Dimensions: 135mm*55mm*30mm
- Model Number: UV-5RH Pro Max
- Walkie Talkie Type: Portable
- Is_Display: Yes
- Maximum Range: 3km-5km
- Brand Name: BAOFENG
- Origin: Mainland China
- Certification: CE,Dot,EAC,EPA,FCC,GMP,RoHS,TGA,UL,KC,pse,weee
- Charger: USB Type-C Charging Radio
- Band: Six Bands
- Frequency 1: FM:65-108MHz(RX)

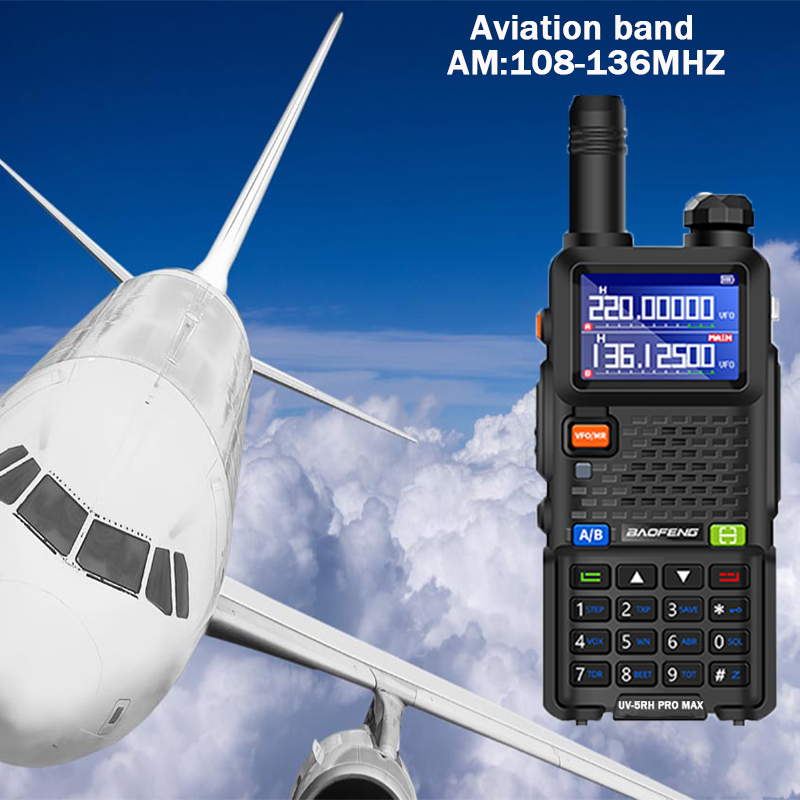

- Frequency 2: AM:108-136MHz(RX)
- Frequency 3: VHF:136-174MHz(TX&RX)
- Frequency 4: 1.2m:220-240MHz(TX&RX)
- Frequency 5: Police:350-390MHz(RX)
- Frequency 6: UHF:400-520MHz(TX&RX)
- Channels: 999CH
- VHF Power: VHF14.5W(Max Power)
- UHF Power: UHF 10W
- Model 1: Update of Baofeng UV-5RH Pro
- Model 2: Baofeng UV-5RM Radio
- Model 3: Update of Baofeng UV-5R

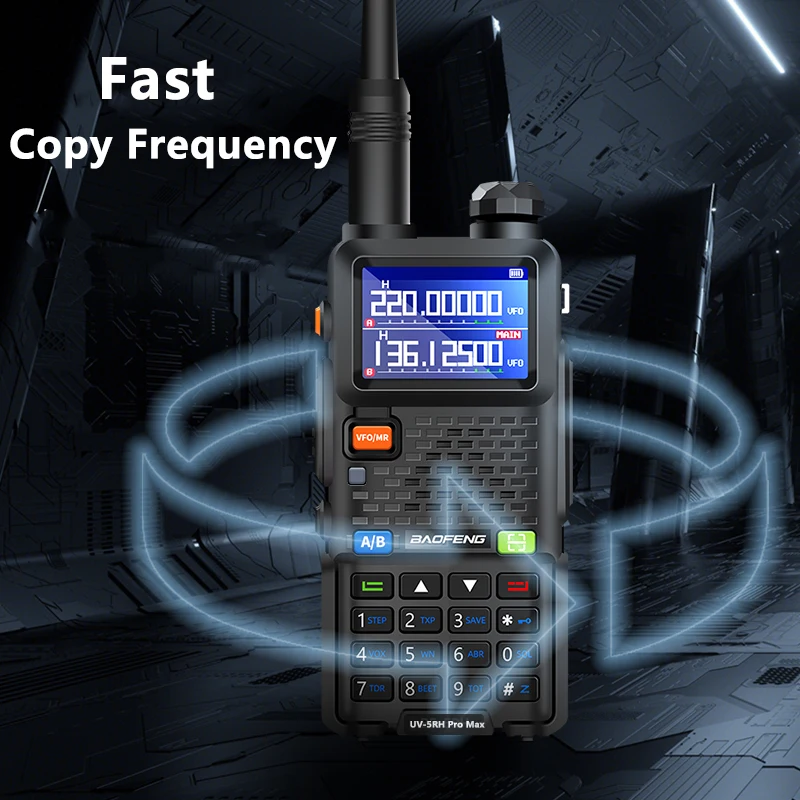

- Feature 1: Fast Frenquency Copy
- Feature 2: Update of Baofeng UV-5RH
- Feature 3: FM Radio
- Feature 4: Noise Cancenling
SUPER POWER 14.5 Watts

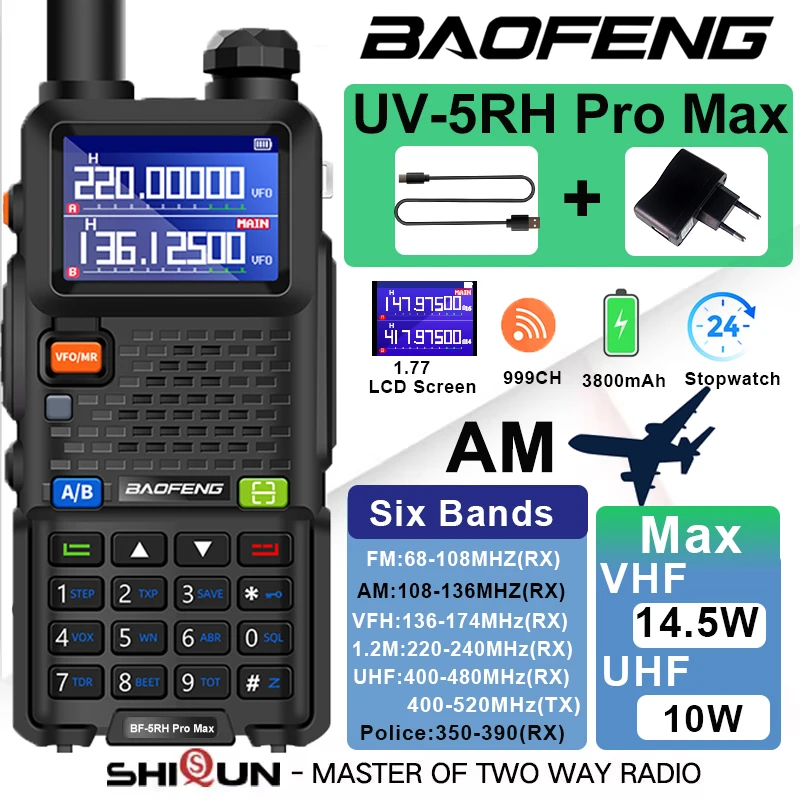

Baofeng UV-5RH Pro Max
Type C Cable & EU/US/UK/AU Plug Optional Battery 3800mAh
FM108-136MHz (RX) VHF 136-174MHz(RX)
VHF 220-240MHz(RX)Â Police 350-390MHz (RX)
UHFÂ 400-520MHz (TX)
    400-480MHz (RX)

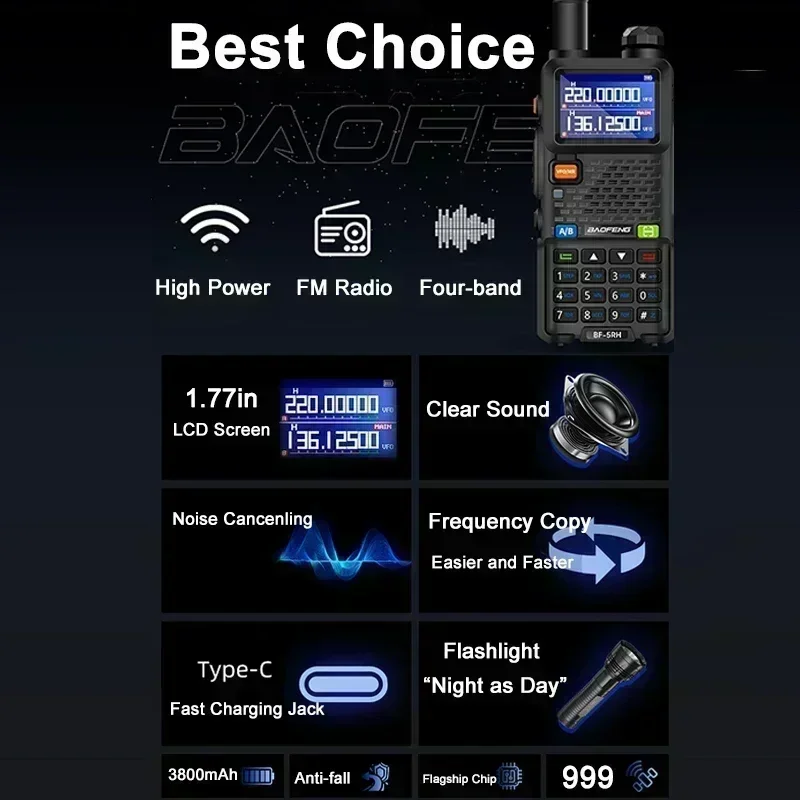

1.77″ Color Screen 999 Memory Channels
14.5W Power Max
Six-band: FM108-136MHz (RX) VHF 136-174MHz(RX) 1.2M 220-240MHz(RX) Police 350-390MHz (RX) UHF 400-520MHz (TX) 400-480MHz (RX) 10 Groups USA Weather Forecast Channels
One Touch Frequency Search
65-108MHz FM Radio Receiving

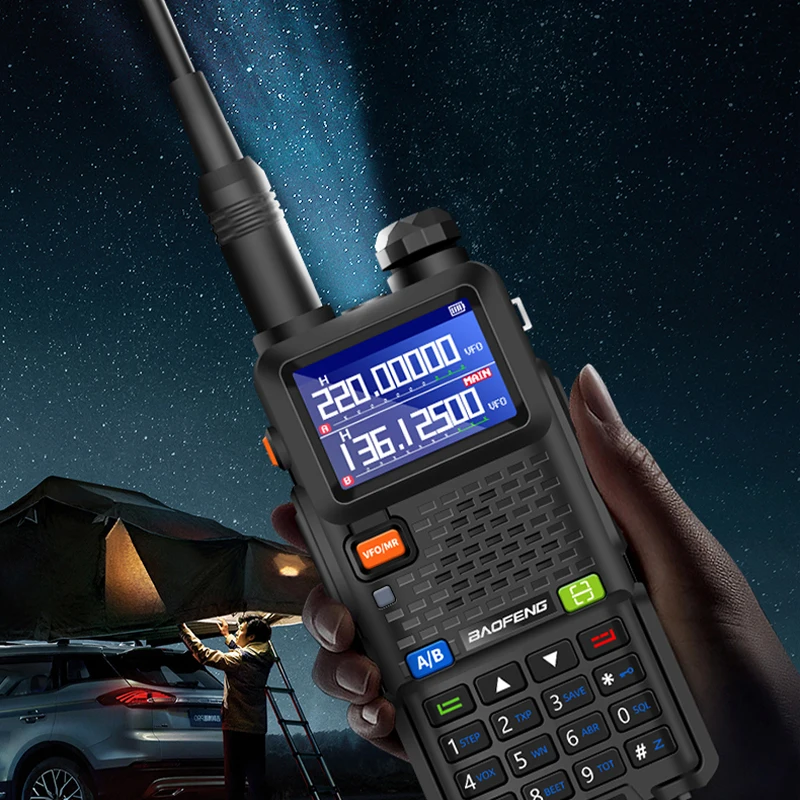

Flashlight
Stop-watch Timer
1750Hz Repeater Tone
Keypad Lock
Time,Carrier and Search Scan Modes
Frequency,Channel Scan
CTCSS,DCS Scan VOX Dual Watch DTMF
Frequency (FREQ),Channel (CH) and Channel name(Name) working mode
Roger Beep (End Transmission Tone)
Power On password
Voice Encryption
3800Mah Rechargeable Li-ion Battery Pack
Battery Type-C Fast Charging Jack
General
Channel Capacity:999
Channel Spacing:25.0KHz/12.5KHz
Input Voltage:7.4VDC
Current Drain: Standby:45mA
Receive:380mA
Transmit:≤1.6A(High power),≤1.4A (Medium power) ≤1.2A (Low power)
Operating Temperature:-10°cto 60°c
Antenna Impedance:50 ohm

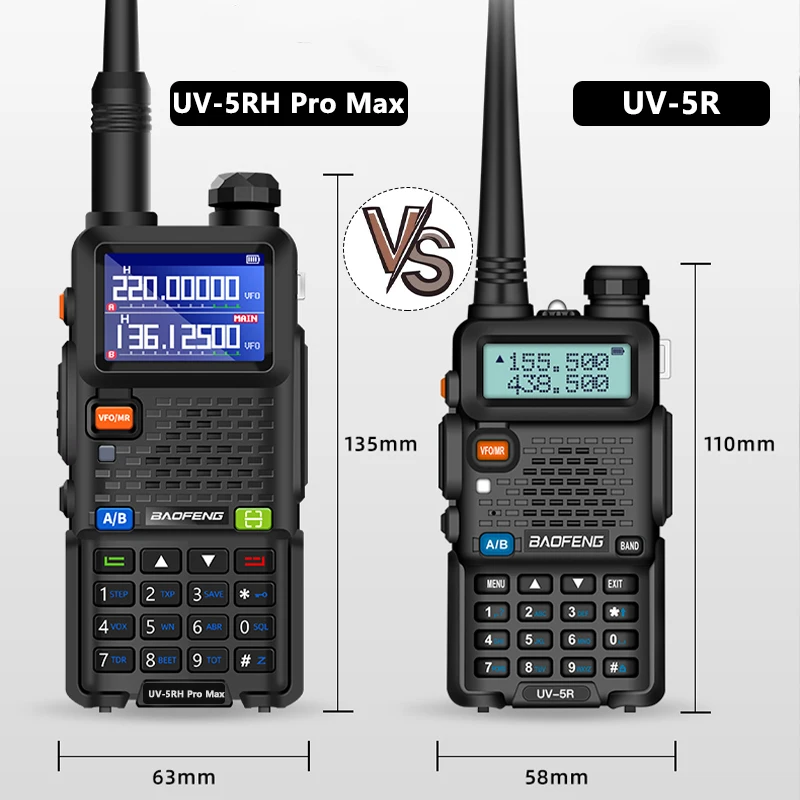

Radio Dimensions:135mm*55mm*30mm(Antenna Not included)
Radio weight:260g (with Li-ON battery)
Transmitter
Modulation:16K ΦF3E/11K ΦF3E
Spurious Emission:-16dBm 1GHz
Frequency Range (TX):136-174MHz & 220-260MHz &400-520MHz
Frequency Stability:±2.5ppm
Audio Distortion:≤5%
FM Hum & Noise:40dB
Receiver
Frequency Range:
FM:65-108MHz / AM:108-136MHz / VHF1: 136-174MHz / VHF2 :220-260MHz / Police Band:350-390MHz / UHF:400-520MHz
Sensitivity:12dB SINAD: -120dBM
Adjacent Channel Selectivity:-60dBm
Intermodulation and rejection:-70dBm
Rated Audio Distortion:≤5%
Note: All Specifications may be modified without prior notice or liability. Thank you!
1×UV-5RH Pro Max Radio
1× 7.4V 3800mah Li-ion Battery
1× SMA-Female Dual Band Antenna
1× Belt Clip
1× Type c charger Cable & EU/US/UK/AU Plug Optional
1× Belt Clip
1× Handstrap
1× ENG Manual
1× Box
(Additional accessories depend on what you may choose)
