- Commodity Quality Certification: ce
- Brand Name: VV DENTAL
- Origin: Mainland China
- Net weight: 165g

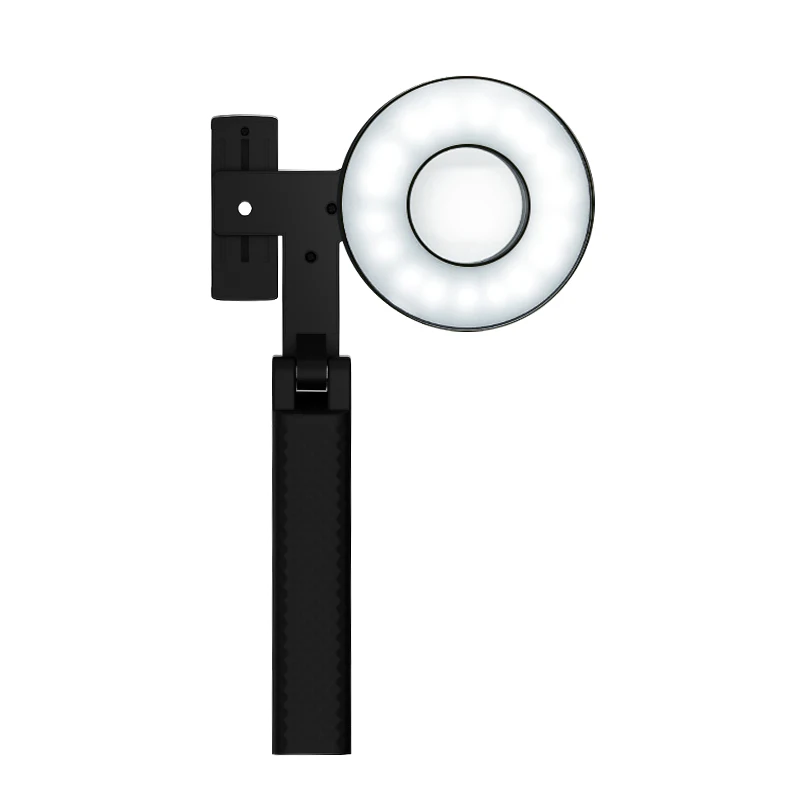

- Light source: 18 high-brightness LEDs
- Color rendering index: RA>80
- Bluetooth version: BLE 4.2/5.0/5.1

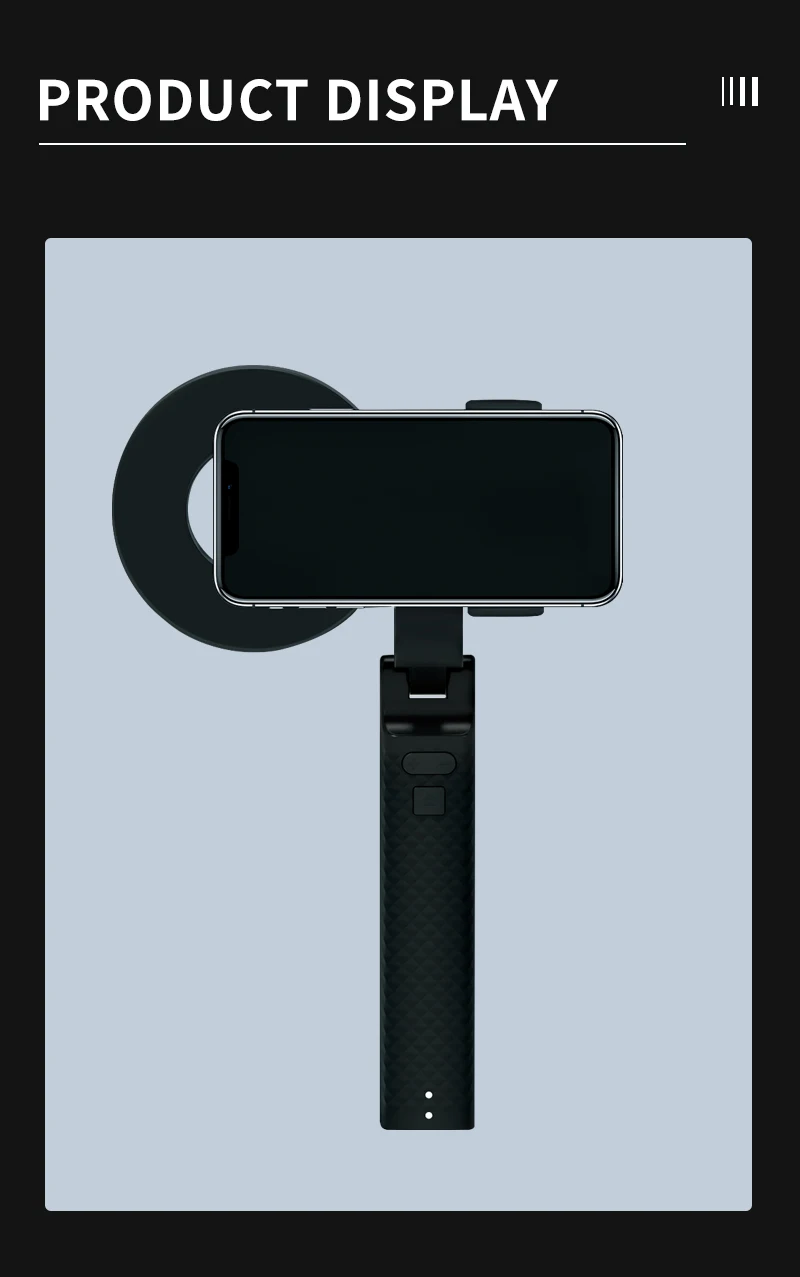

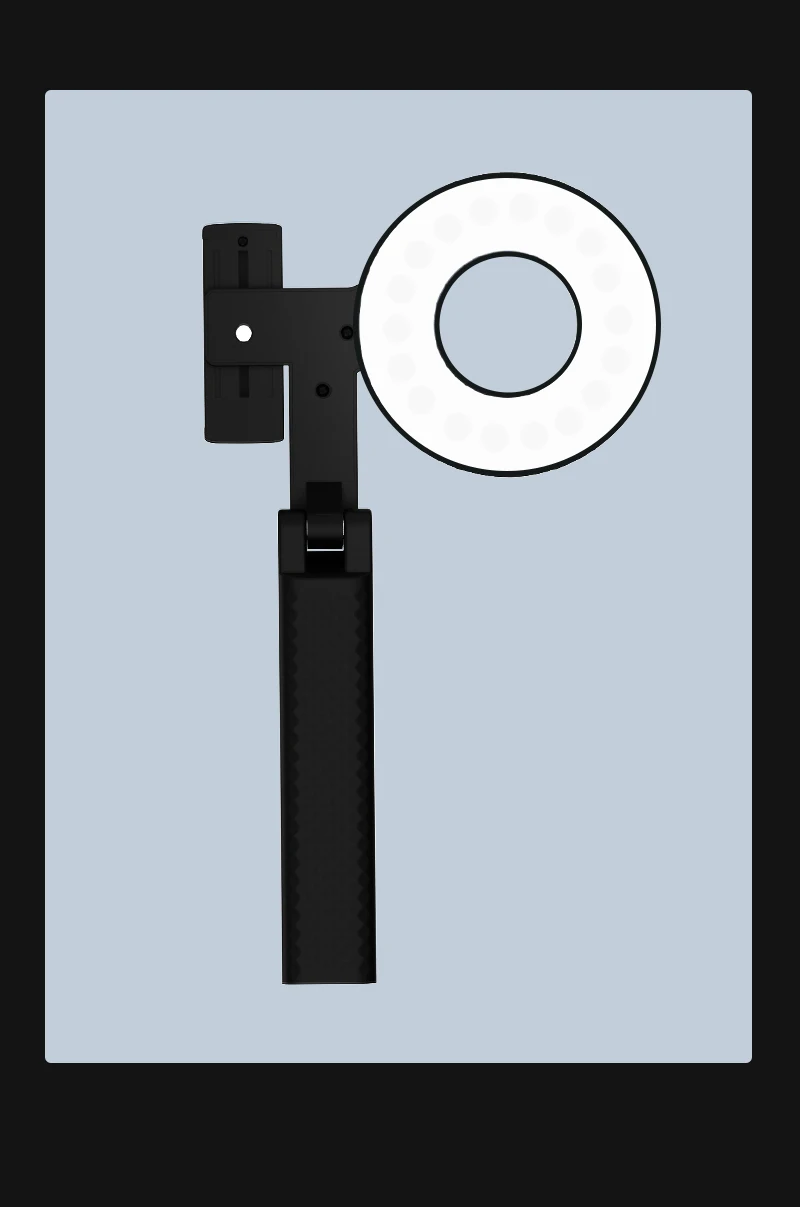

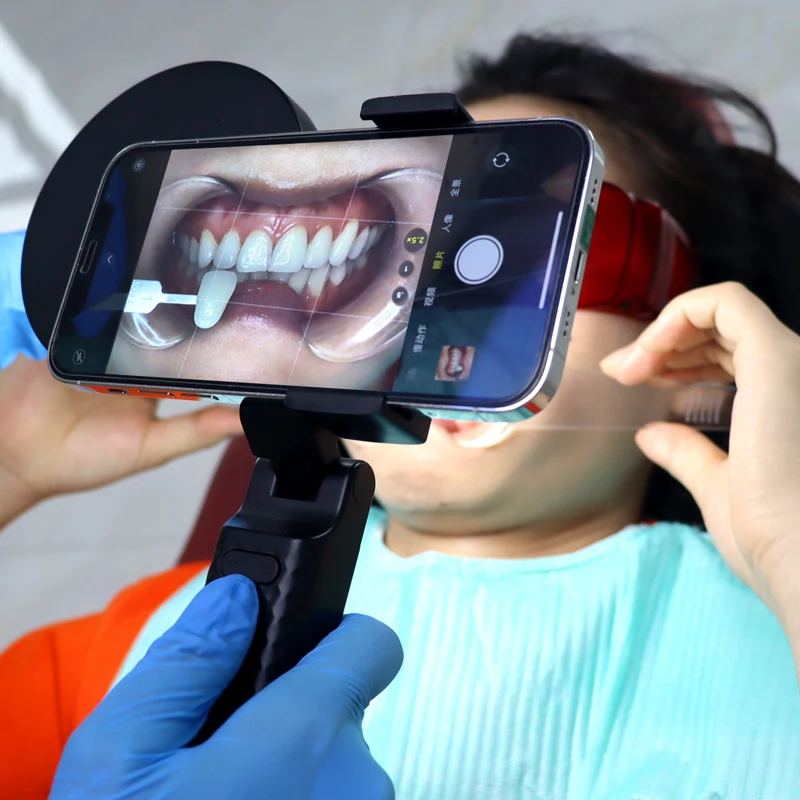

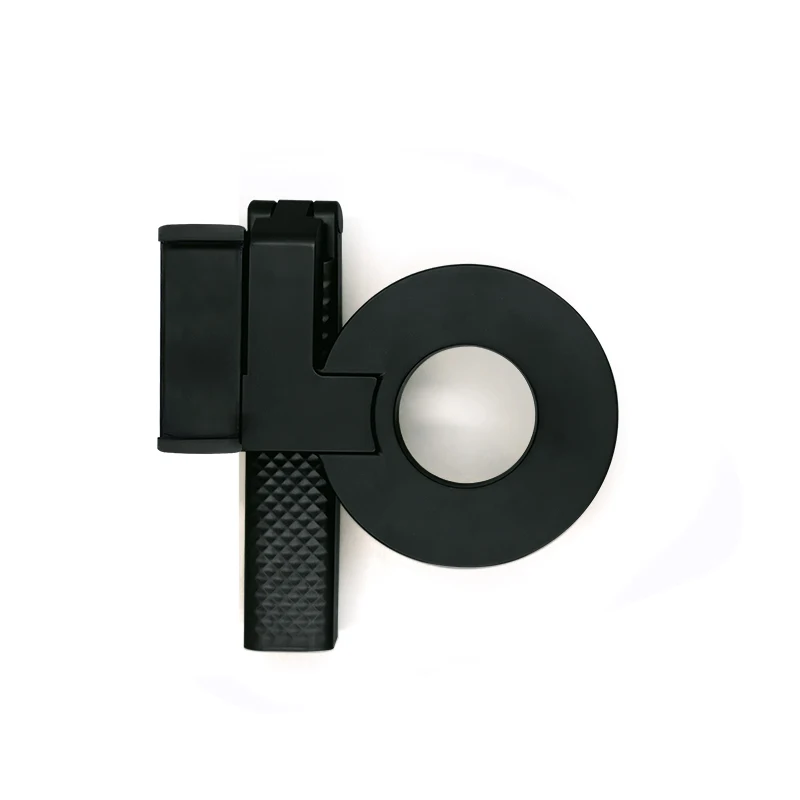

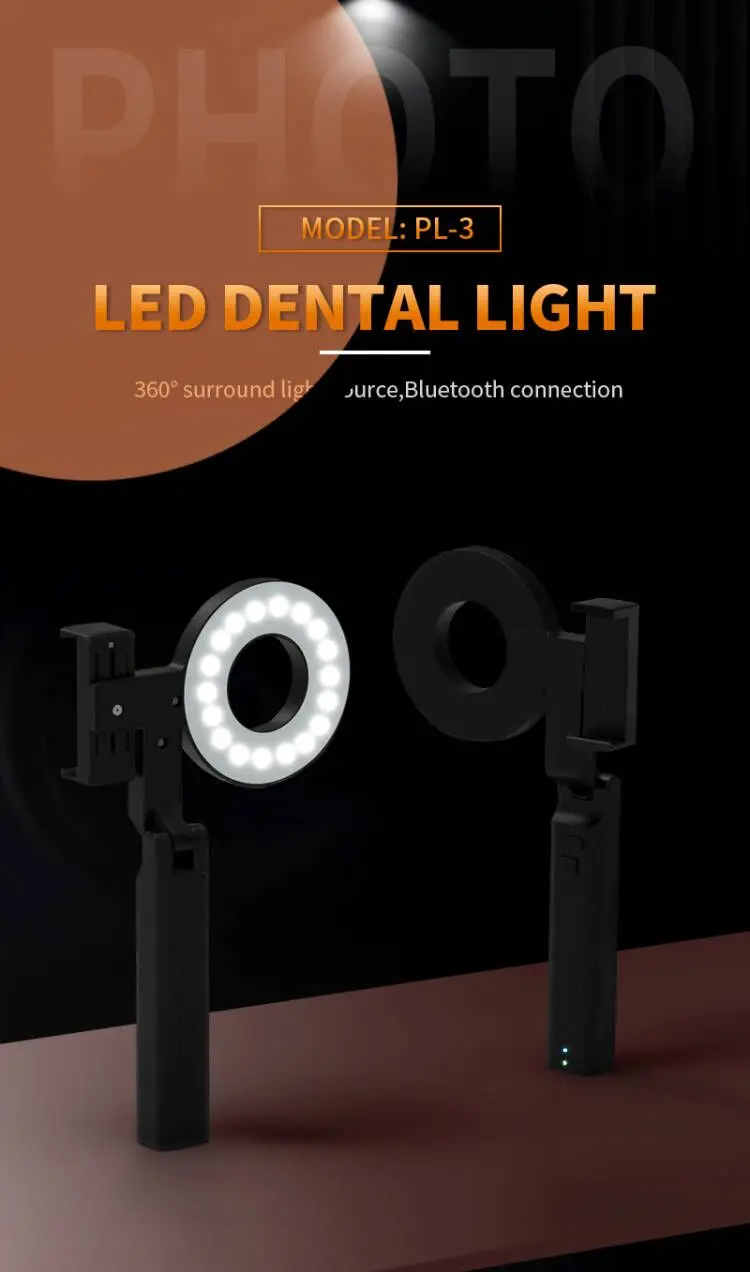

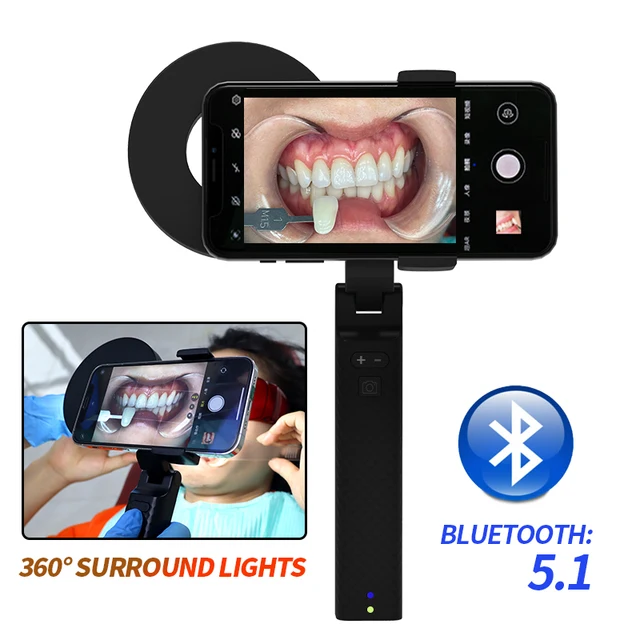

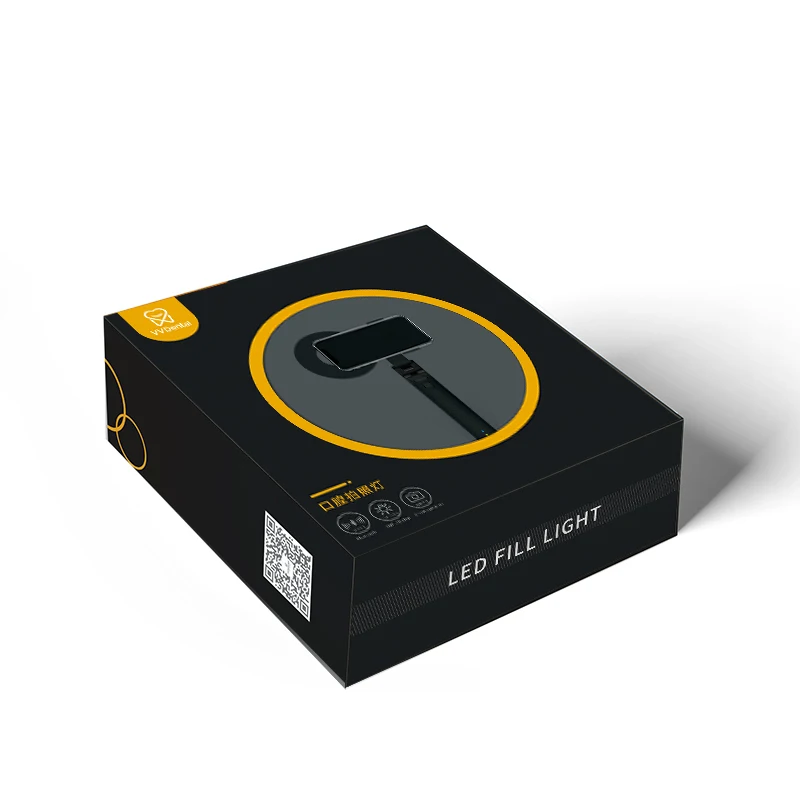

VV Dental Photography Light LED Oral Filling Light Colorimetric Photo Video Flashlight For Dentist Treatment
Product performance:
|
Photo light parameters |
PL-3 |
|

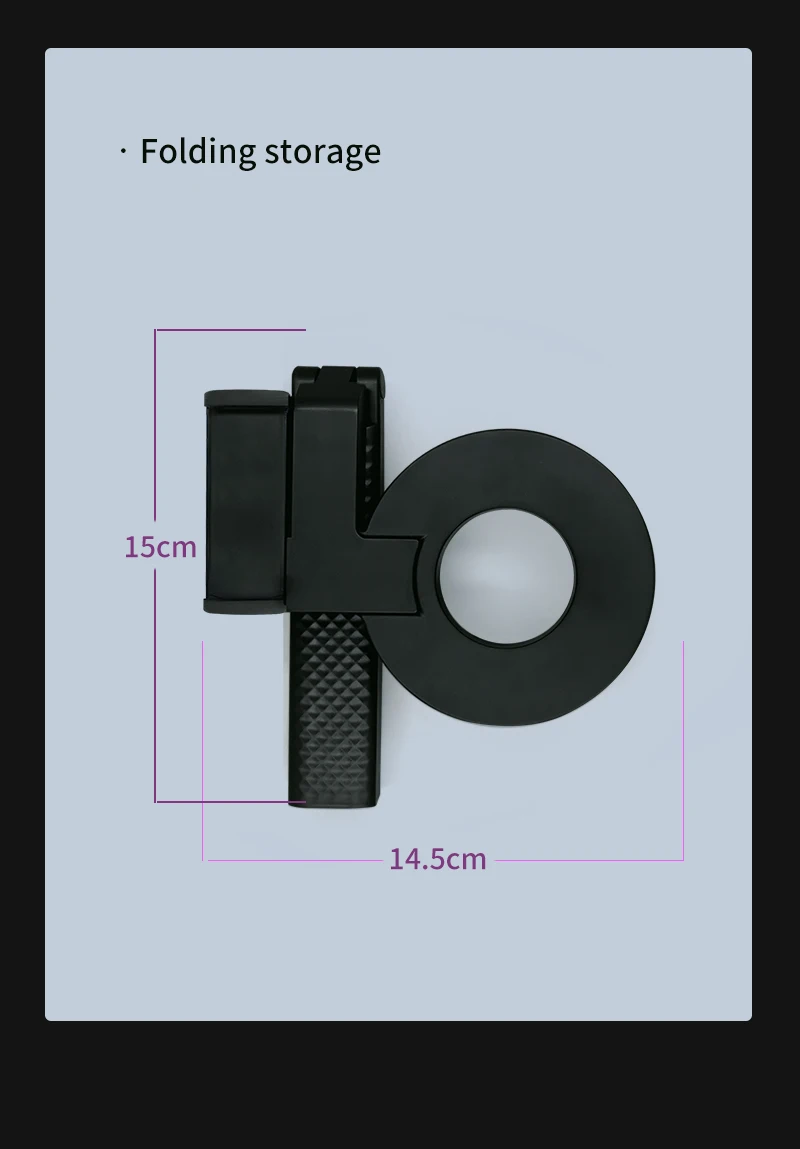

Size |
145.4*258.8*47mm |
|
Net weight |
165g |
|
Light source |
18 high-brightness LEDs |
|
Color rendering index |
RA>80 |
|
Color temperature |
5500K～6000K |
|

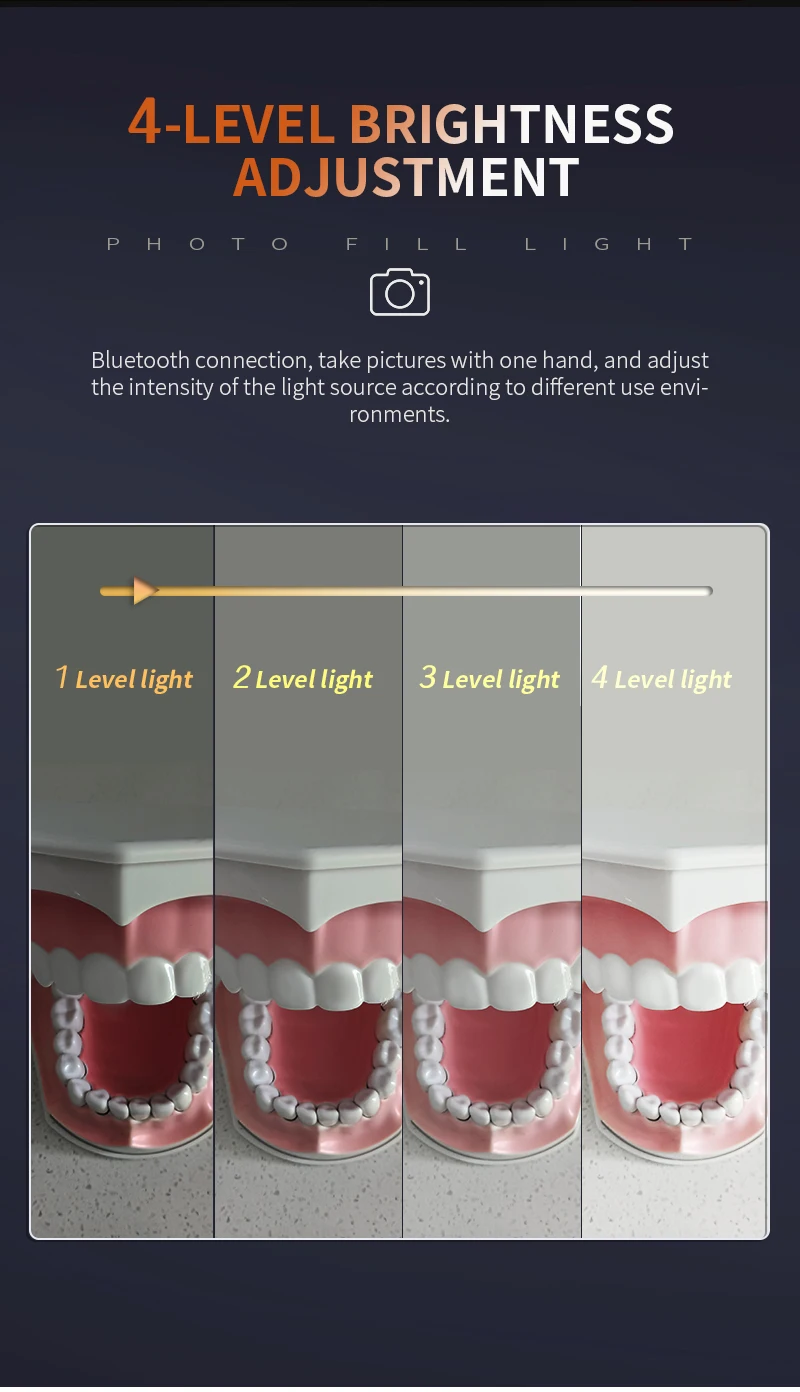

Dimming method |
4 levels of brightness adjustment |
|
Battery voltage |
3.7V |
|
Battery Specifications |
About 1500mA |
|
Working temperature |
+5℃ ～ +50℃ |
|
Working environment humidity |
10%～93% |
|
BLE 4.2/5.0/5.1 |
|
|
Wireless transmission distance |
10m |
|
Note: Due to the continuous improvement of the product, the technical parameters in this manual are subject to modification without prior notice. |

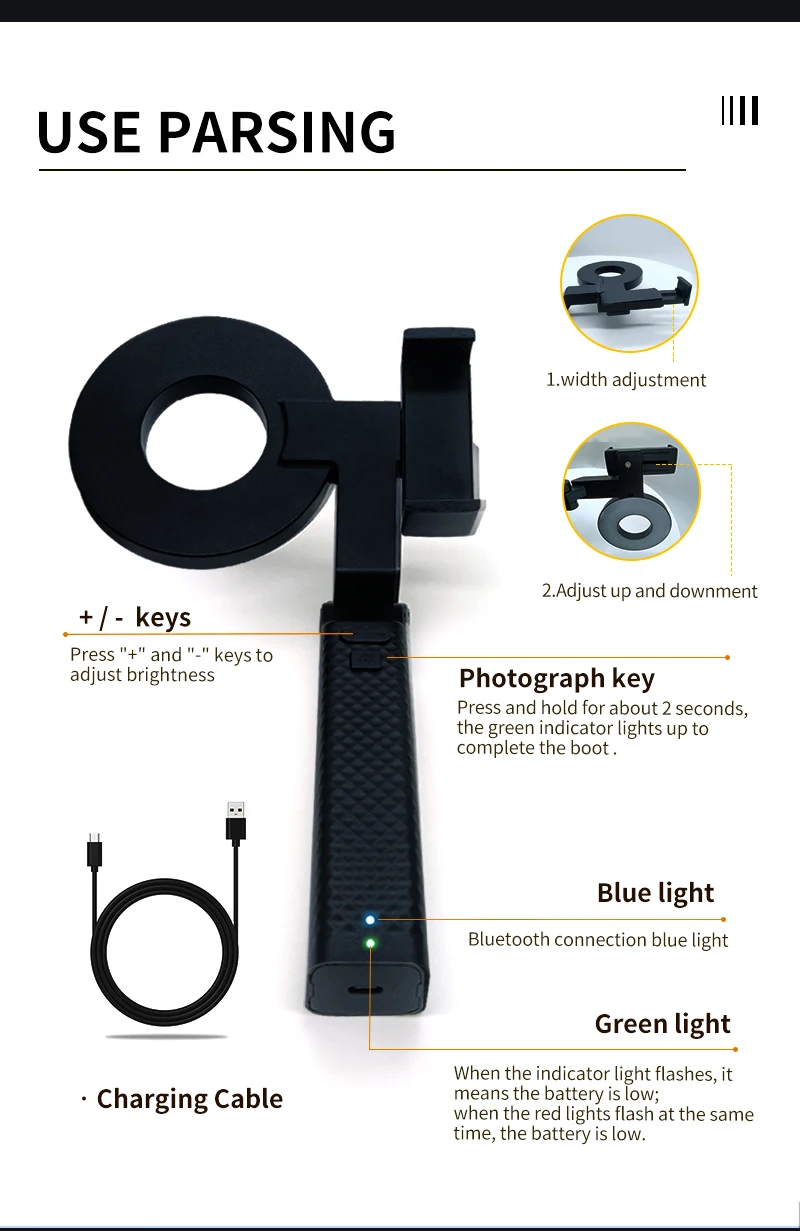

Instructions:
1. Press and hold the switch/camera button for about 2 seconds to power on, and the green indicator light will light up to indicate that the boot is complete;
2. Turn on the Bluetooth of the mobile phone. If you use it for the first time, you need to manually connect hotspot pl-3 in bluetooth Settings. If you use it again, the host will automatically connect the bluetooth of the last paired mobile phone;

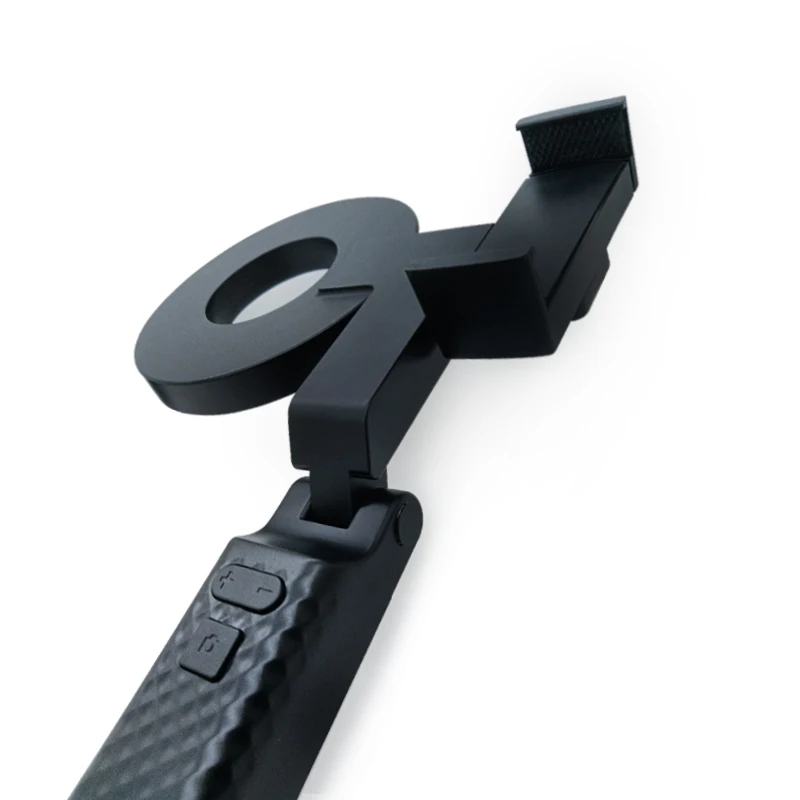

3. Press the "+" and "-" keys to adjust the brightness;
4. Press and hold the switch/camera button for about 3 seconds to shut down.
Note: 1. Bluetooth indicator blinking indicates that bluetooth is not connected, and the rear light is off after connected. The indicator blinks once every time you take a photo;
2. The machine will automatically shut down after 2 minutes of inactivity, please press the switch/camera button to turn it on.
Charging instructions:
1. This product has a built-in rechargeable lithium battery. Please fully charge it for the first time out of the box and use it. The red light of the battery indicator is always on when charging;
2. When the battery is low, the green light of the battery indicator flashes, and it takes about 4 hours for the battery to be fully charged from the low-battery reminder;
3. When charging, place the main unit on the table with the front side up, and then plug the charging cable into the power adapter for charging. The charging environment should be dry and ventilated;
4. The power indicator shows that the green light is always on, indicating that it is fully charged, and unplug the power cord;
5. It cannot be used during the charging process, and the buttons are invalid;
6. When the charging is abnormal, please cut off the power immediately;
7. Please use and keep the charging cable properly, and do not fold, stretch, bend or wrap the charging cable at will.
Note: When the red light of the power indicator flashes, it means that the power of the machine is insufficient, and it is forbidden to turn on the LED. At this time, please charge it immediately.
