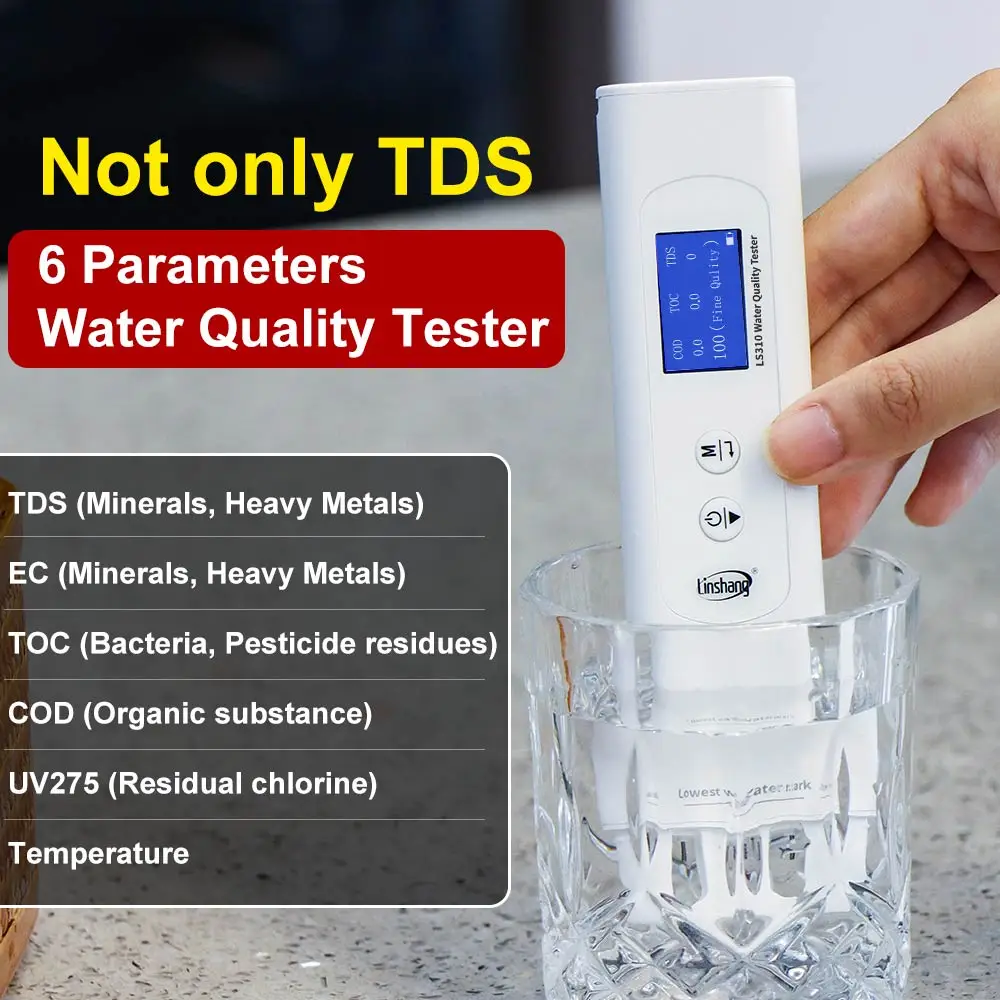

Water Quality Tester Tds Meter 6 in 1 Portable COD TOC EC Tester High Precision Quality Rugged for Drinking Water LS310

Description

LS310 tds water quality tester is an instrument dedicated to testing the quality of drinking water. The COD, TOC and UV275 water quality parameters of drinking water are measured by ultraviolet absorbance method, and the TDS and conductivity of drinking water are obtained by measuring the conductance between electrodes. The water quality tester can measure 6 water quality indicators at the same time, and judge the water quality in an all-round way. At the same time, the tds water quality tester has an intelligent scoring function, which can quickly judge the water quality level. The color of the LCD backlight indicates the four levels of excellent water quality, good water quality, average water quality and poor water quality. LS310 water quality tester for drinking water is mainly used to detect drinking water such as tap water, purified water and underground water.

Specifications

1.Measurement Object: Tap water, purified water, bottled water, ground water, surface water (non-sewage) and other drinking water.

2.Measurement Range:COD(0-100mg/L);TOC(0-100mg/L);UV275(0-1.0au/cm);TDS(0-2000ppm);Electrical conductivity(0-4000us/cm);Temperature(0-50℃)

3.Resolution: COD(0.01mg/L), TOC(0.01mg/L), UV275(0.001au/cm), TDS(1ppm), Conductivity(1us/cm), Temperature(0.1℃)

4.Accuracy: COD: 0-5mg/L:±0.5mg/L, 5-100mg/L:±10%H，H is the standard value;TOC: 0-5mg/L: ±0.5mg/L, 5-100mg/L: ±10%H, H is the standard value;UV275: 0-0.1au/cm: ±0.01au/cm, 0.1-1.0au/cm: ±10%H, H is the standard value;TDS: ±3%FS, FS is the full scale value;Electrical conductivity: ±3%FS, FS is full scale value;Temperature: ±1℃

5.Display: 240*135 1.14 inch TFT color screen

6.Power Supply: 2 AAA alkaline dry batteries

7.Size: 157 * 37 * 14mm

8.Weight: About 68g

9.Working Temperature Range: 0~50℃

10.Storage Temperature Range: -10~60℃，0~85%RH(no condensation)

Features

1. Smart scoring, indicating 4 different levels.

2. Simultaneously measure COD, TOC, UV275, TDS, EC, and temperature without any reagents to assess water quality in all aspects.

3. UV275 indirectly indicates the residual chlorine content in water, the higher the residual chlorine content, the higher the UV275 value

4. Compact and easy to carry with pen design.

5. Sensitive probes for more accurate measurements.

6. Probe is waterproof and complies with waterproof rating IP67.

7. Easy to operate, one-button measurement.

8. Adopt TFT color screen design, blue, green, yellow and red display.

Wide range of applications

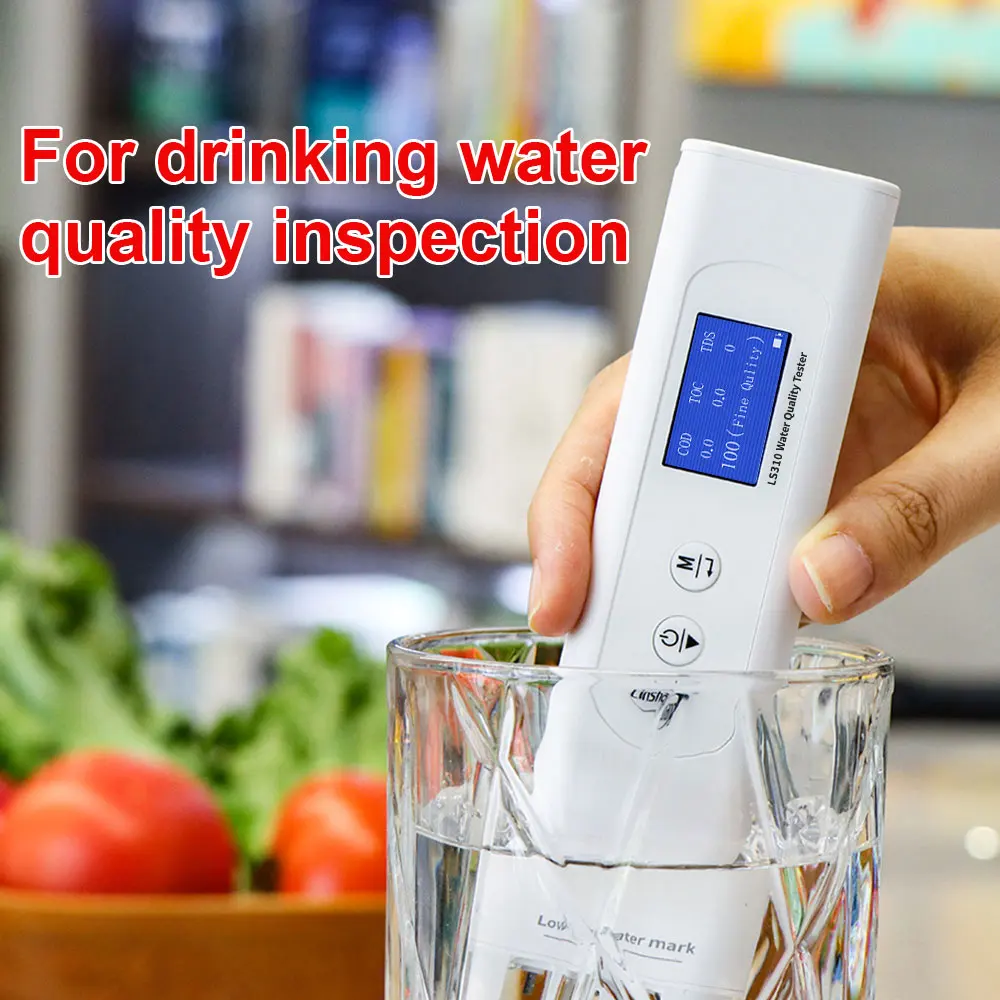

The water quality tester for drinking water is mainly used for testing drinking water such as tap water, purified water and groundwater.

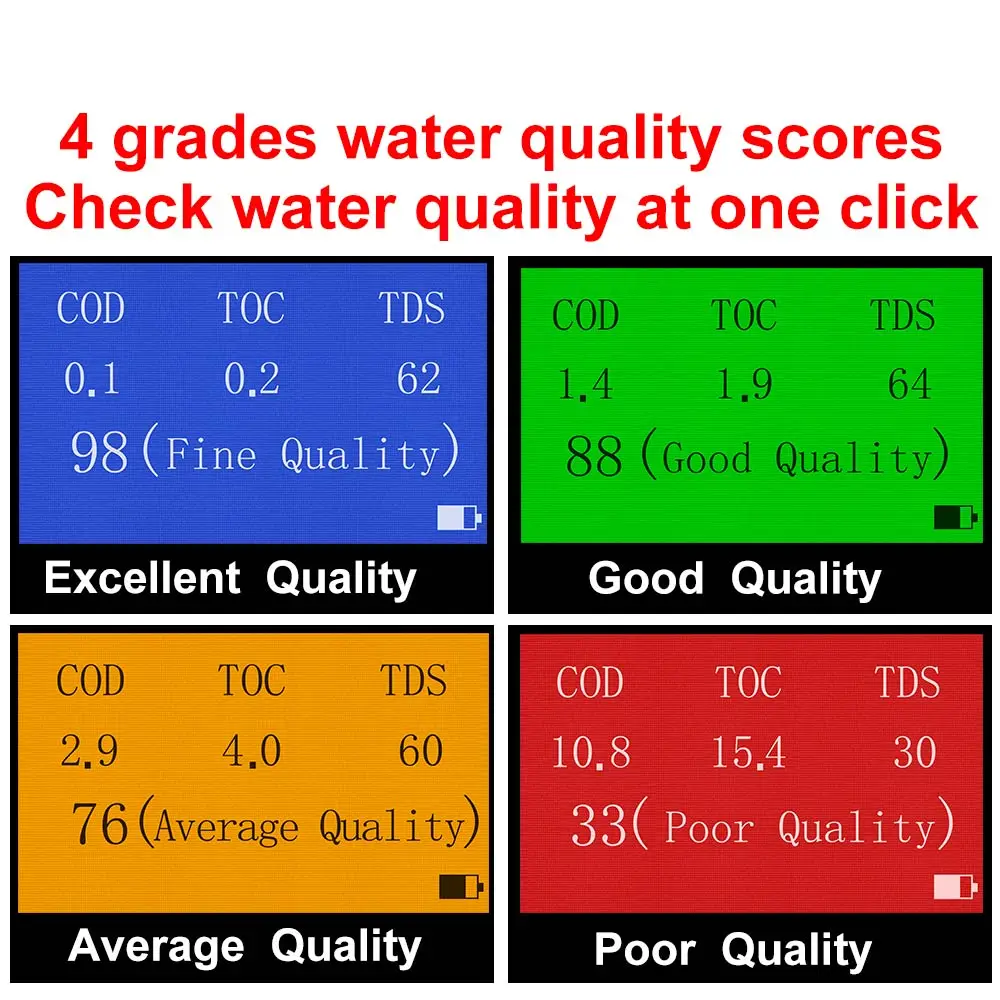

Intelligent scoring, indicating 4 different levels.

Water quality is scored according to Chinese drinking water standards, corresponding to indicate fine quality, good quality, average quality and poor quality 4 levels

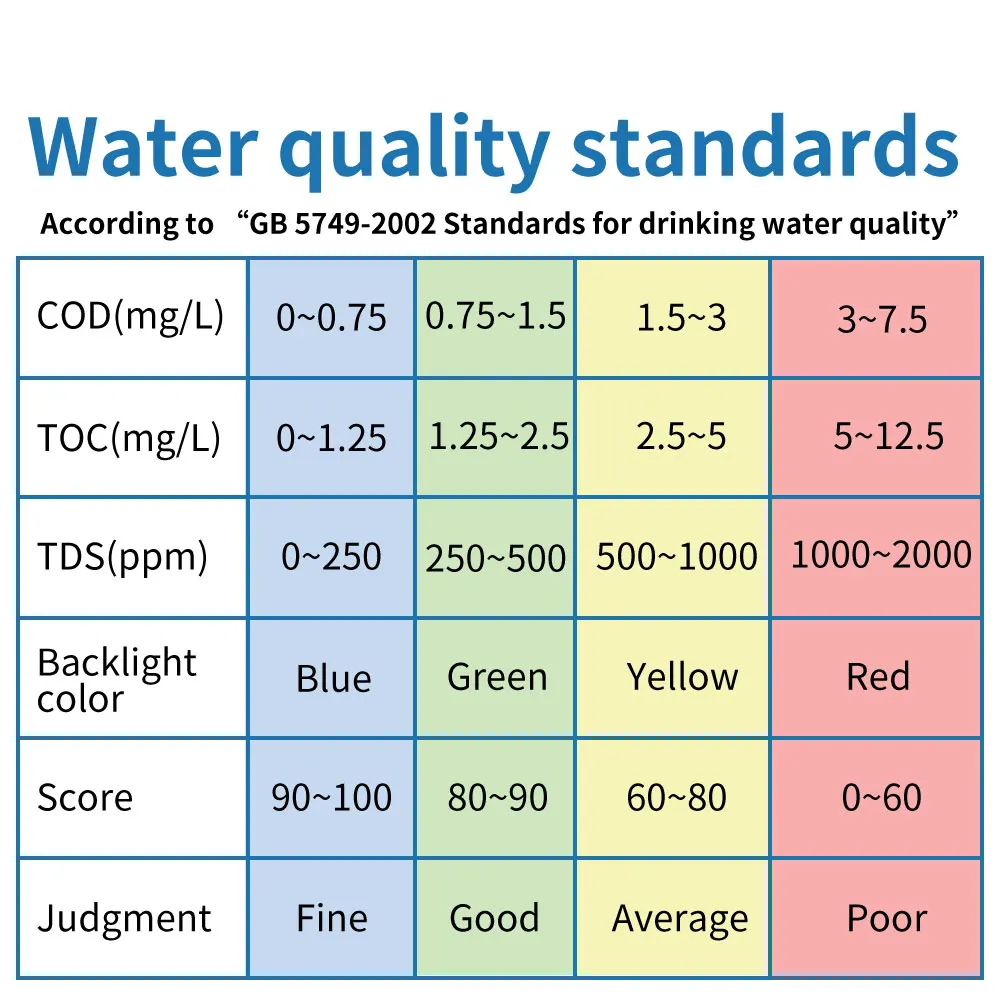

Water quality scoring standards

According to “GB 5749-2002 Standards for drinking water quality”

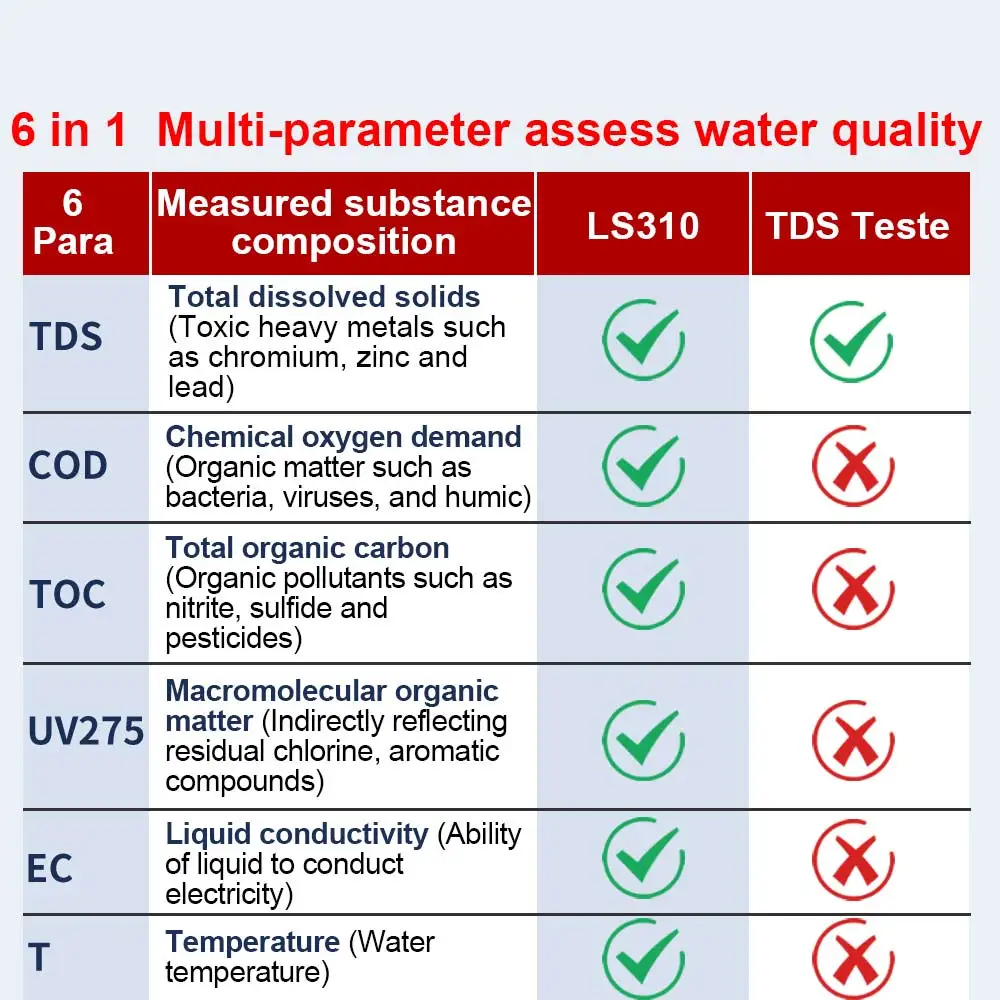

No reagents, measuring 6 water quality parameters simultaneously.

Simultaneously measures COD, TOC, UV275, TDS, EC, and Temperature without any reagents to assess water quality in all aspects.

High accuracy

Passed the authoritative metrology institute inspection

Linshang LS310 digital water quality tester more comprehensive

Bacteria, viruses and pesticide residues all reflect

Measurement results:

LS310 water quality tester professional: Poor water quality

TDS: Unable to detect bacteria and pesticides

Detection of 6 indicators: TDS, COD, TOC, UV275, TEM, EC

COD chemical oxygen demand

Organic matter, nitrite, sulfide, ferrous salt

UV275 ultraviolet absorption value

Indirectly reflect the residual chlorine humus type macromolecular organic matter, aromatic compounds

TOC total organic carbon

Bacteria, viruses, microorganisms, humic substances, chemical pesticides, toxic substances

EC electrical conductivity

The ability of the solution to conduct current

TEM temperature

Water temperature (breeding temperature measurement, etc.)

TDS total dissolved solids

Calcium chloride, sodium chloride, magnesium sulfate, potassium sulfide

TOC (mg/L) total organic carbon

Carbon is the common component of all organic matter, the main element of organic matter, the higher the TOC value of water, the higher the organic content of water, total carbon is an indicator to evaluate the organic pollution of water quality.

COD (mg / L) chemical oxygen demand

Measure the amount of reducing substances that need to be oxidized in the water sample, a comprehensive reflection of the degree of organic pollution of the water, the lower the value indicates that the water is polluted by organic pollutants, the lower the degree of pollution

UV254 (au/cm) ultraviolet absorption value

The absorbance of some organic matter in water at 254nm wavelength, reflecting the number of various types of macromolecular organic compounds in water

EC (au/cm) electrical conductivity

Theoretically H2O non-conductive liquid in the more charged substances the greater the conductivity of the liquid, commonly used in various industries to measure the concentration of the solution

TEM (℃) temperature

Measure the temperature change of water

TDS (ppm) total dissolved solids

The total amount of various ionic molecules and compounds dissolved in water, the higher the TDS value, the more dissolved substances contained in the water.

1. Water Quality Tester *1

2. User Manual *1

Note

Please allow 1-2cm measuring deviation due to manual measurement.

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures.
