Sold out
- Hign-concerned Chemical: None
- Model Number: X9-MOVTADHS
- Maximum IR Distance(m): CCTV Tester
- Sensor Size: CCTV Tester
- Lens: CCTV Tester
- Brand Name: POMIACAM
- Origin: Mainland China
- Certification: CE
supporting the Hi-POE(POE++) output, the maximum output reaches DC55V, 90W

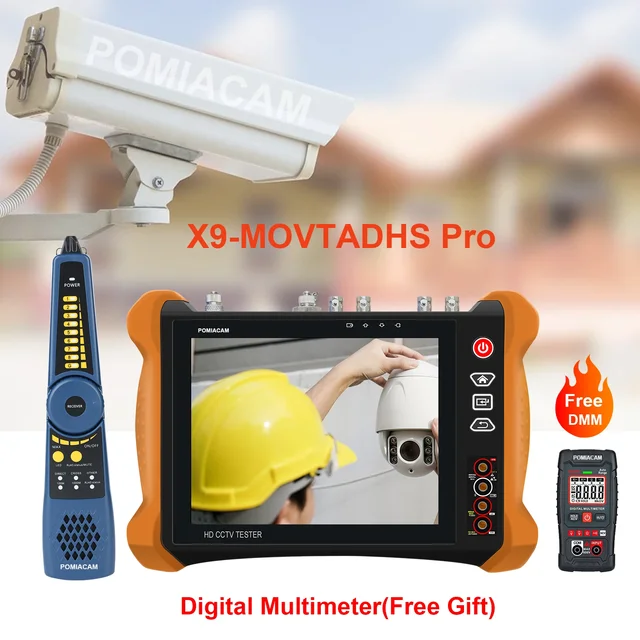

X9-MOVTAHDS Pro DMM:Support 8MP AHD ,8MP TVI ,8MP CVI ,8K H.265IP/analog camera test +Digital cable tracer+ Digital multimeter+ optical power meter /Add visual fault locator ,TDR2.0 + HD Coax video level for level meter, peak video signal level, SYNC signal level+Free Digital multimeter
8-Inch Retina Touch Screen Camera Tester
-
High-Resolution Display: Featuring an 8-inch retina touch screen with a resolution of 2048*1536, this camera tester delivers stunning visuals for an enhanced user experience.
-
Comprehensive Camera Compatibility: Supports H.265, H.264, 8MP TVI, AHD, and CVI tests at 3840 x 2160P up to 15 FPS, ensuring versatile testing across various camera types. Includes coaxial PTZ control and easy OSD menu navigation.
-
Advanced Connectivity Options: Equipped with HDMI input/output supporting 4K at 60FPS, built-in Wi-Fi for wireless camera display, and rapid ONVIF integration for swift camera testing and reporting.
-
Robust Cable and Network Testing: Features an improved cable tester for UTP, telephone, and BNC cables, along with network tools like Ping, IP scan, and POE power measurements for comprehensive diagnostics.
-
Long-Lasting Performance: Powered by a 7.4V/7000mAh Lithium-ion battery, this device offers up to 13 hours of continuous use after just 4 hours of fast charging, making it ideal for extensive testing sessions.
8 inchretina touch screen,2048*1536 resolution
8K IP H.265/H.264,camera testing
Professional Network Tool Pro
Chrome browser, testand set Axis camera
8MP TVI/CVI/AHD camera test
Anti-sunlight and screen protectingcover
Dual1000M LAN ports
Built in WIFI, create WIFI hotspot
Wi-FiAnalyzer,support 2.4G/5G
RJ45 cable TDR test, cable quality test
DC24V 2A power output,DC12V 3A
Cabletracer and video level meter
DC48V PoE power output
4K HDMI input (60fps) and output (60fps)
Rapid ONVIF, auto view video and create testing report
TesterPlay: Tester, mobile phone, PC display at the same time
Features:
Camera test:
●8 inch retina touch screen, 2048*1536 resolution
●H.265 & H .264 IP,8K video display via mainstream

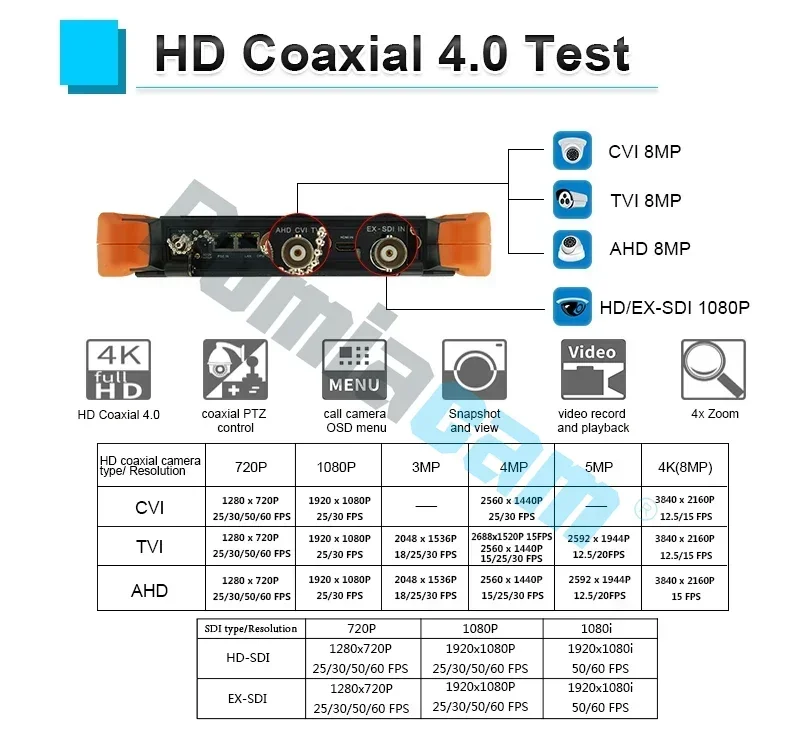

● 8MP TVI test,3840 x 2160P 15 fps,4xzoom ,video record &playback ,coaxial PTZ control & call OSD menu *
●8MP AHD test, 3840 x 2160P 12.5/15 FPS, video record &playback ,UTC control & call OSD menu *
●8MP CVI test, 3840 x 2160P 12.5/15fps, 4xzoom, video record& playback, coaxial PTZ & call OSD menu *
●HD SDI/EX-SDI2.0 camera test, support 1080P 50/60 FPS
●HDMI input support 4K 60FPS. The HDMI output support 4K 60 FPS
●IPC TEST PRO app, Camera test often need to open multiple apps,"IPC TEST PRO" app

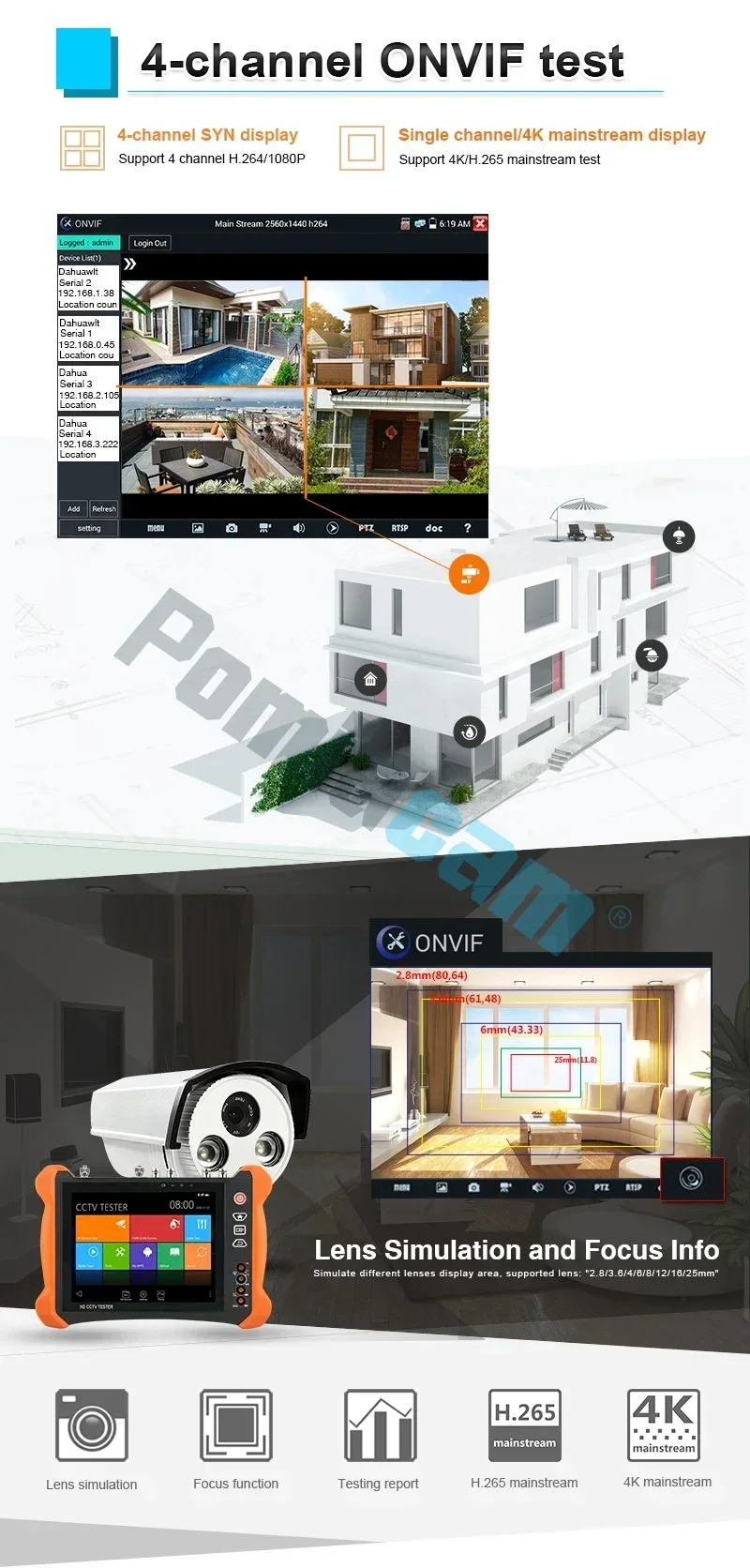

●Rapid ONVIF, Auto log in and display image, create testing report
●AXIS, Hikvision camera test, enter ONVIF app, input username and password to test
●CVBS camera test and PTZ control

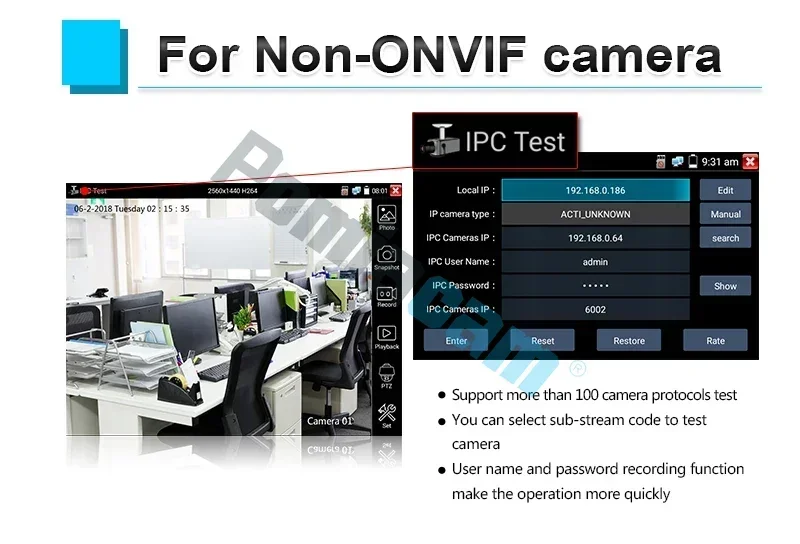

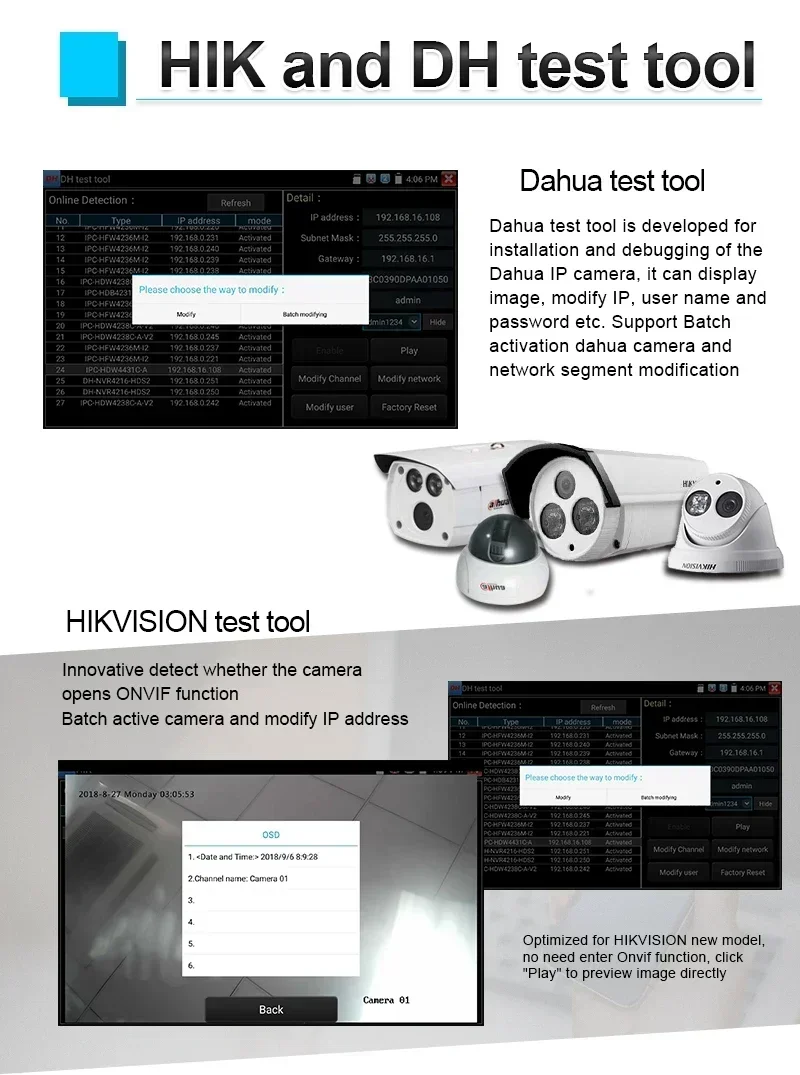

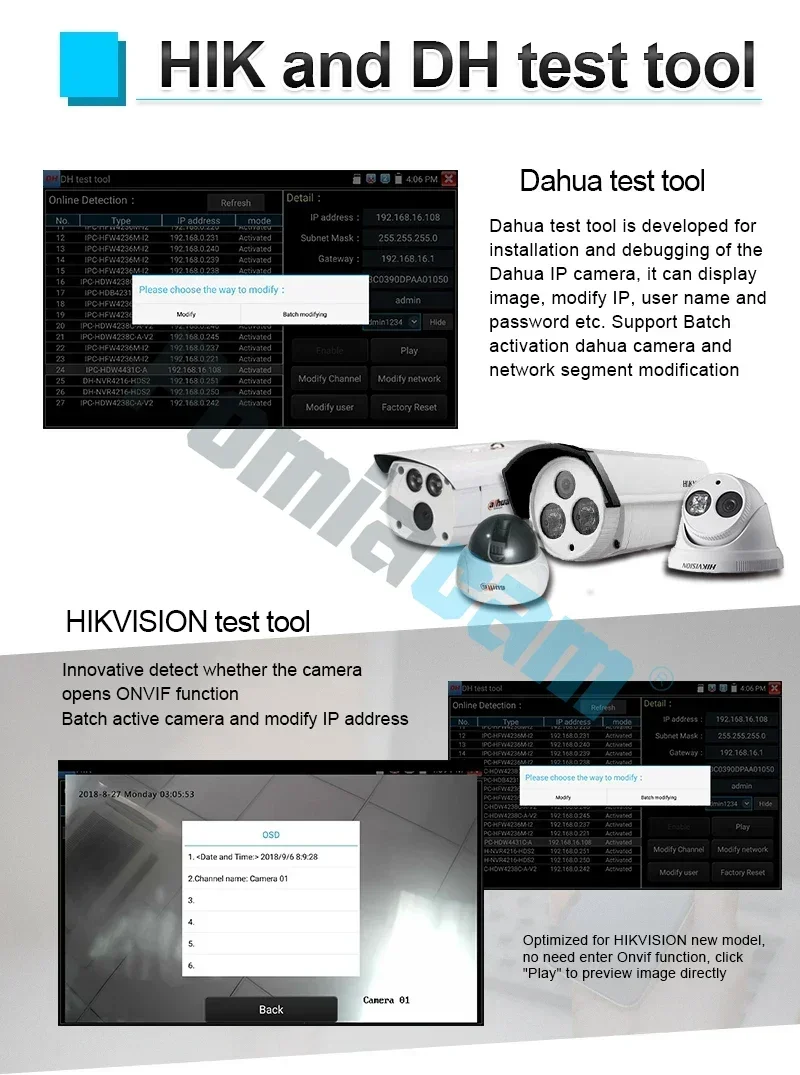

●IPC TEST (Non-ONVIF test), HIK test tool (Hikvision camera),DH test tool (Dahua camera)

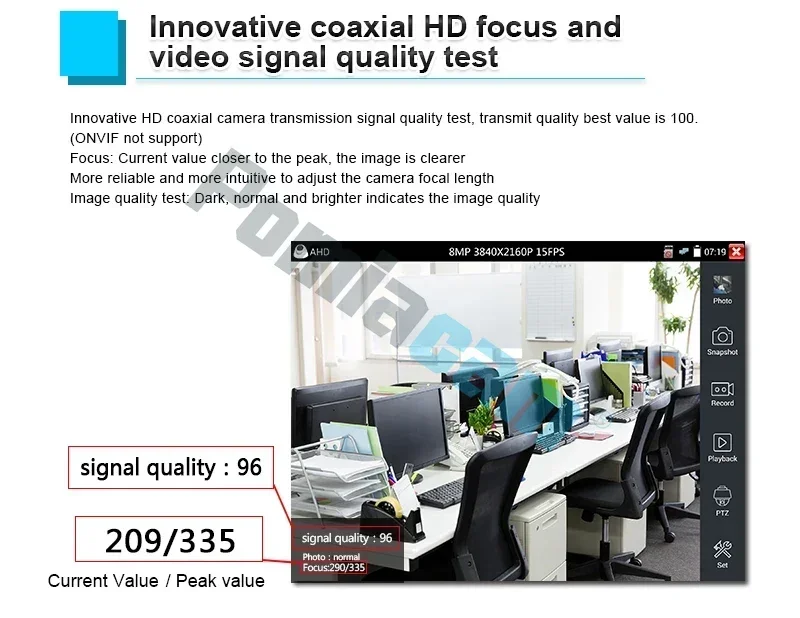

●Video level meter, peak video signal level, SYNC signal level, Color bar chroma level measurement
●DC12V/2A power output,camera can be powered from DC 12Votage
●DC48V PoE power output power
●Rapid video, just by one key to detect all network cameras and auto display
●Built in Wi-Fi, display image from the wireless camera, create WIFI hotspot
●CVBS loop test, the tester send and receive color bar generator signal, to check BNC cable
● Enhanced Color bar generator, PAL/NTSC multi-system color bar video generator
Cable test:

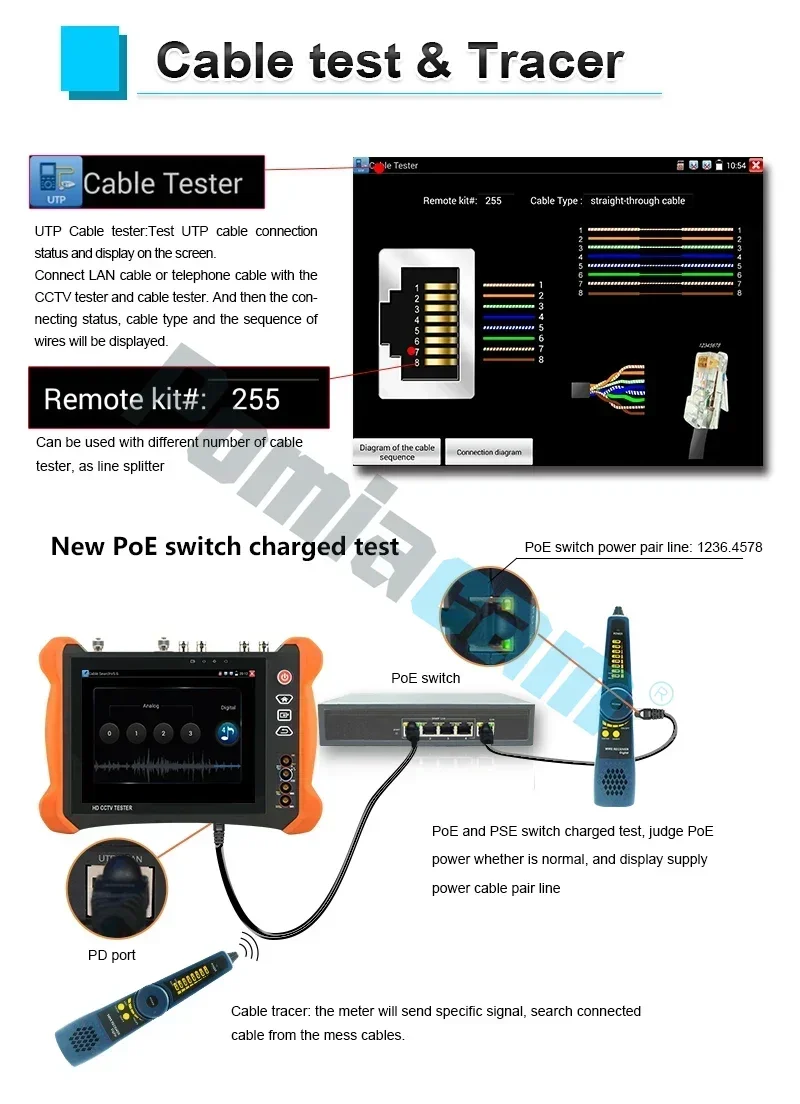

● Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report

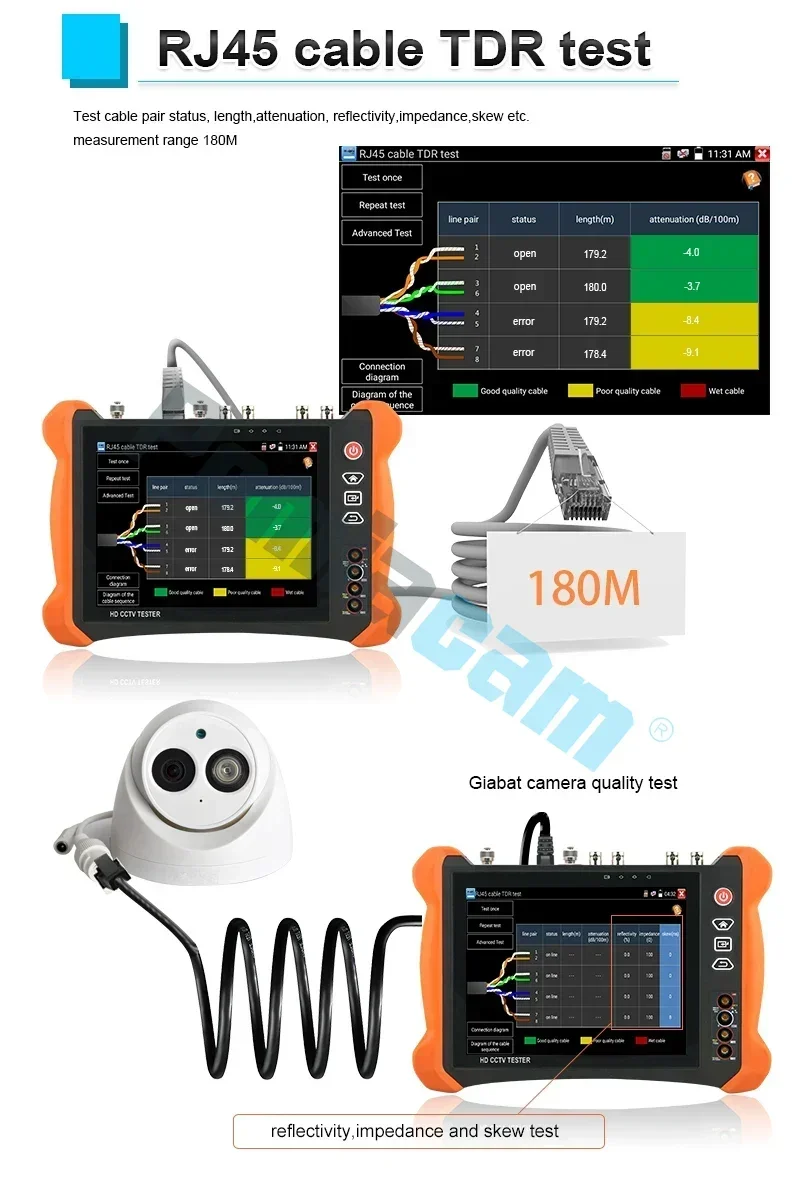

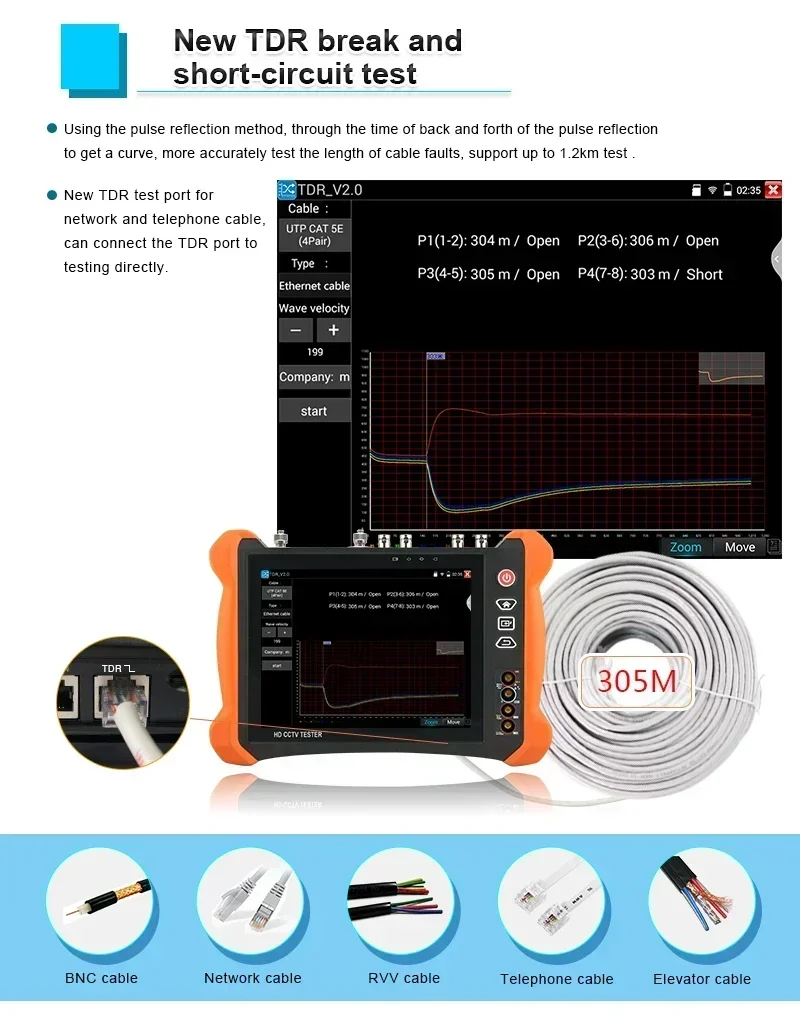

●RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc(180M)
● Cable tracer, search BNC cable, network cable and telephone cable from the mess cables ,locate cable easily and quickly
Other functions:

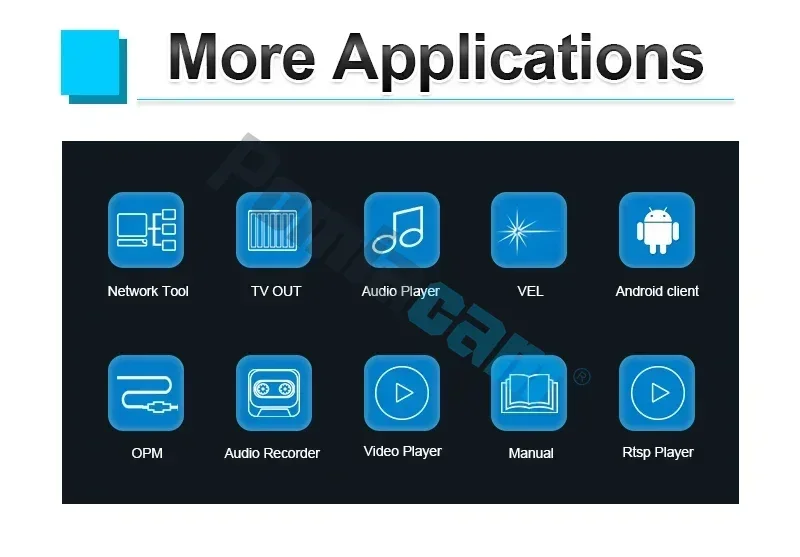

●Network tool: Ping, IP scan, Port Flash,DHCP server, Trace Route

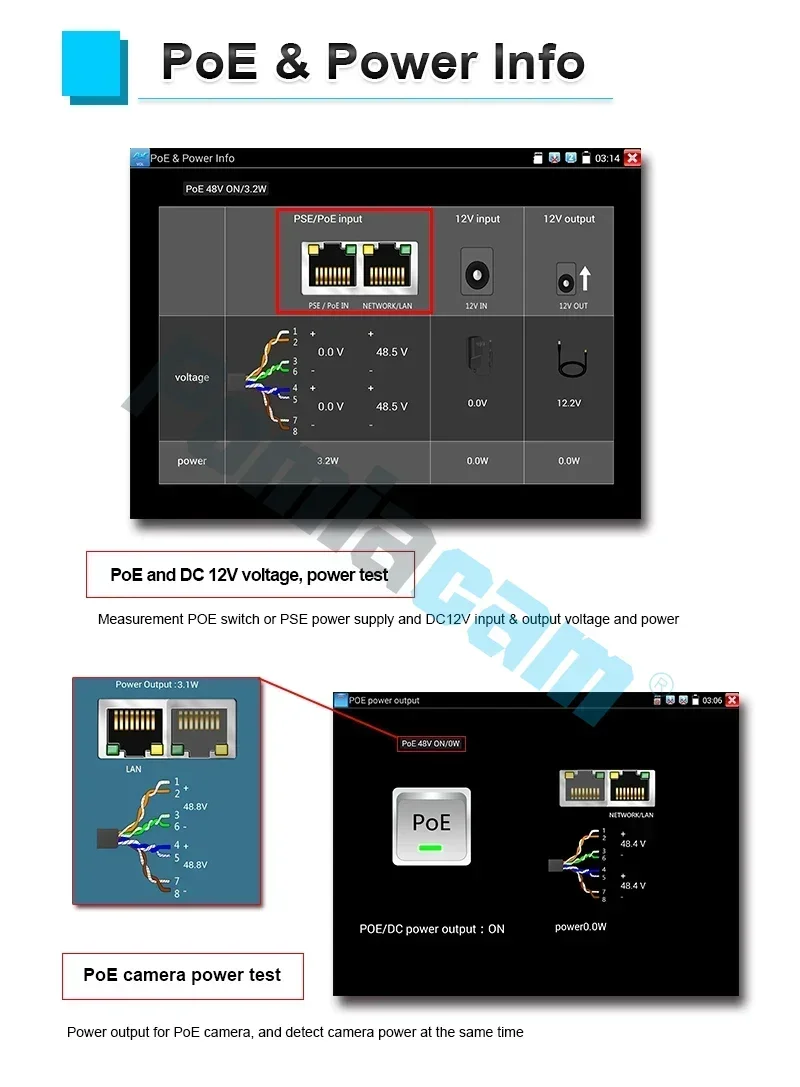

●POE & power information, DC12V& PoE power and voltage output /input measurement

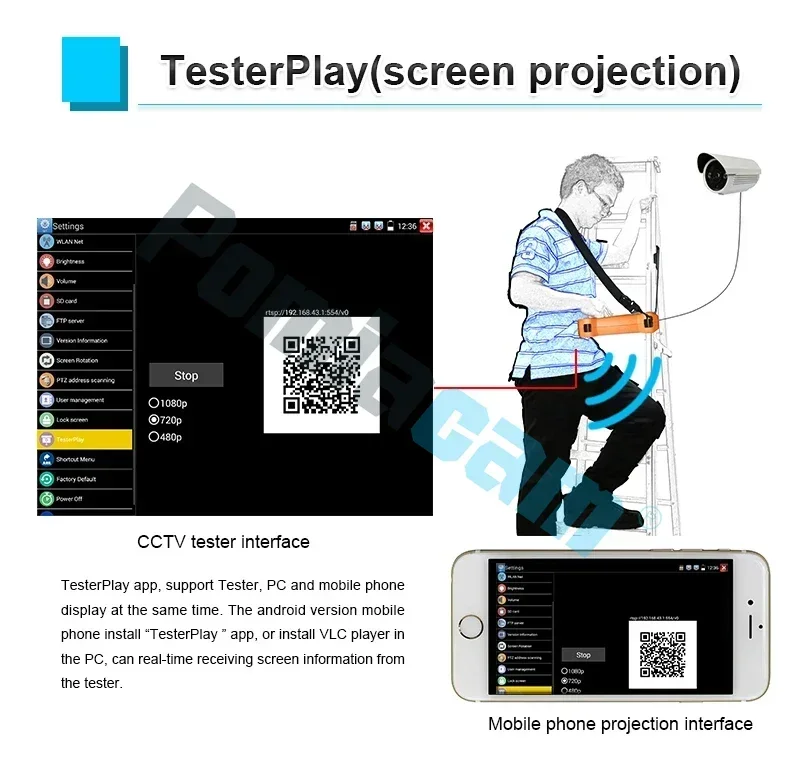

●TesterPlay: Tester, android version mobile phone and PC display at the same time
●Shortcut button, drop-down menu, can select Poe power, IP setting, CVBS, LAN info, HDMI IN etc
● HDM input,720×480p /720×576p /1280×720p /1920×1080p /1024×768p/1280×1024p /1280×900p /1440×900p display,record and snapshot *
●Traffic monitoring, display network port or WIFI connection real-time upload anddownload speeds and other network parameters
●Self -update software, you can install apps with android version
●Media player, 4K video files and MKV/MP4 media files play
●8GB SD card including
●Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools
●7.4 V /7000mAh Lithium Ion Polymer Battery, after fast charging4 hours, working time lasts 13 hours

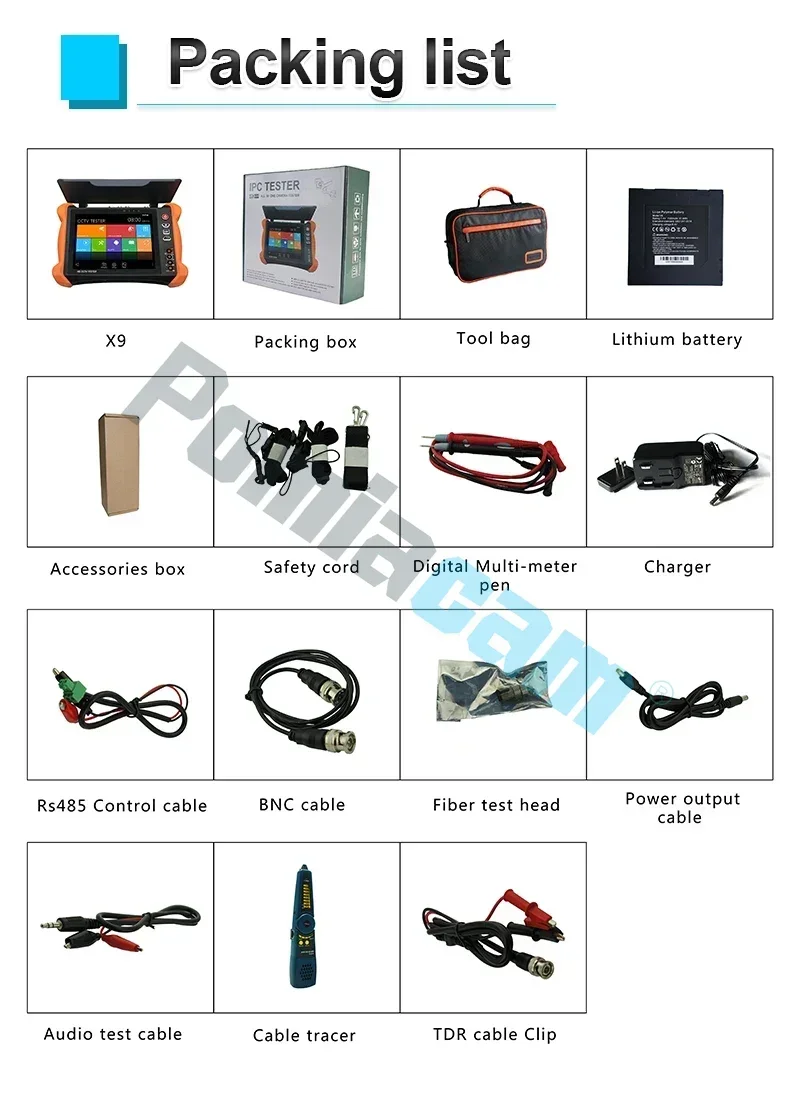

Packing kits:
1).Tester
2).Cable tracer probe
3). Adaptor DC12V 2A/ 8GB SD card
4) Polymer lithium ion battery (7.4V DC 7000mAh)
5). Tool bag / DC Power cable/BNC cable/ RS485 cable/ Audio cable/ Safety cord
6). SC, ST Connector(Only for optical power meter models)
7). Multi-meter test leads one pair of red and black (only for the Multi-meter models)
8). TDR alligator clamp (only for TDR models)
9). Manual
8 inch retina touch screen camera tester
H.265 H.264 IP camera test
8MP TVI AHD CVI camera tester
4K HDMI input camera tester
IPC TEST PRO app compatible
ONVIF camera testing tool
HD SDI camera test device
Portable cable tester for UTP
Network camera auto-detection tool
PoE power measurement tester
Video signal level meter
Wi-Fi enabled camera tester
Color bar video generator
Multi-system color bar generator
Audio recording and playback tester
