- Hign-concerned Chemical: None
- Electronic: Yes
- Material Type: Metal
- Item Weight: 0.12kg
- Item Height: 3cm
- Item Width: 6cm
- Item Length: 18cm
- External Testing Certification: ce
- Power: V
- Model Name: XTOOL TS100
- Software Version: Newest
- Hardware Version: 2024
- Item Type: Other
- Brand Name: XTOOL
- Origin: Mainland China
- Certification: CE
XTOOL OFFICIAL STORE PROMISE
1. All Products in the XTOOL Official Store are 100% Original and Authentic, Can be Checked Through The S/N.
2. XTOOL has US/CA/EU/AU/RU/BR/MX/SA Overseas Warehouse Merchants to Bear the Freight and can be Shipped Within 2 Days.
3. XTOOL Provides 24-hour Online Service and Professional Technical Support
4. We Wish you a Happy Shopping at XTOOL, any Questions Please Contact the Seller
5. After Confirming Receipt, Leave a 5-Star Rating + Send a Picture to Receive a Gift. Please Contact the Seller.

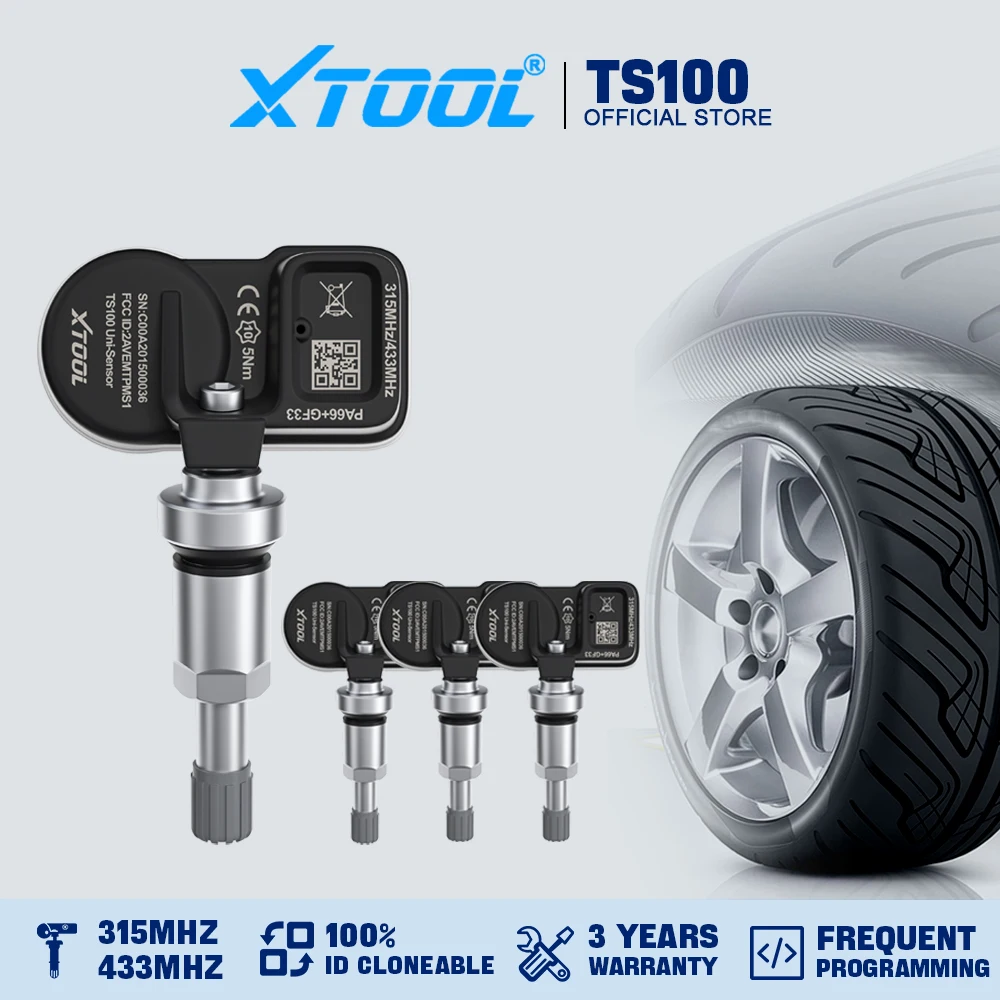

XTOOL TS100 TPMS Sensor is a general-purpose programmable tire pressure sensor developed by Xtool. It can replace the original sensor of vehicles equipped with TPMS. About 99% of the models on the general market are suitable. It integrates 315MHz and 433MHz dual frequency. It can be activated, can be programmed unlimitedly, can be matched. It can monitor tire pressure in real time, which is perfectly built for your driving safety. XTOOL TS100 Better than Autel MX-Sensor, LAUNCH X431 Sensor
XTOOL TS100 TPMS SENSOR (315MHZ + 433MHZ)
Clamp-in OE-Level Programmable Sensor for Tire Pressure Monitoring System (TPMS) 100% Cloneable + Fits 98% Mainstream Vehicles. XTOOL TS100 Sensor 2 In 1 (315 + 433MHz), as a programmable universal sensor featuring in Clamp-in and Snap-in options which are both smart and efficient specially built for sensor replacement with maximum application coverage, ease of use, OE-level fit, performance and reliability, will help users economize the cost of diagnostic work and raise the repair efficiency greatly.
➤2 In 1 Feature: Only 1 Sensor to service nearly every TPMS equipped vehicle to lower repair cost and to have higher install efficiency with no relearn required. XTOOL TS100 TPMS Sensor is 100% cloneable with the original sensor ID and put in the same position.

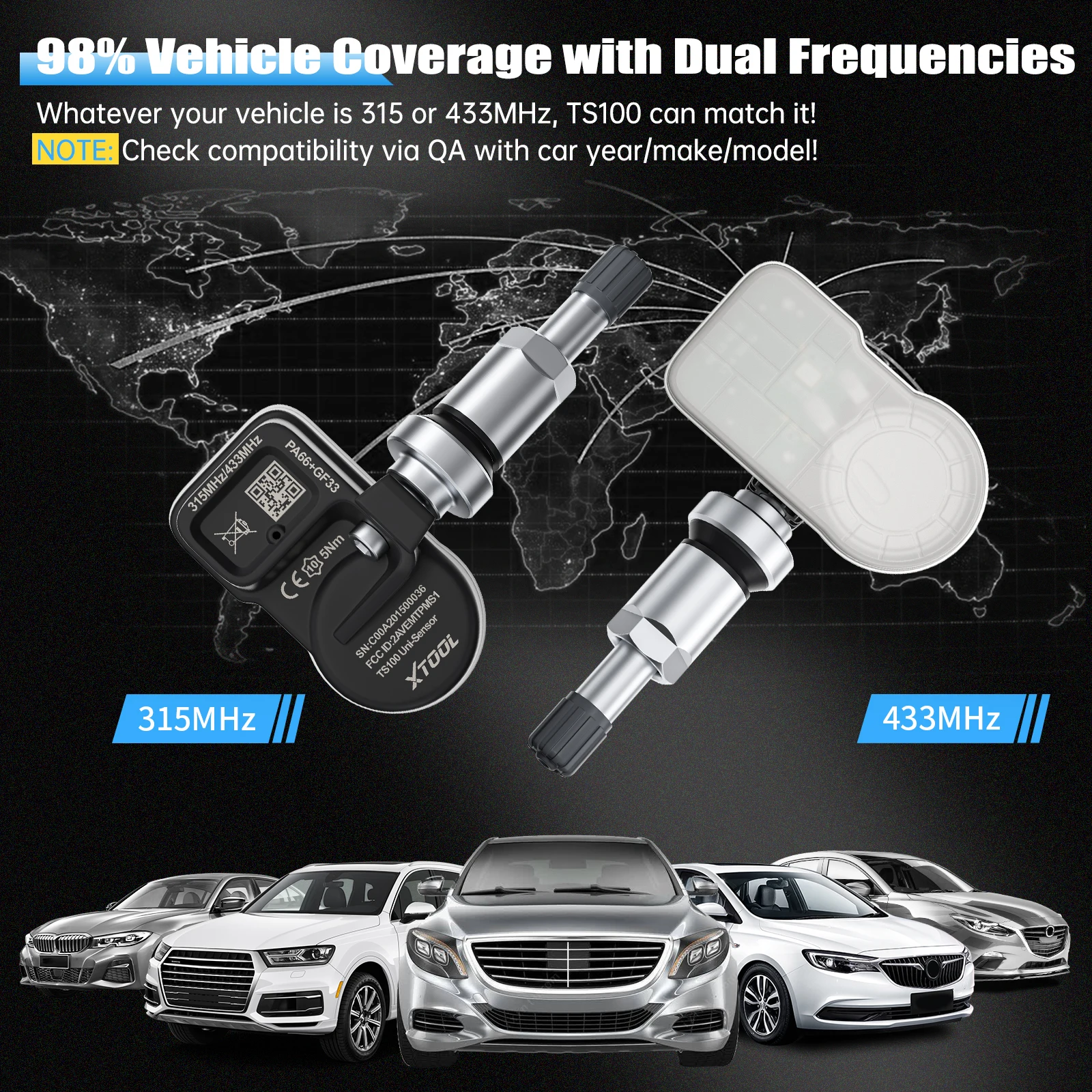

➤98% Coverage: Featuring the latest and most comprehensive coverage of 98% OE sensors on the market, and up to 90% of North American, European and Asian vehicles, it nearly fits all types of wheels on the road.

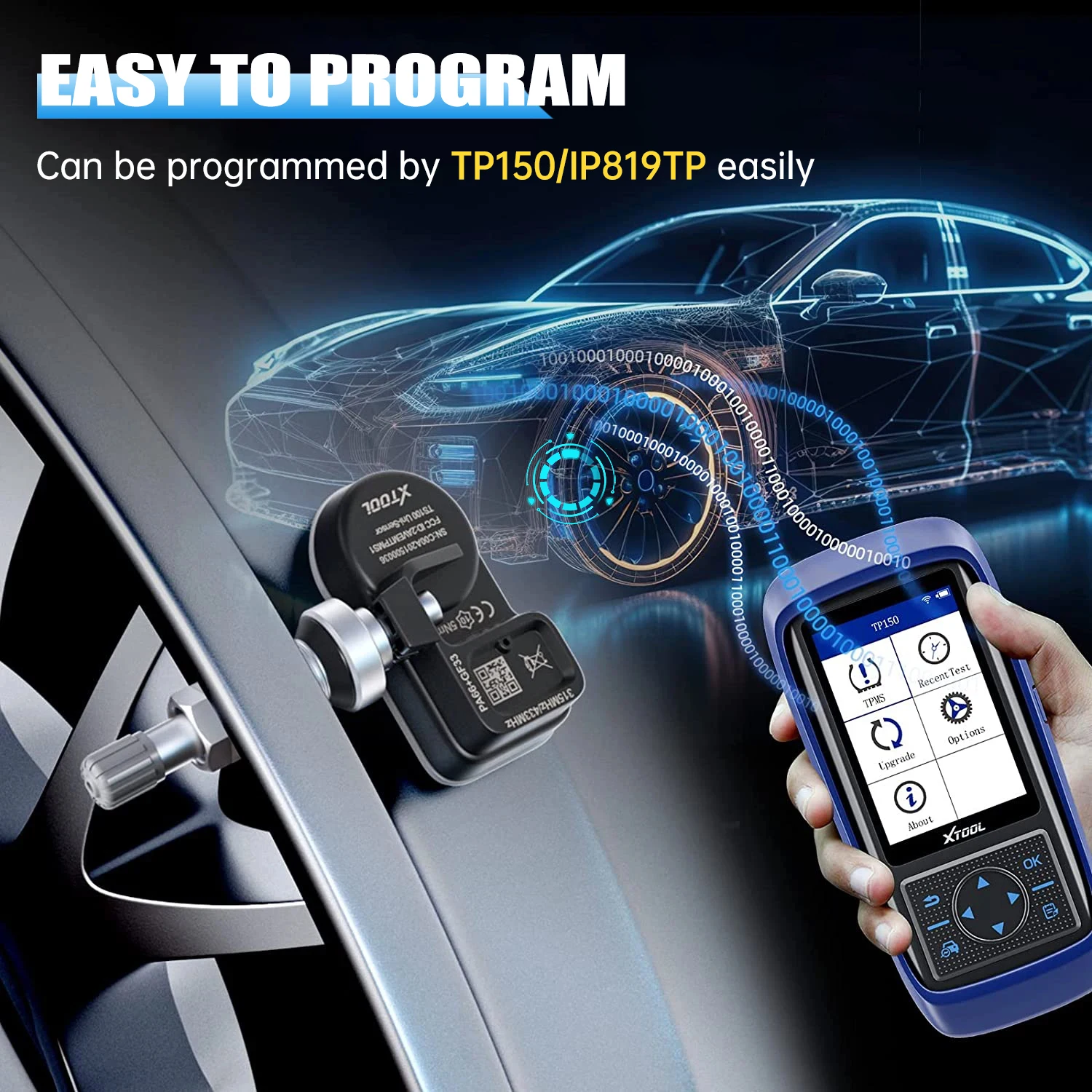

➤Easy to use: XTOOL TS100 sensor signal strength allows sensors to be easily programmed wirelessly even when they have already been mounted to the wheel. Moreover, the unique PRESS release valve design makes the manual sensor replacement much easier.
➤Solid & Durable: TS100 TPMS Sensor with an automotive grade battery, a replaceable aluminum/ rubber valve stem to withstand cold, hot and resistance corrosion, and a high-precision air valve to prevent air leakage, this sensor ensures superior stability and performance.
➤Warranty: XTOOL TS100 TPMS Sensor Guarantees that the sensor is free from material and manufacturing defects for a period of 24 months or for 24,000 miles. Each sensor is marked with a series number to track the sensor quality from the factory to ensure that only the highest quality parts are installed.
XTOOL TS100 TIRE PRESSURE MONITORING SYSTEM UTILITY TOOL
➤Universal Coverage for 98% of Vehicles: This means it’s highly compatible, making it a great choice for working with a wide range of vehicles, which is useful for professional mechanics or car enthusiasts who work on different makes and models.
➤2-IN-1 Frequencies (315/433MHz): The dual-frequency capability allows it to work with both the 315MHz and 433MHz TPMS sensors, covering most vehicles on the road today.
➤Cost-Effective: It’s designed to be a budget-friendly option, providing good value by reducing the need for multiple tools or costly sensor replacements.
➤Wireless Programming for 2 Cars’ Sensors at Once: This feature enhances efficiency by allowing you to program sensors on two vehicles simultaneously, saving time and effort.
XTOOL TS100 INSTALLATION TUTORIAL
1. Loose the Tire: Remove the valve cap and core and deflate the tire.
2. Dismount the Tire: Clamp the tire onto the tire changer, and adjust the valve at 1 o’clock relative to the tire separation head. Insert the tire tool and lift the tire bead onto the mounting head to discount the head.
3. Dismount the Sensor: With a screwdriver remove the fastening screw and sensor from the Valve stem, then loosen the nut and remove the valve.
4. Mount Sensor and Valve: Slide the valve stem through the valve hole of the rim. Tighten the screw-nut with 4.0 Nm with the help of the positioning pin. Assemble the sensor body against the rim and tighten the screw.
5. Mount the Tire: Place the tire on the rim, making sure that the valve faces the separation head at an angle of 180 degrees. Mount the tire over the rim.
Notice
1. The TPMS sensor assemblies are replacement or maintenance parts for vehicles that have a factory installed TPMS.
2. Make sure to program the sensor by XTOOL sensor programming tools for your specific vehicle make, model and year before installation.
3. Do not install programmed TPMS sensor in damaged wheels.
4. In order to guarantee optimal function, the sensor may only be installed with original valves and accessories provided by XTOOL.
5. Upon completion of installation, test the vehicle TPMS systems using procedures described in the original manufacturer' s user guide to confirm proper installation.
6. Each time a tire is serviced or dismounted, or if the sensor is removed or replaced, it is mandatory to replace the rubber grommet, washer, nut and valve core with our parts to ensure proper sealing. It is mandatory to replace the sensor if it is extremely damaged.
