- Charger included: N
- Battery Included: No
- Hign-concerned Chemical: None
- Accessory Type: Battery Accessories
- Brand Name: Deligreencs
- Origin: Mainland China

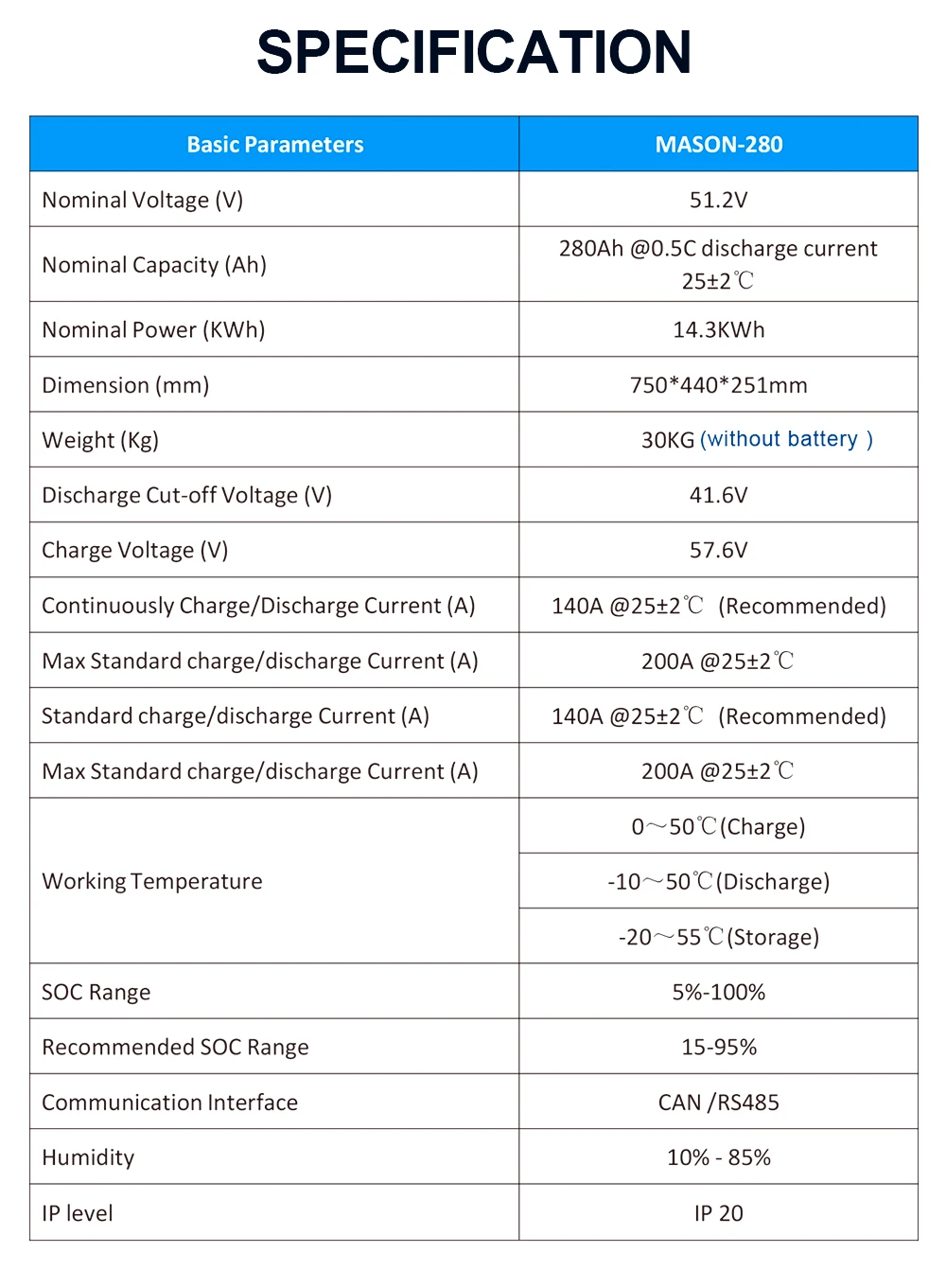

- Rated energy: 14.336KWH
- Configuration: 1P16S
- Nominal voltage: 51.2V 48V
- Working voltage: 42V-58.4V
- Capacity: 280AH 310AH 320AH
- Water proof: IP25
- Communication mode: CAN RS485
- Battery Case: Without Battery
- Weight: 30kg

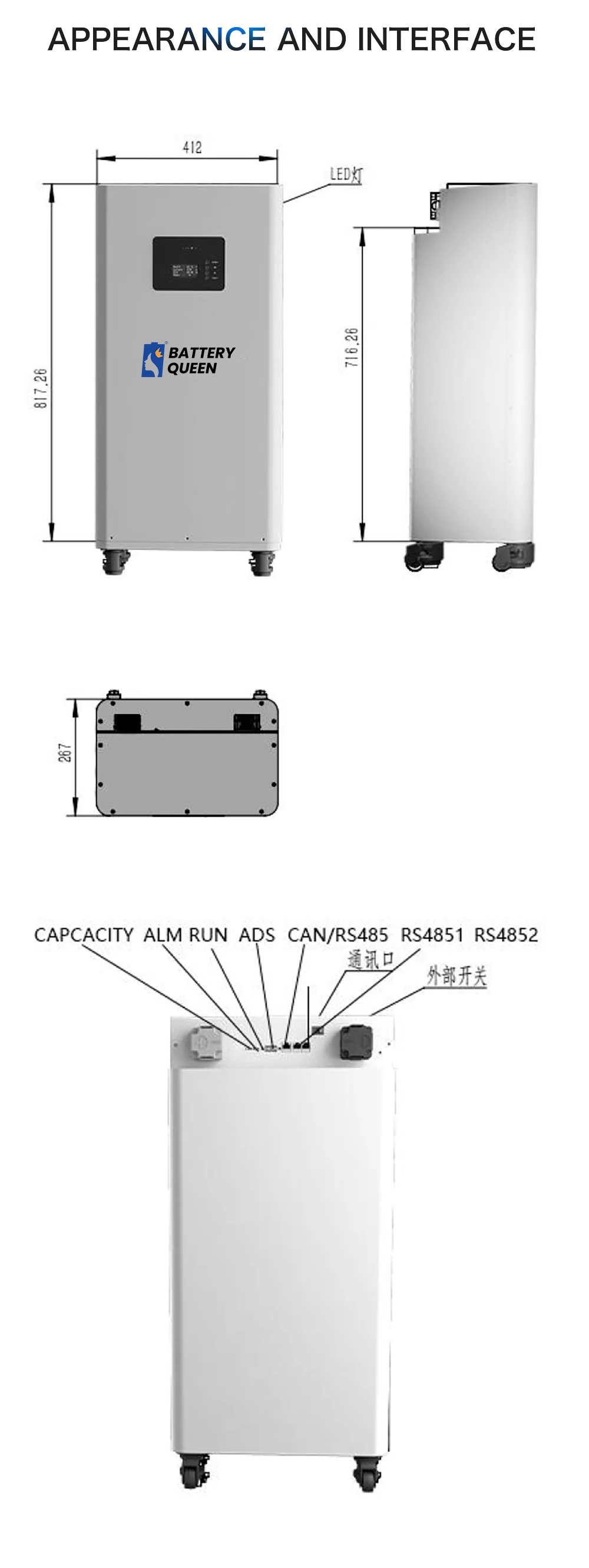

- Size: L97cm*W50cm*H 36cm

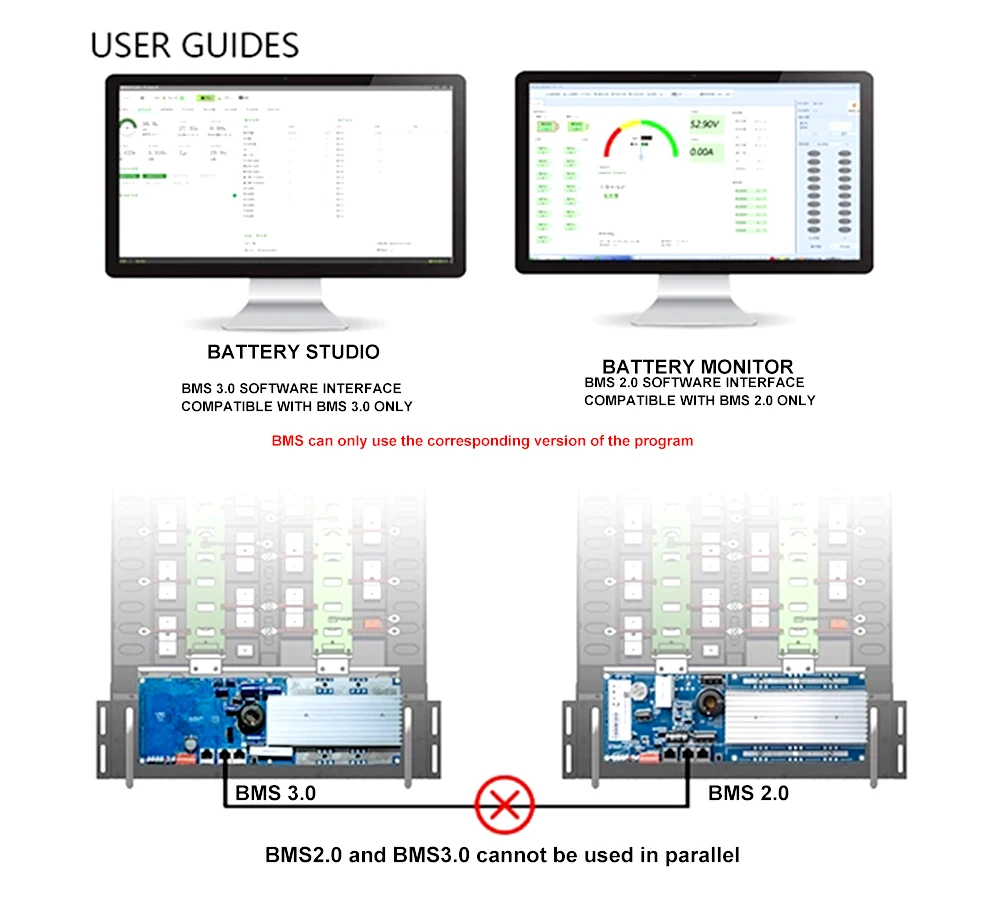

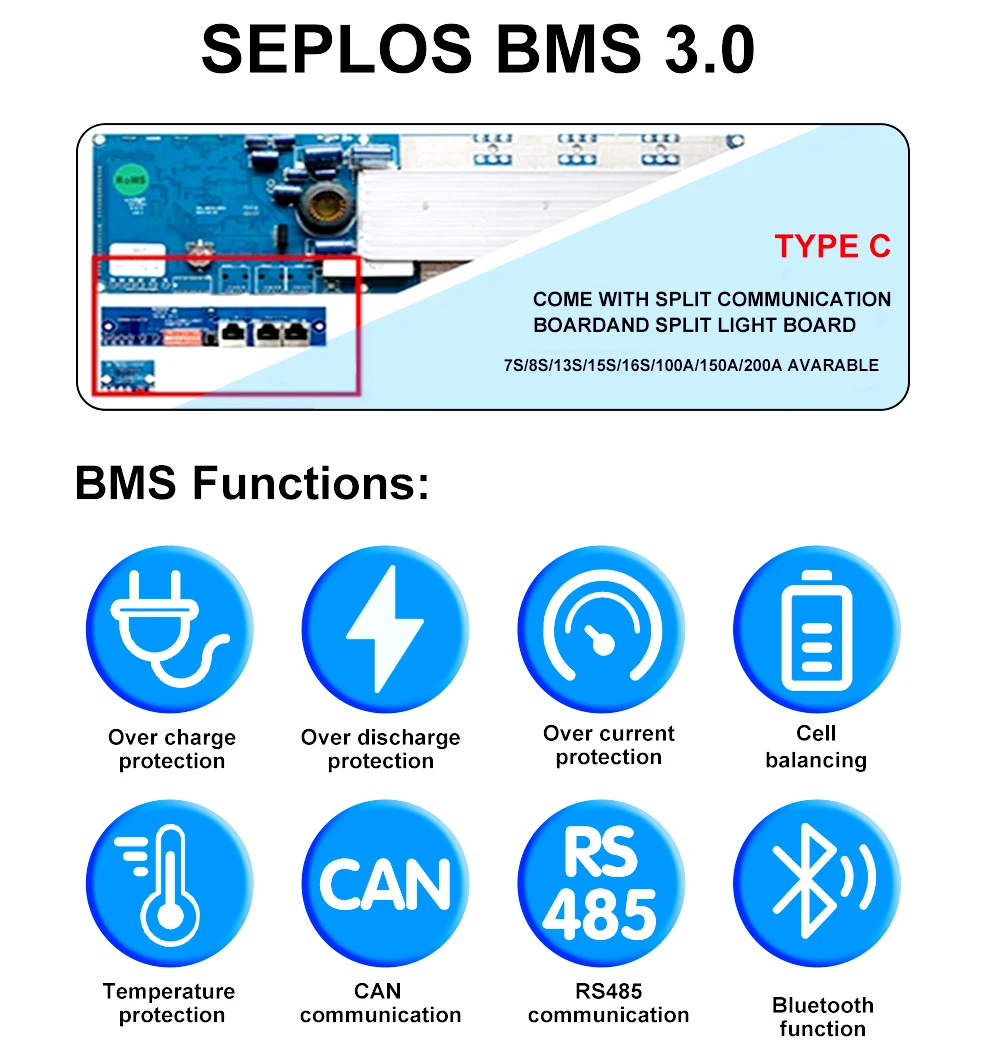

- 3.0 version: Seplos BMS
- Ship from: Poland
- Door to door: T ax free
- Free shipping: Yes

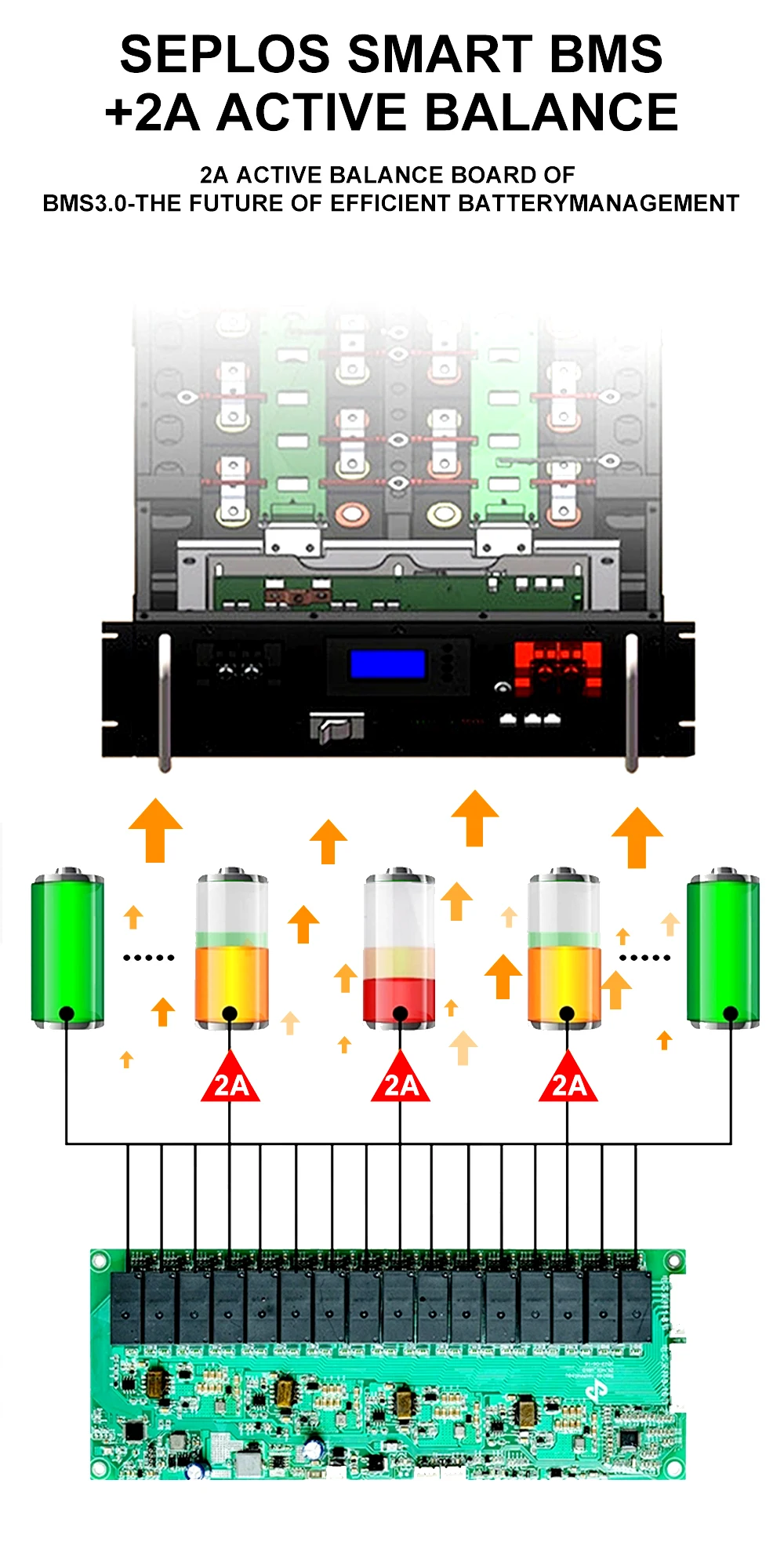

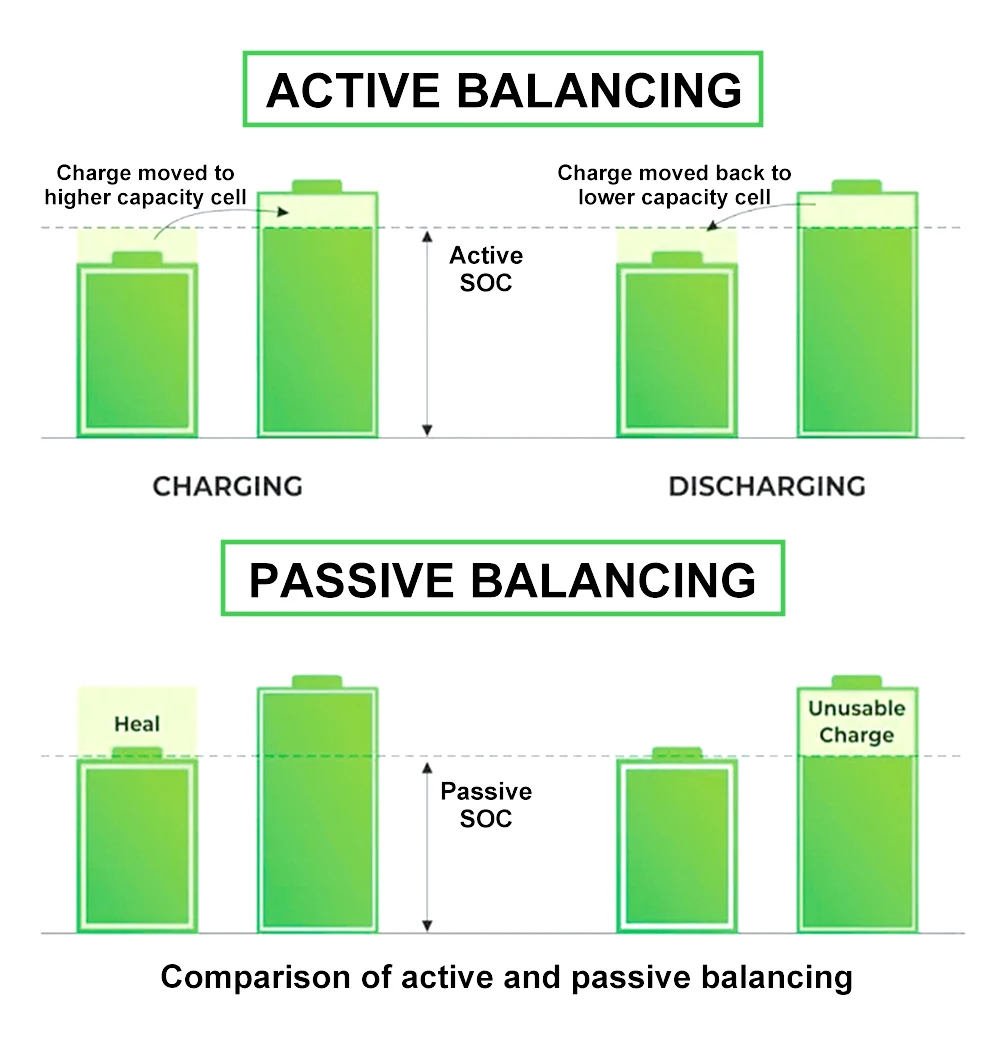

- Balance current: 2A

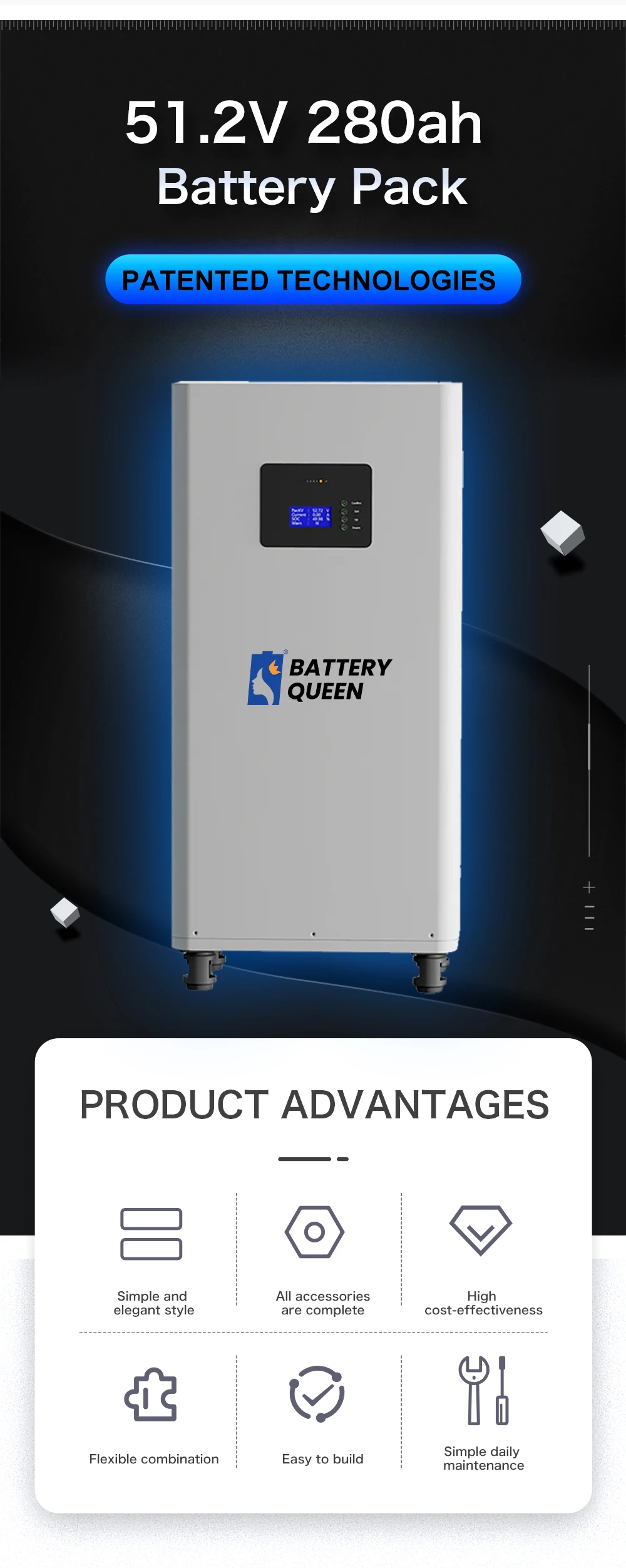

Poland Lifepo4 Battery 3.0 Seplos BMS 48V 280AH 310AH 320AH Power Bank Stand
Battery Case Kits 2A Balance RechargeableSolar
Without Battery only battery case with smart 3.0 Seplos BMS
Dear customer :
Thanks for your attention and trust of 51.2V 280AH 320AH battery case.It built-in Seplos
smart BMS/easy installation/ 24+7 on-line service/Door to door /Tax free.Most EU customer order battery
kits to built 48V 280AH power bank for home solar storage.Battery case very popular in EU.Every
batches will be sold out before arrival.It’s out of stock in poland warehouse now.we’d love to reservation
for you .New batches expected arrival at the end of January if everything goes well.
1 we will help you extend delivery date in Shop Around World to protect your profit !
2 we will update tracking information to you in time !
3 If you order EVE280K grade A 6000 cycles together,we additional give you 2% discount.
If you have any question please feel free to reach out to Deligreen Team.

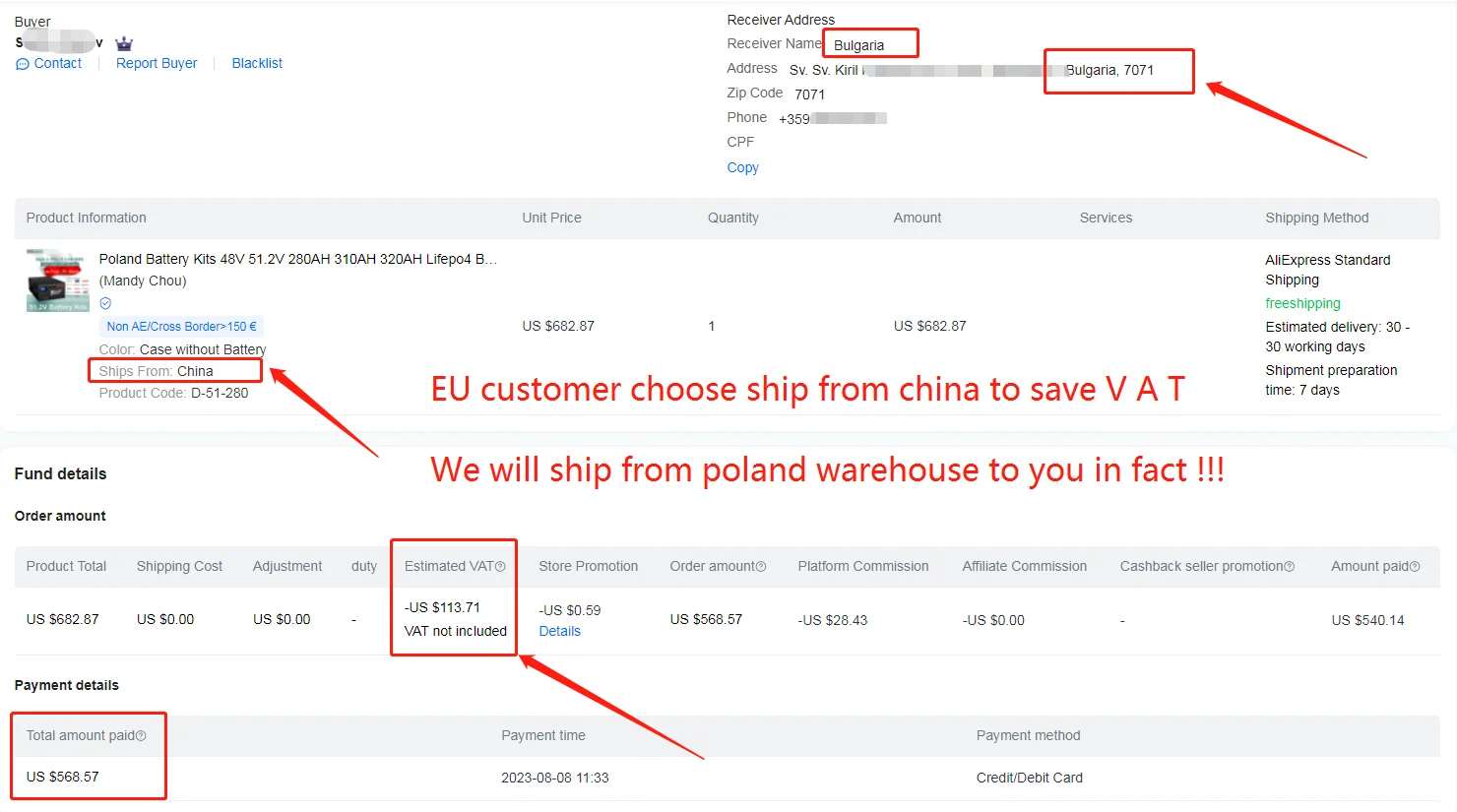

EU cutomer can choose ship from china to save VAT when you place an order !
we will ship it to you from poland in fact.VAT will automatically reduce when you pay!

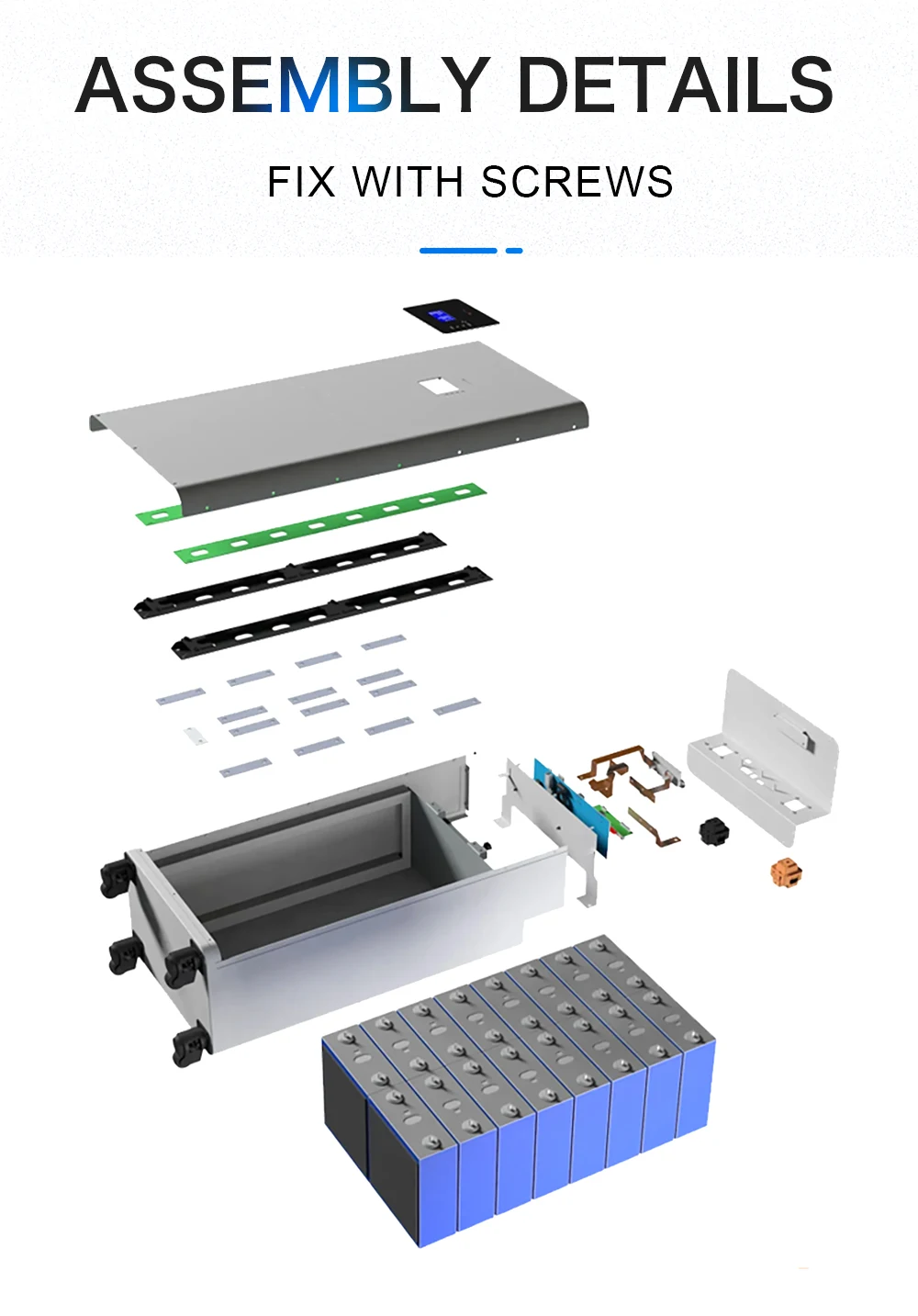

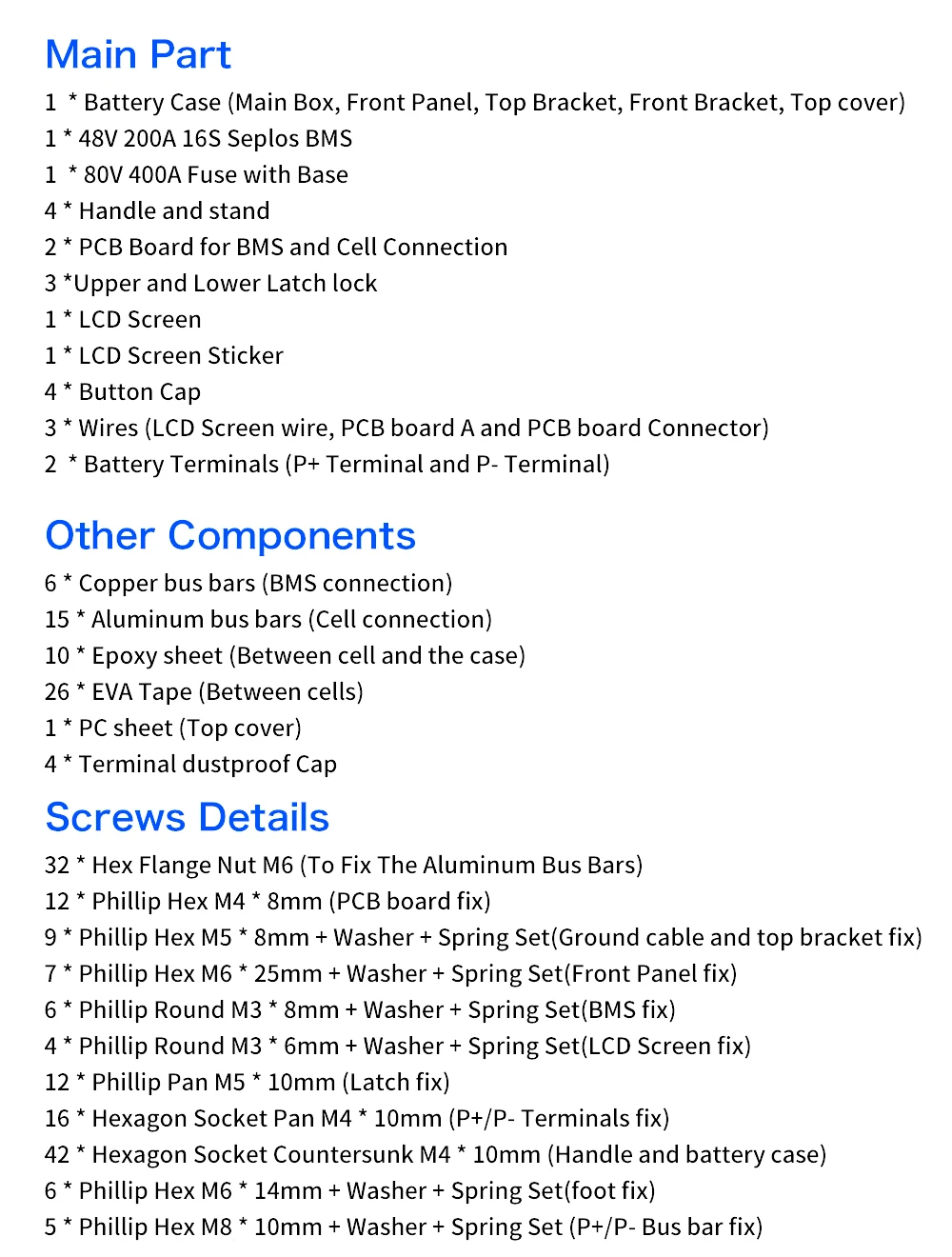

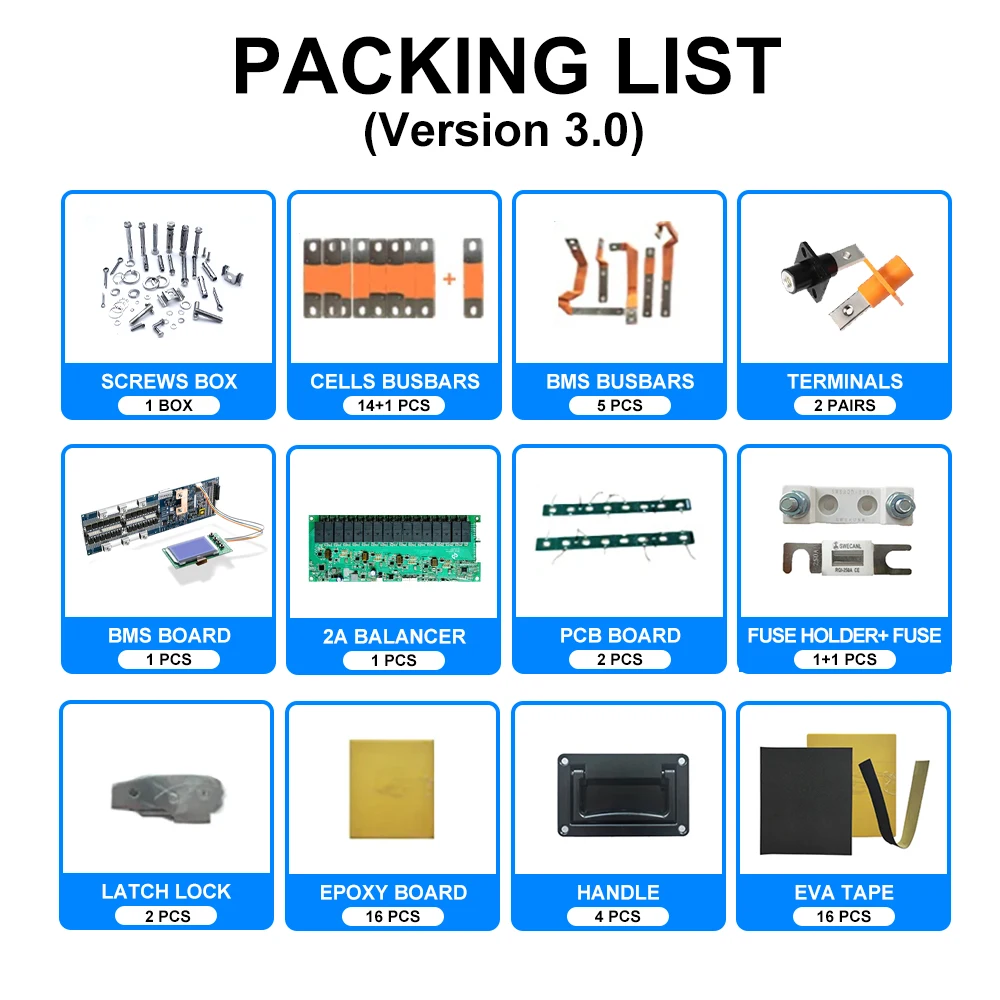

Packing list :
Screws Details:
12 * Phillip Hex M4 * 8mm (PCB board fix)
9 * Phillip Hex M5 * 8mm + Washer + Spring Set(Ground cable and top bracket fix)
7 * Phillip Hex M6 * 25mm + Washer + Spring Set(Front Panel fix)
10 * Phillip Round M3 * 8mm + Washer + Spring Set(BMS and LCD Screen fix)
12 * Phillip Pan M5 * 10mm (Latch fix)
16 * Hexagan Socket Pan M4 * 10mm (P+/P- Terminals fix)
42 * Hexagan Socket Countersunk M4 * 10mm (Handle and battery case)
4 * Phillip Hex M6 * 14mm + Washer + Spring Set(foot fix)
5 * Phillip Hex M8 * 10mm + Washer + Spring Set (P+/P- Bus bar fix)
8 * Phillip Round M5 * 10mm + Washer
Other components includes
6 * Copper bus bars (BMS connection)
15 * Aluminum bus bars (Cell connection)
10 * Epoxy sheet (Between cell and the case)
26 * EVA Tape (Between cells)
1 * PC sheet (Top cover)

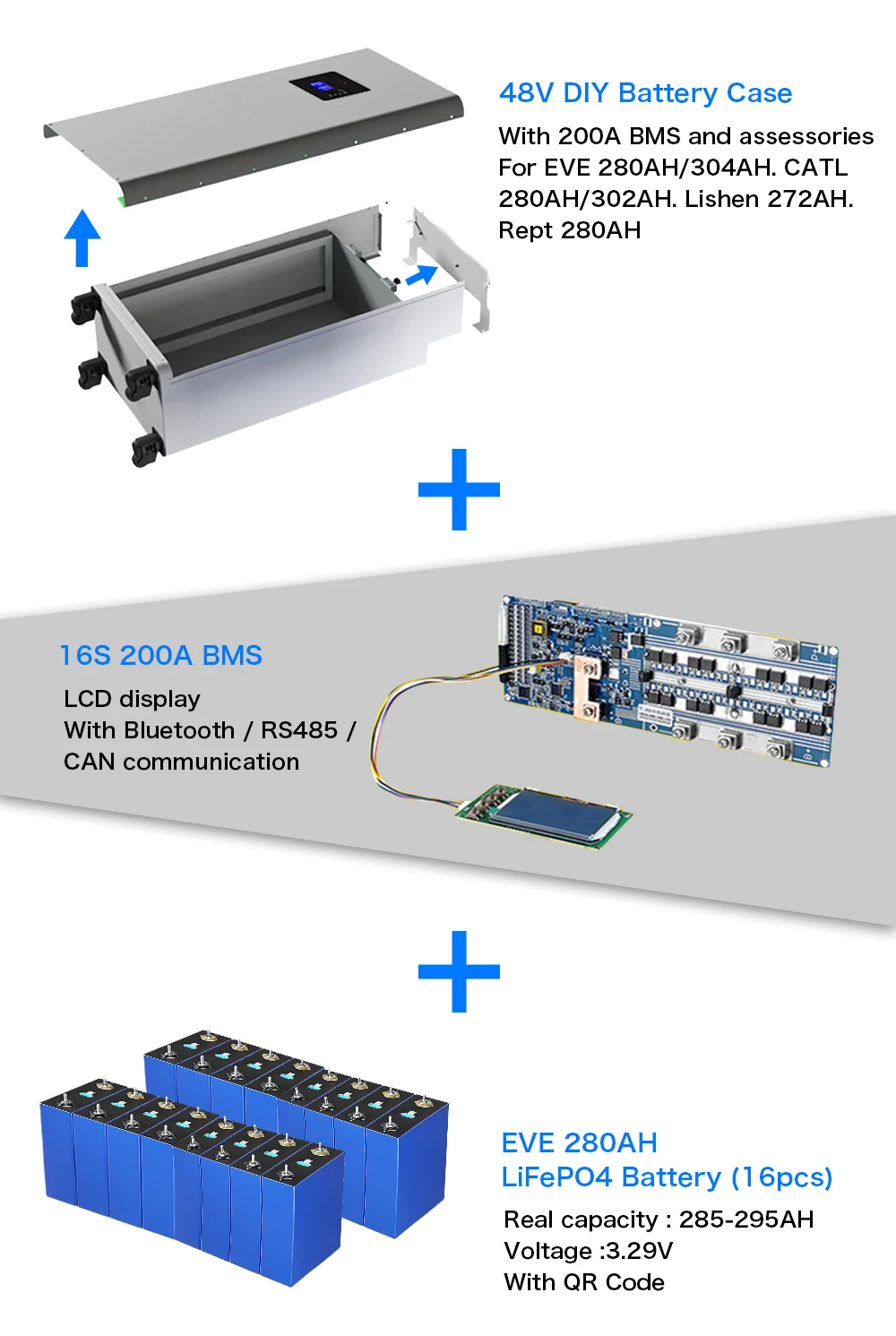

Packing List (Without Cells)

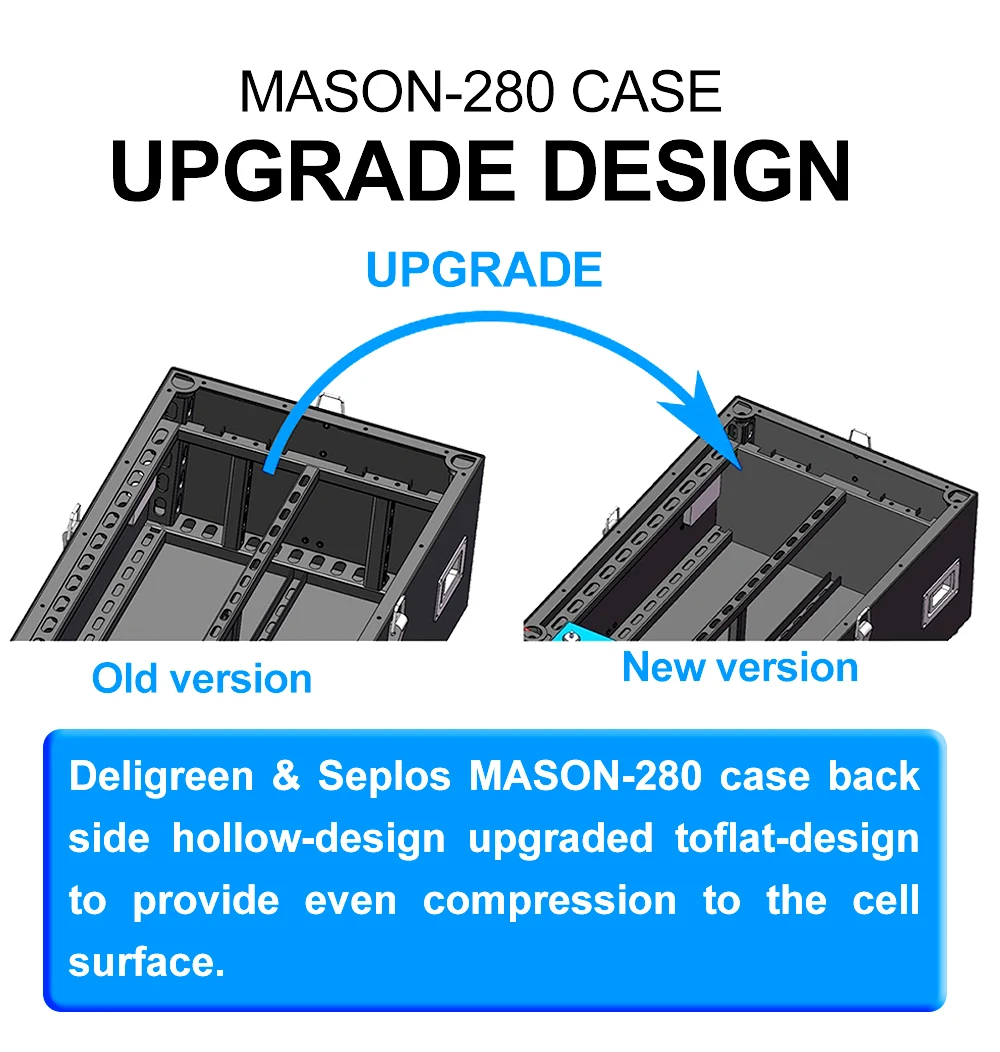

1 * Battery Case (Bottom case, Front Panel, Top Bracket, Front Bracket, Top cover)

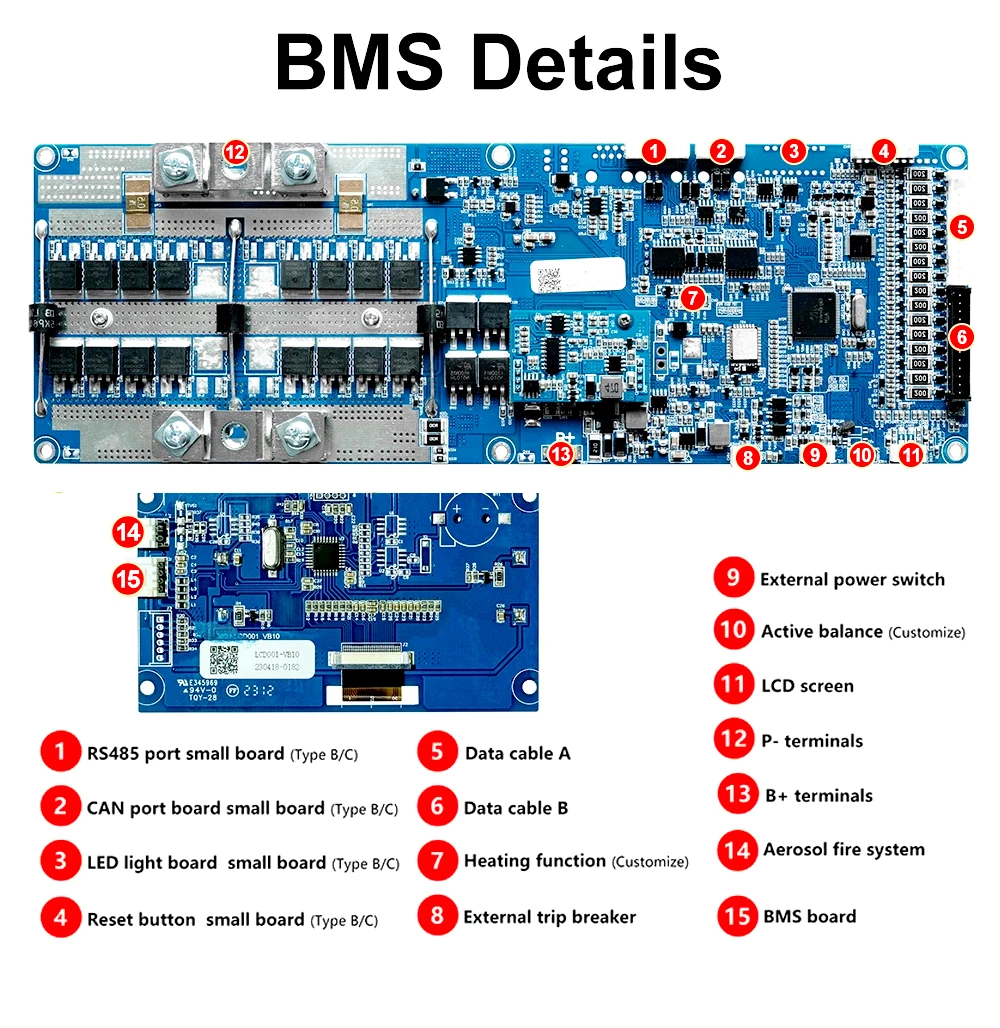

1 * 48V 200A 16S BMS
1 * 58V 400A Fuse
4 * Handle
2 * PCB Board for BMS and Cell Connection
3 * Upper and Lower Latch lock
1 * LCD Screen
1 * LCD Screen Sticker
4 * Button Cap
3 * Wires (LCD Screen wire, PCB board A and PCB board Connector)
2 * Battery Terminals (P+ Terminal and P- Terminal)
Battery pack wiring (Pack to pack)
Stack the battery packs onto the base. (Maximum 4 packs can be stacked.)
Connect cables between packs.
Connect cable with inverter
